TH321 · Free and Forced Convection

Experimental Apparatus for the Study of Heat Transfer by Free or Forced Convection

Laboratory experiments
  • Free and forced convection
  • Convective heat transfer on different geometries
    • flat plate
    • cylinder
    • tube bundle
  • Experimental determination of the Nusselt number
  • Characteristic variables of heat transfer
    • Nusselt number
    • Reynolds number
  • Flow formation and heat transfer
  • Local heat transfer around the cylinder
  • Temperature distribution on the flat plate
  • Transient heating process

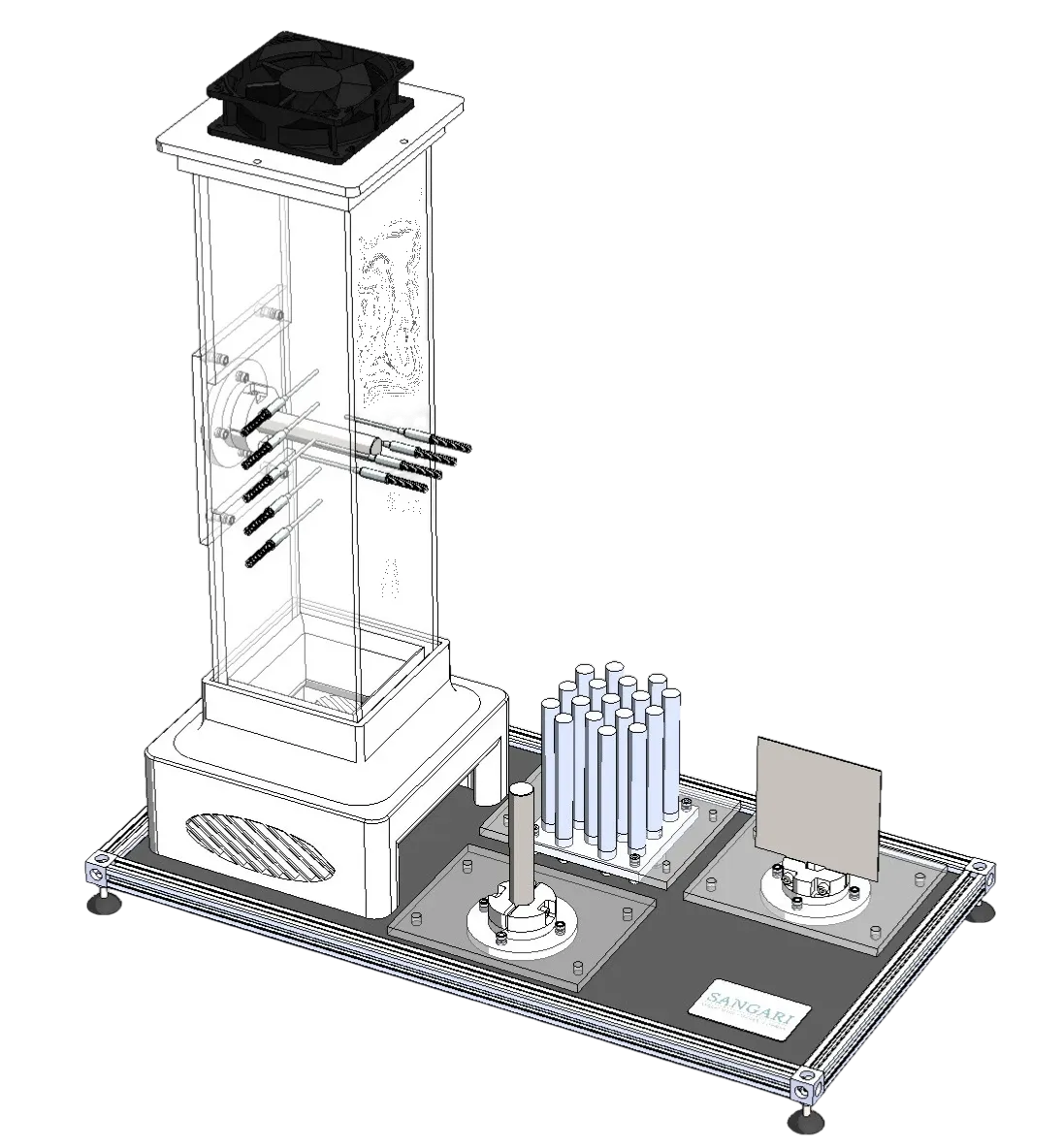

TH321 - free and forced convection apparatus
Overview

    A vertical air duct with a variable-speed fan, in which one of four interchangeable heaters is studied in free or forced convection.

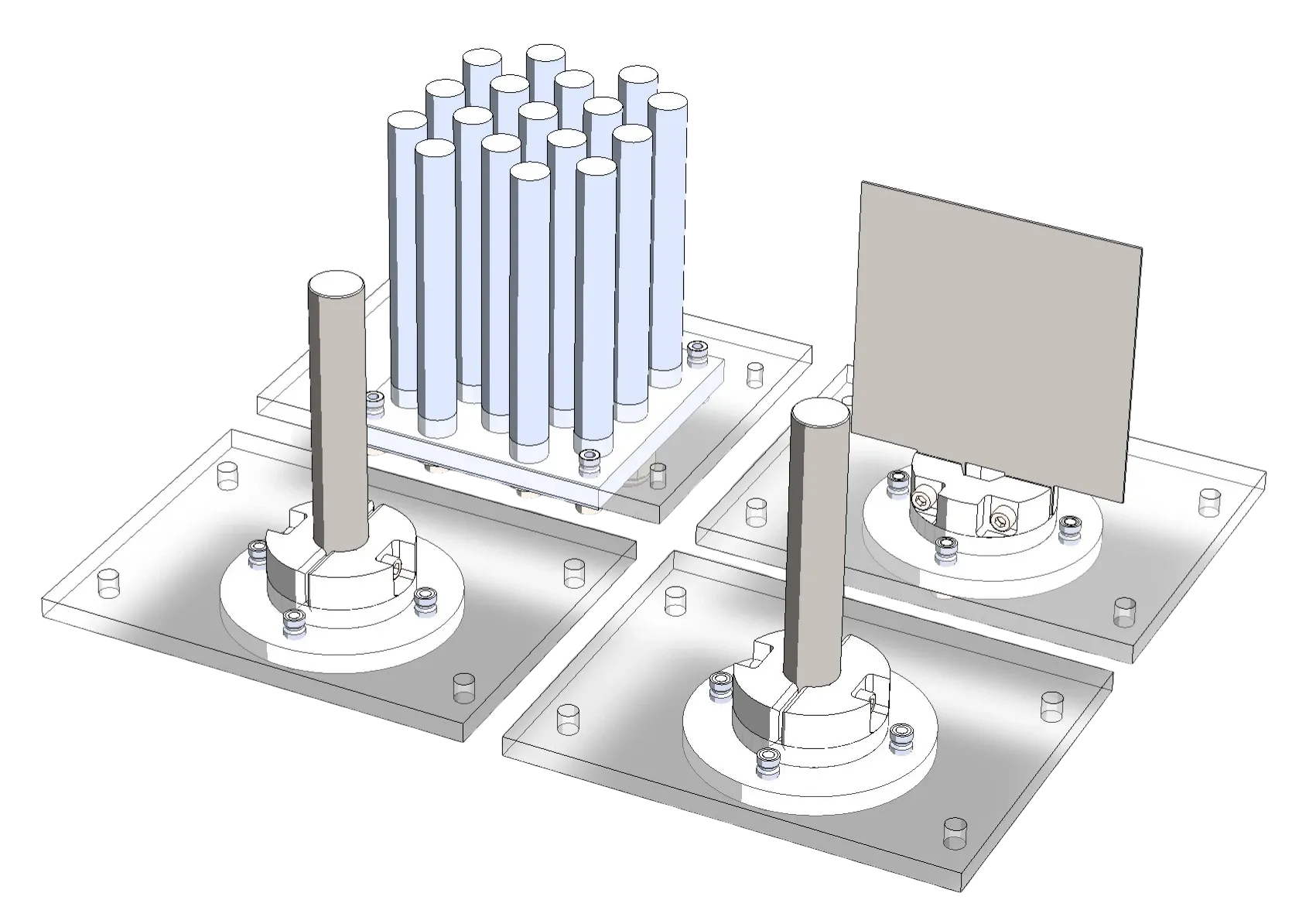

TH321 - the apparatus with the heated cylinder fitted, and its four interchangeable heaters
Clear plexiglass tunnel
120x120x600 mm
Temperature sensors
1 at the air inlet, 1 at the air outlet, 1 inside each of the heaters and 1 for heater surface measurements
Installed heater
One of the four interchangeable heaters
quick and tool-free installation
Variable-speed fan
free or forced convection
Base plate
Heated cylinder
Tube bundle
Flat plate
Heated foil cylinder
TH321 - the apparatus with the heated cylinder fitted, and its four interchangeable heaters
Clear plexiglass tunnel
120x120x600 mm
Temperature sensors
1 at the air inlet, 1 at the air outlet, 1 inside each of the heaters and 1 for heater surface measurements
Installed heater
One of the four interchangeable heaters
quick and tool-free installation
Variable-speed fan
free or forced convection
Base plate
Heated cylinder
Tube bundle
Flat plate
Heated foil cylinder
TH321 working principle
Real Time Data Acquisition and Control Software

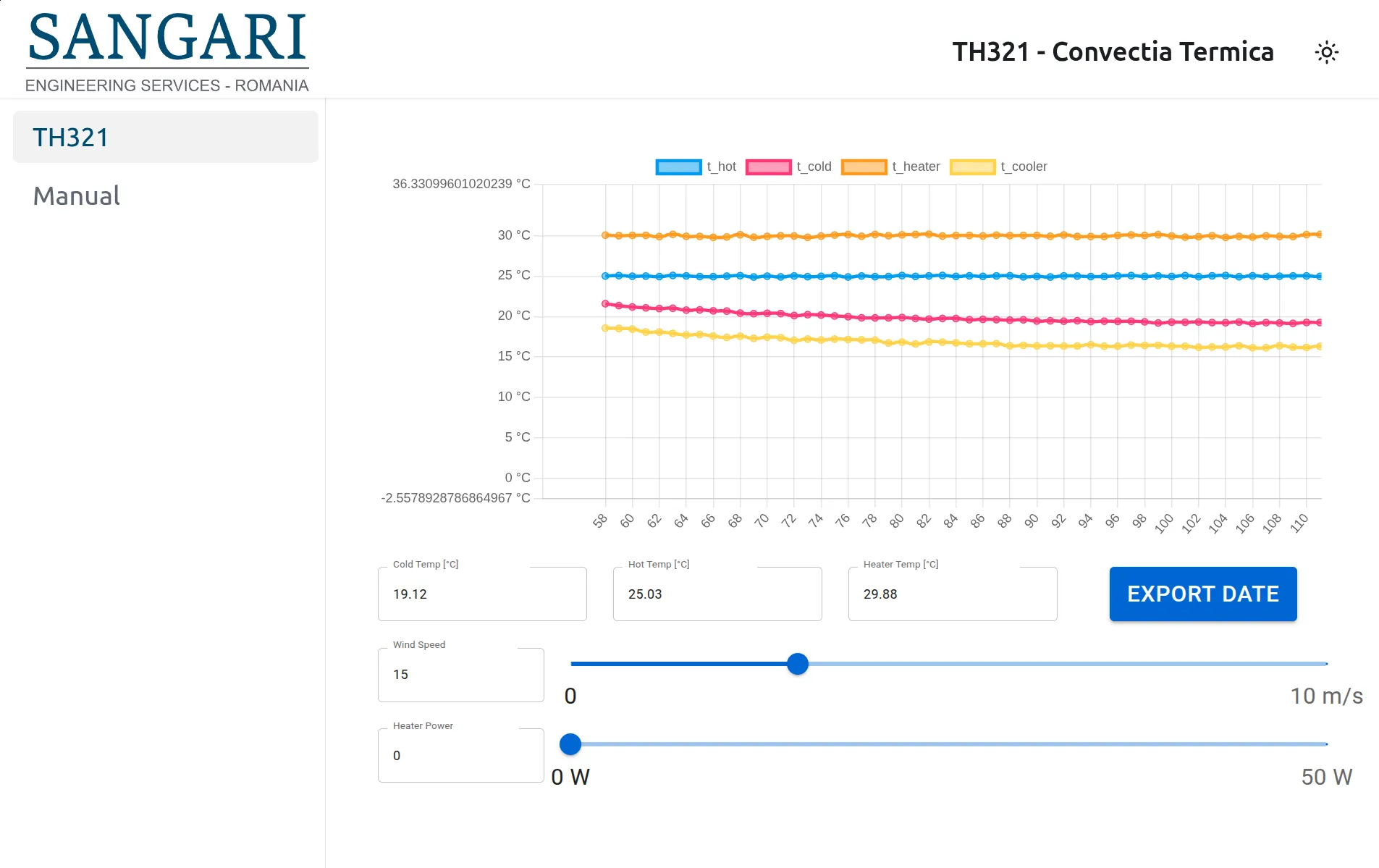

    TH321 software interface
    TH321 software interface
Connectivity
    Internet LAB TH321 Live Data On-site student Live Data Remote student WiFi

    The apparatus is equipped with Sangari Connect technology, which allows students to view live data and control the device both from computers in the lab and remotely.

General Features
  • Study of heat transfer by free and forced convection
  • Adjustable heating level
  • Adjustable air fan flow rate
  • Temperatures, heating load and air velocity displayed in the software interface
E-learning Platform
    Access to the Sangari eLearning platform, developed specifically to support modern education. Through this platform students can access courses, interactive materials and practical exercises directly from their own devices, enabling active, collaborative learning suited to a digital generation.
Heating Elements
    Bundle of 23 tubes (variable heating position)
      Heating power 40 W
      Heat transfer surface 31.4 cm²
    Cylinder with uniform surface temperature
      Heating power 40 W
      Heat transfer surface 110 cm²
    Plate
      Heating power 40 W
      Heat transfer surface 110 cm²
    Cylinder with heating foil for the study of local heat transfer
      Heating power 40 W
      Heat transfer surface 110 cm²
Air Duct
    Flow cross-section 120x120 mm
    Height 0.6 m
Axial Fan
    Maximum flow rate 310 m³/h
Measuring Ranges
    Air velocity 0…6 m/s
    Temperature 0…120 °C (4 sensors)
    Heating power 0…50 W
220V
L 670 W 880 H 350 mm
PC
Student's Handbook

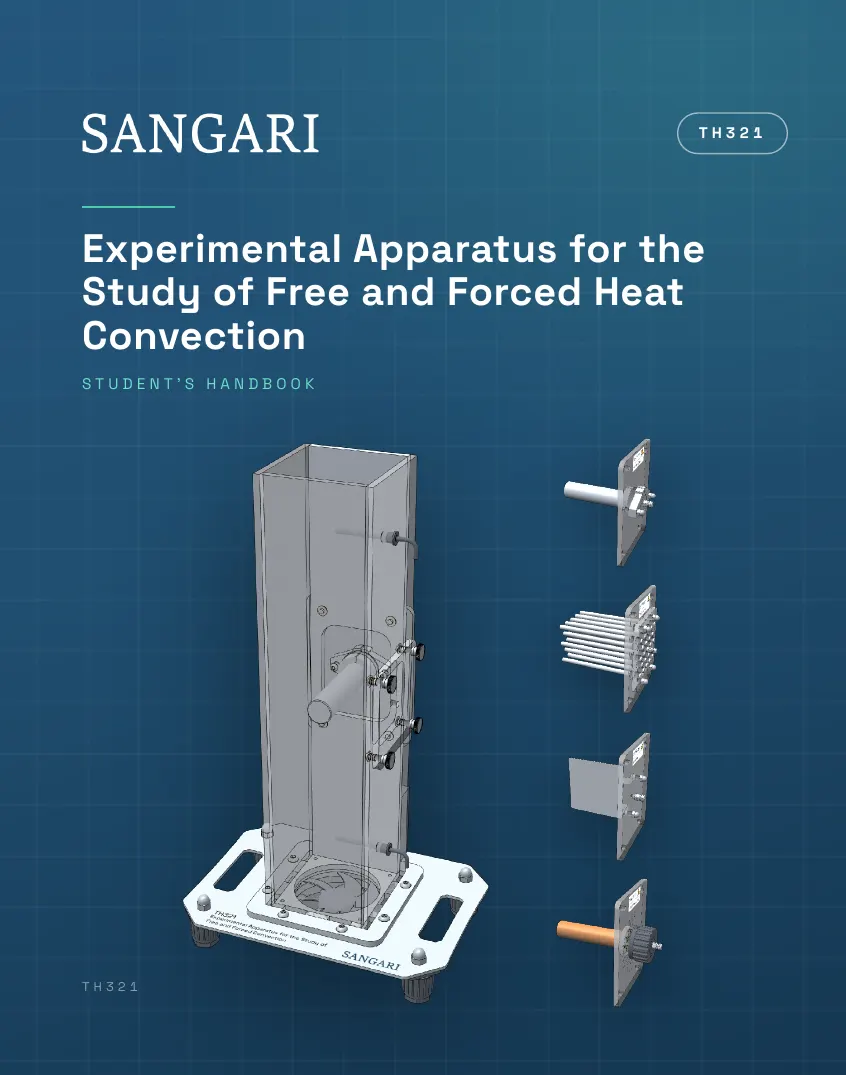

    TH321 Student's Handbook, page 1

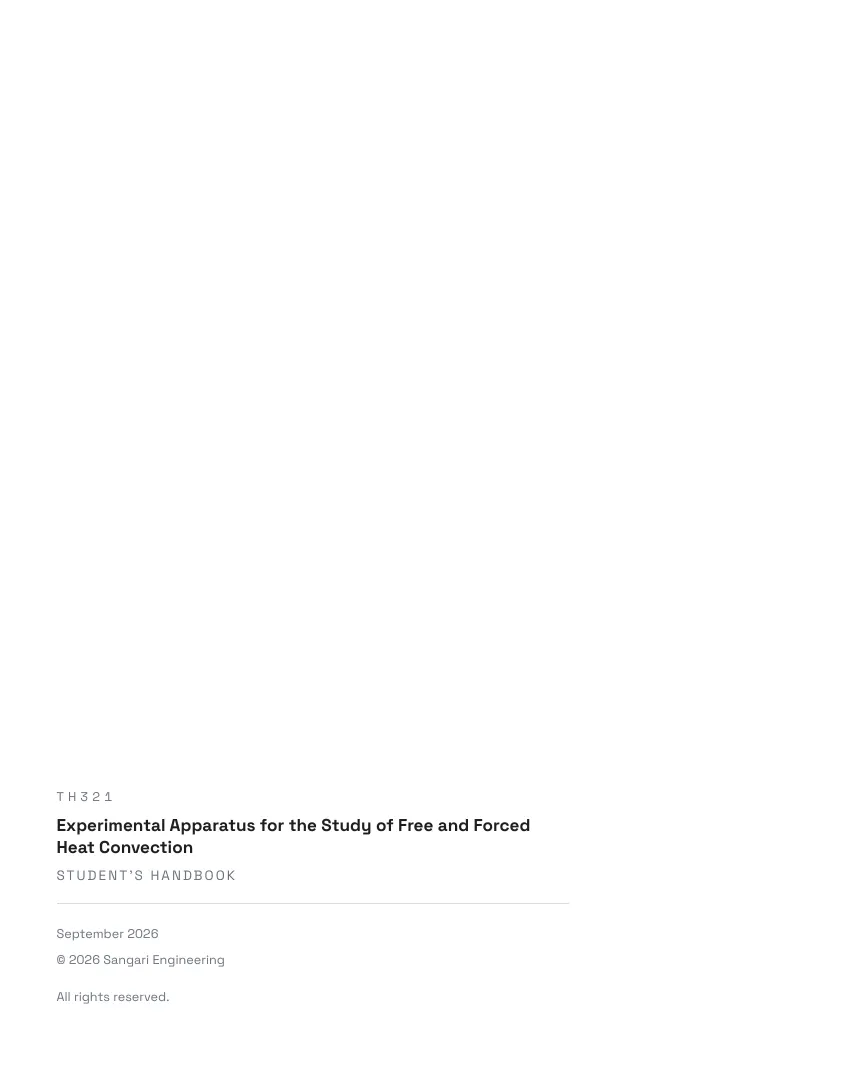

    TH321 Student's Handbook, page 2

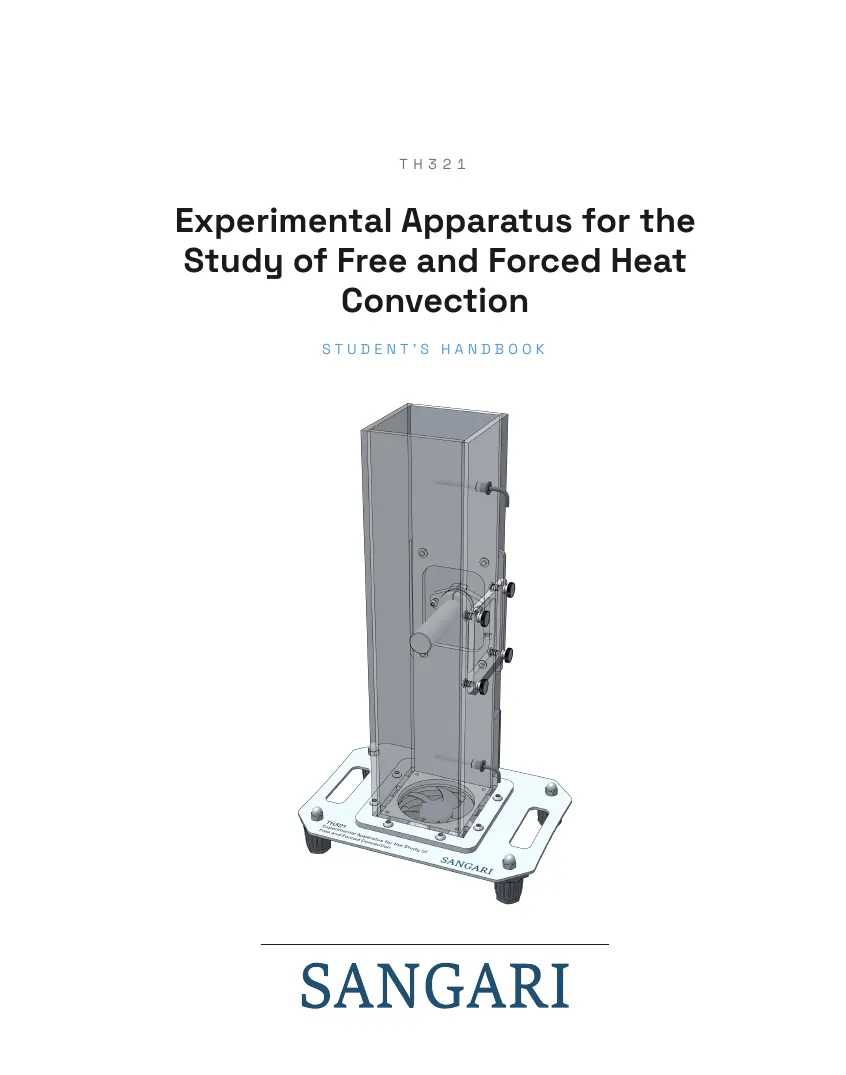

    TH321 Student's Handbook, page 3
    TH321 Student's Handbook, page 4

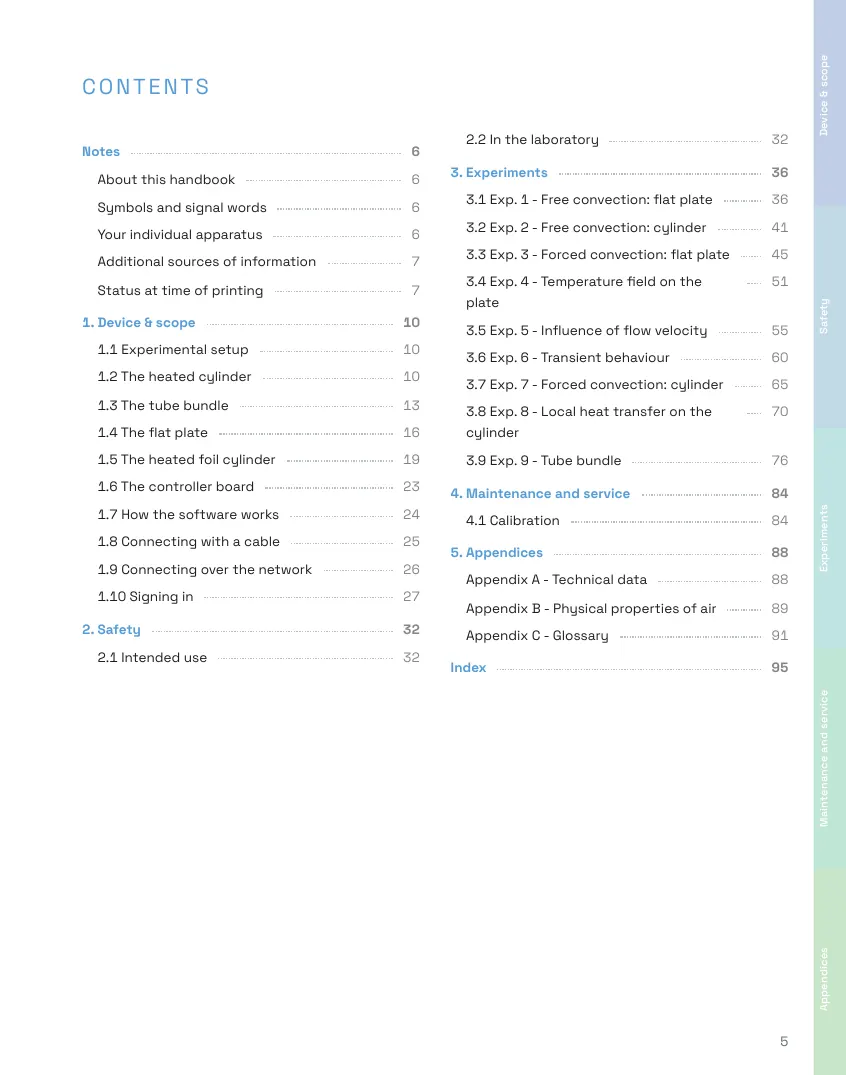

    TH321 Student's Handbook, page 5

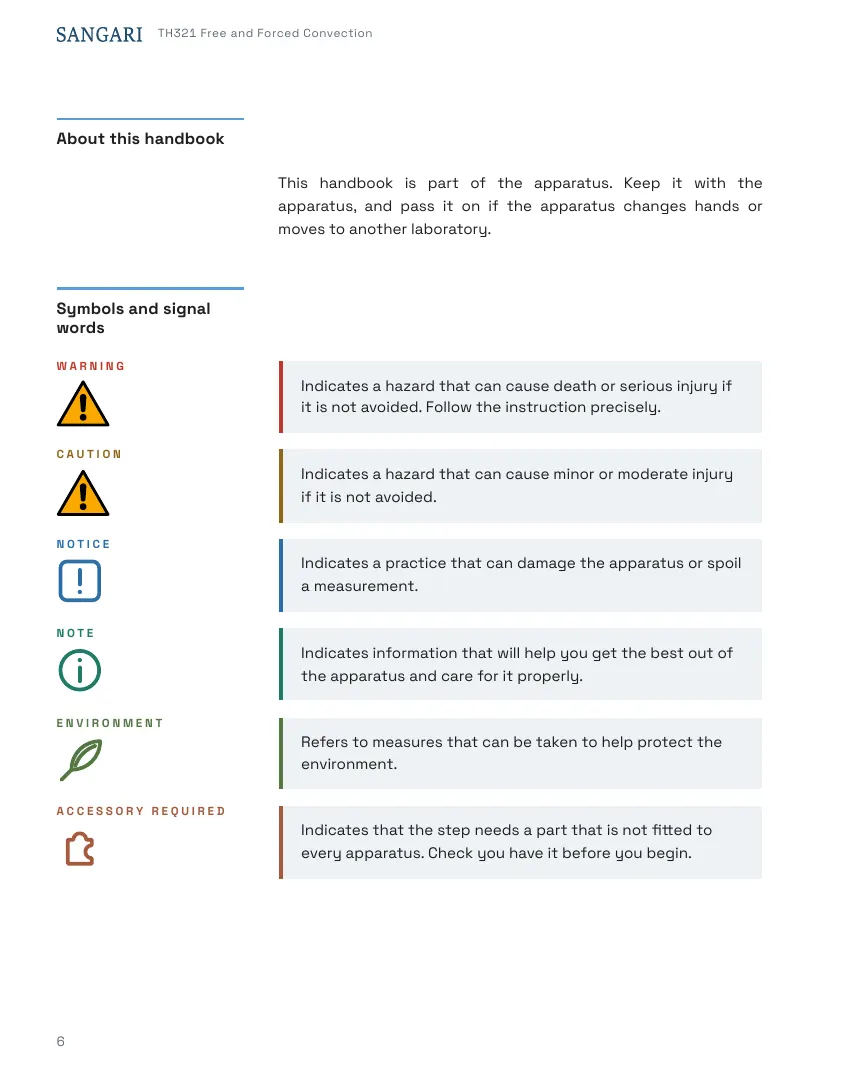

    TH321 Student's Handbook, page 6

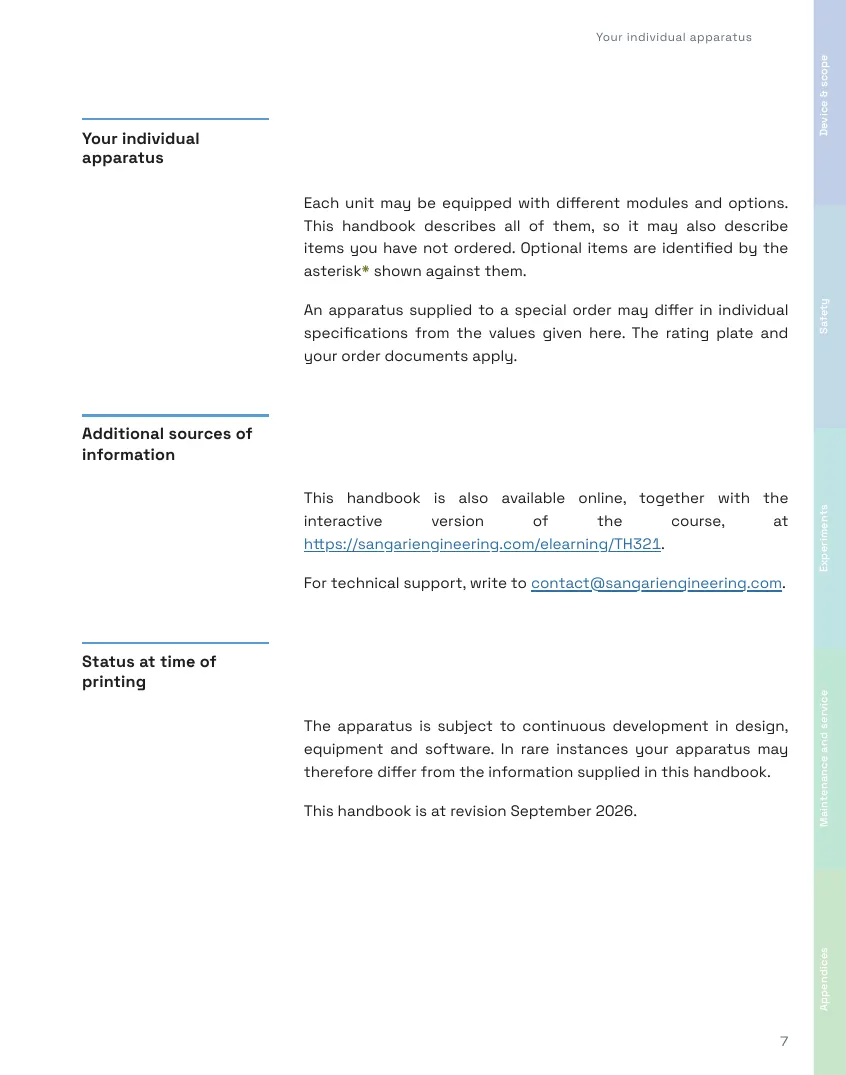

    TH321 Student's Handbook, page 7

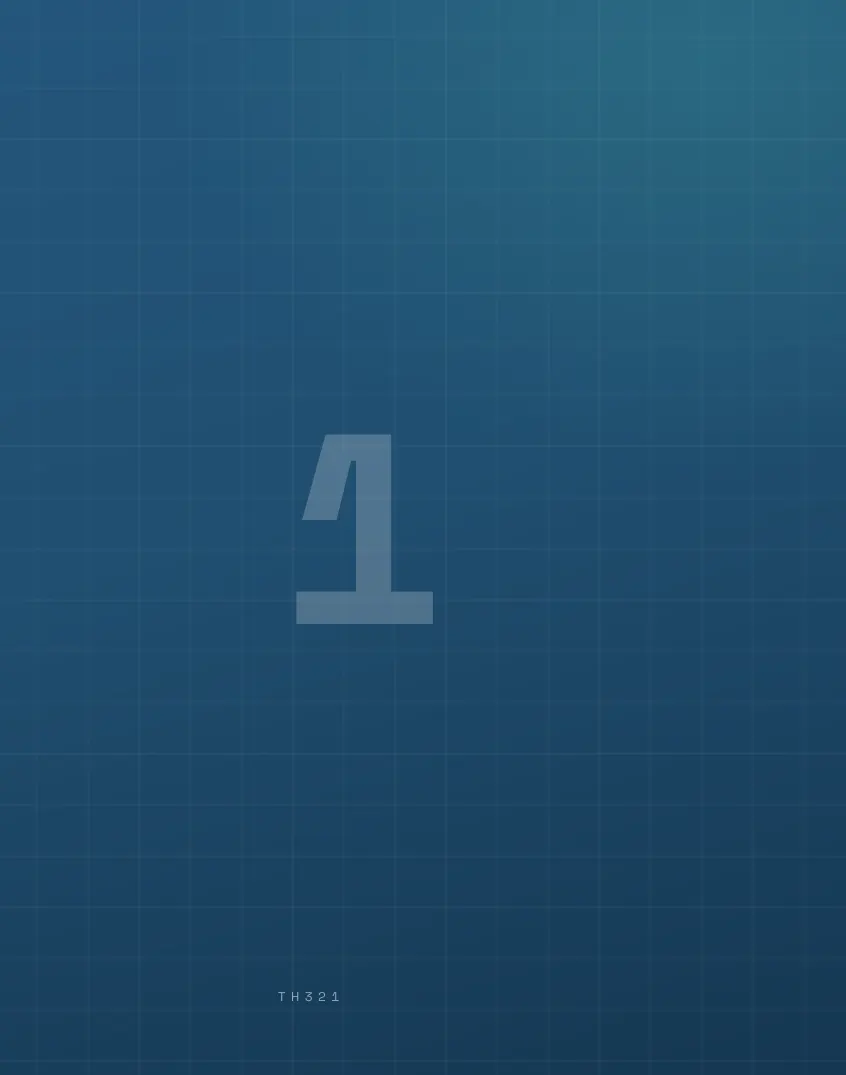

    TH321 Student's Handbook, page 8

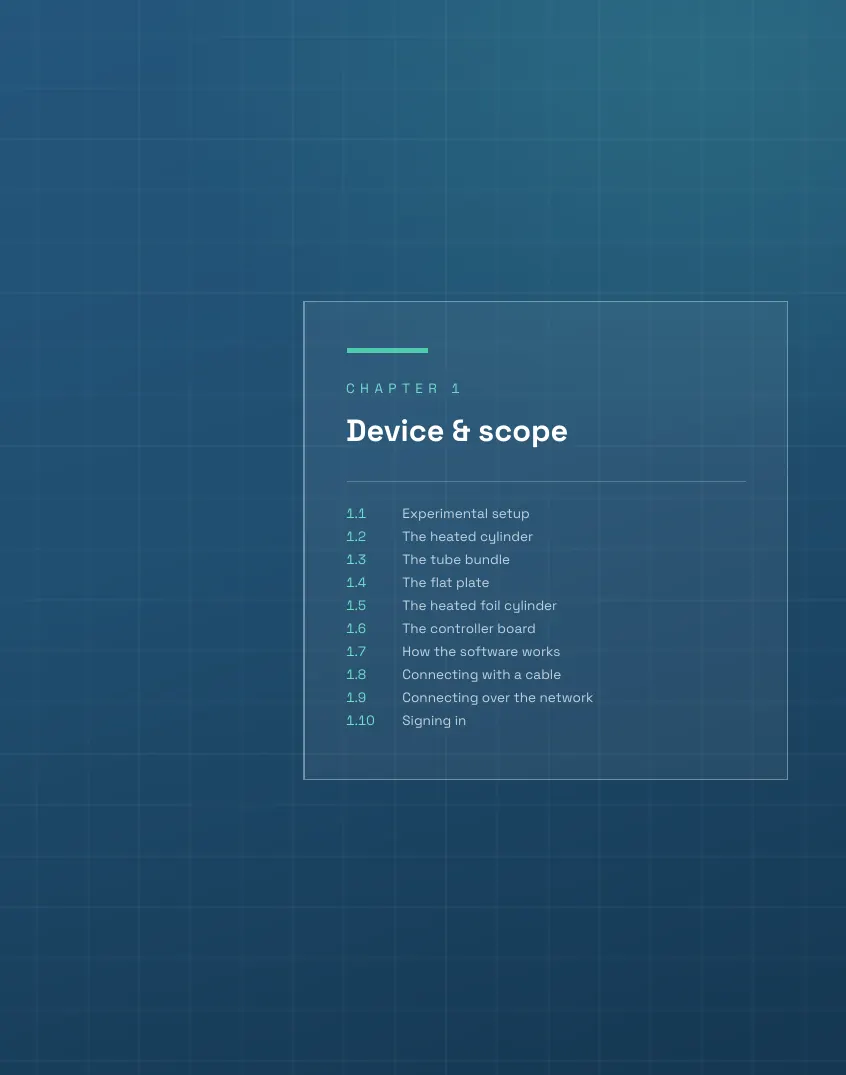

    TH321 Student's Handbook, page 9

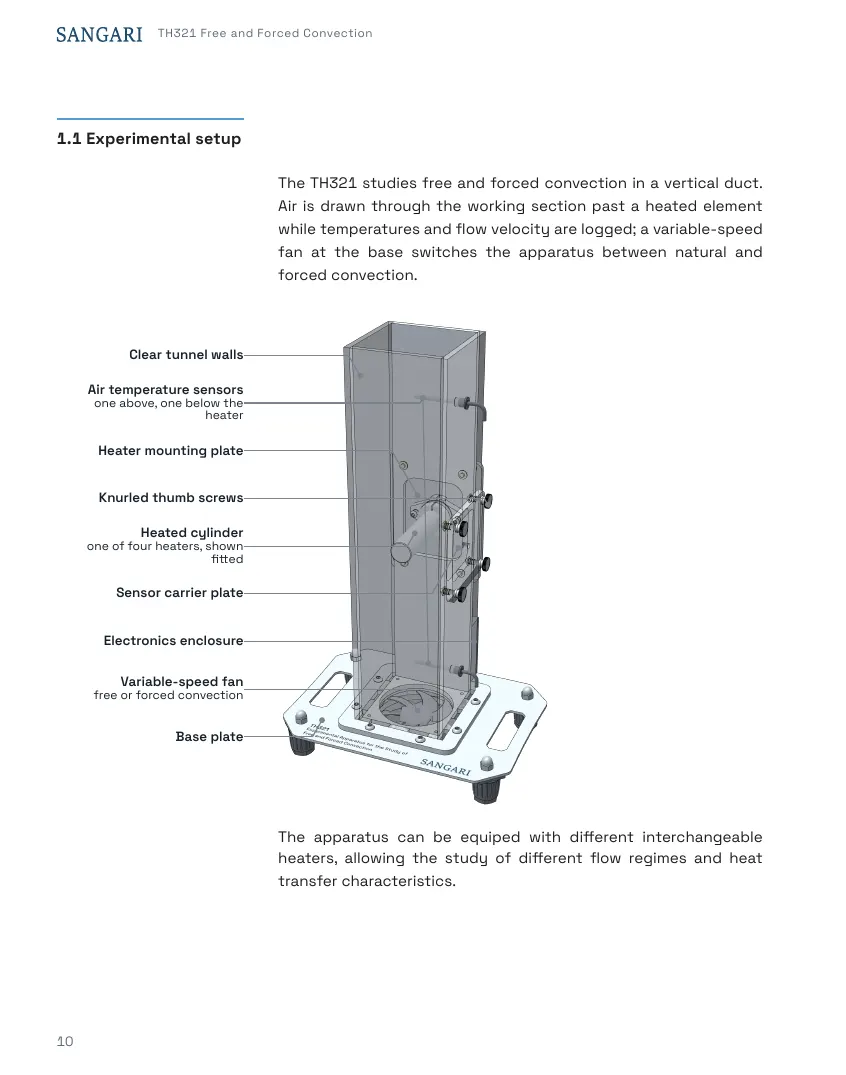

    TH321 Student's Handbook, page 10

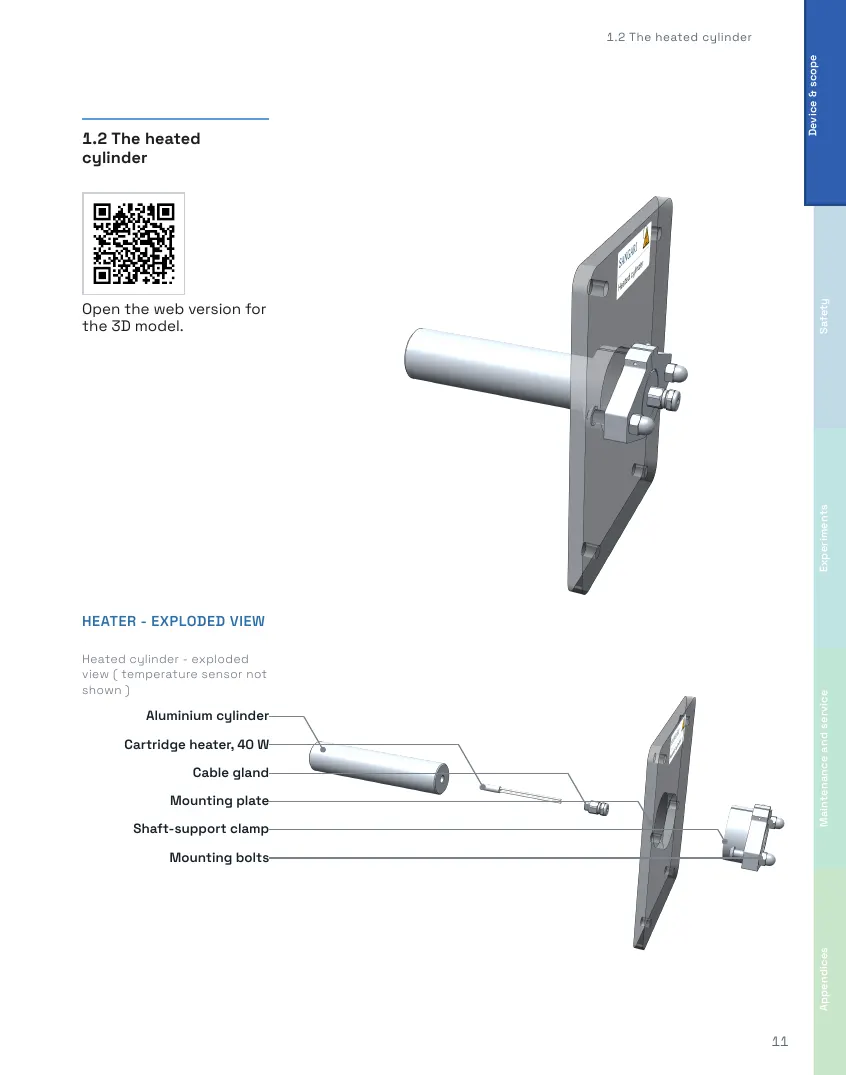

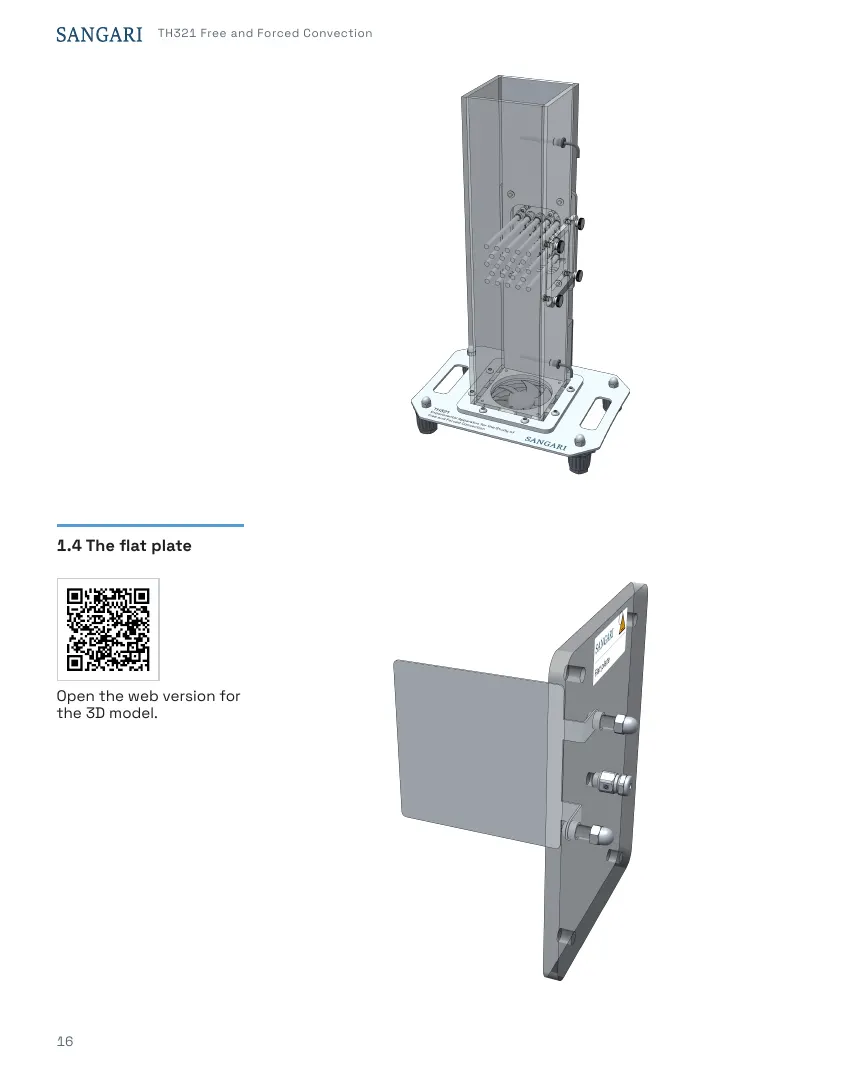

    TH321 Student's Handbook, page 11

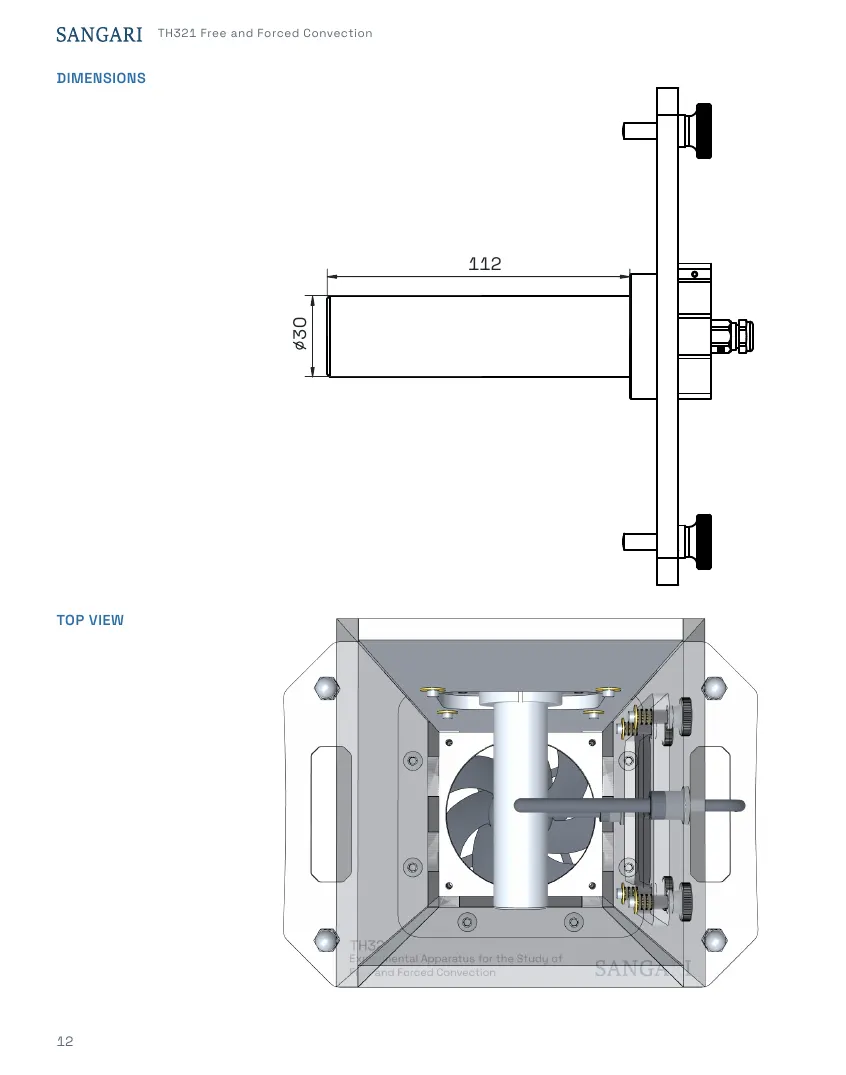

    TH321 Student's Handbook, page 12

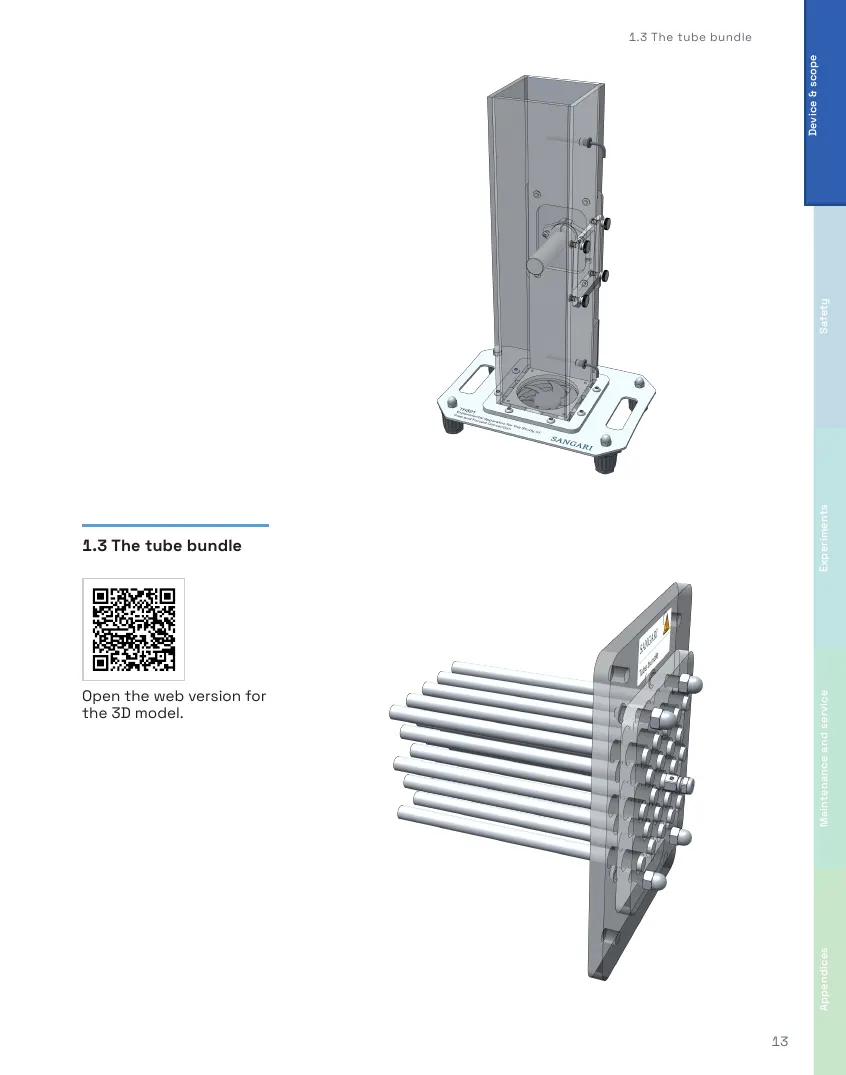

    TH321 Student's Handbook, page 13

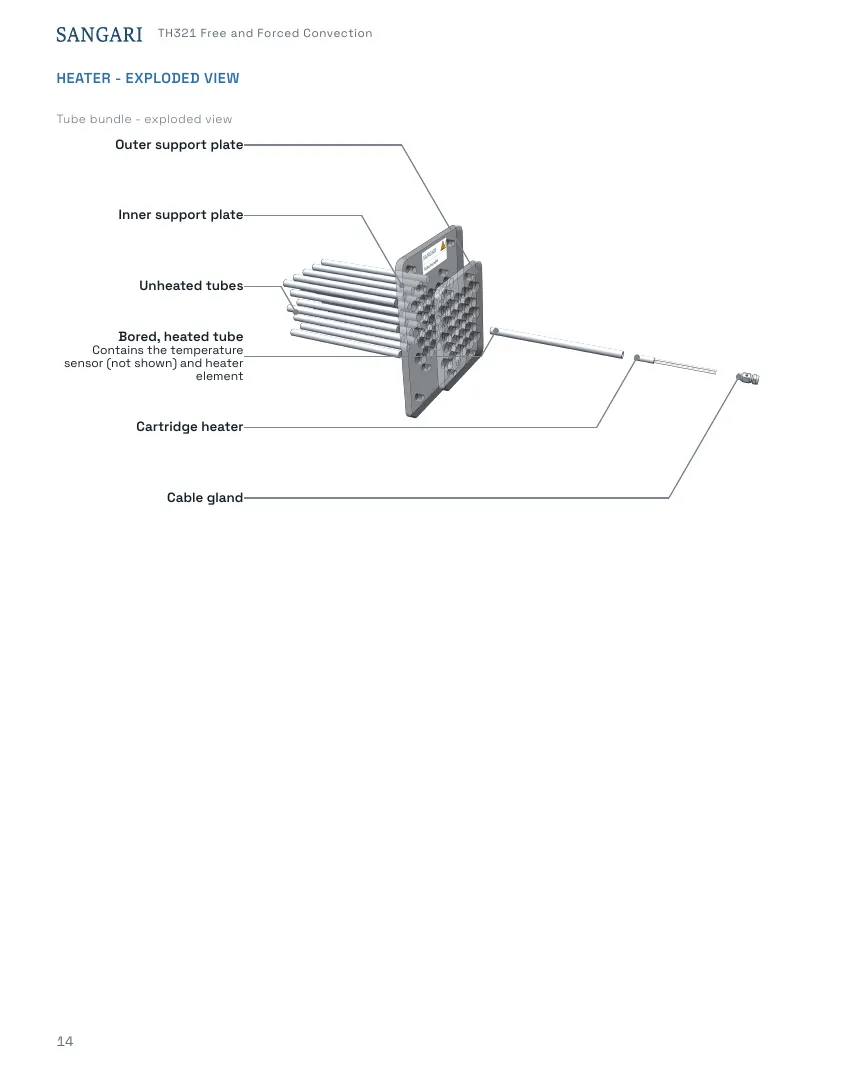

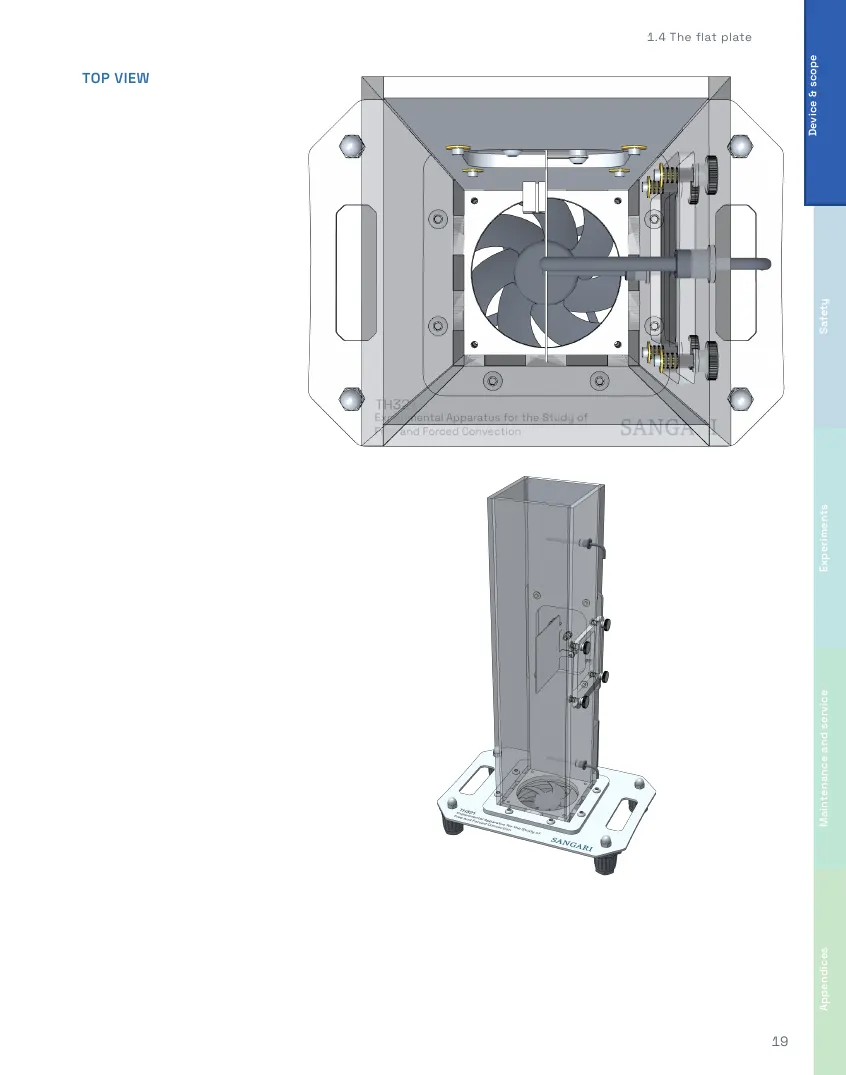

    TH321 Student's Handbook, page 14

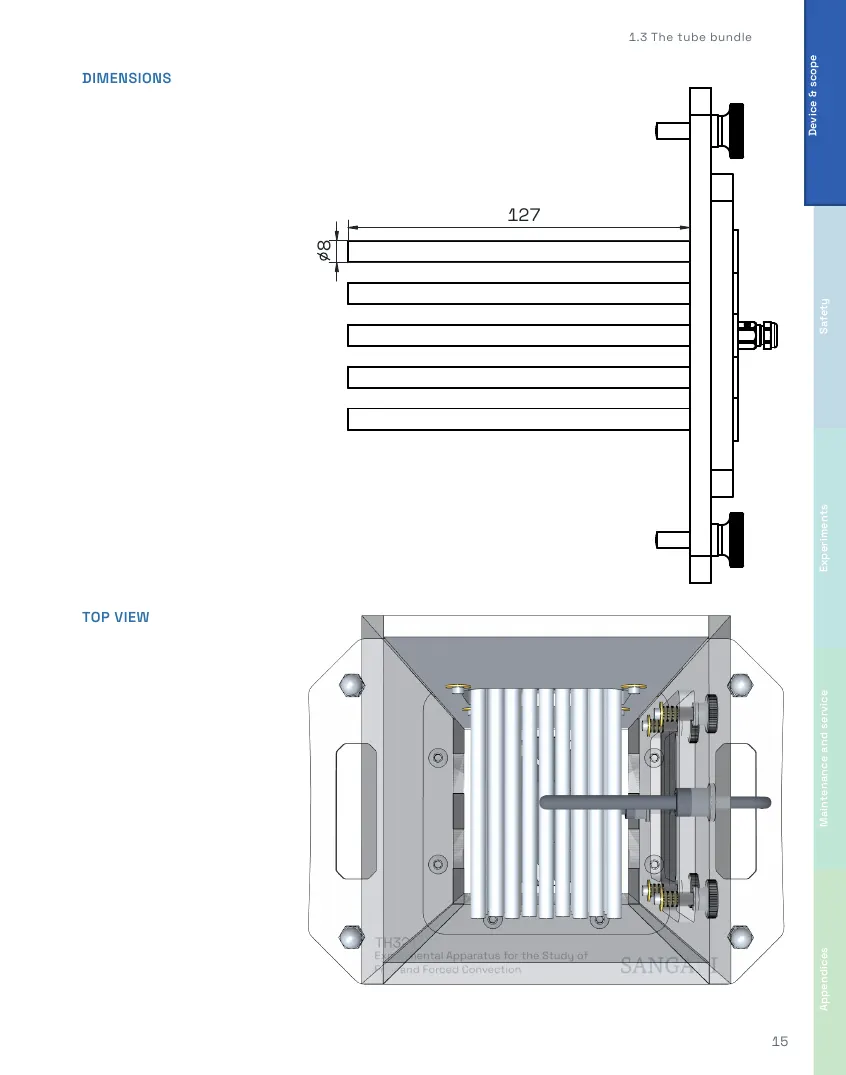

    TH321 Student's Handbook, page 15
    TH321 Student's Handbook, page 16

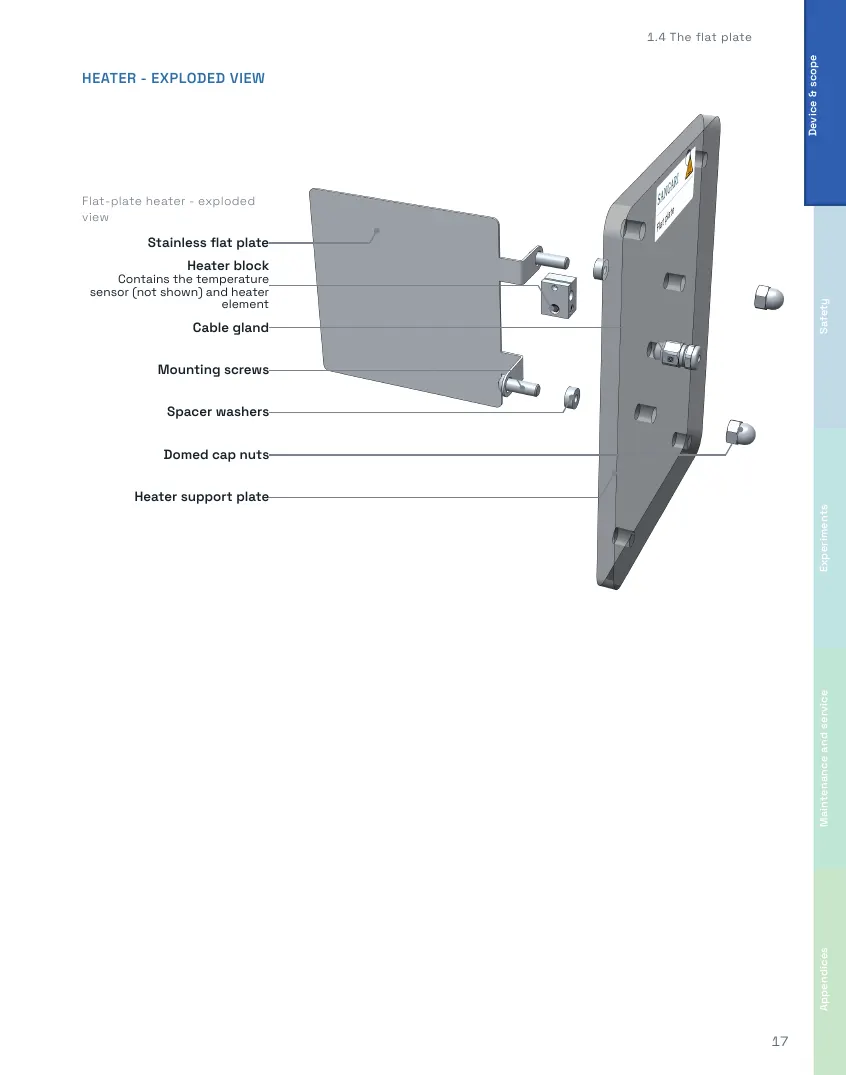

    TH321 Student's Handbook, page 17

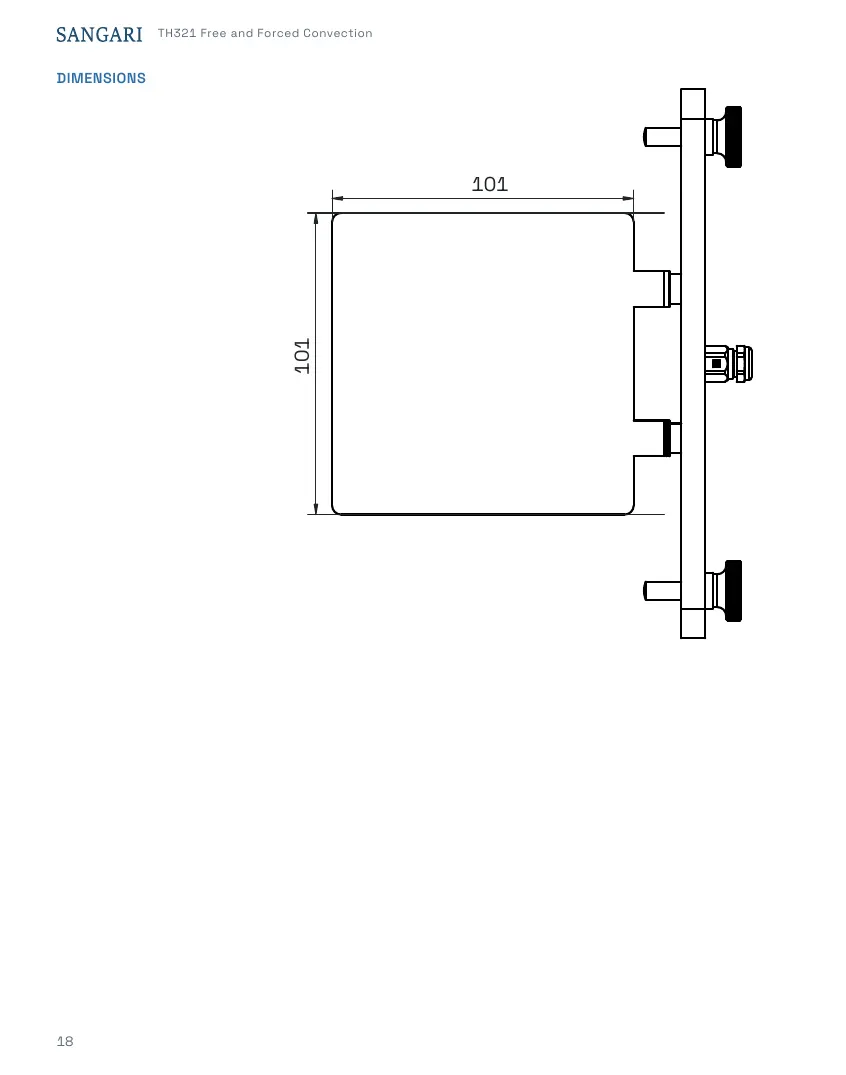

    TH321 Student's Handbook, page 18

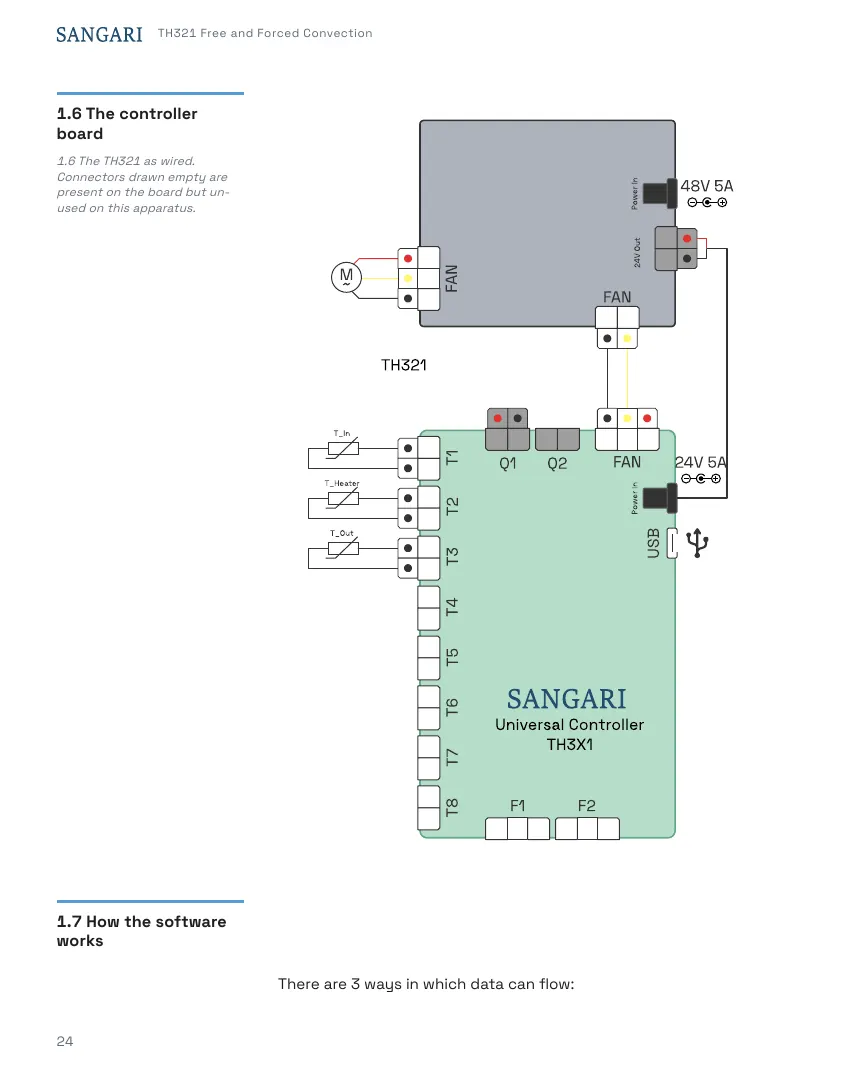

    TH321 Student's Handbook, page 19

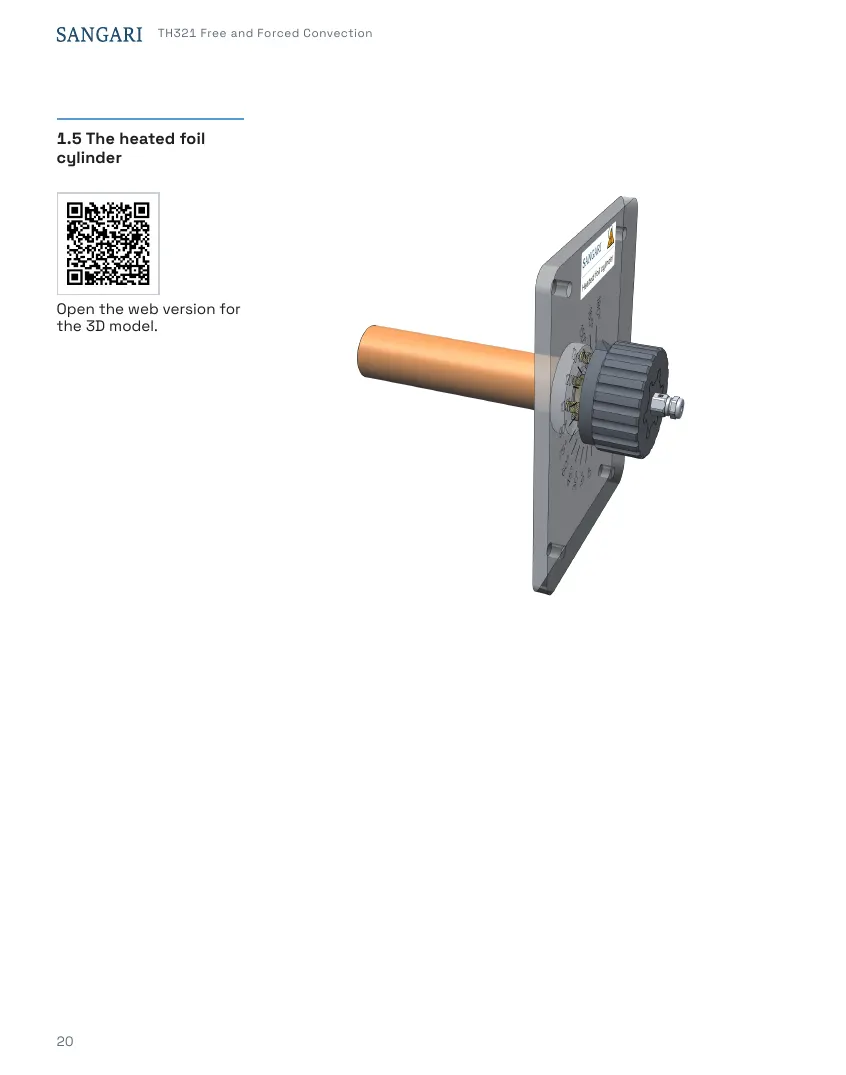

    TH321 Student's Handbook, page 20

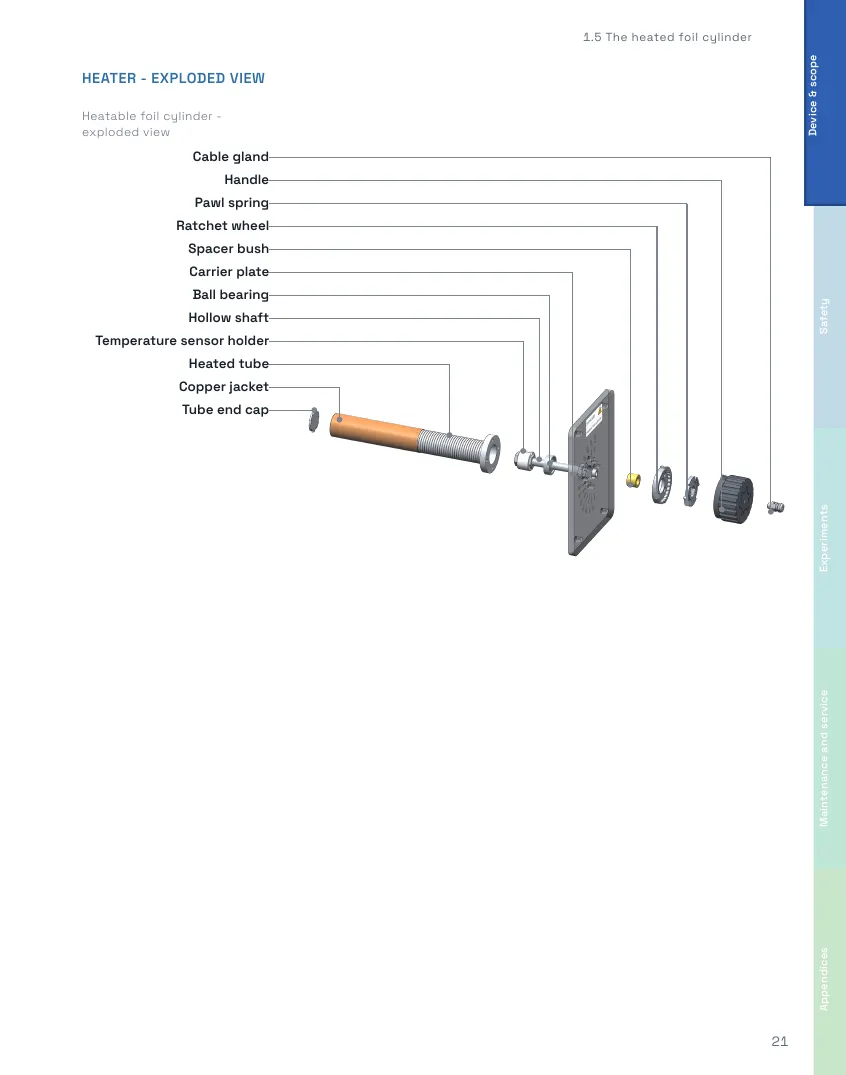

    TH321 Student's Handbook, page 21

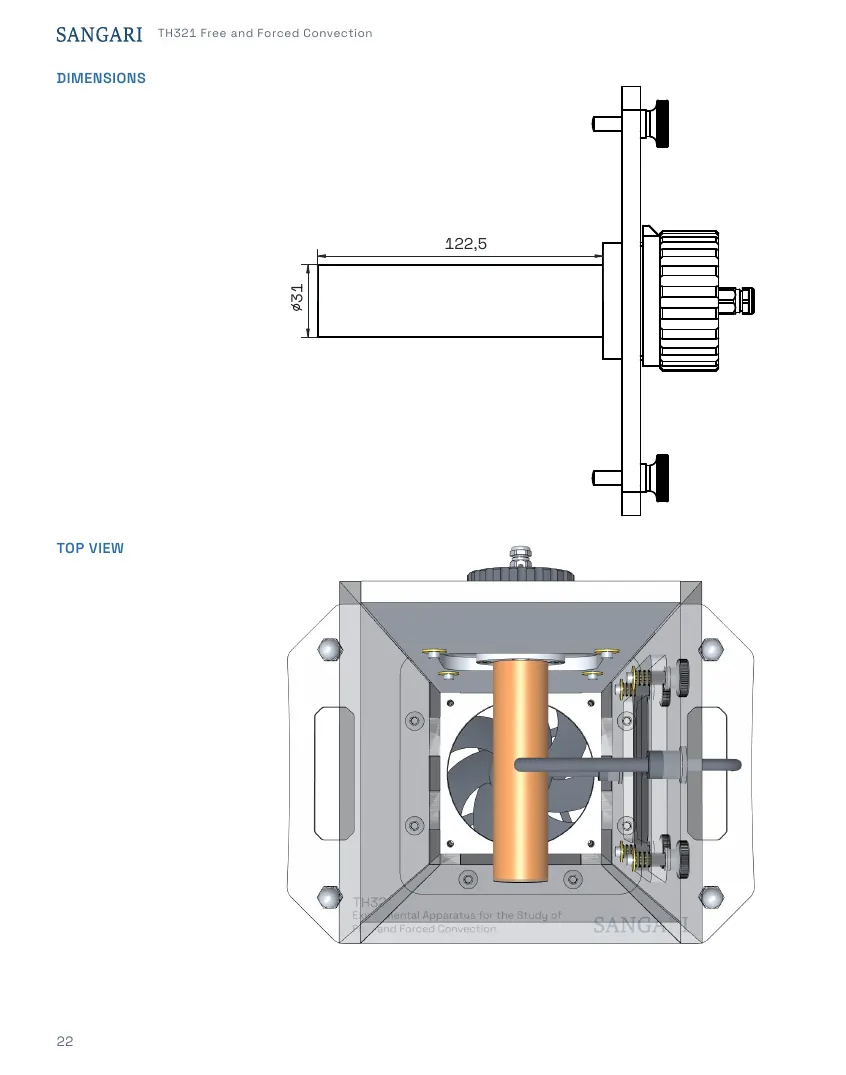

    TH321 Student's Handbook, page 22

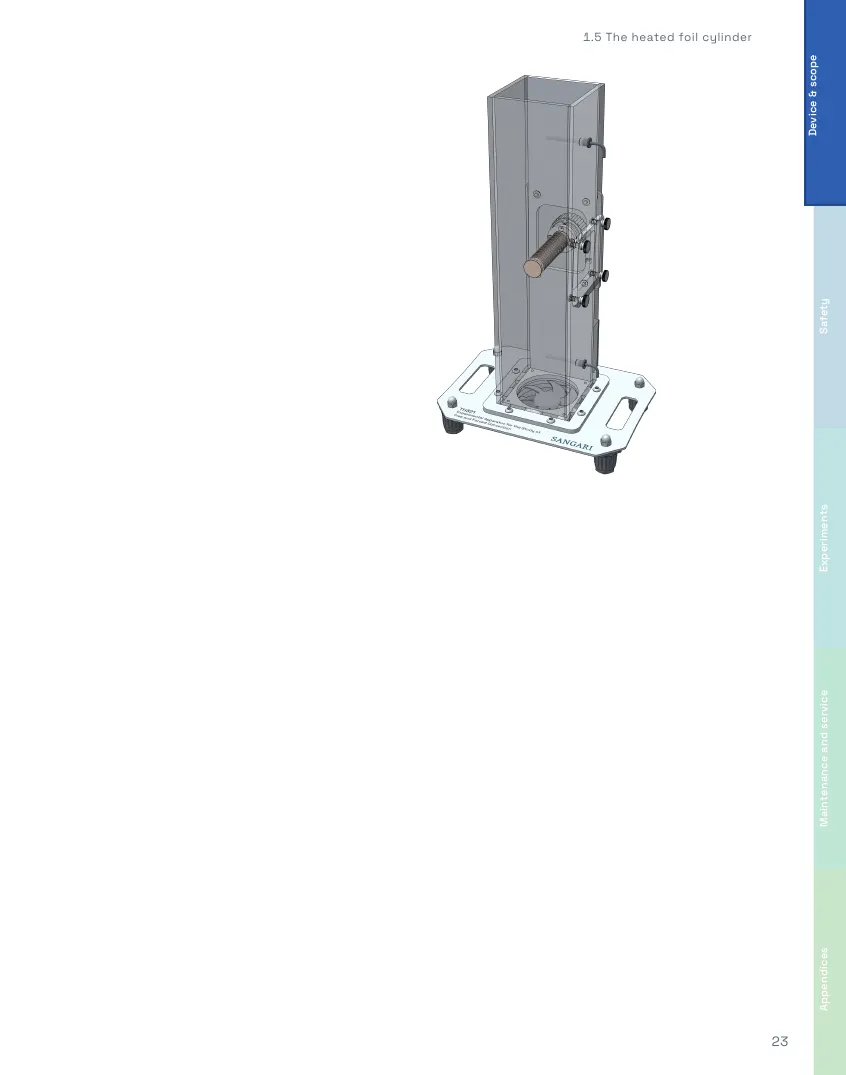

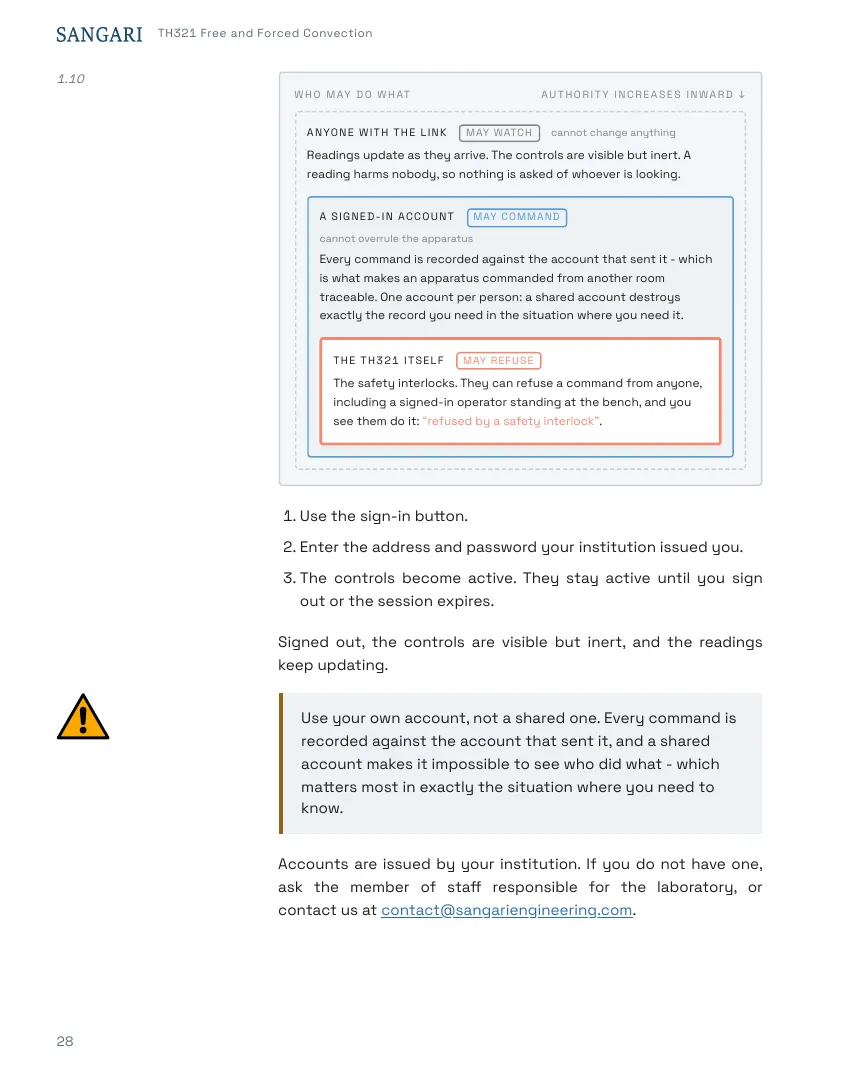

    TH321 Student's Handbook, page 23
    TH321 Student's Handbook, page 24

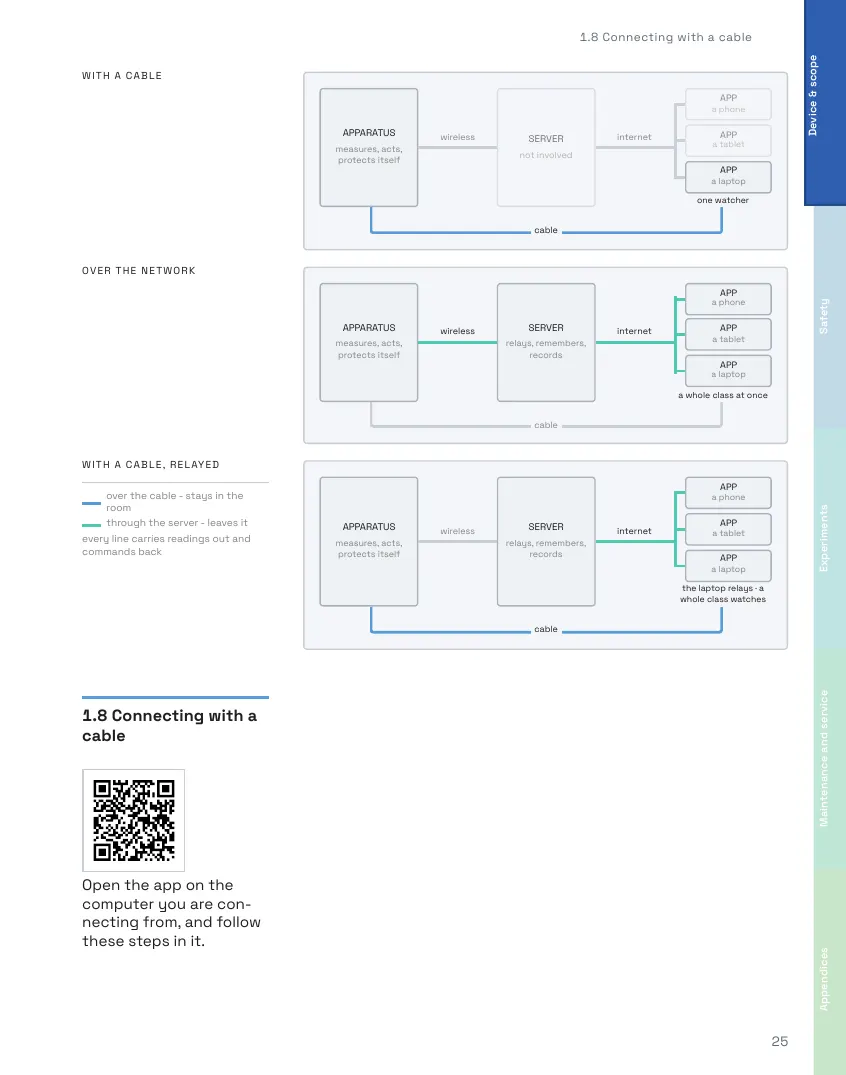

    TH321 Student's Handbook, page 25

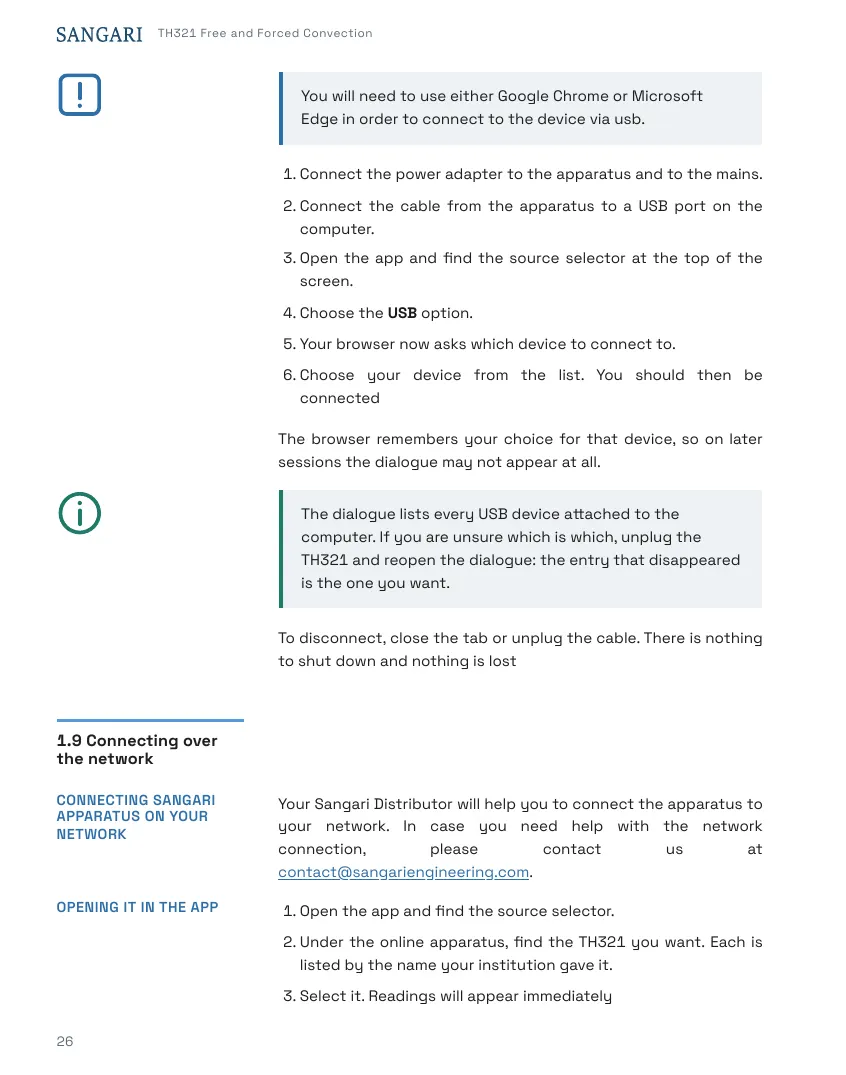

    TH321 Student's Handbook, page 26

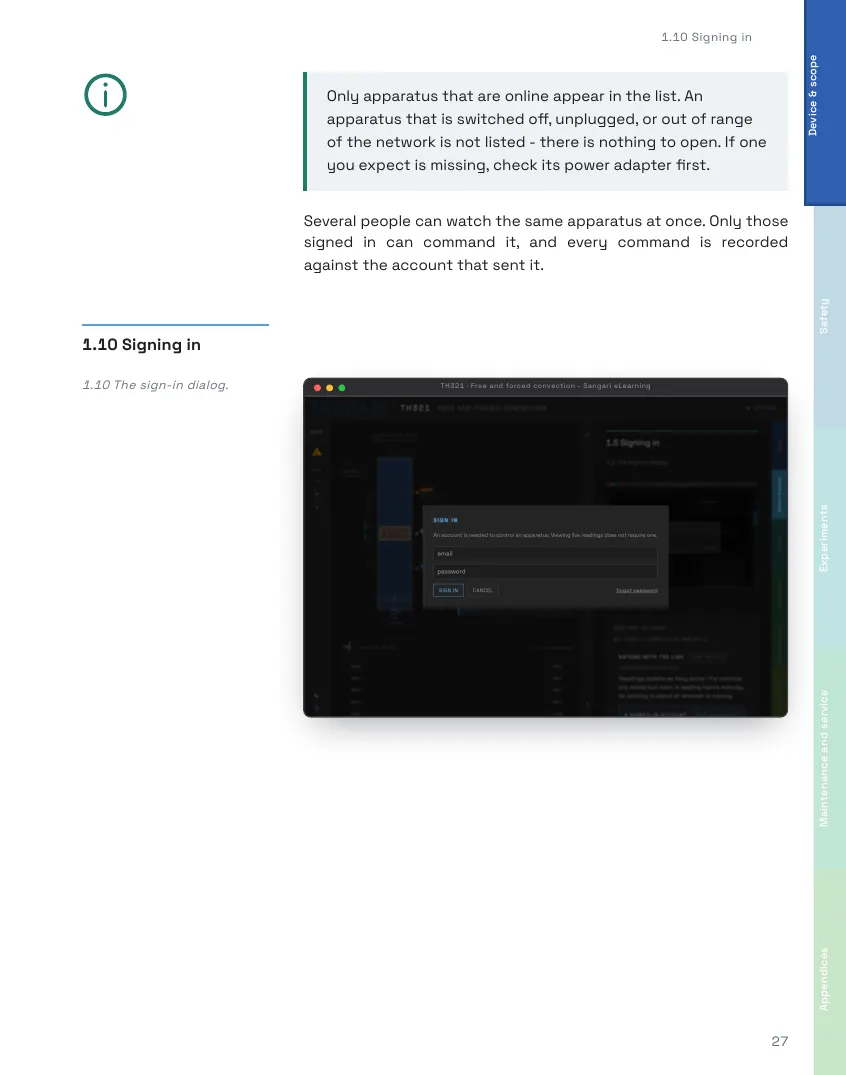

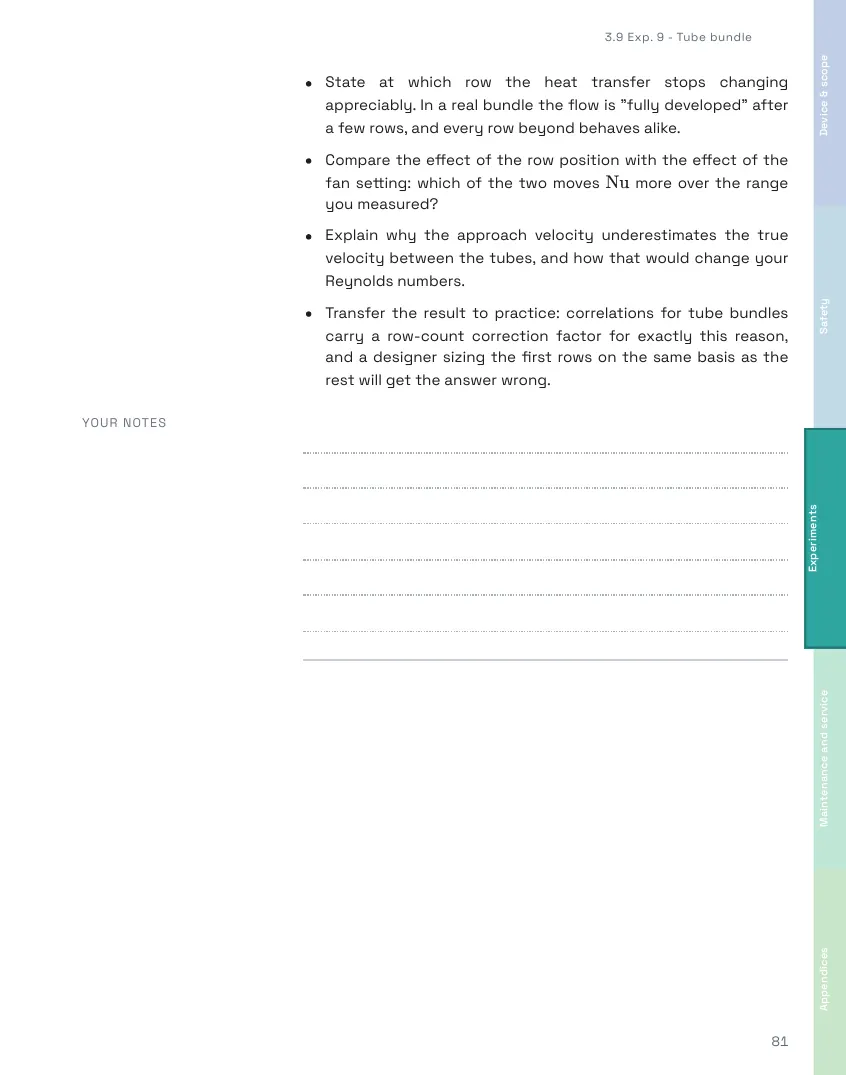

    TH321 Student's Handbook, page 27
    TH321 Student's Handbook, page 28
    TH321 Student's Handbook, page 29

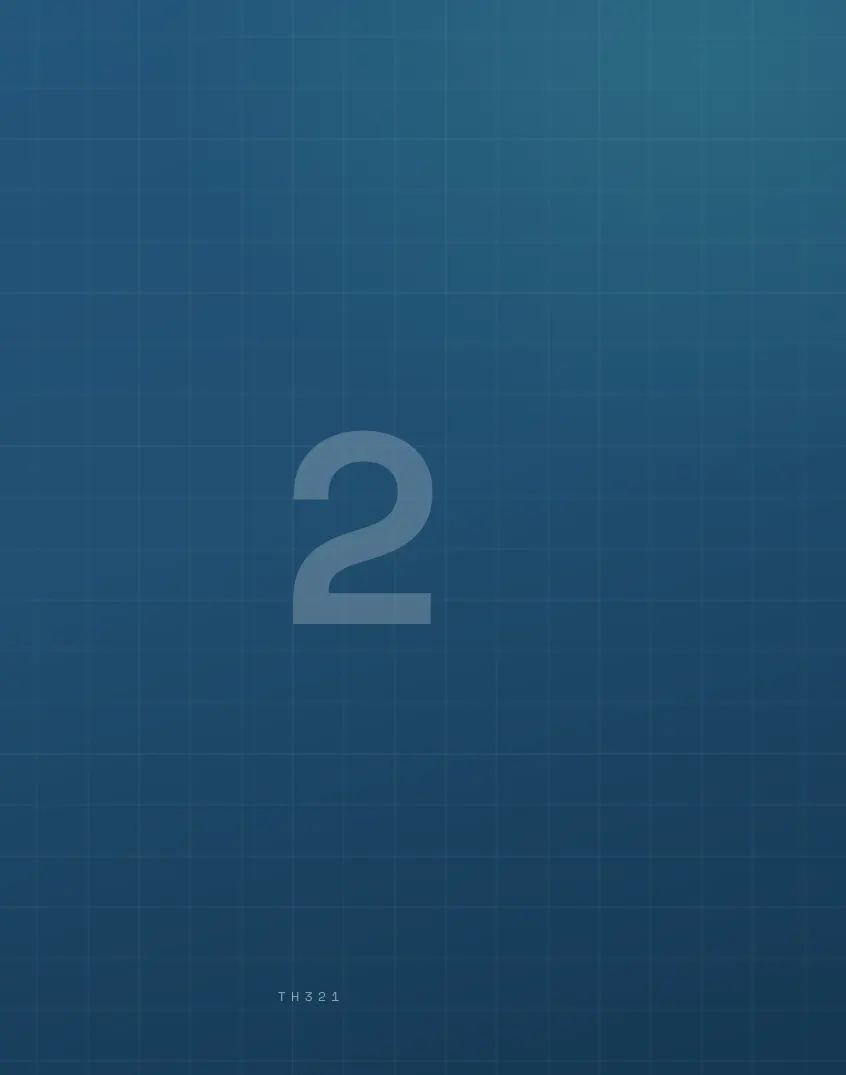

    TH321 Student's Handbook, page 30

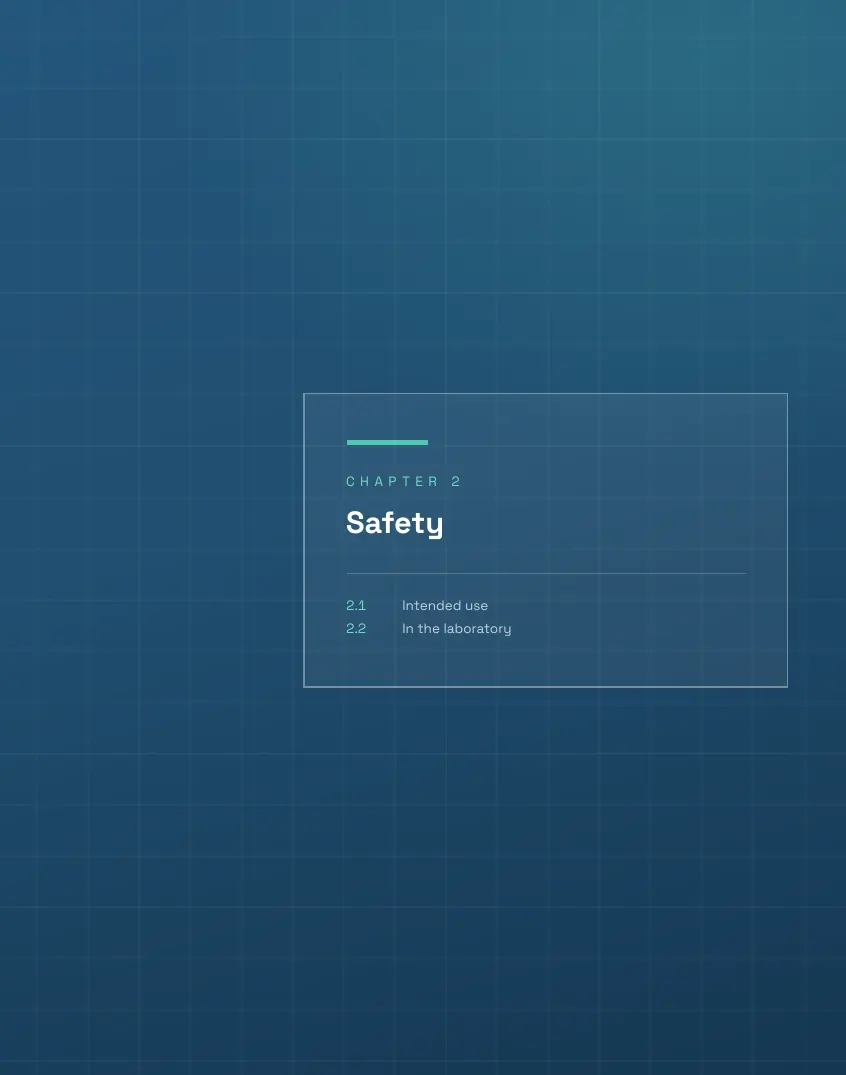

    TH321 Student's Handbook, page 31

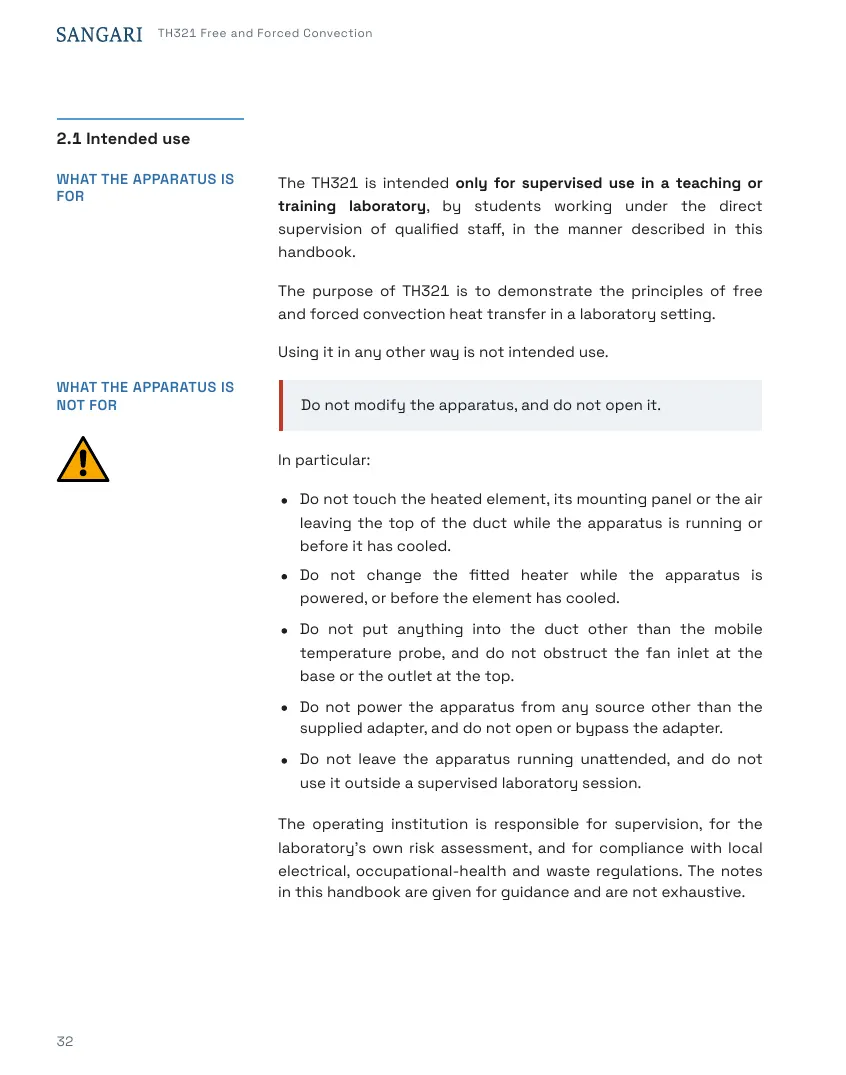

    TH321 Student's Handbook, page 32

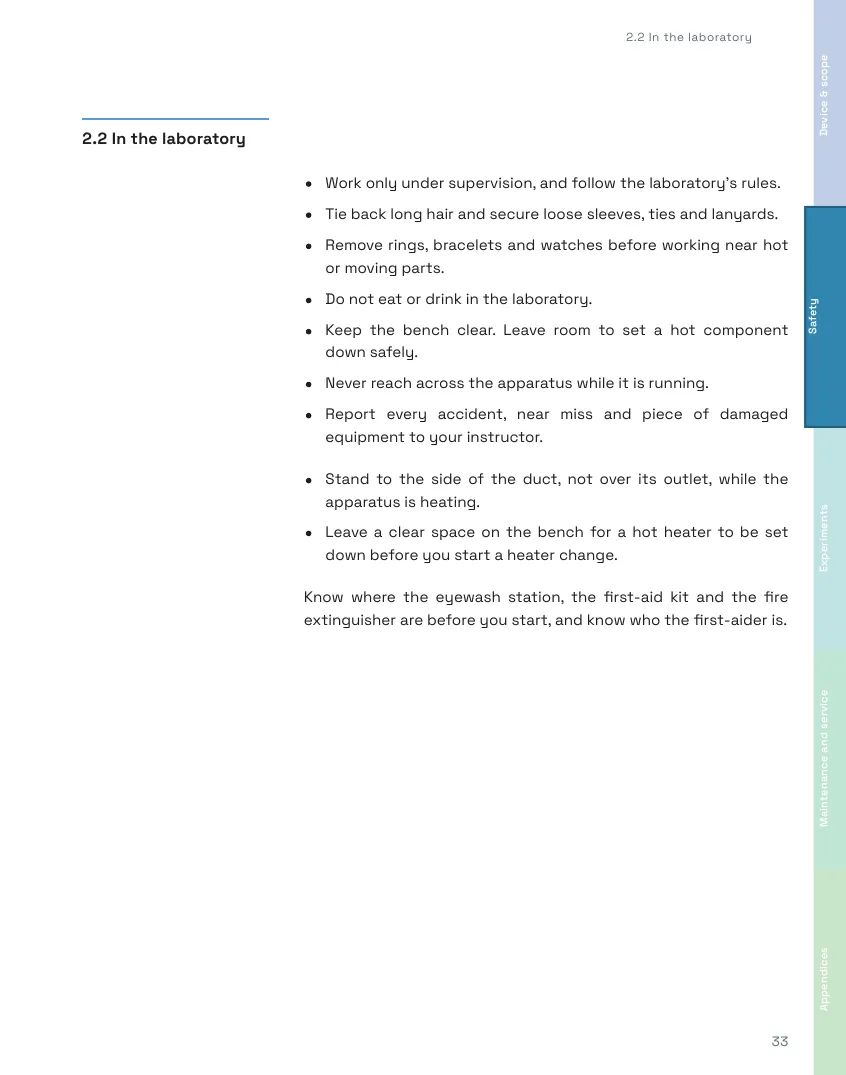

    TH321 Student's Handbook, page 33
    TH321 Student's Handbook, page 34

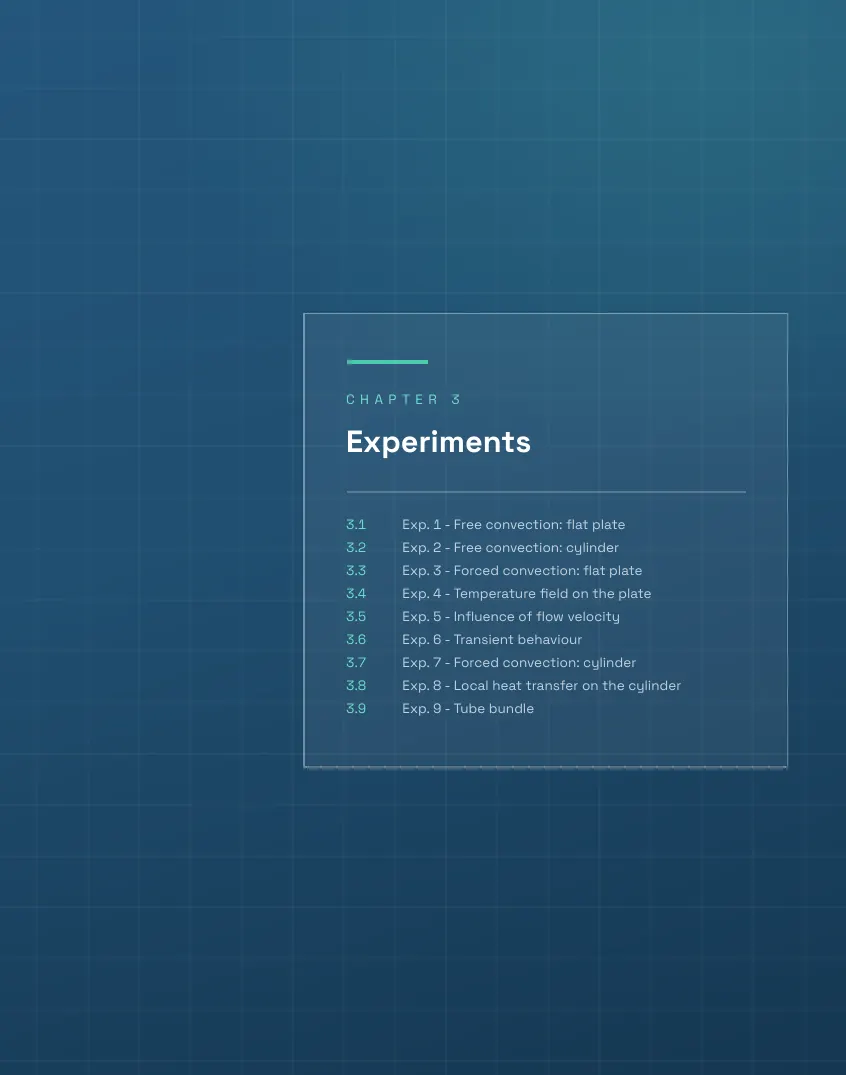

    TH321 Student's Handbook, page 35

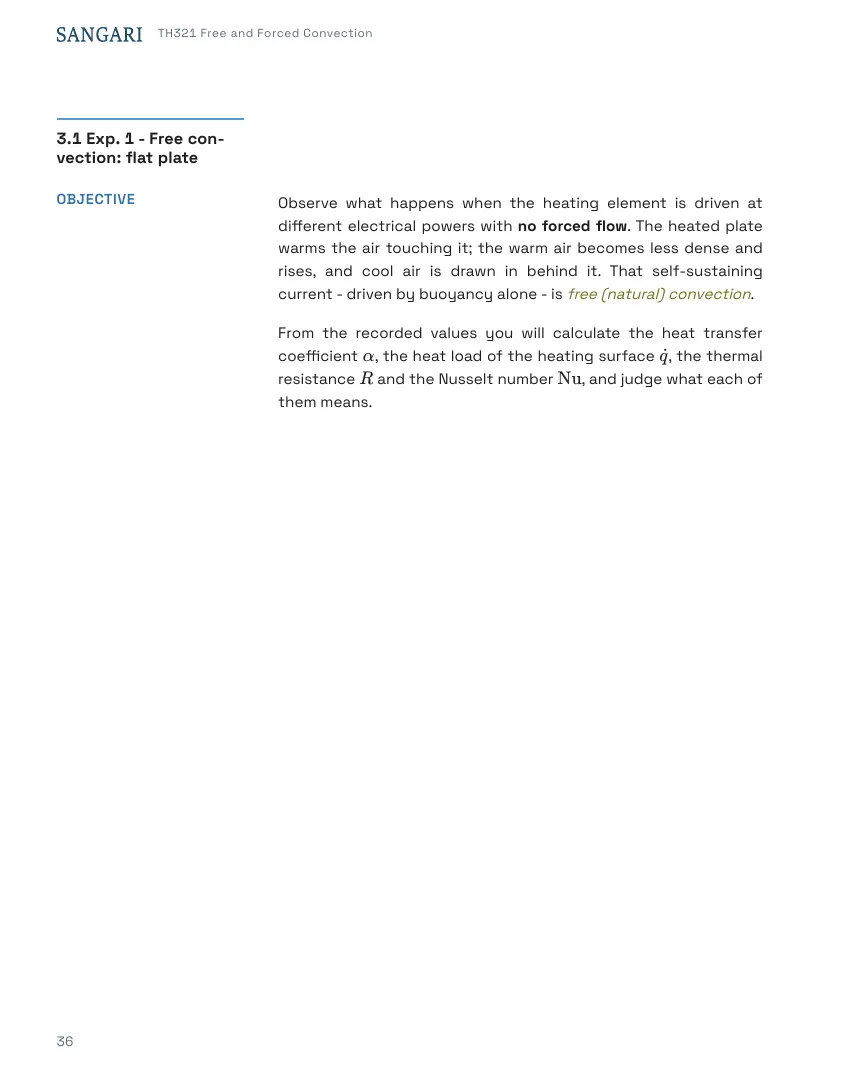

    TH321 Student's Handbook, page 36

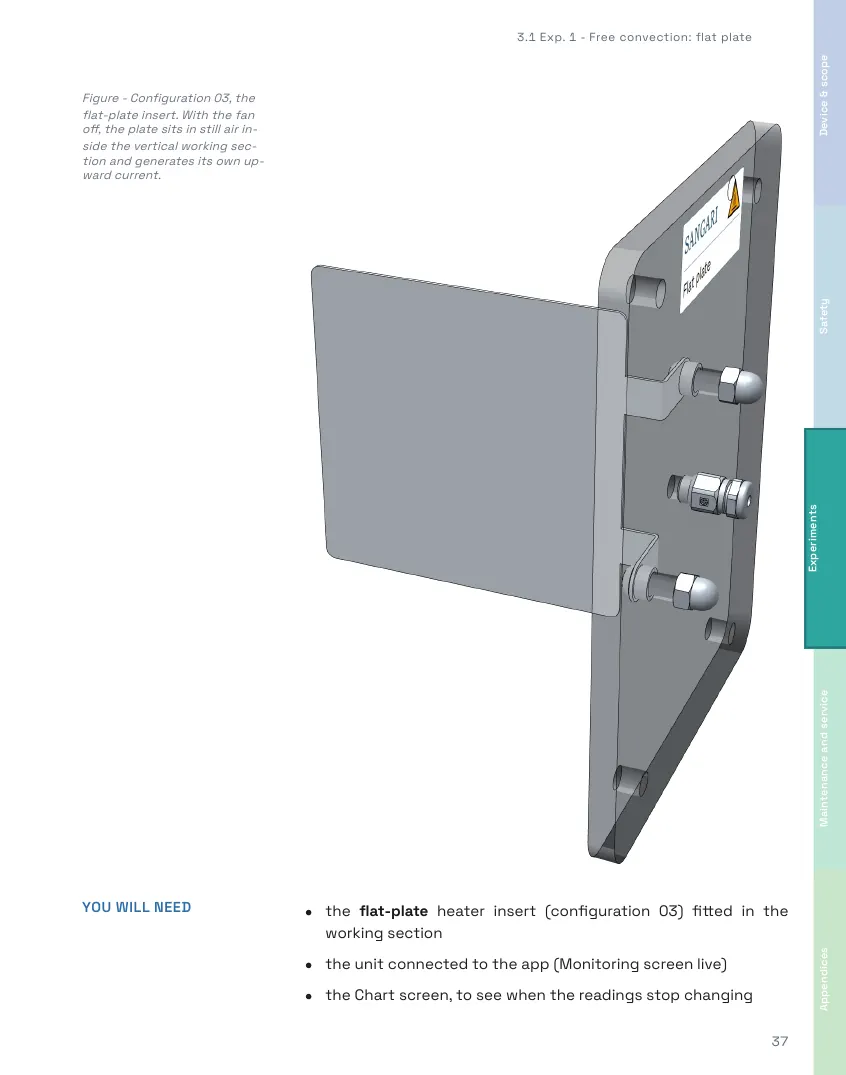

    TH321 Student's Handbook, page 37

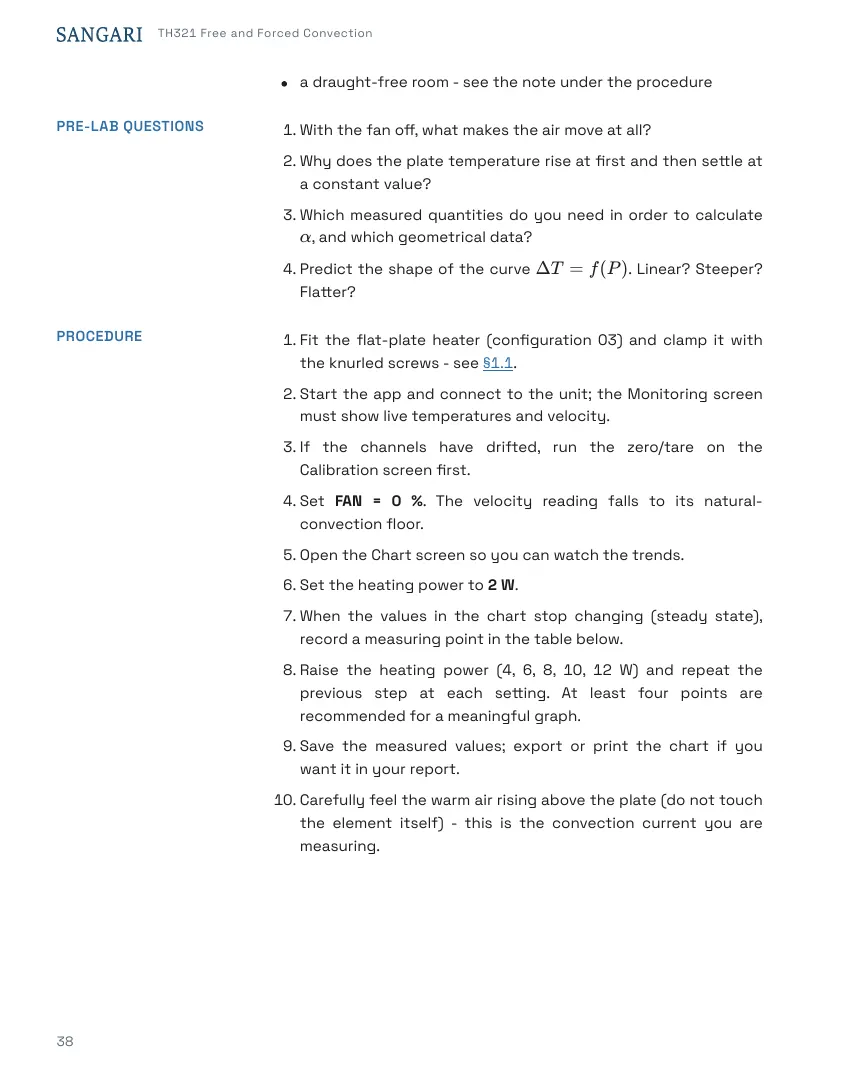

    TH321 Student's Handbook, page 38

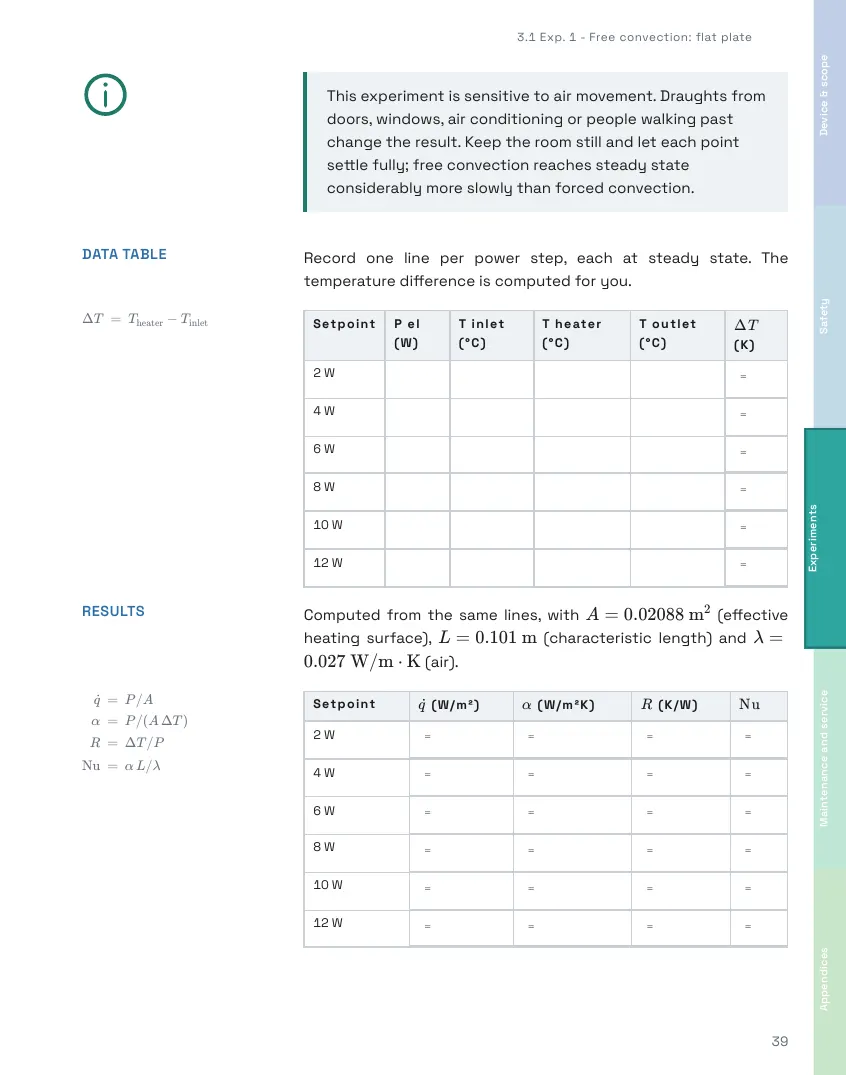

    TH321 Student's Handbook, page 39

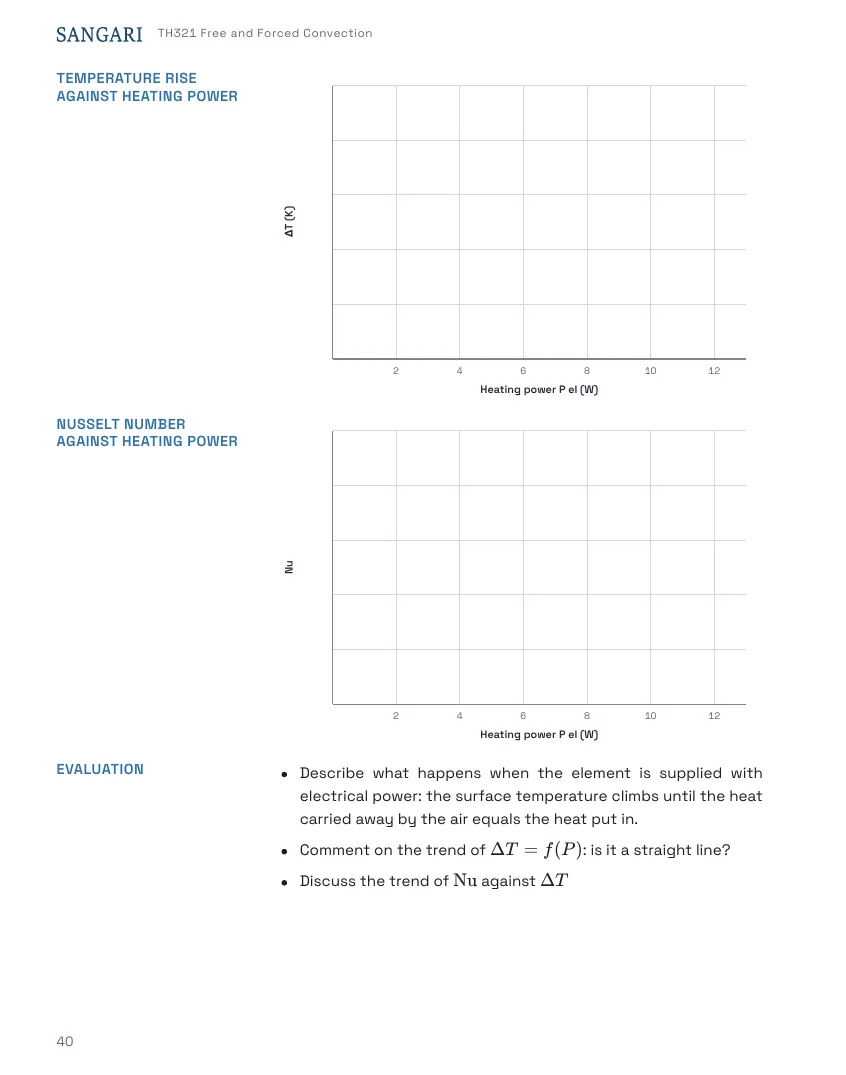

    TH321 Student's Handbook, page 40

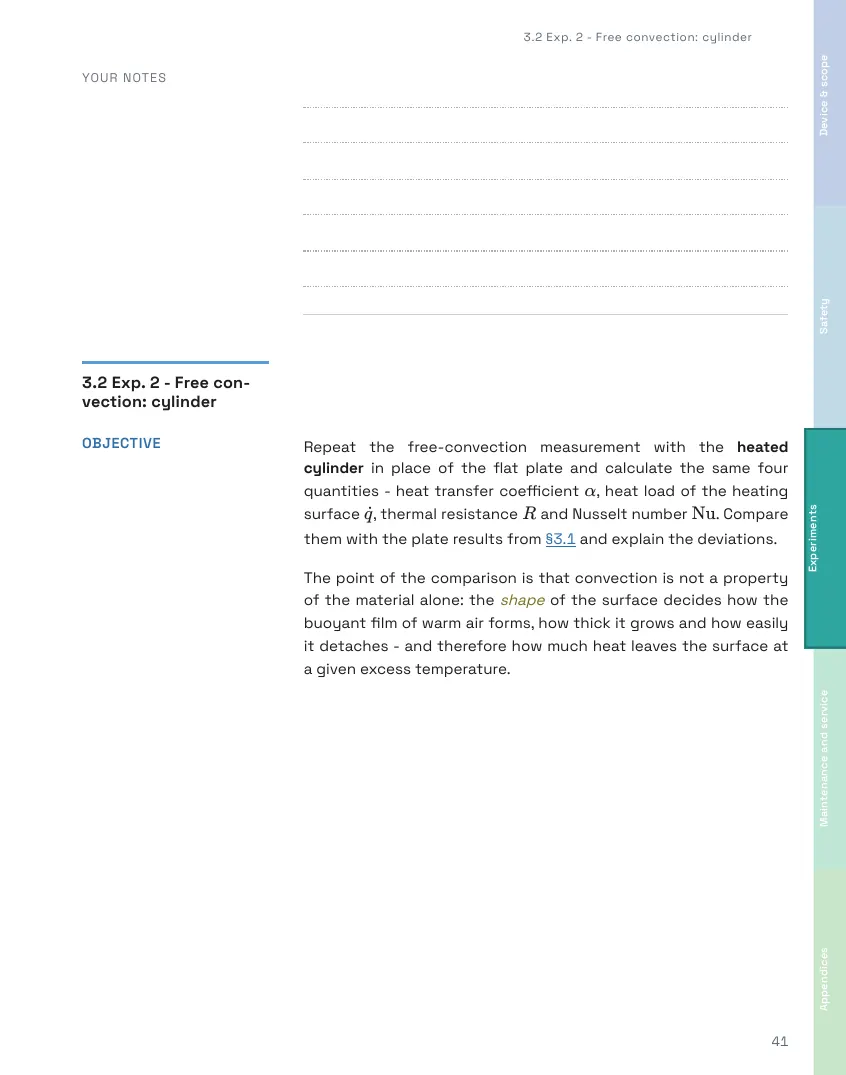

    TH321 Student's Handbook, page 41

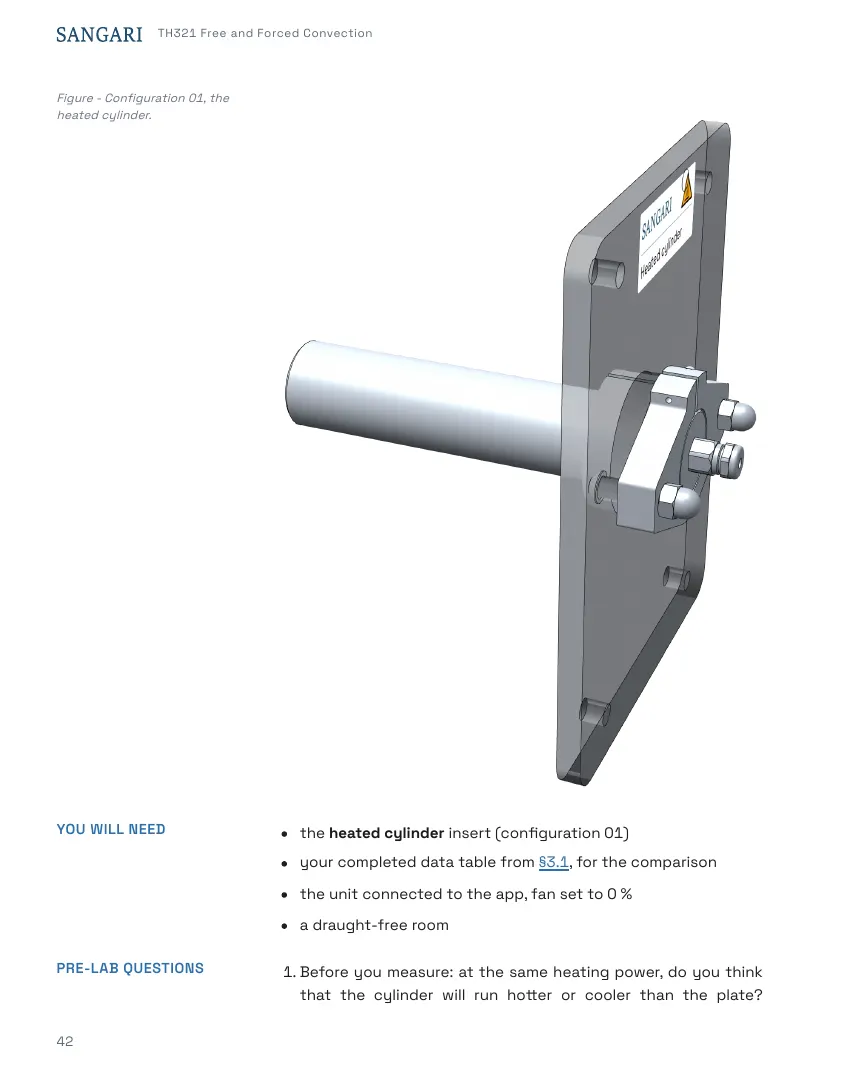

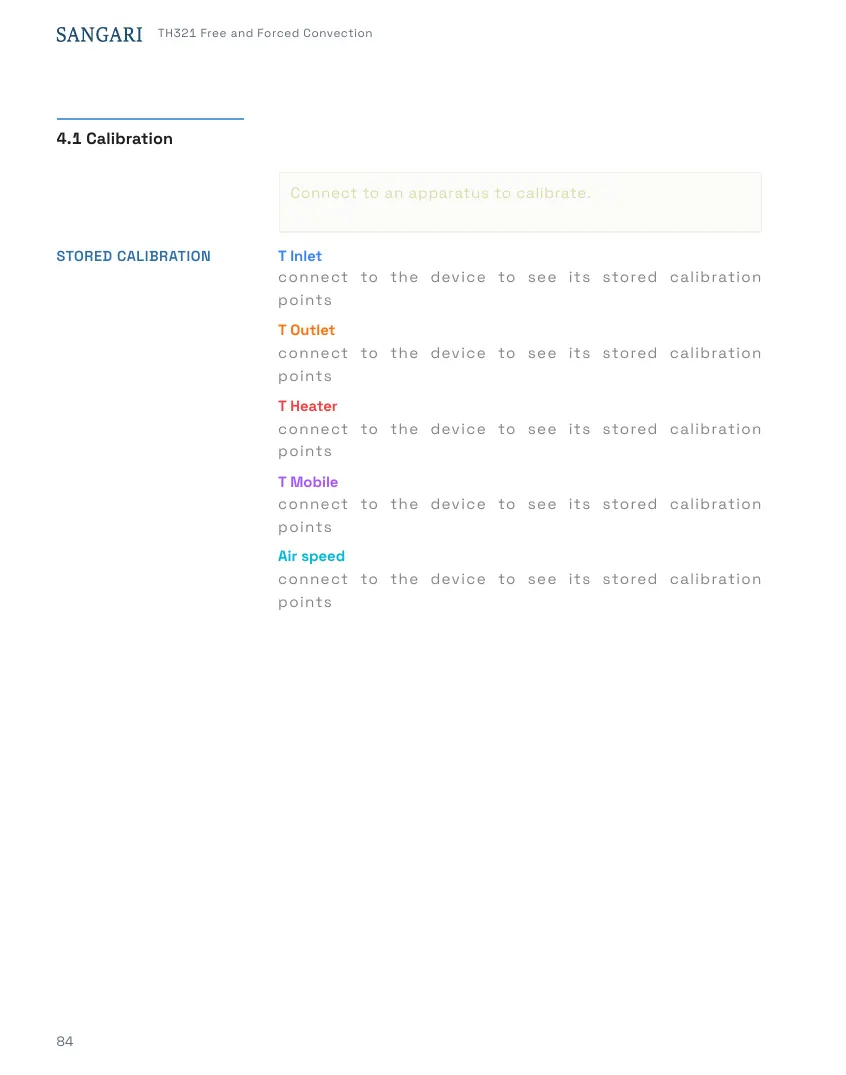

    TH321 Student's Handbook, page 42

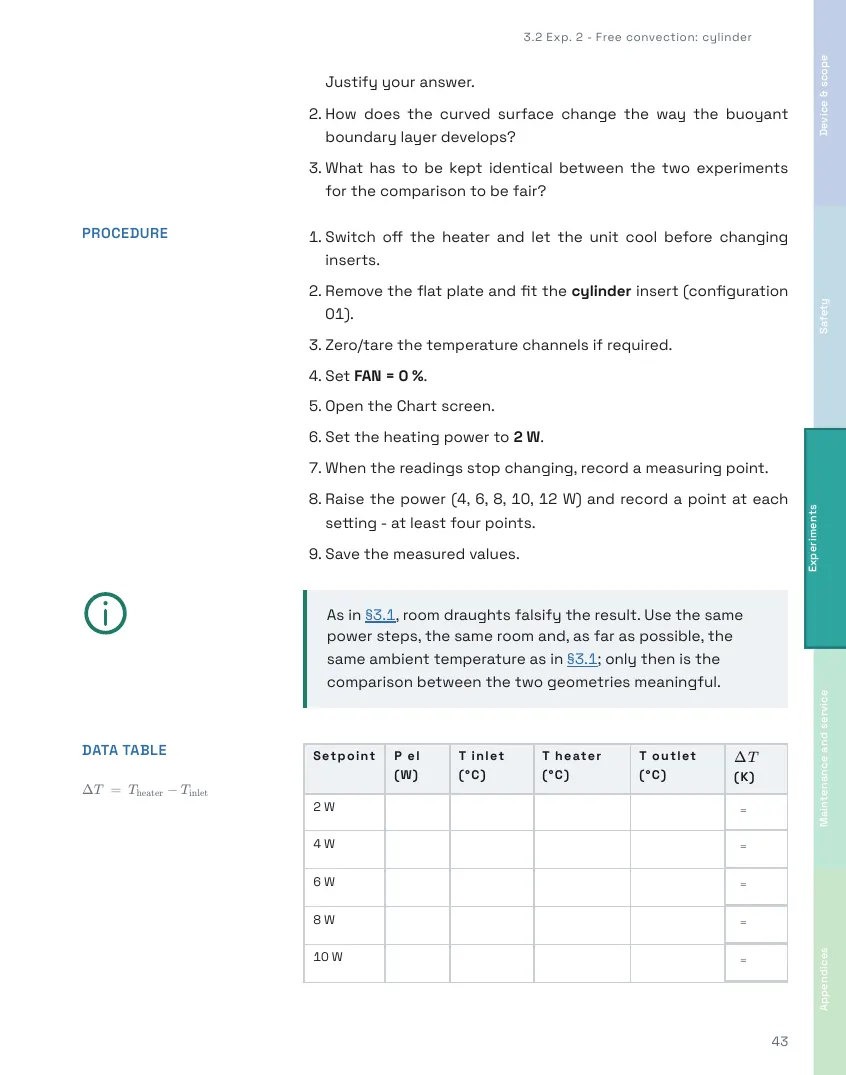

    TH321 Student's Handbook, page 43

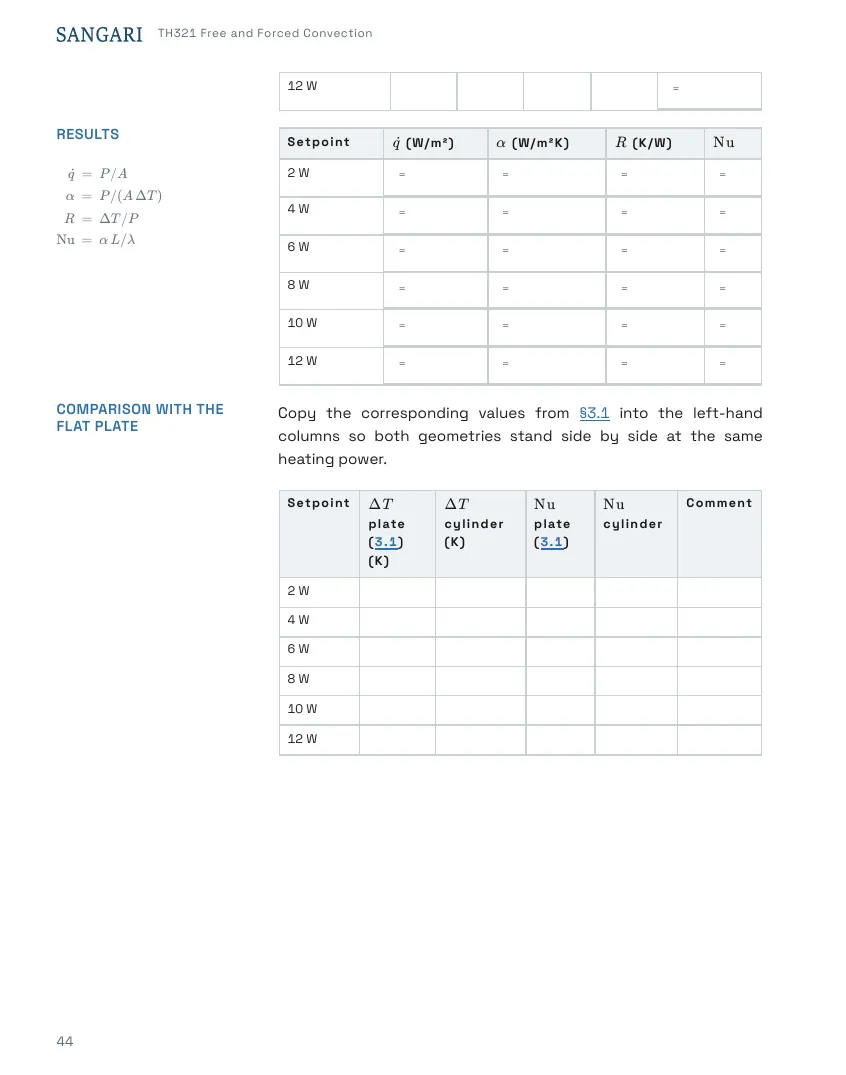

    TH321 Student's Handbook, page 44

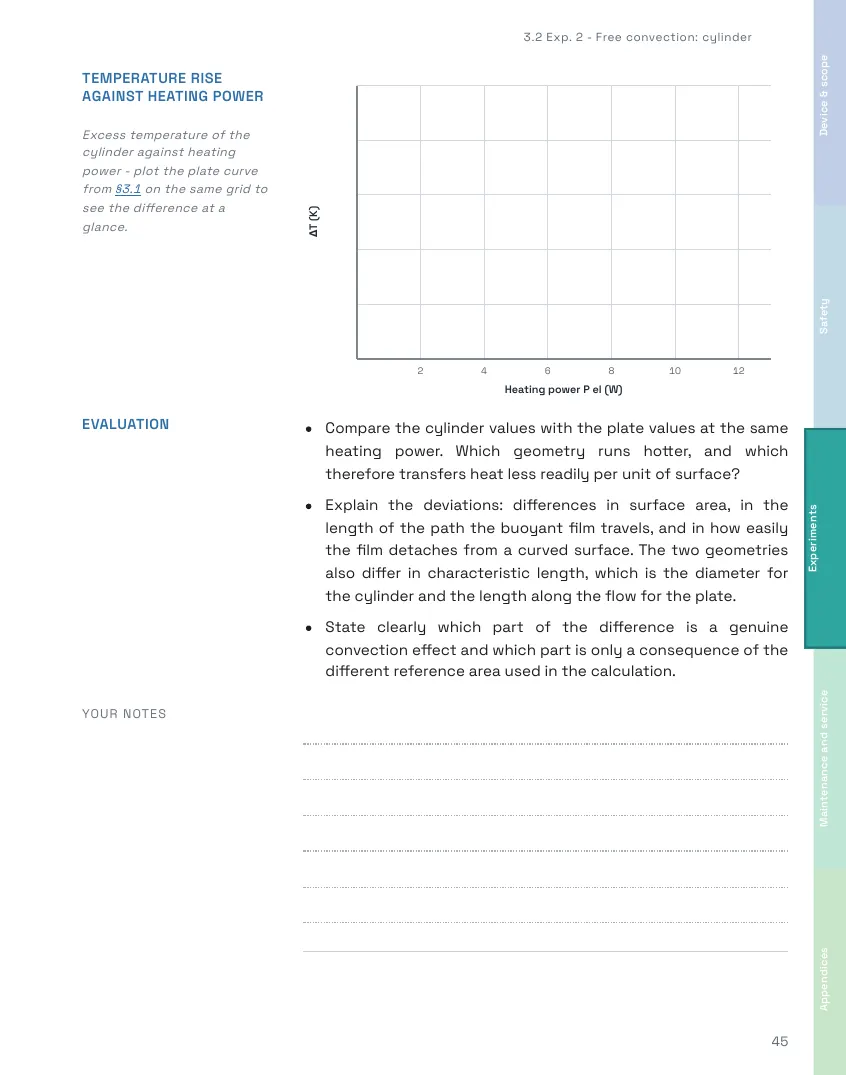

    TH321 Student's Handbook, page 45

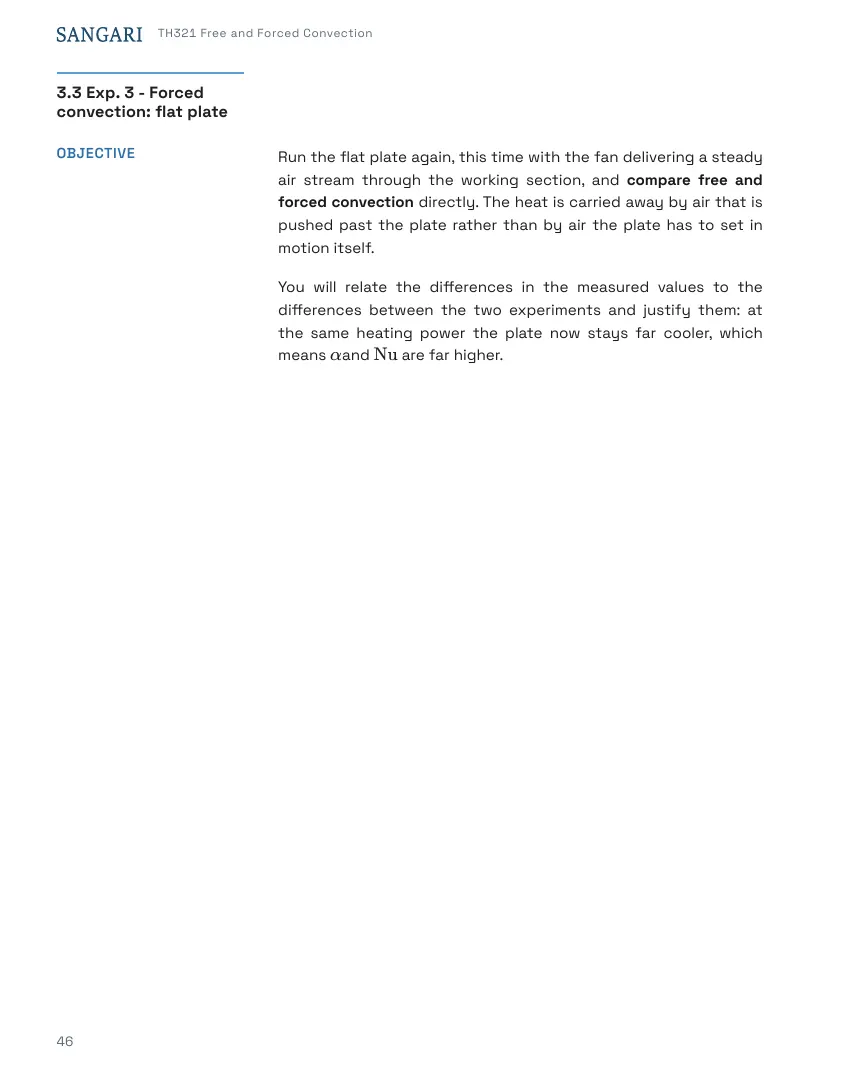

    TH321 Student's Handbook, page 46

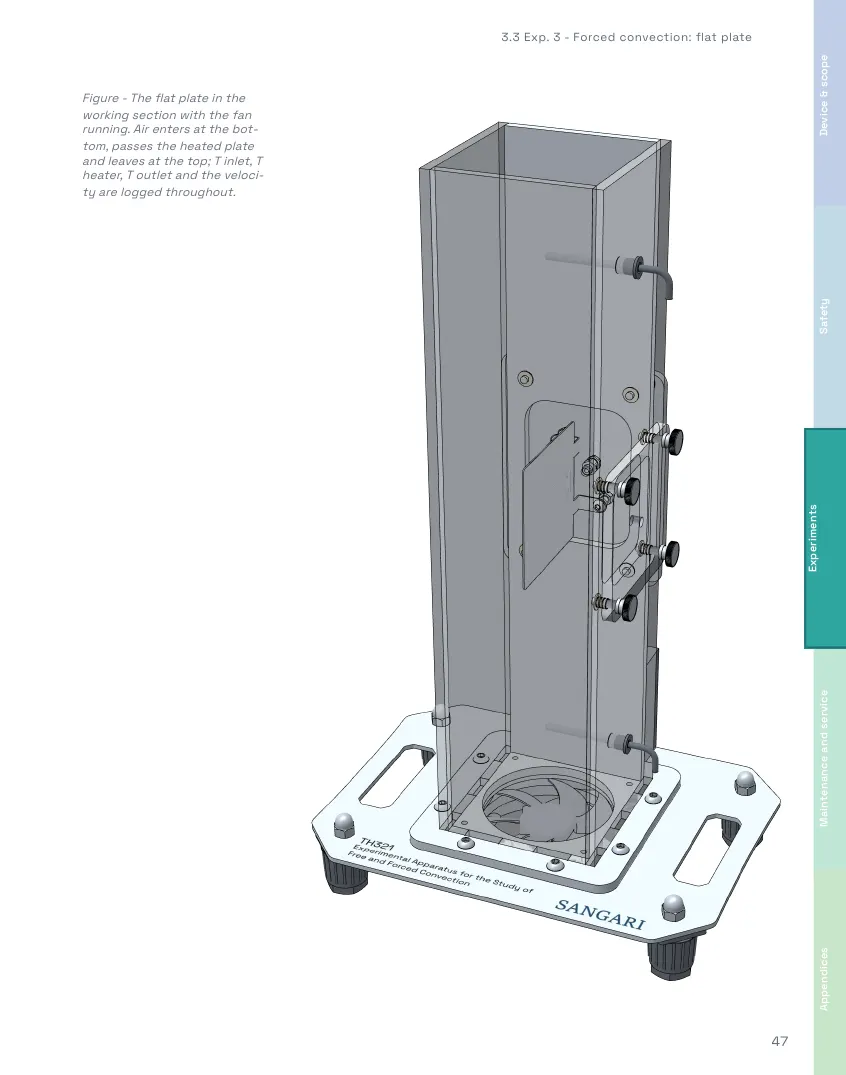

    TH321 Student's Handbook, page 47

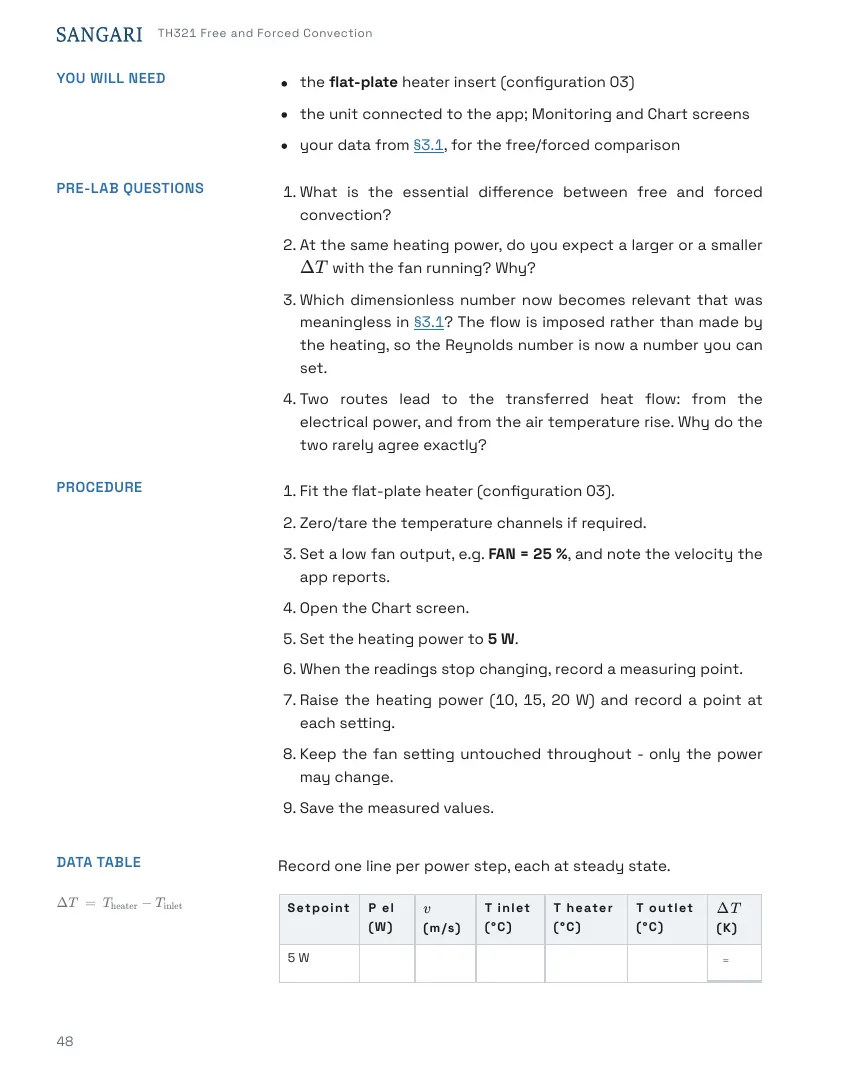

    TH321 Student's Handbook, page 48

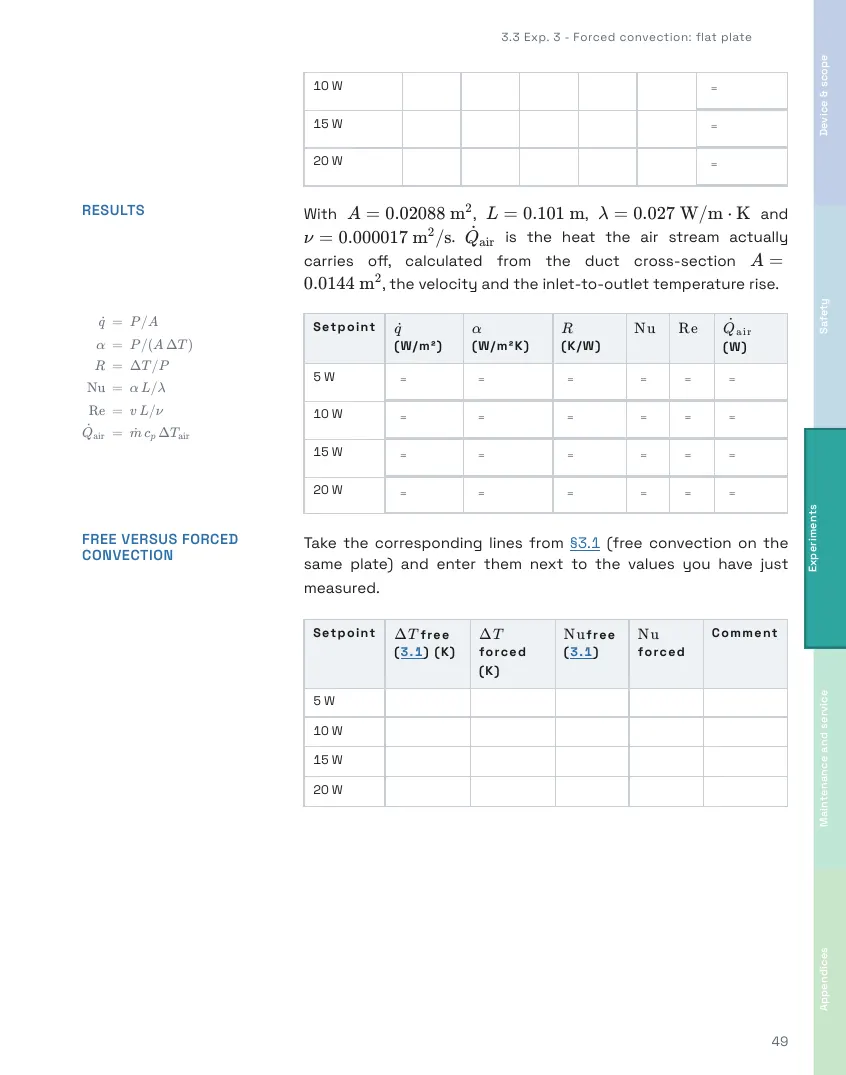

    TH321 Student's Handbook, page 49

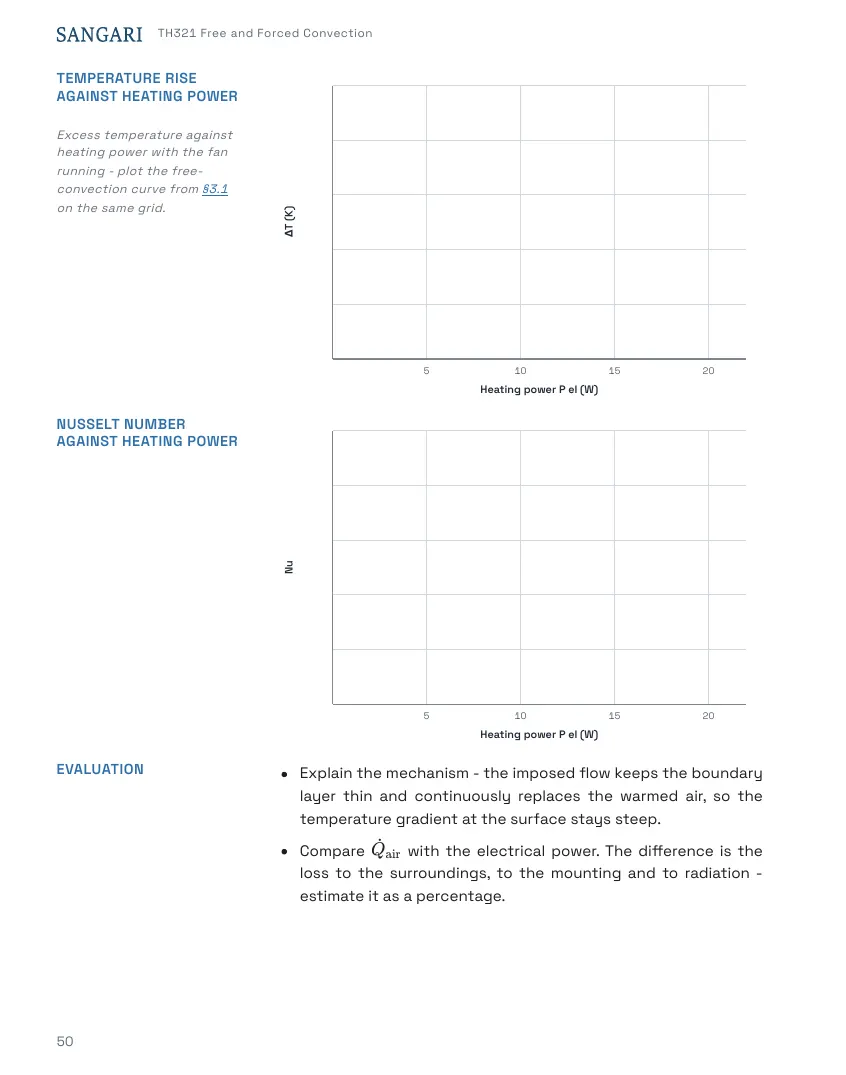

    TH321 Student's Handbook, page 50

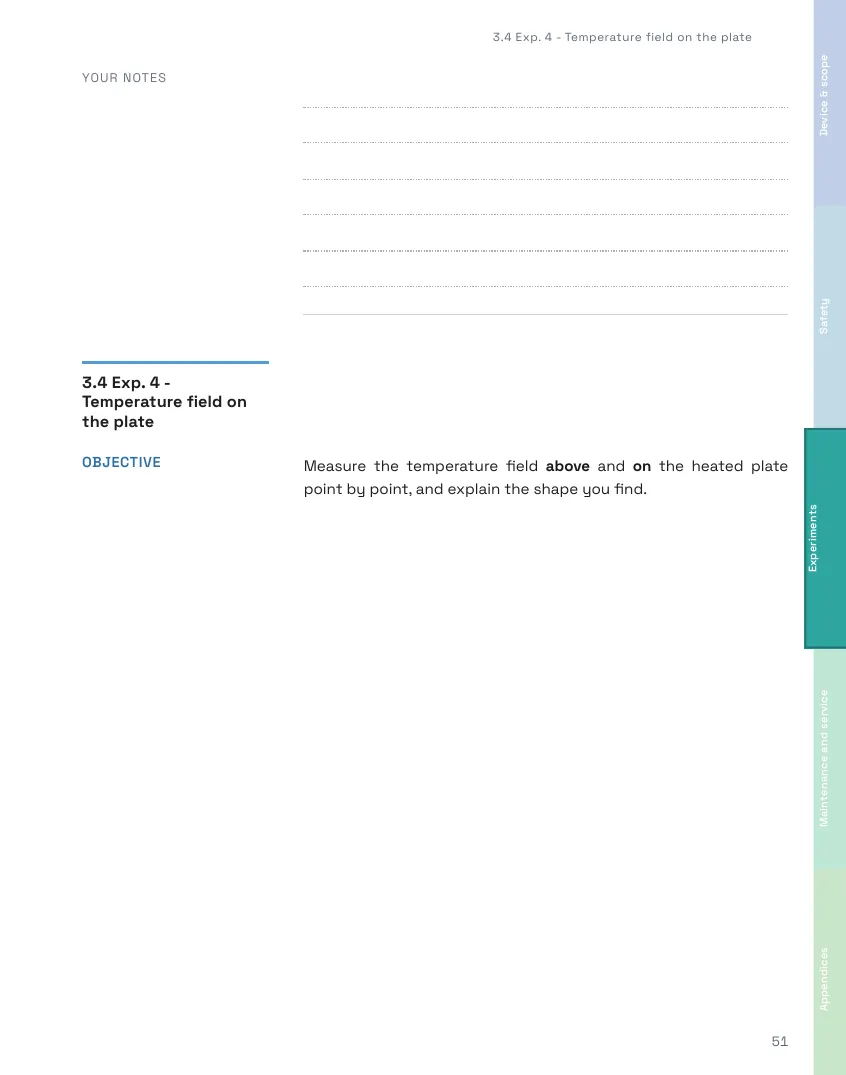

    TH321 Student's Handbook, page 51

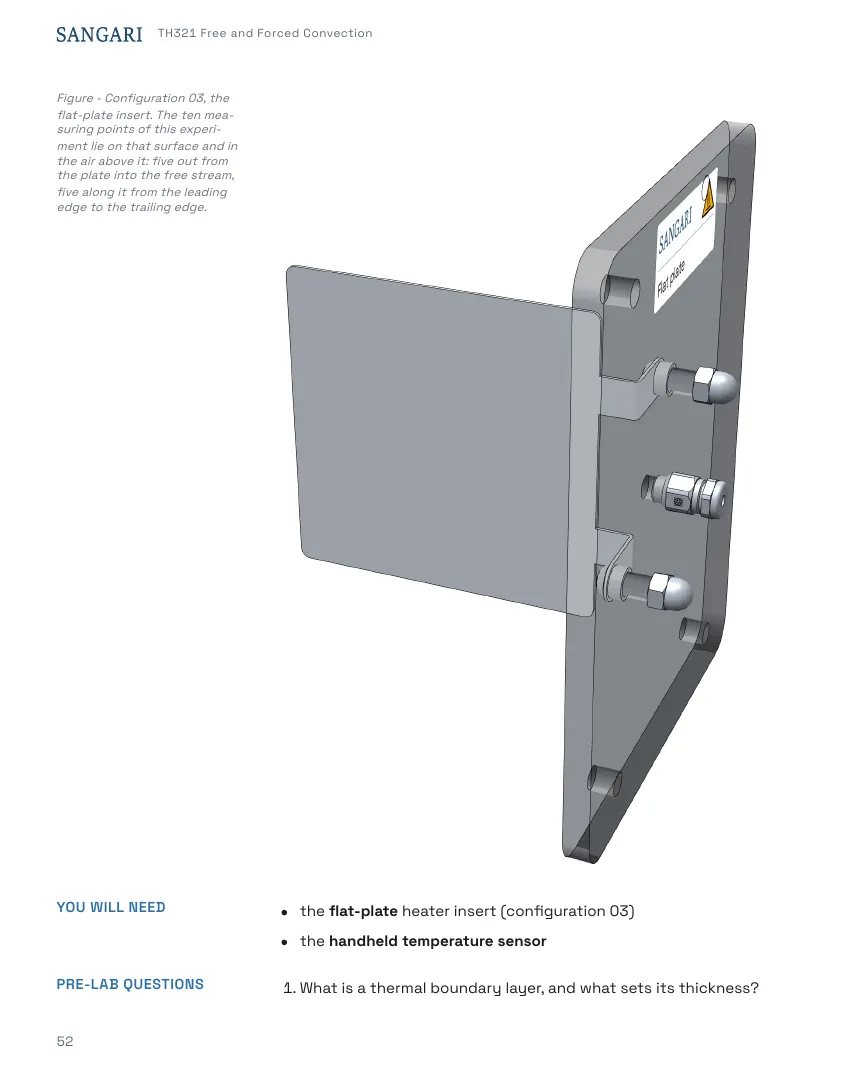

    TH321 Student's Handbook, page 52

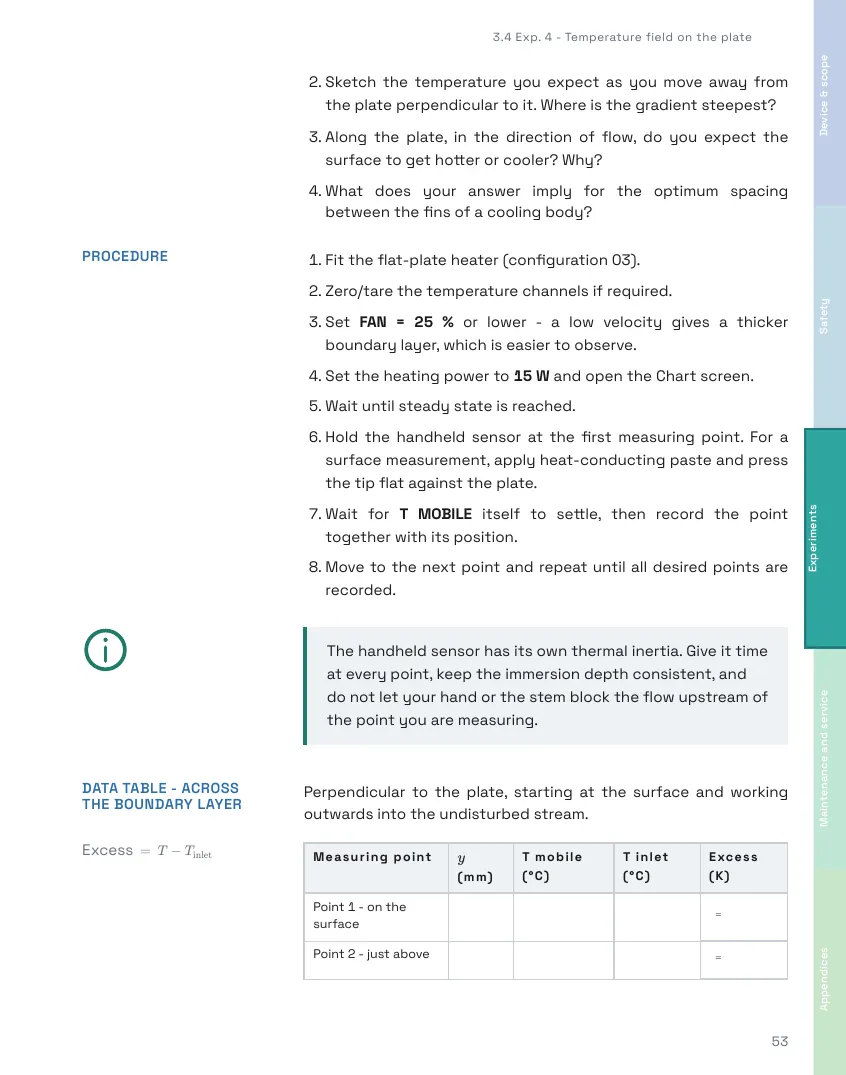

    TH321 Student's Handbook, page 53

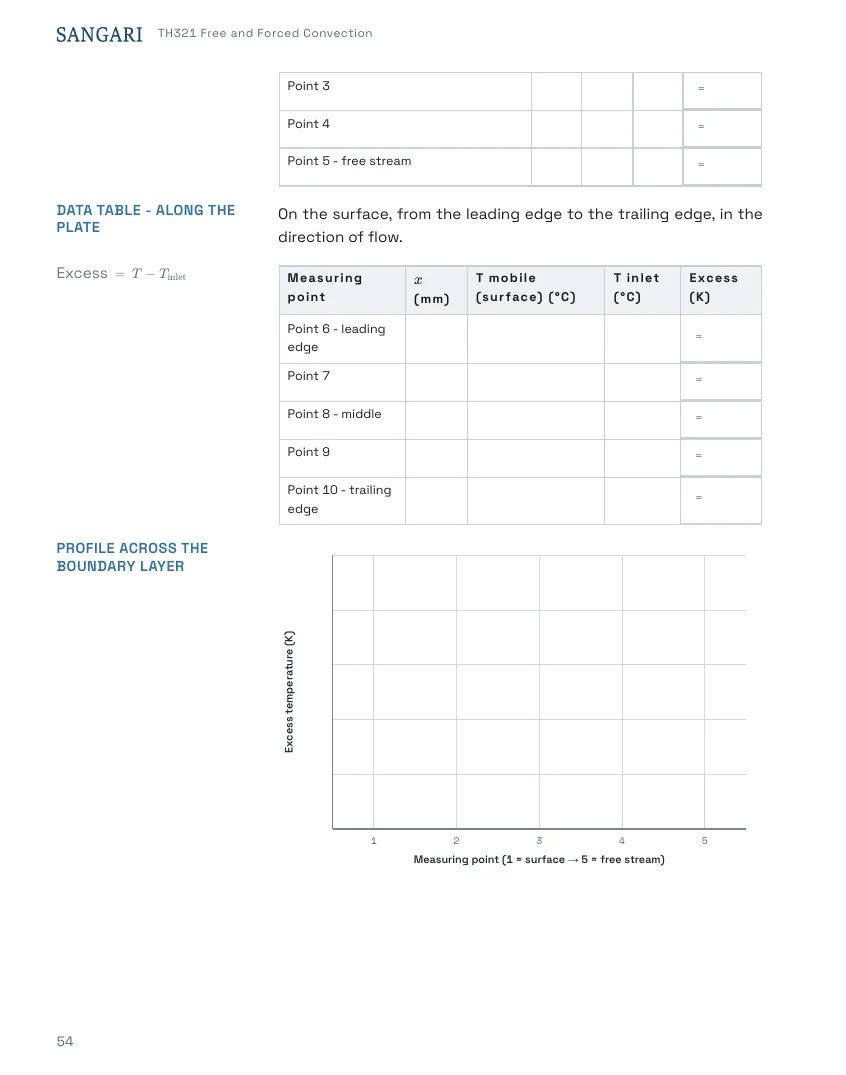

    TH321 Student's Handbook, page 54

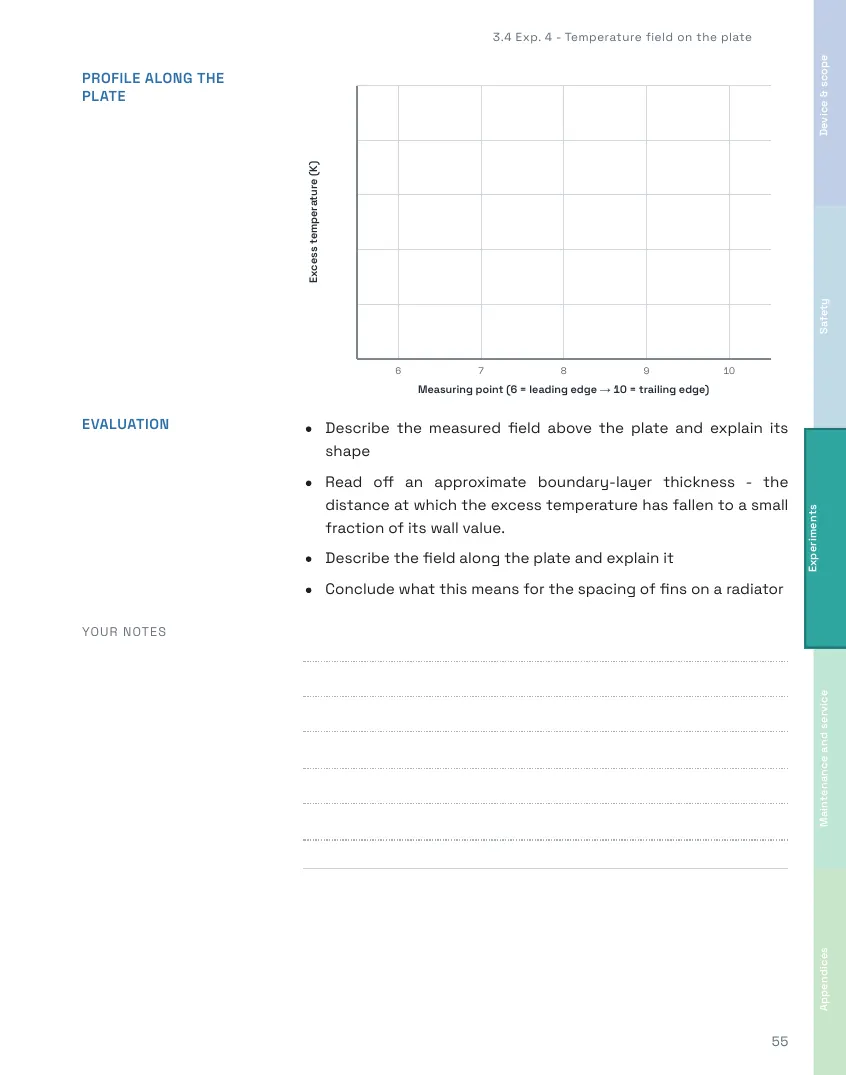

    TH321 Student's Handbook, page 55

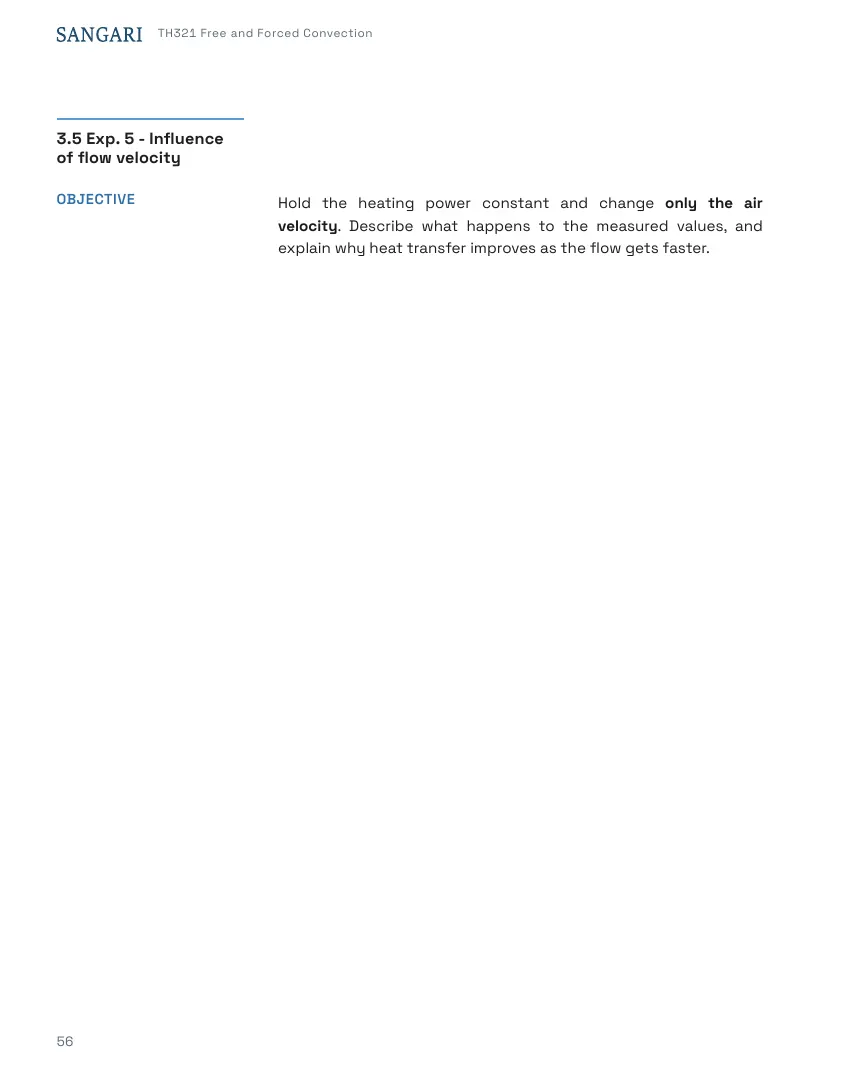

    TH321 Student's Handbook, page 56

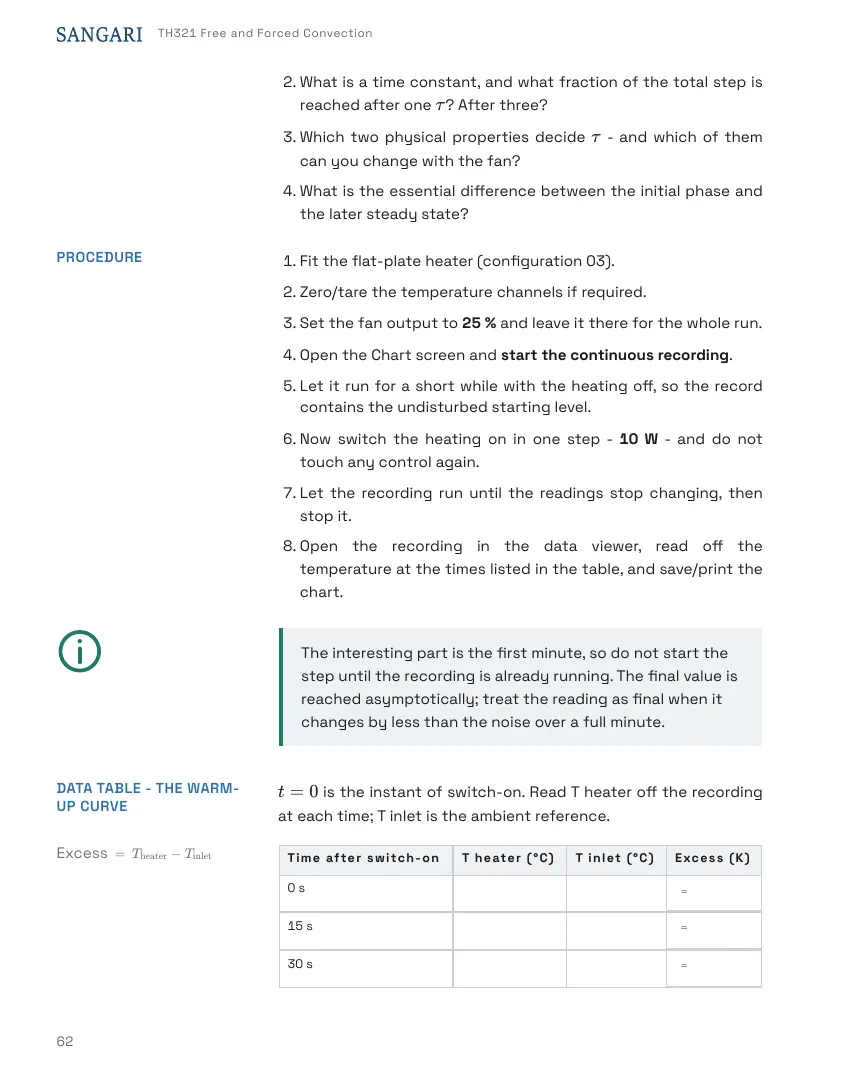

    TH321 Student's Handbook, page 57

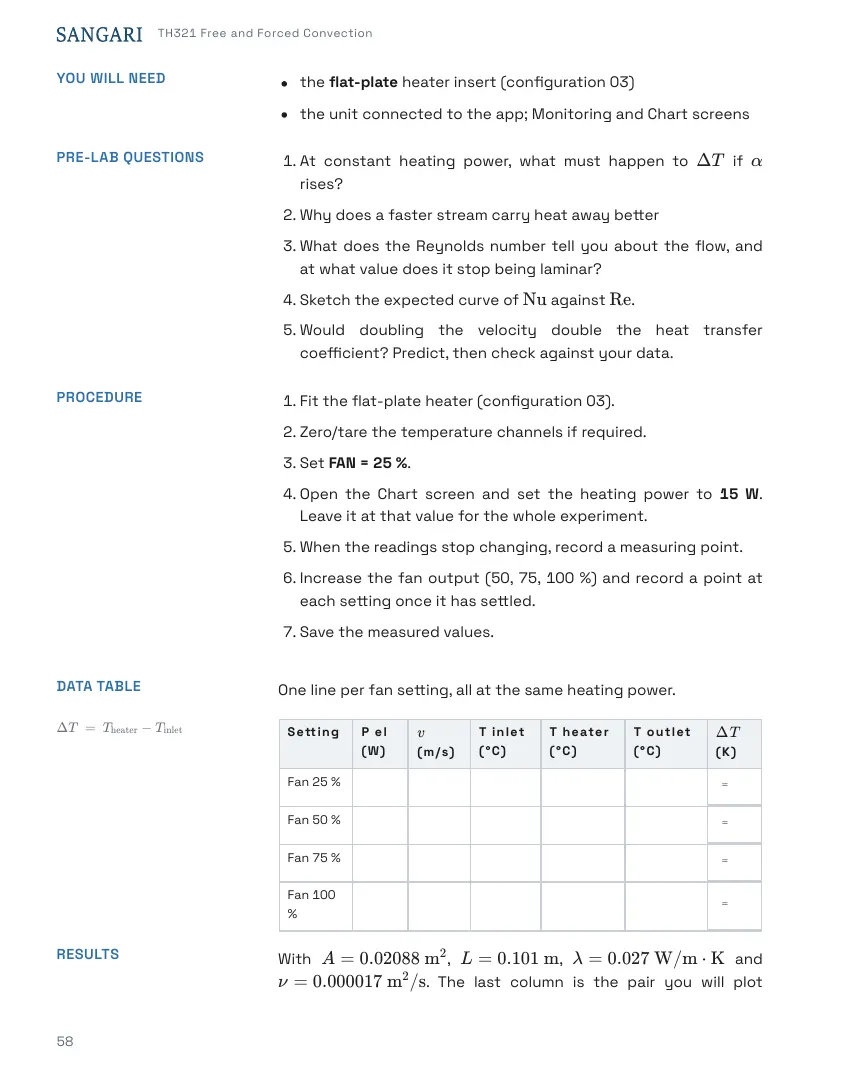

    TH321 Student's Handbook, page 58

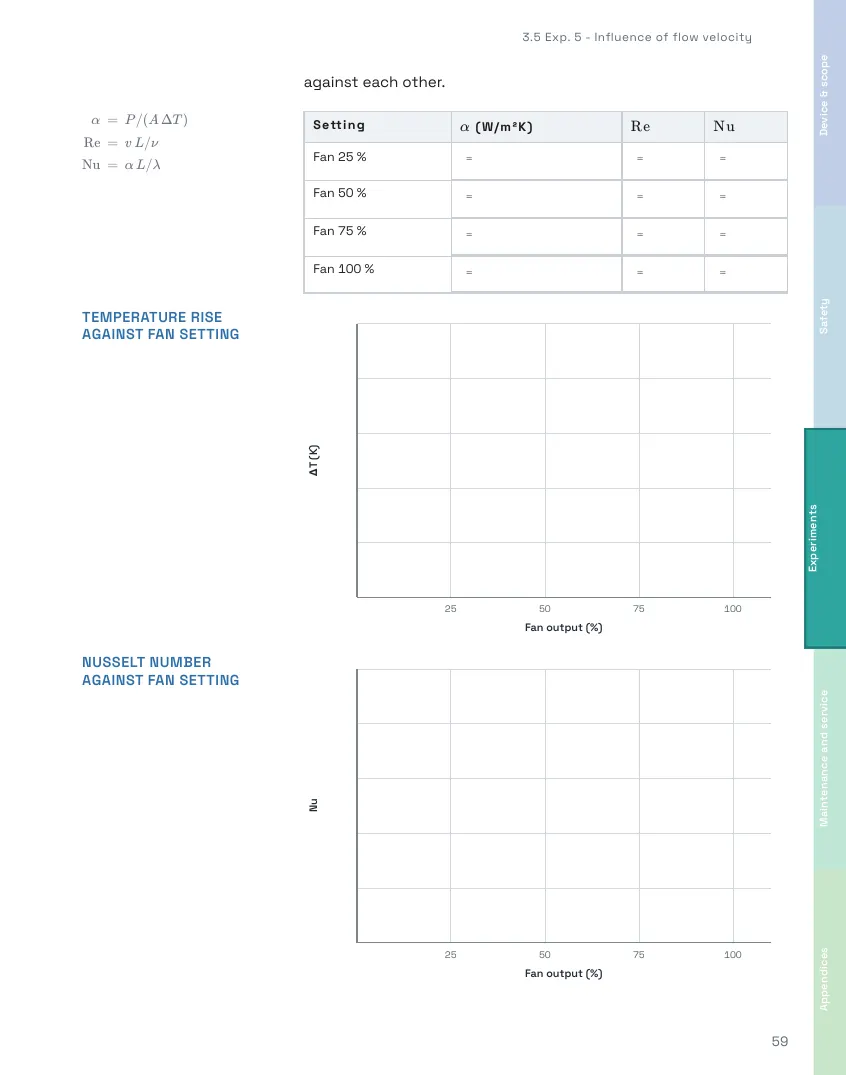

    TH321 Student's Handbook, page 59

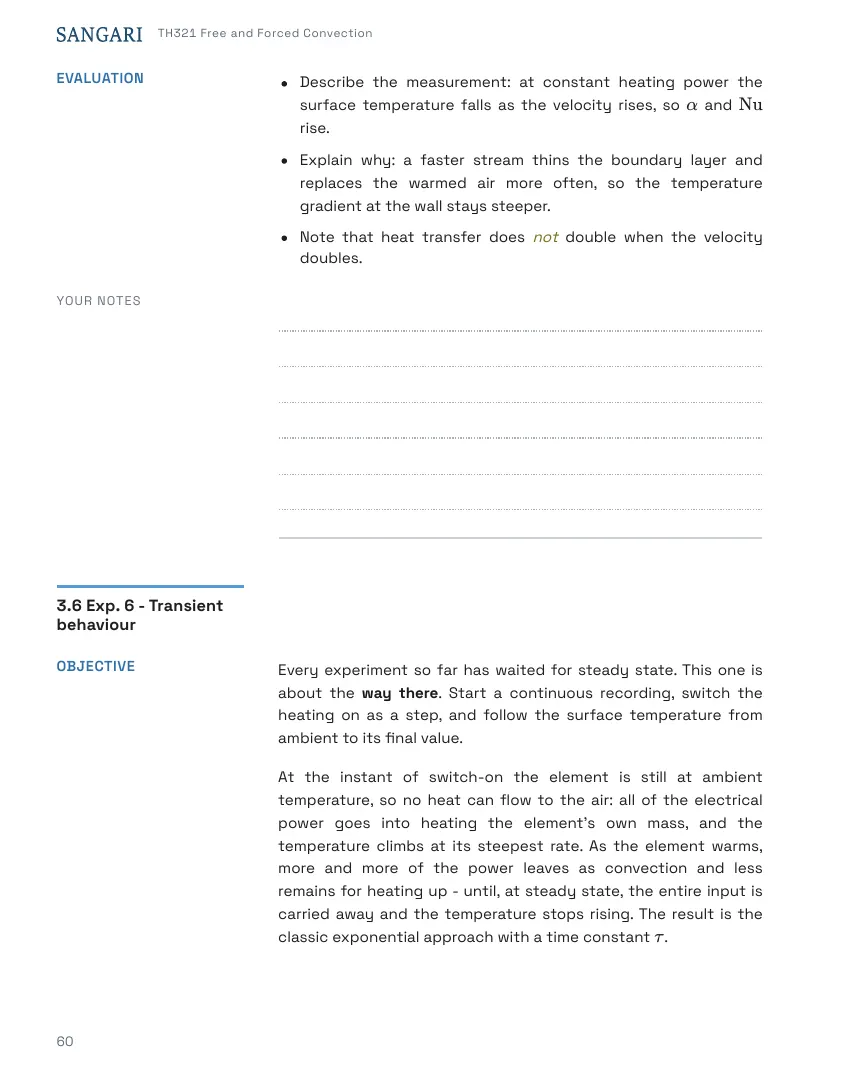

    TH321 Student's Handbook, page 60

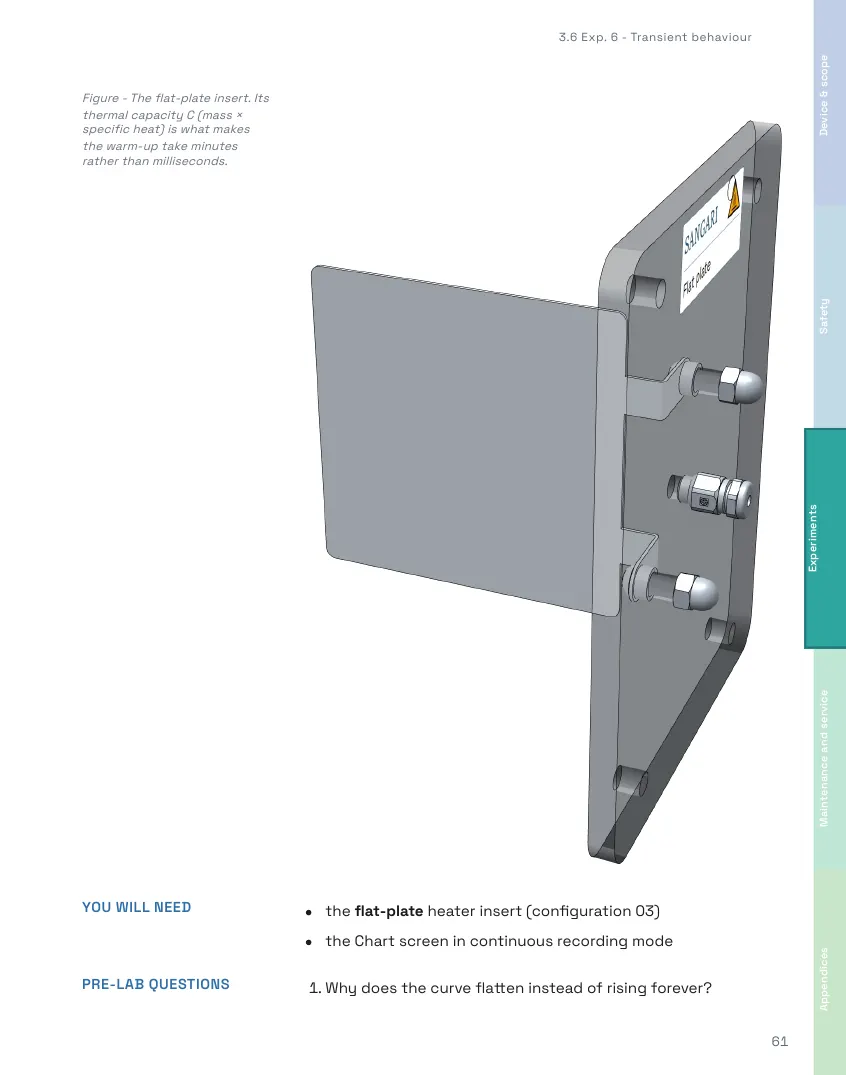

    TH321 Student's Handbook, page 61
    TH321 Student's Handbook, page 62

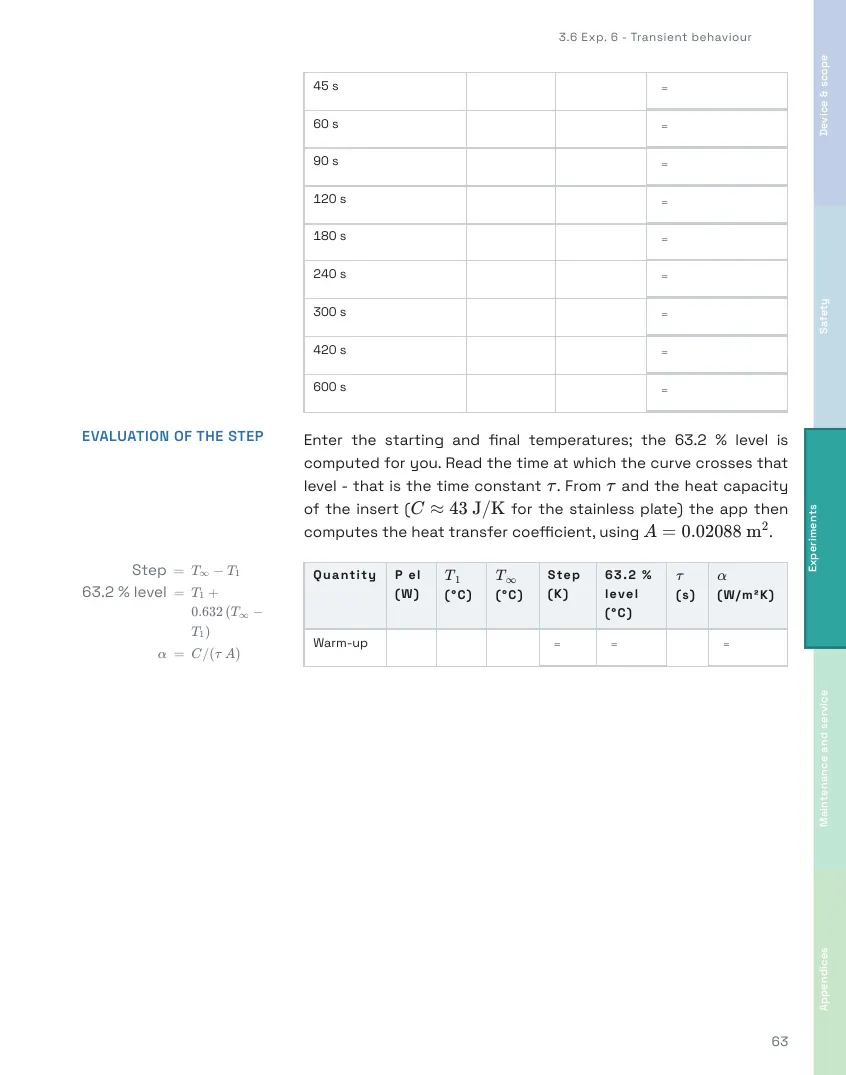

    TH321 Student's Handbook, page 63

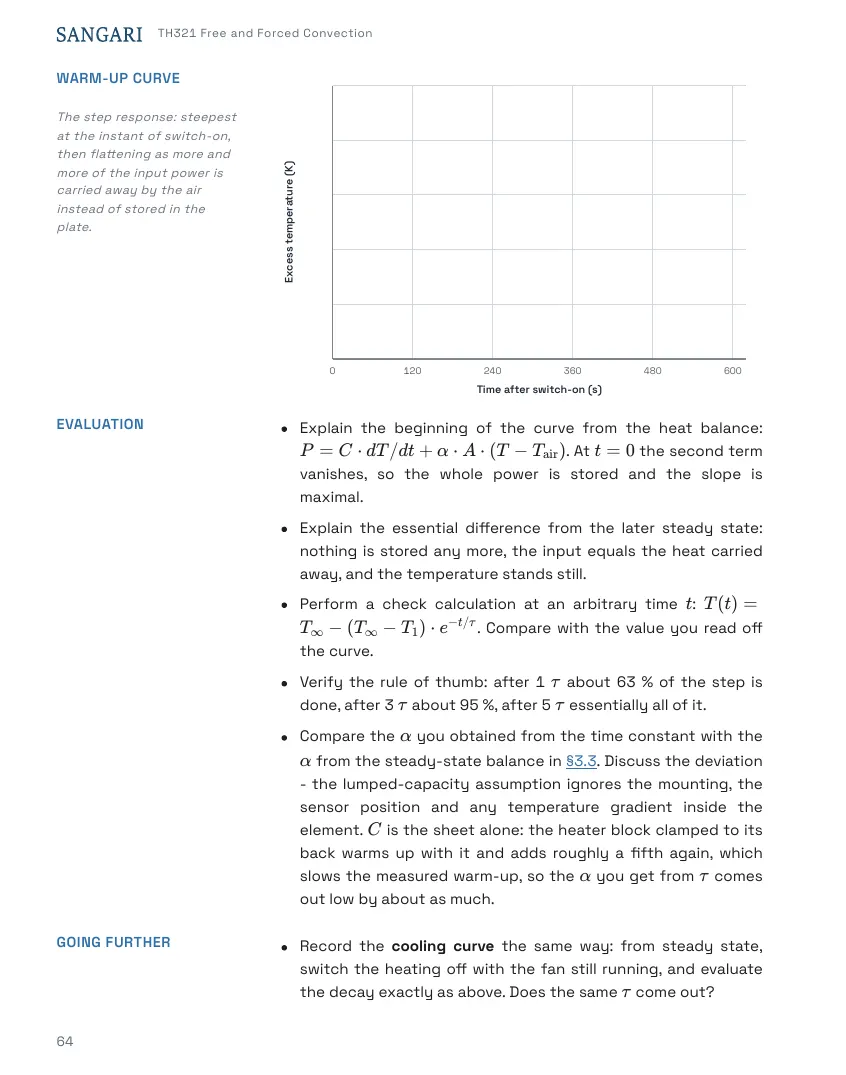

    TH321 Student's Handbook, page 64

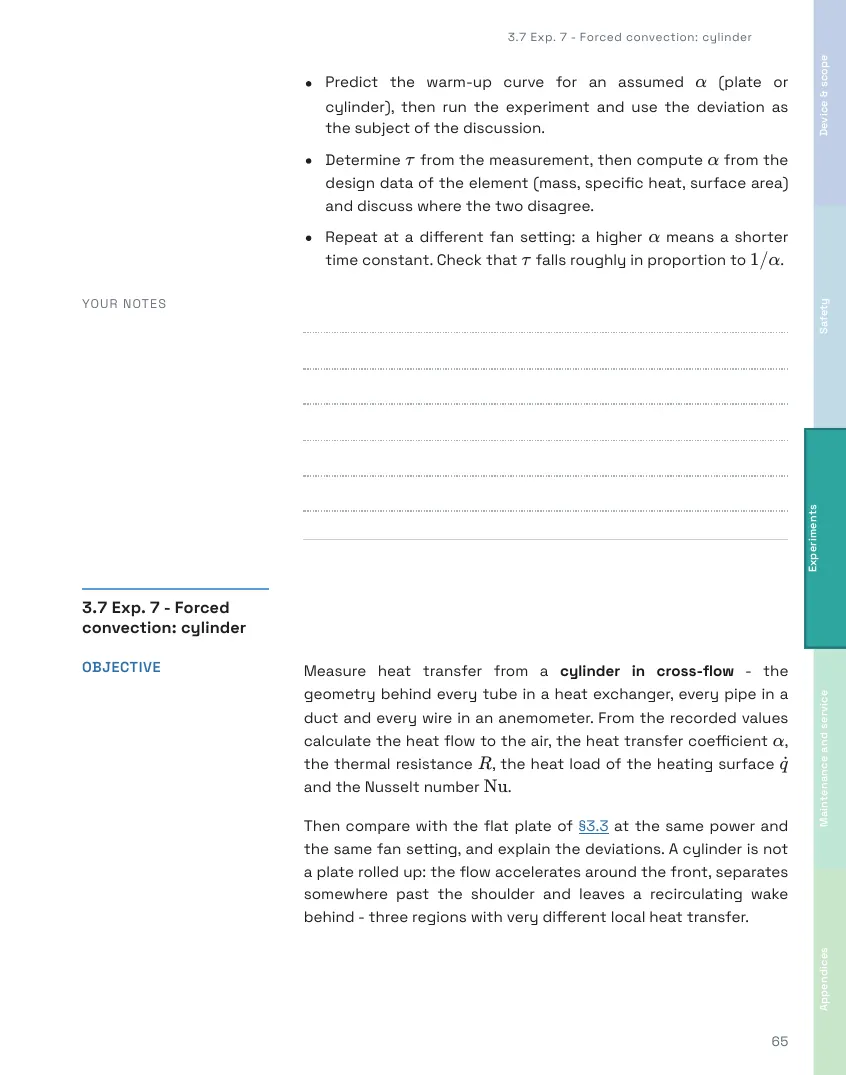

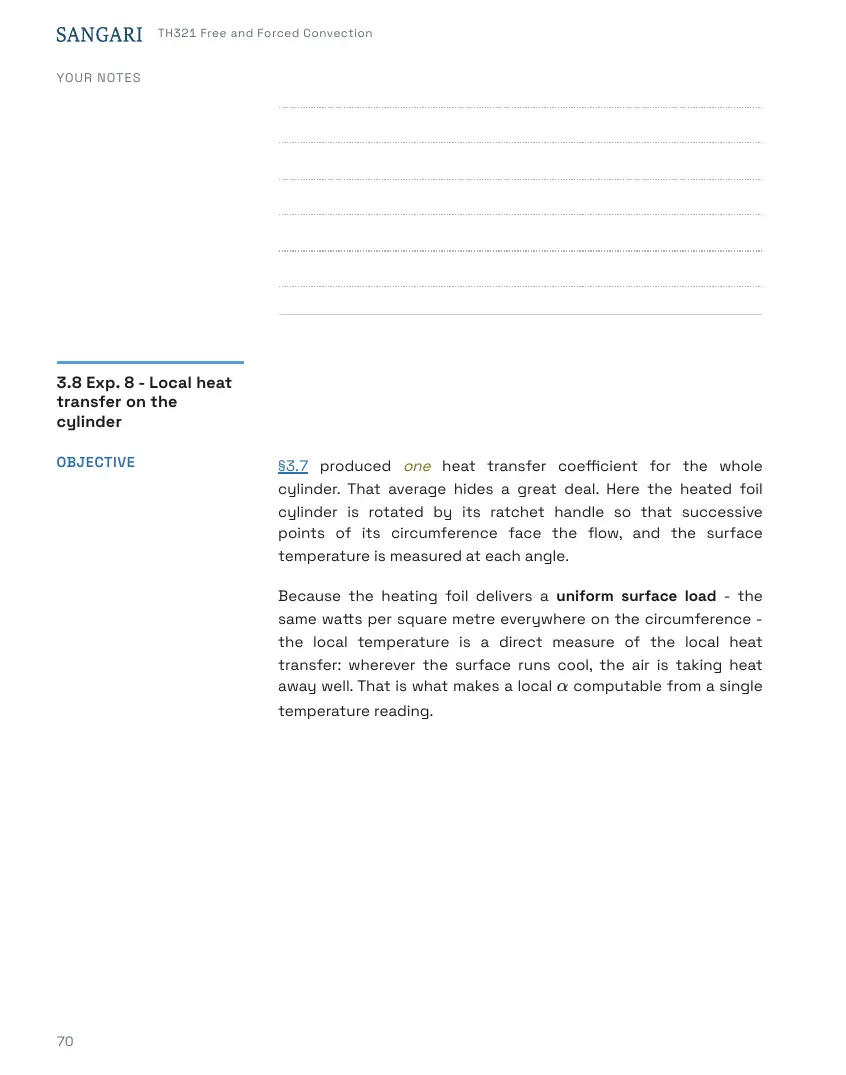

    TH321 Student's Handbook, page 65

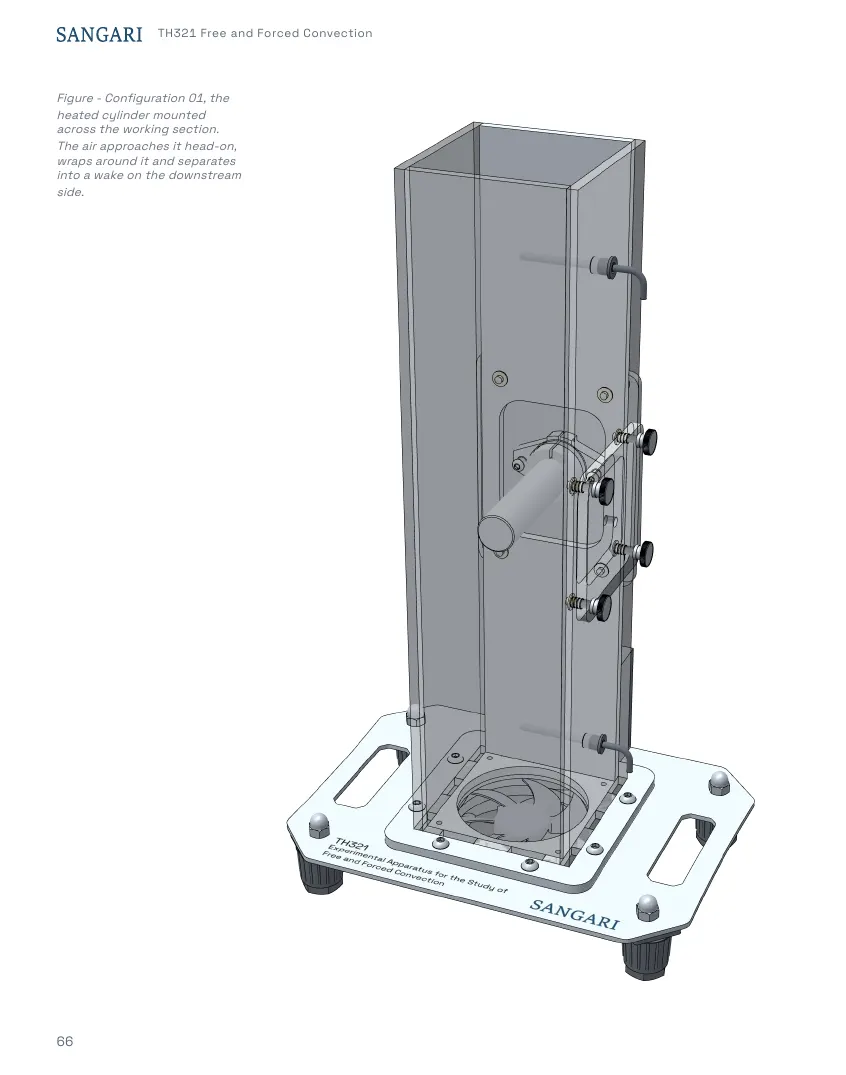

    TH321 Student's Handbook, page 66

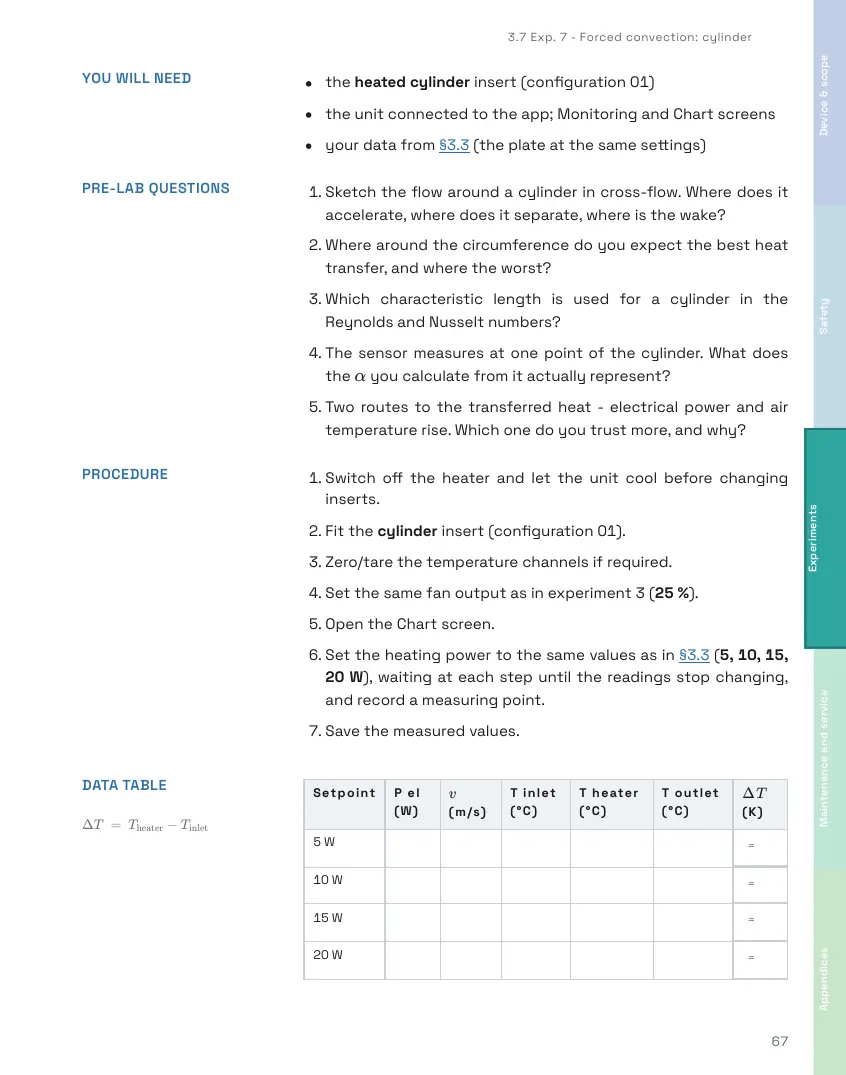

    TH321 Student's Handbook, page 67

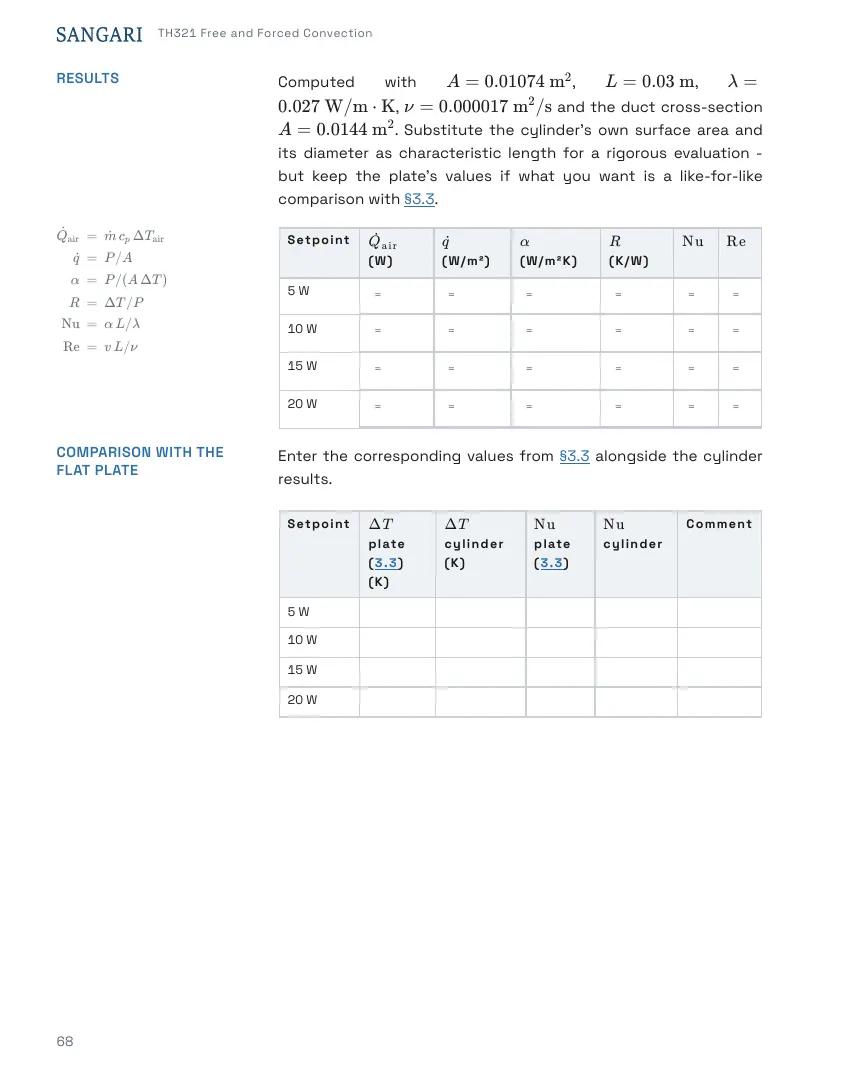

    TH321 Student's Handbook, page 68

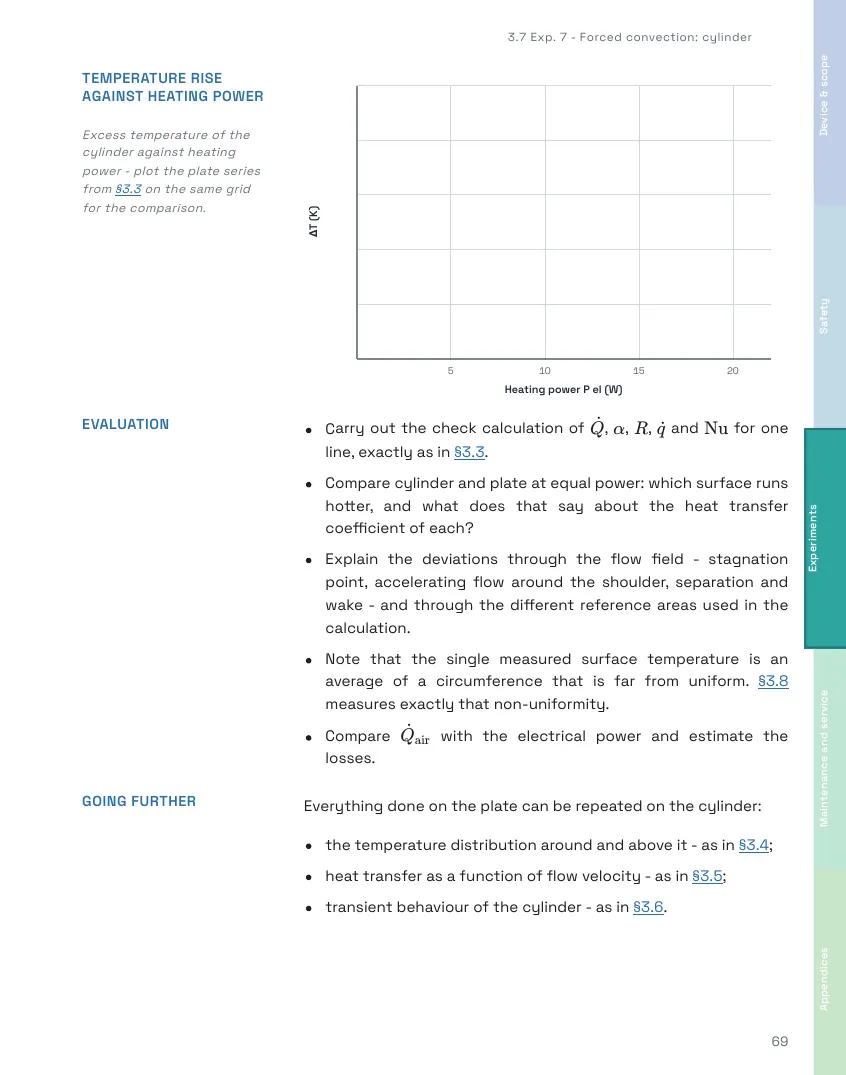

    TH321 Student's Handbook, page 69
    TH321 Student's Handbook, page 70

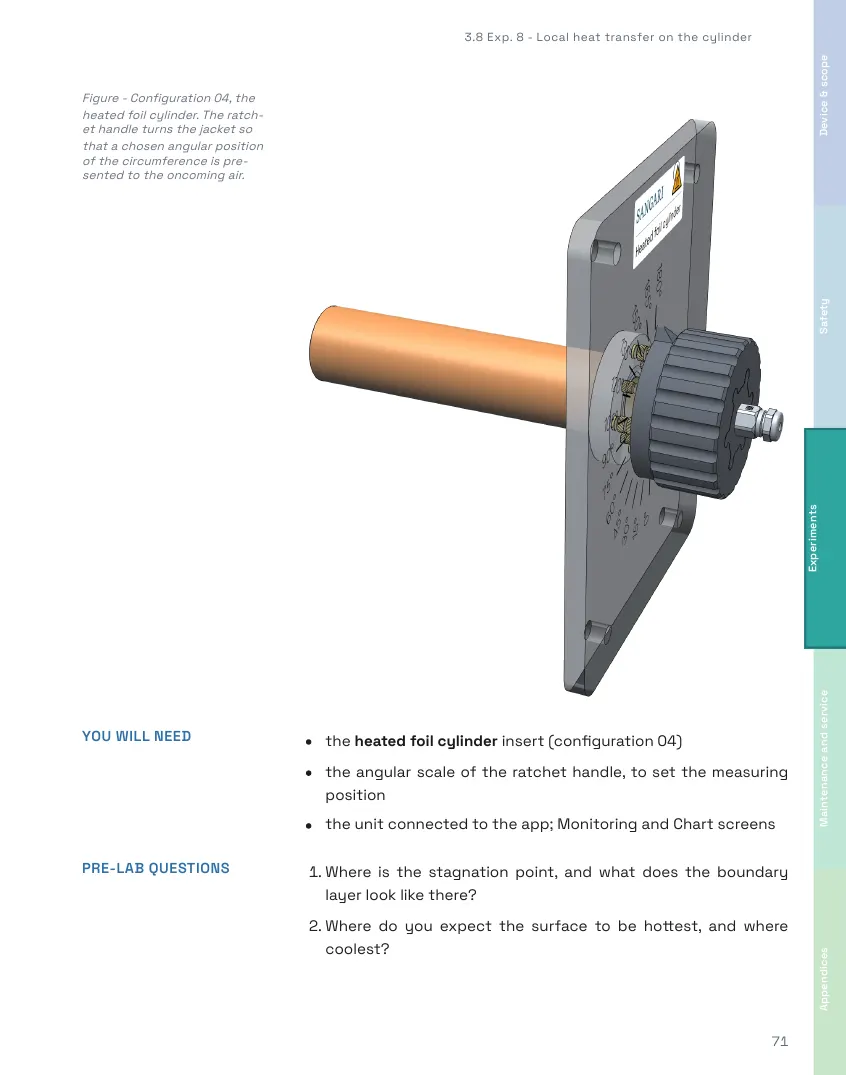

    TH321 Student's Handbook, page 71

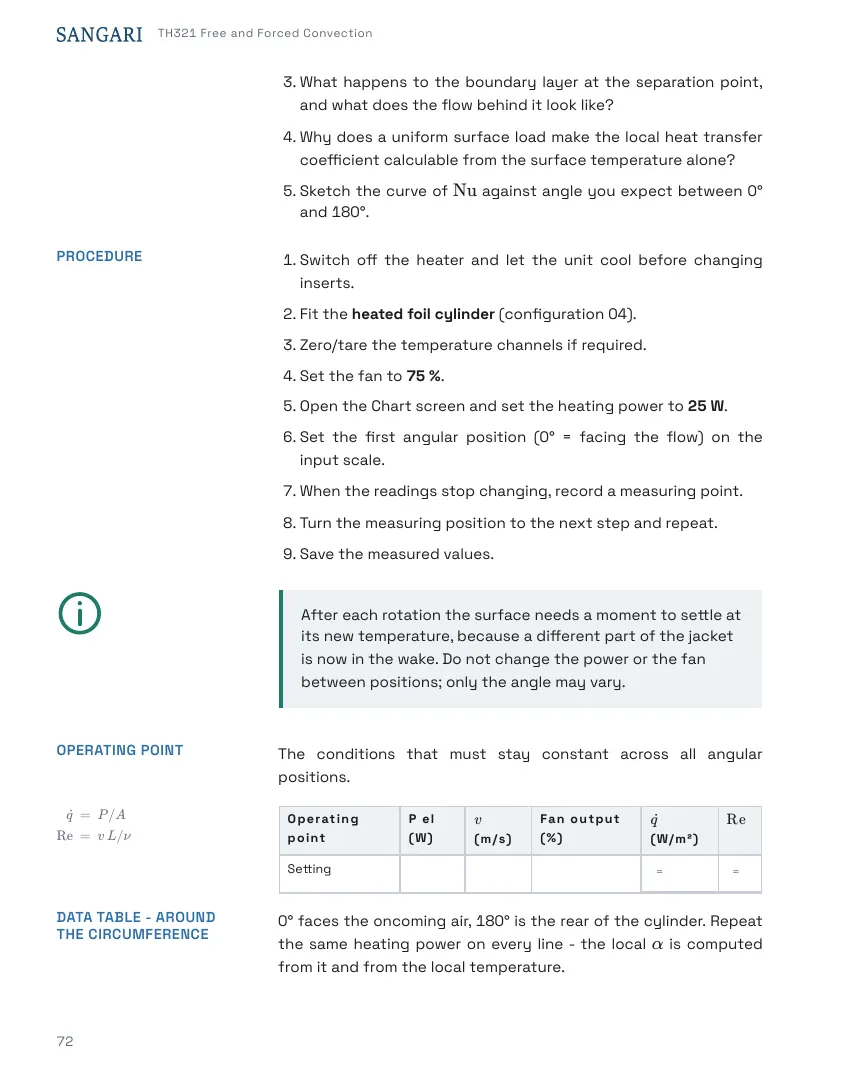

    TH321 Student's Handbook, page 72

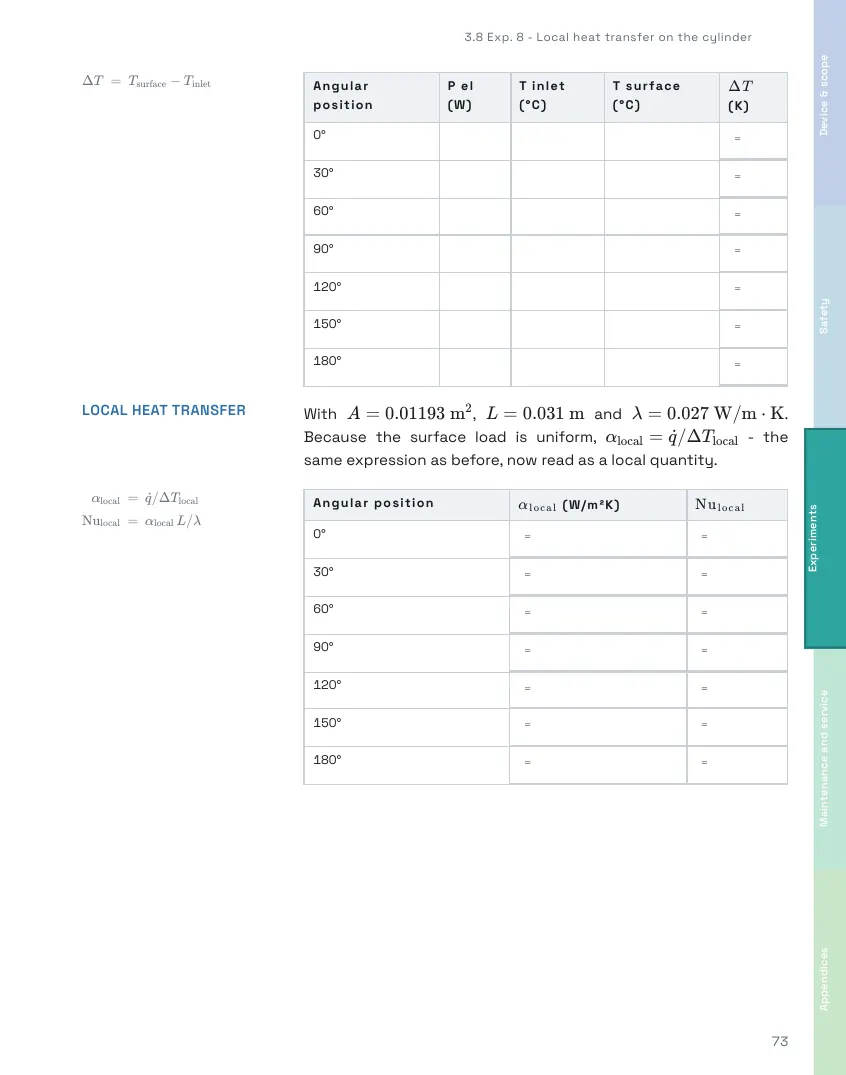

    TH321 Student's Handbook, page 73

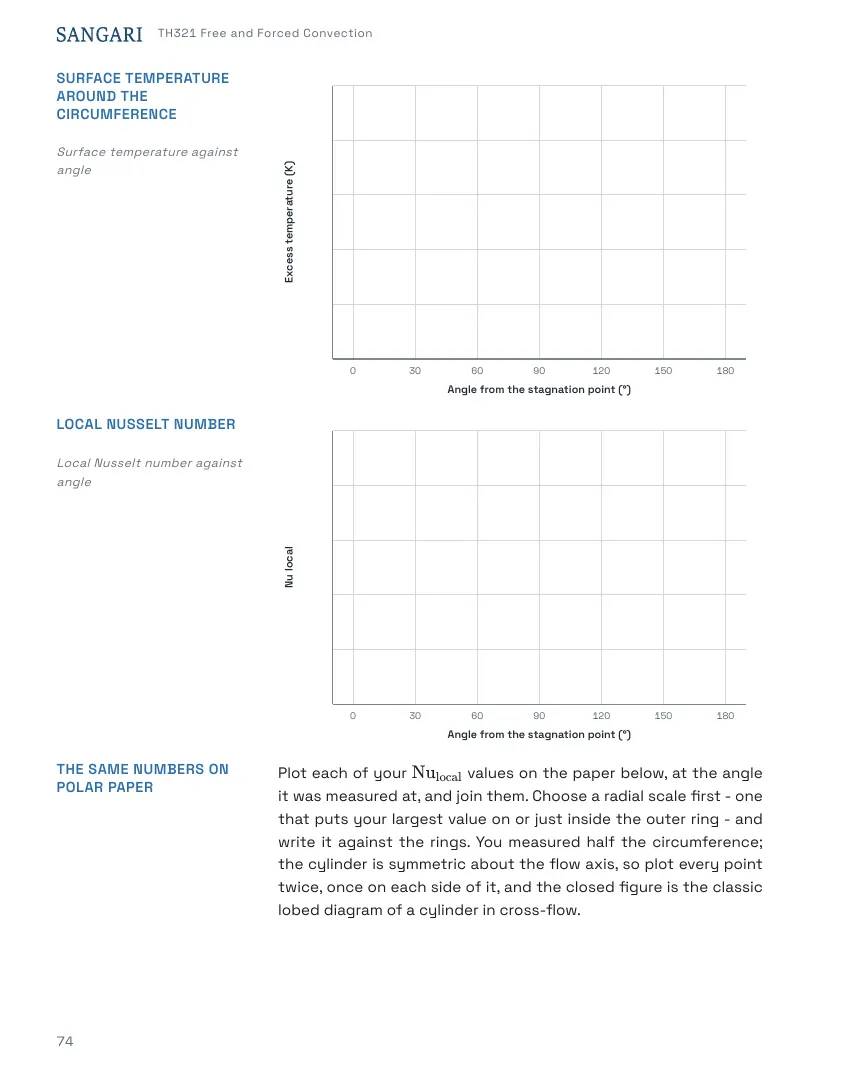

    TH321 Student's Handbook, page 74

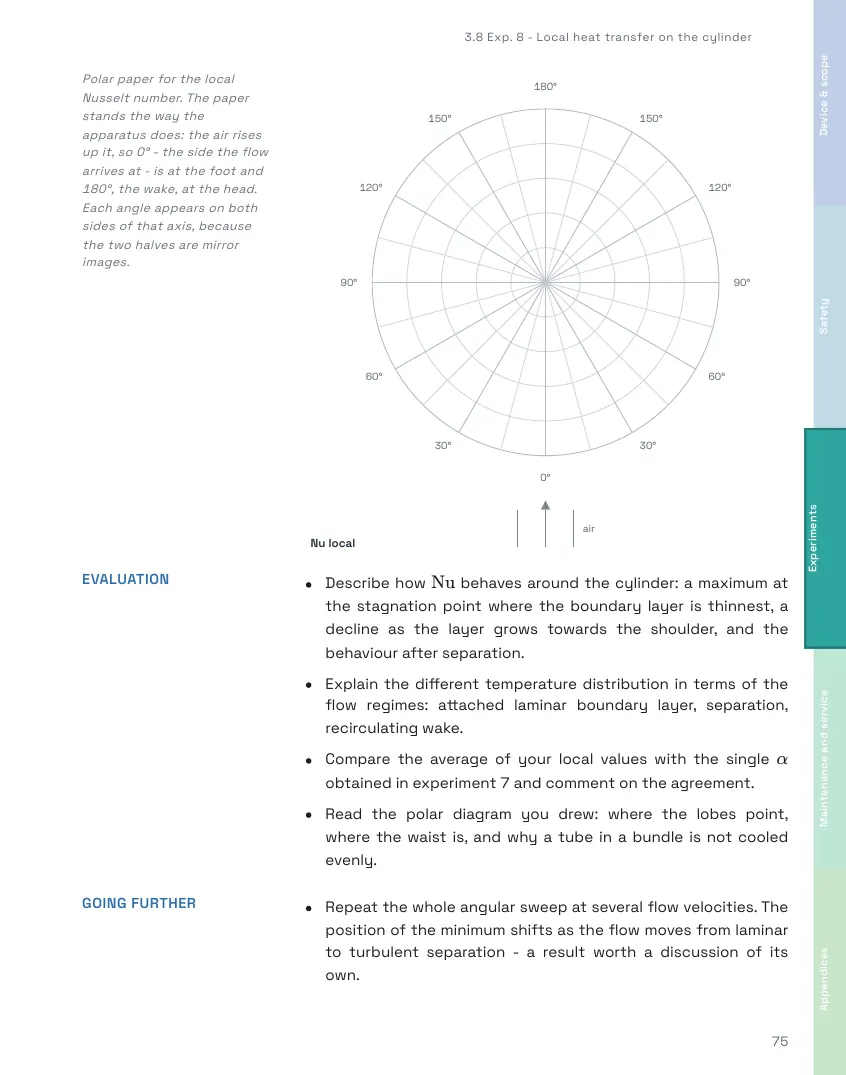

    TH321 Student's Handbook, page 75

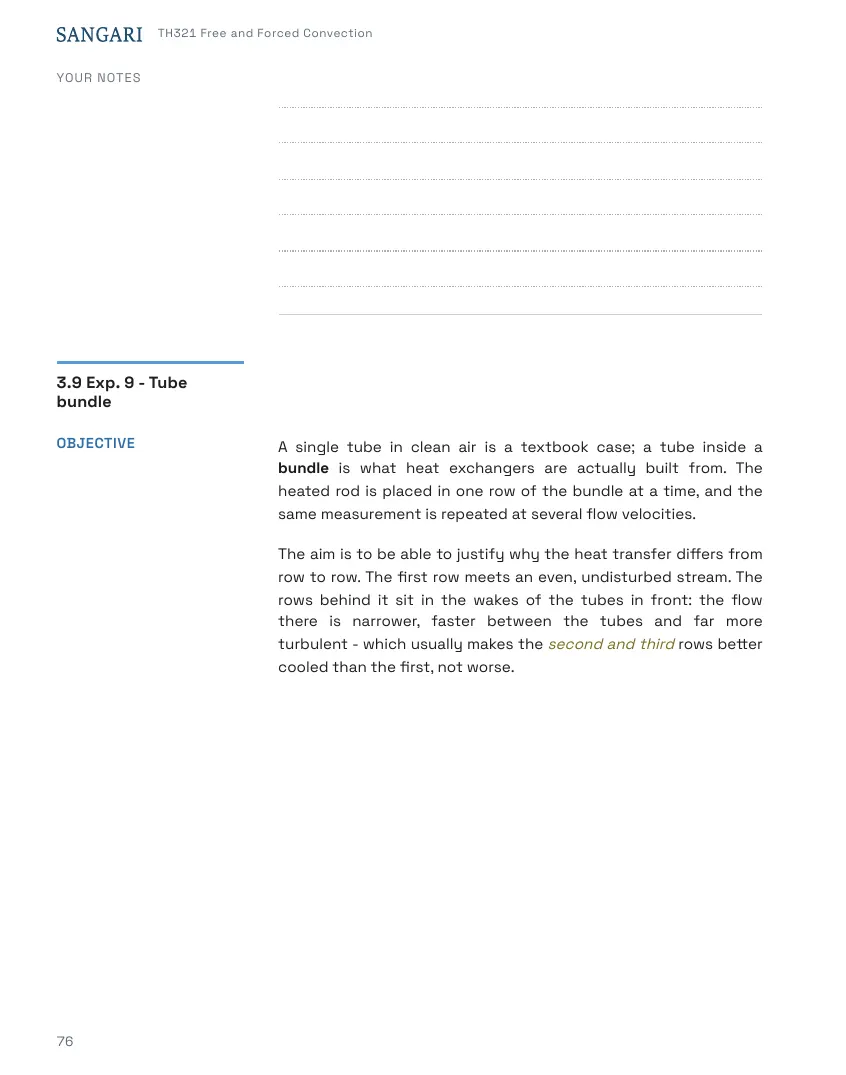

    TH321 Student's Handbook, page 76

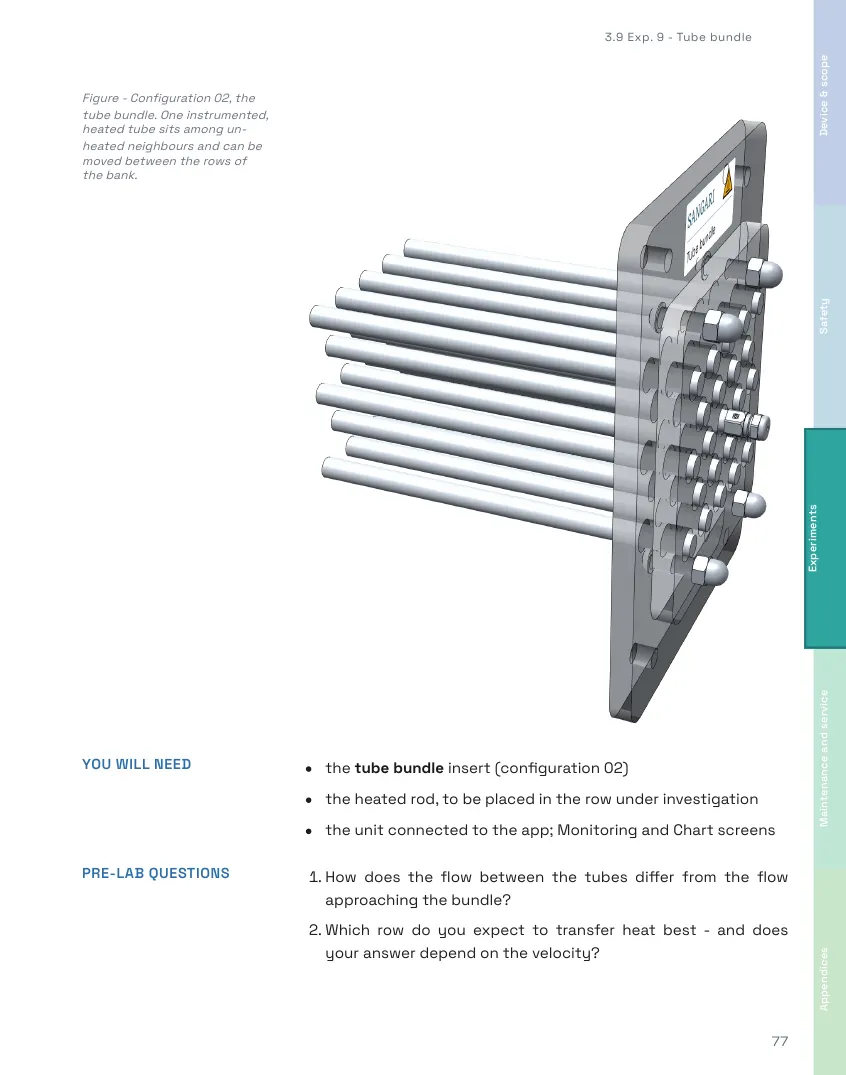

    TH321 Student's Handbook, page 77

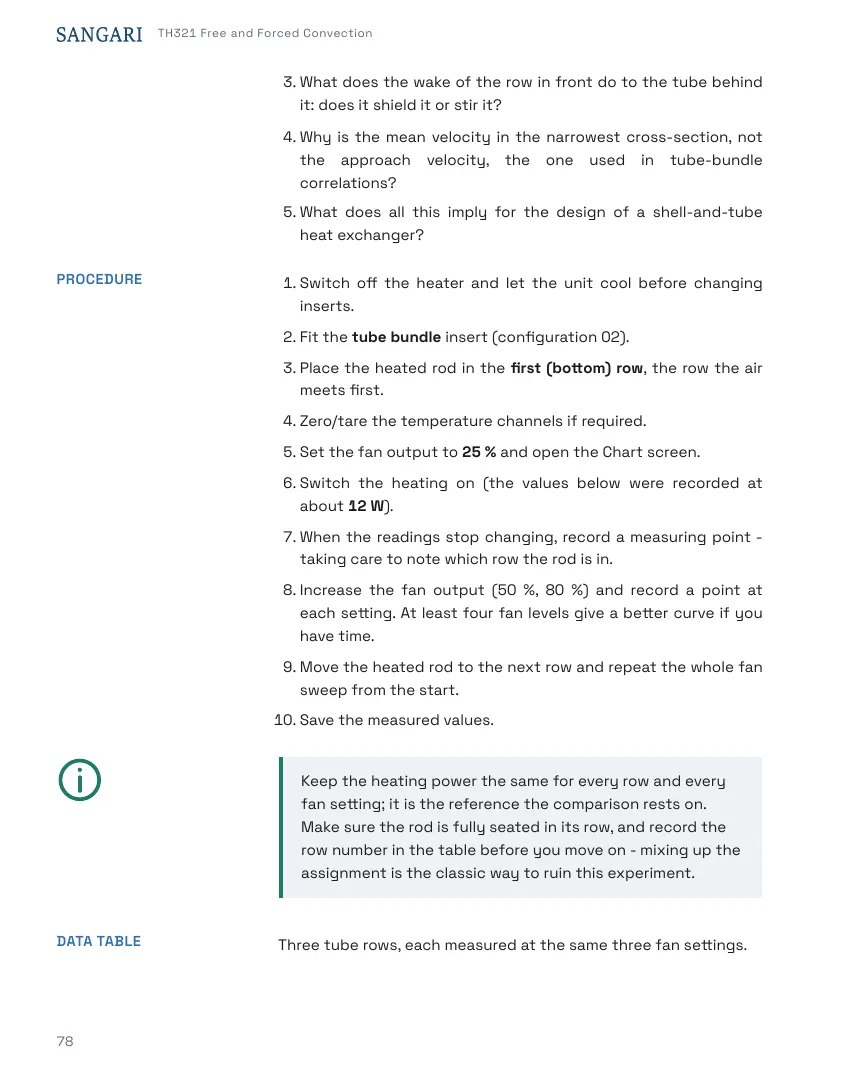

    TH321 Student's Handbook, page 78

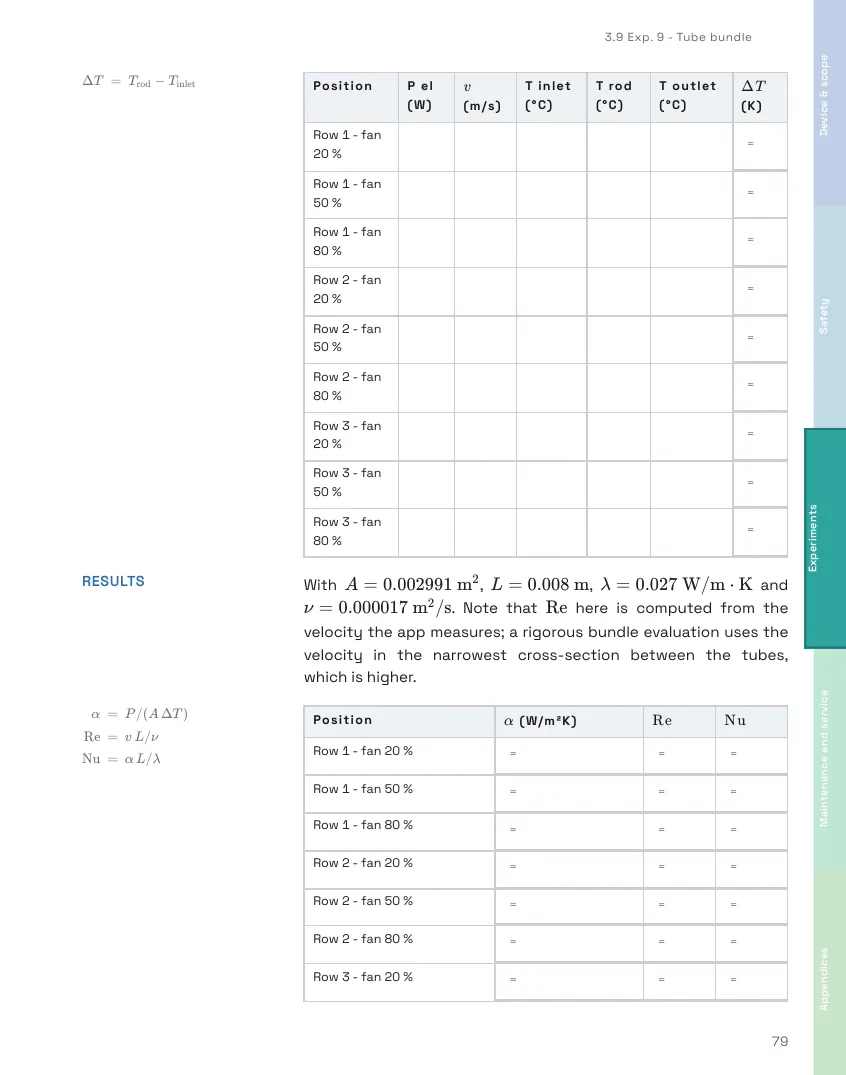

    TH321 Student's Handbook, page 79

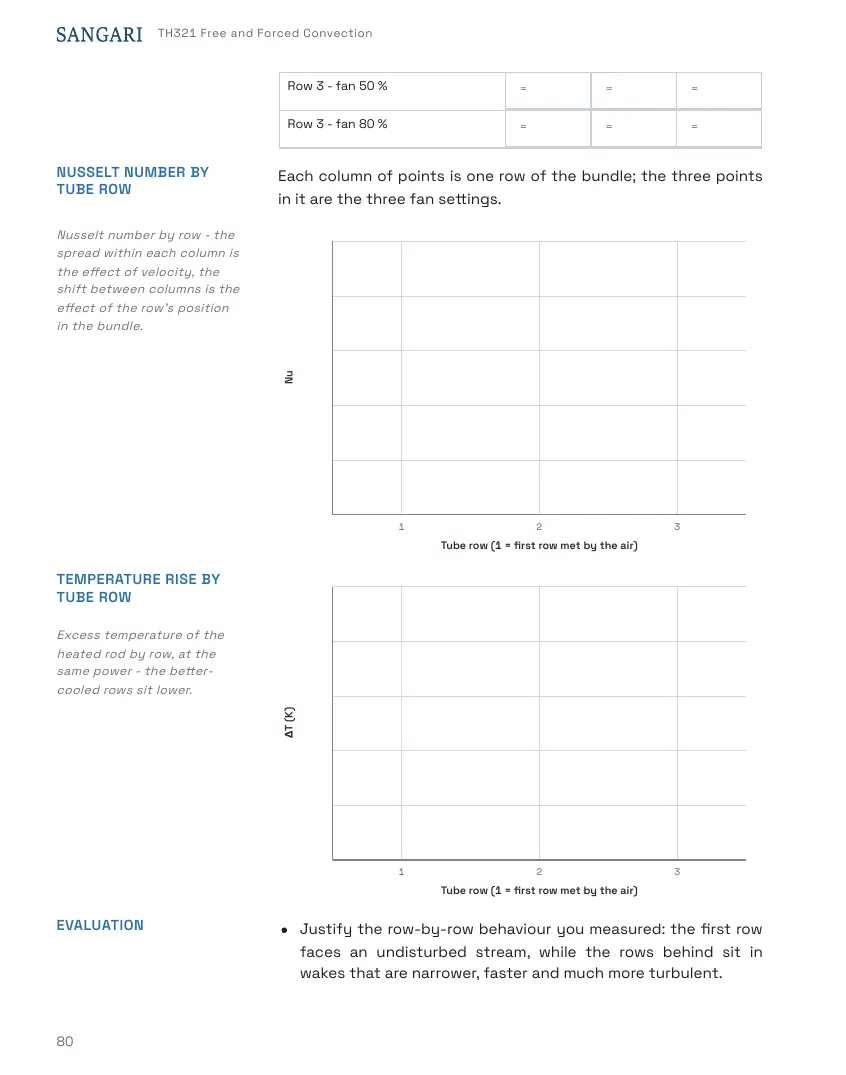

    TH321 Student's Handbook, page 80
    TH321 Student's Handbook, page 81

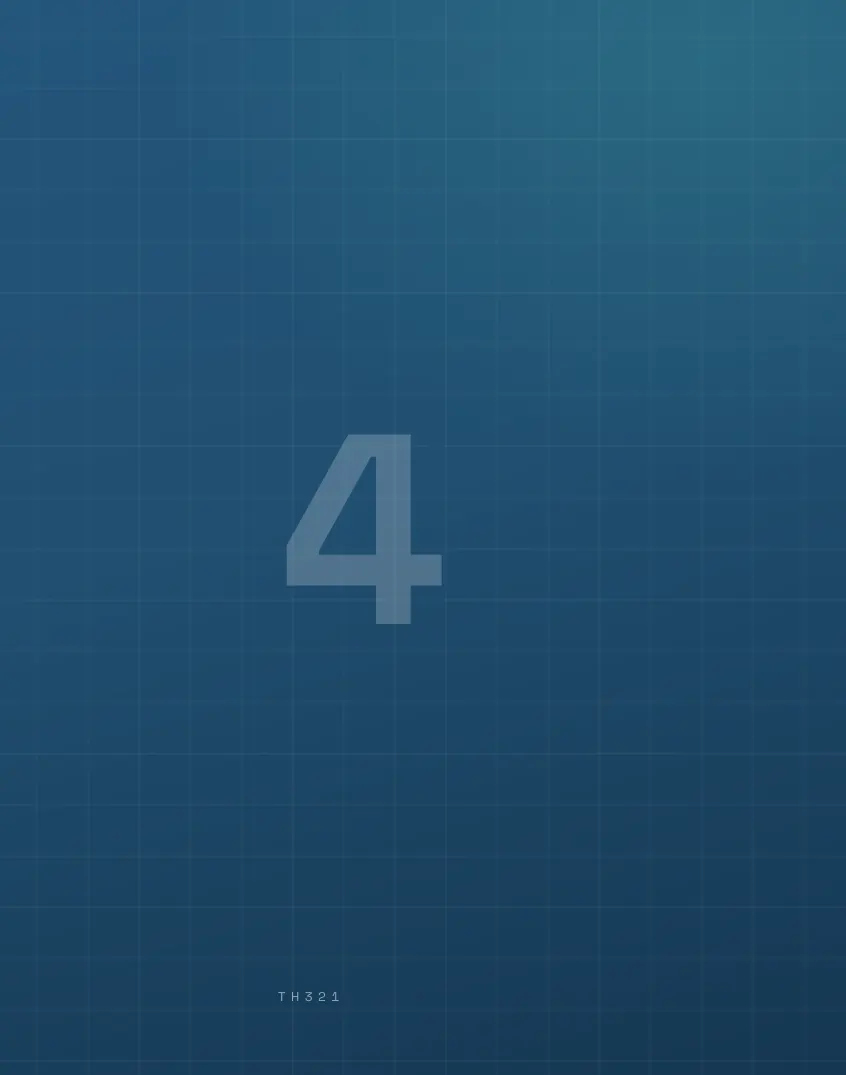

    TH321 Student's Handbook, page 82

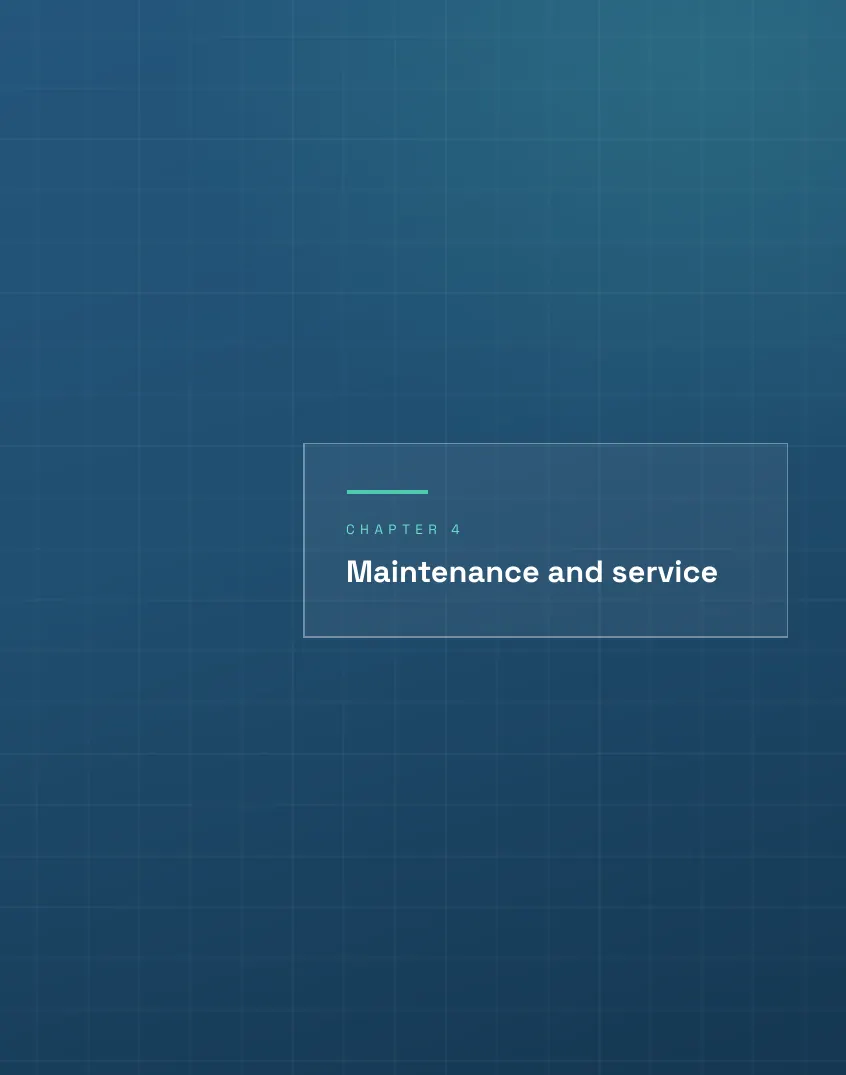

    TH321 Student's Handbook, page 83
    TH321 Student's Handbook, page 84
    TH321 Student's Handbook, page 85

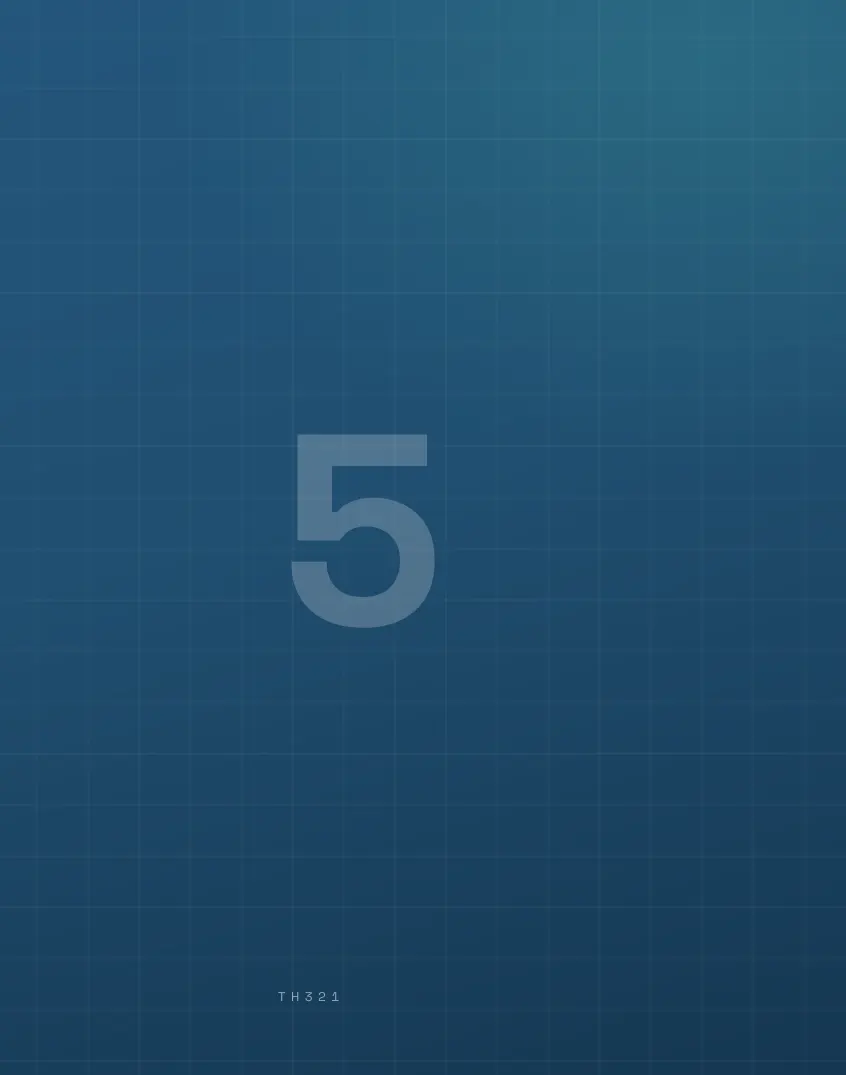

    TH321 Student's Handbook, page 86

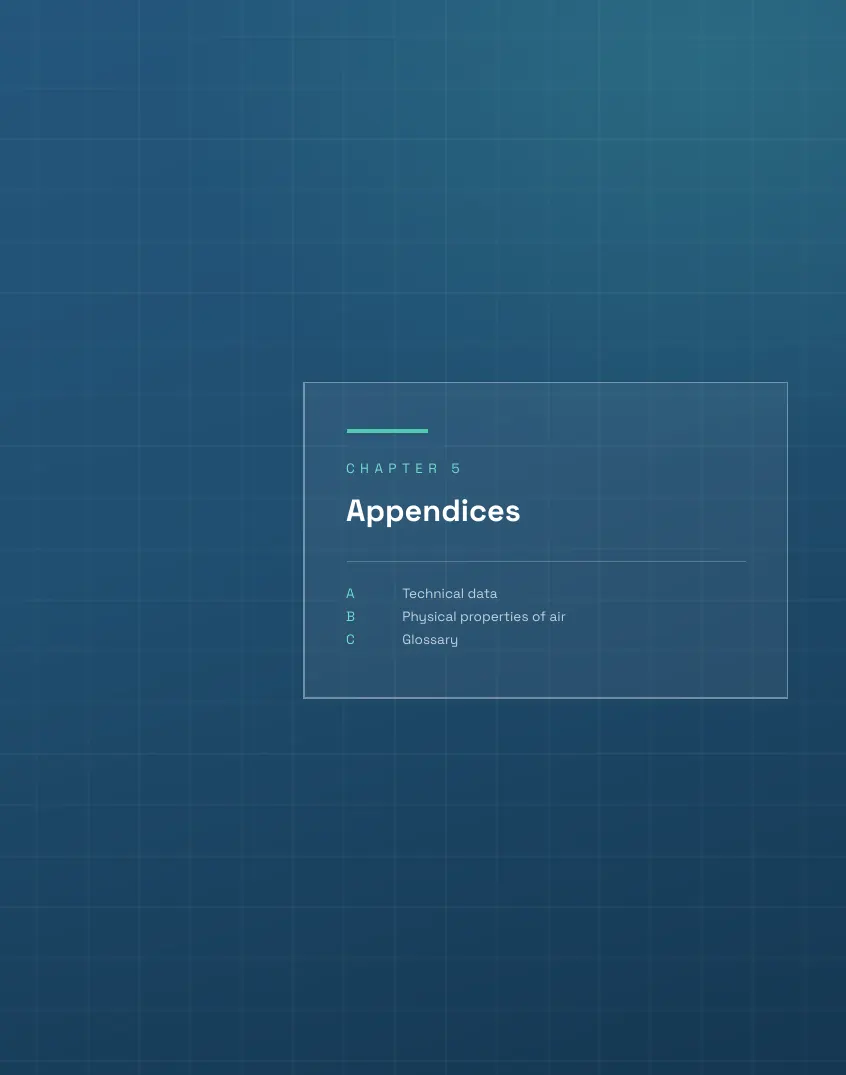

    TH321 Student's Handbook, page 87

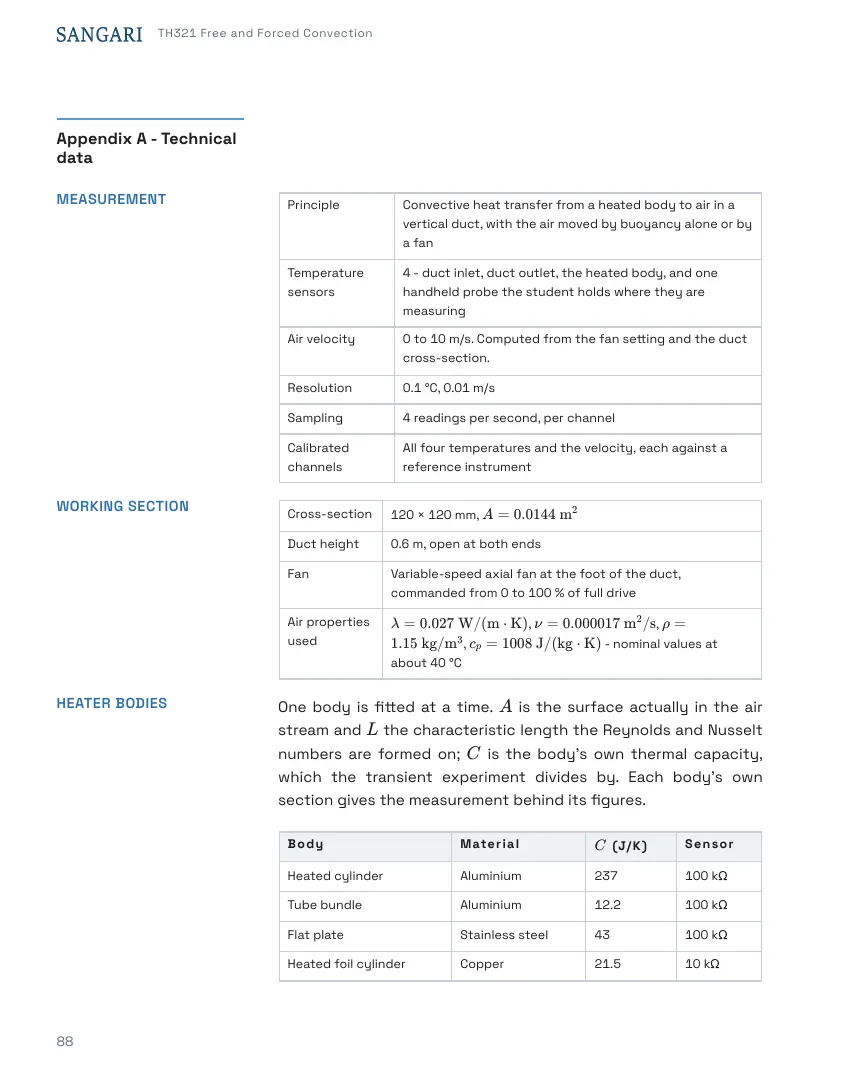

    TH321 Student's Handbook, page 88

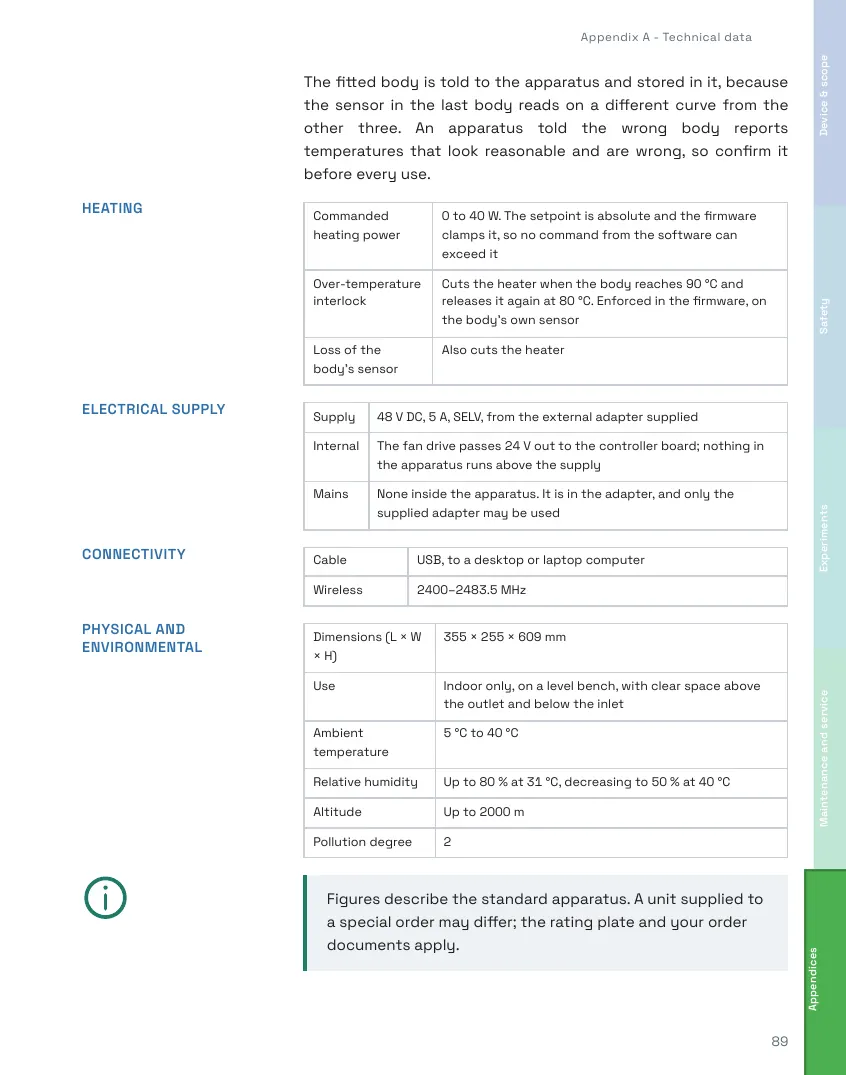

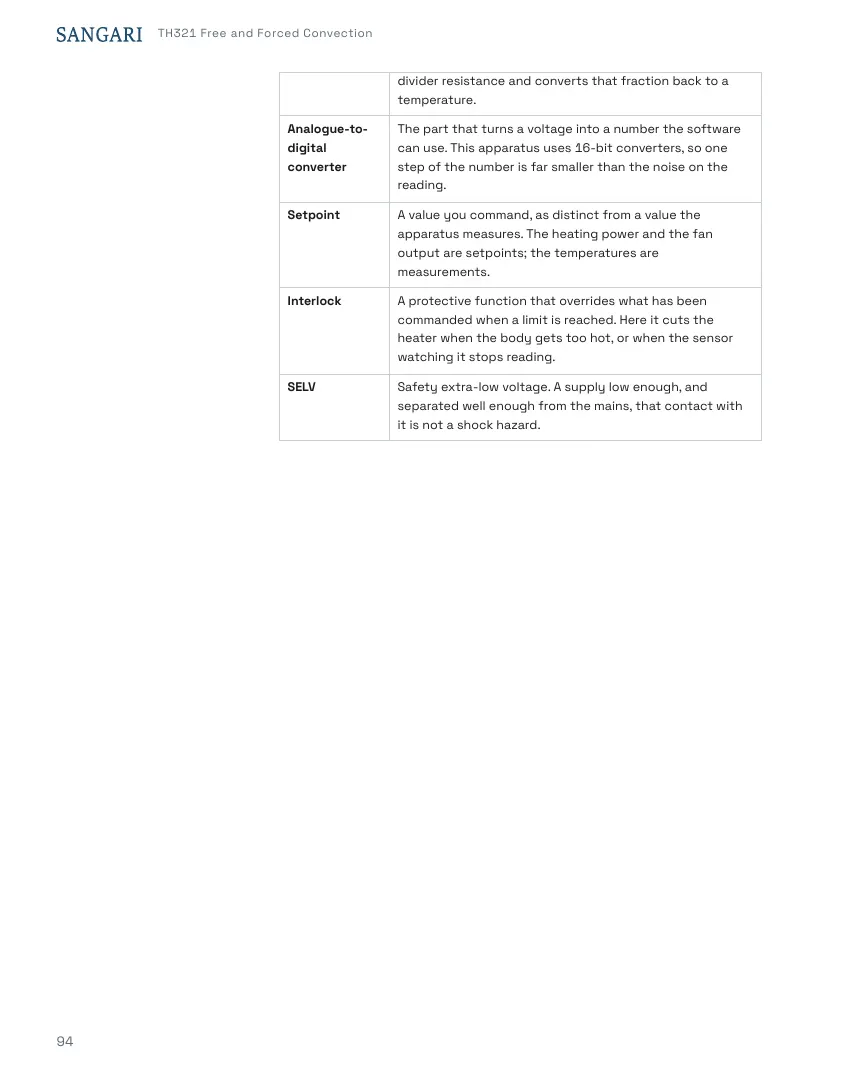

    TH321 Student's Handbook, page 89

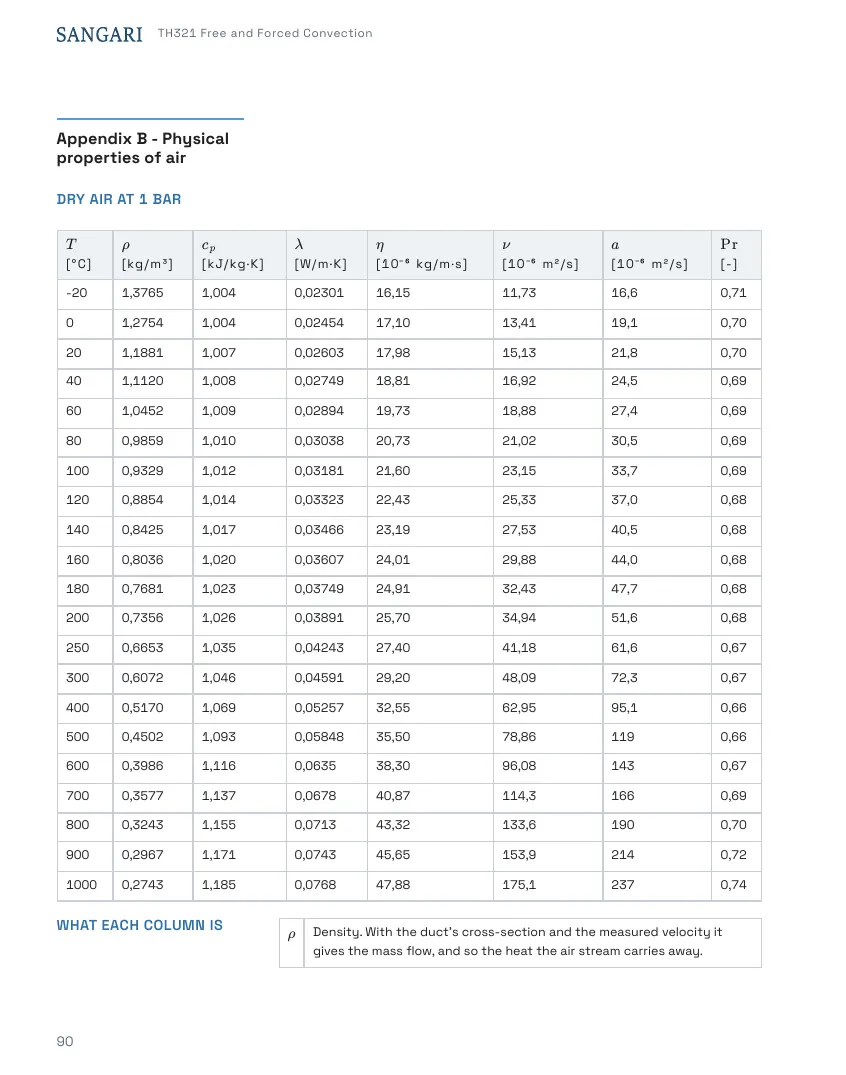

    TH321 Student's Handbook, page 90

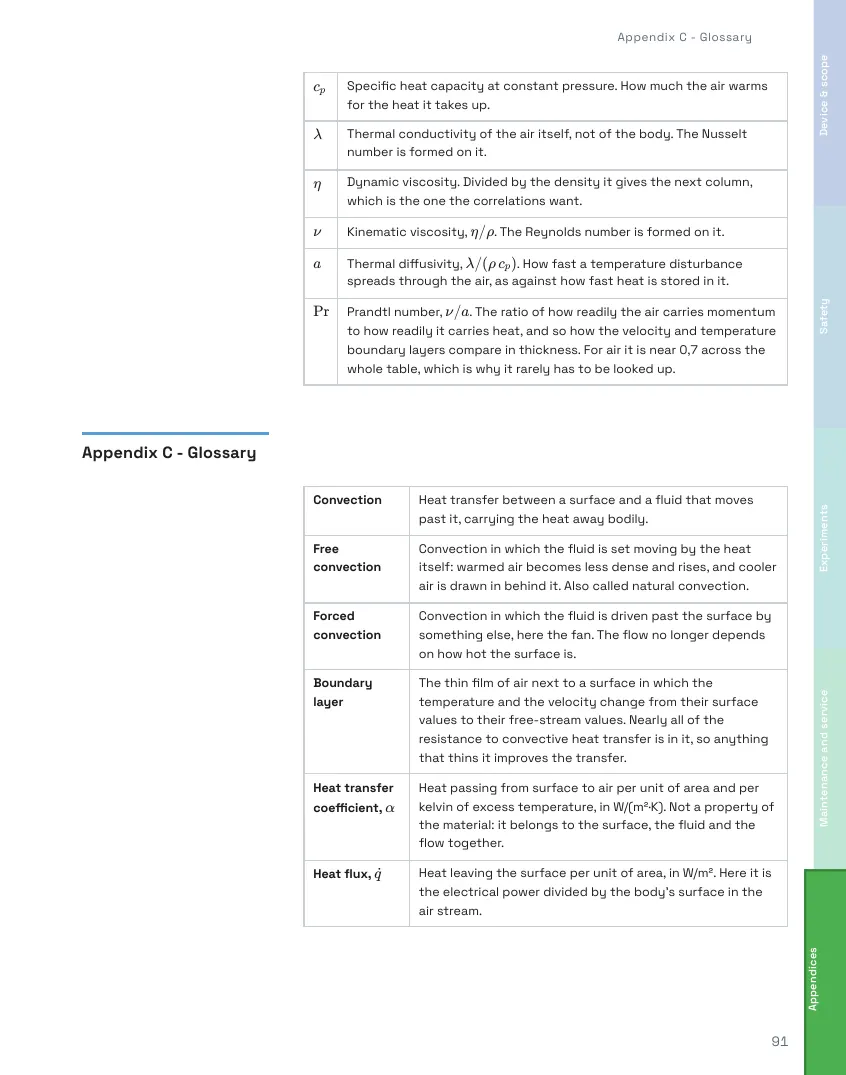

    TH321 Student's Handbook, page 91

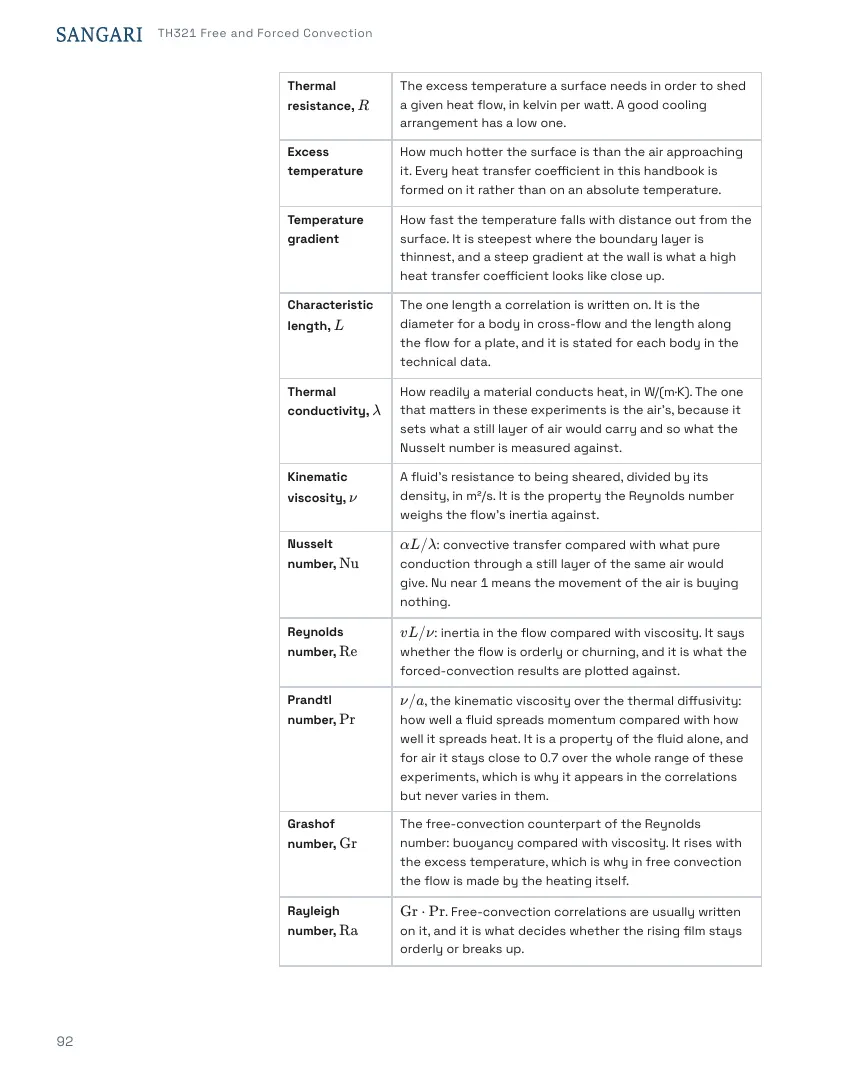

    TH321 Student's Handbook, page 92

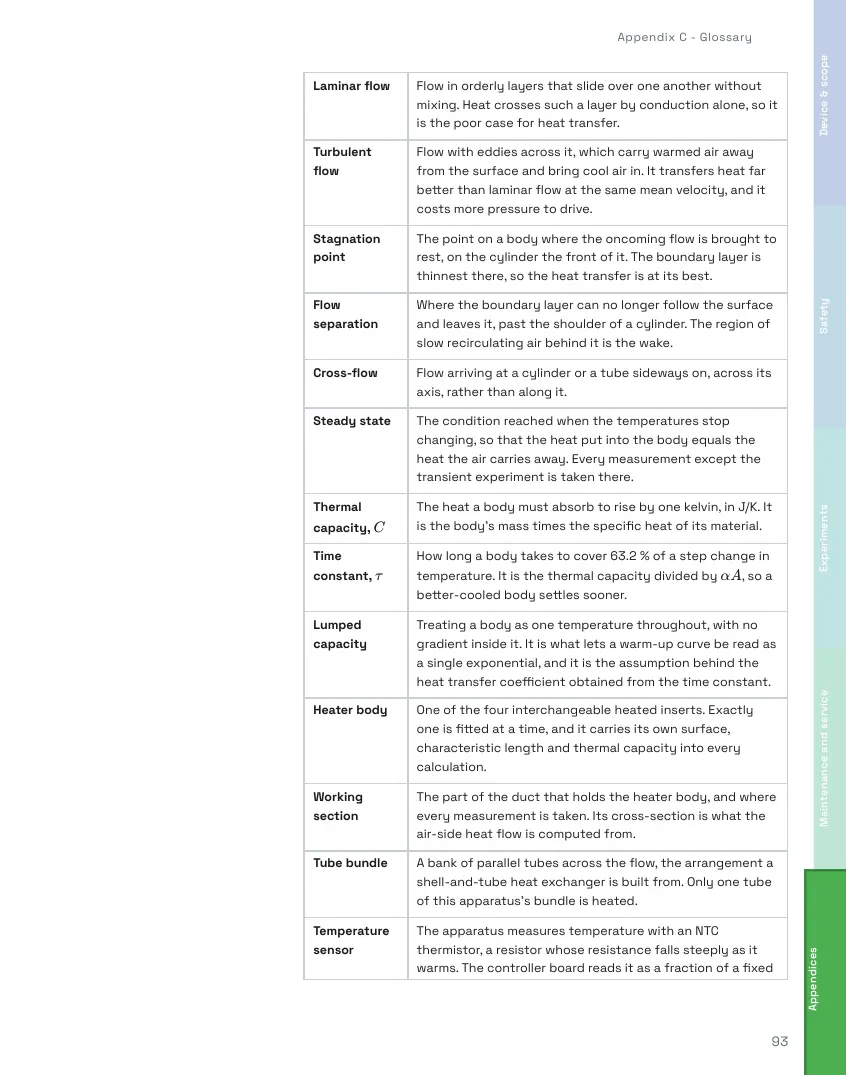

    TH321 Student's Handbook, page 93
    TH321 Student's Handbook, page 94

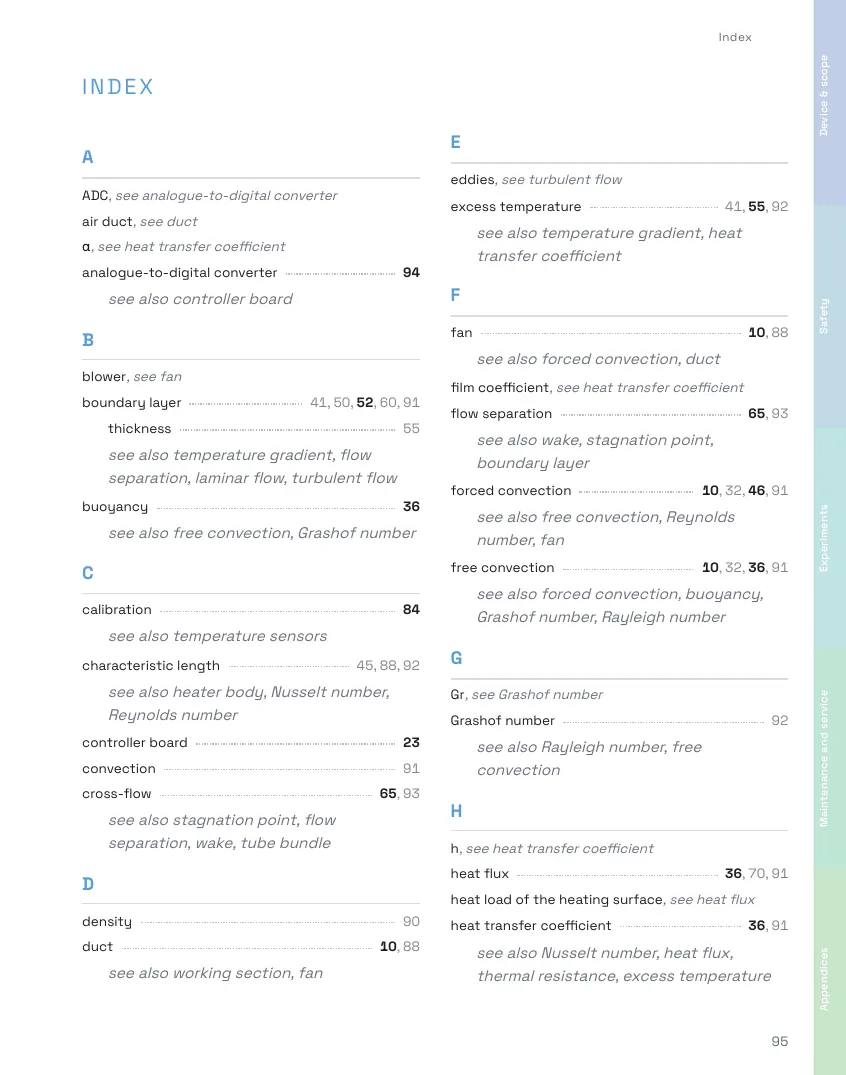

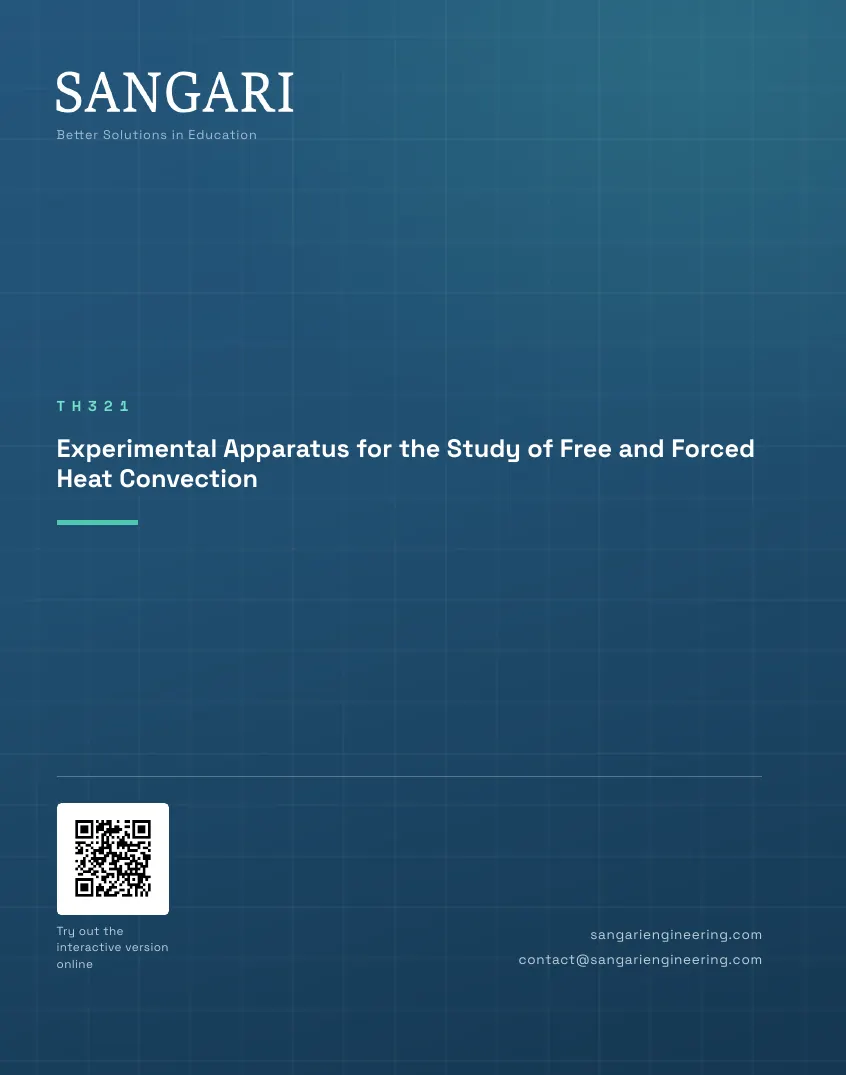

    TH321 Student's Handbook, page 95

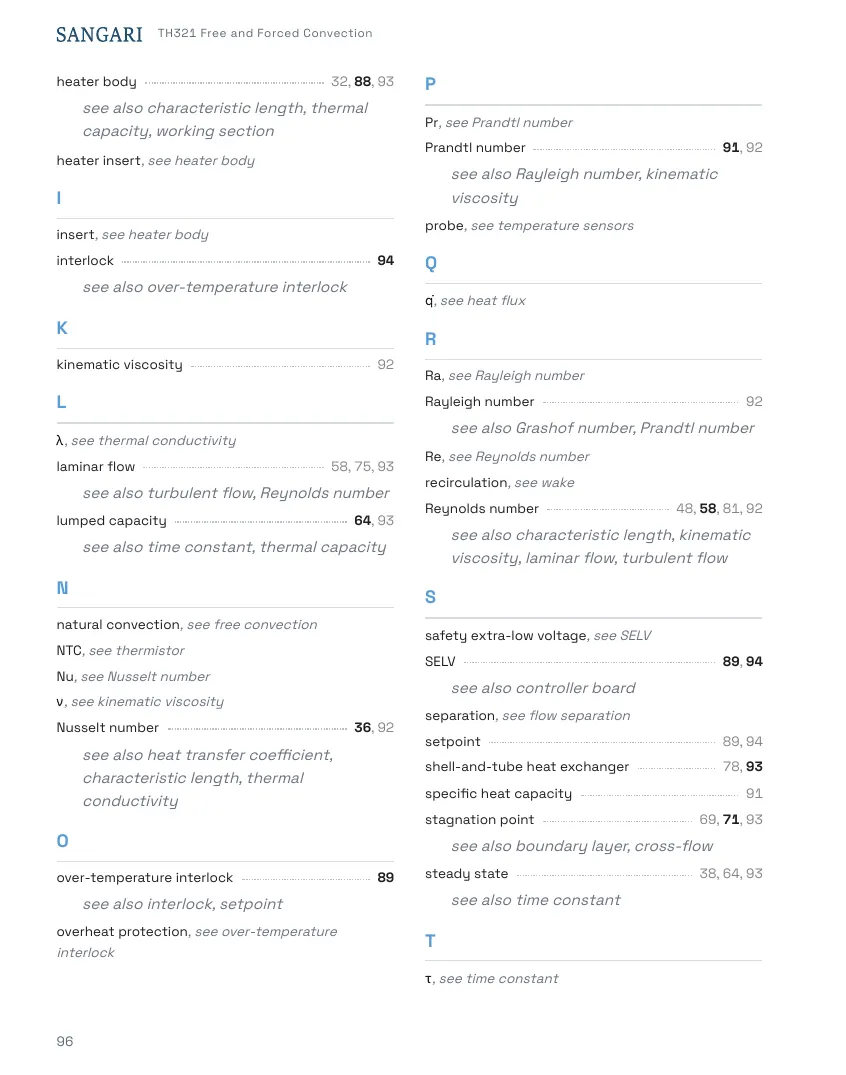

    TH321 Student's Handbook, page 96

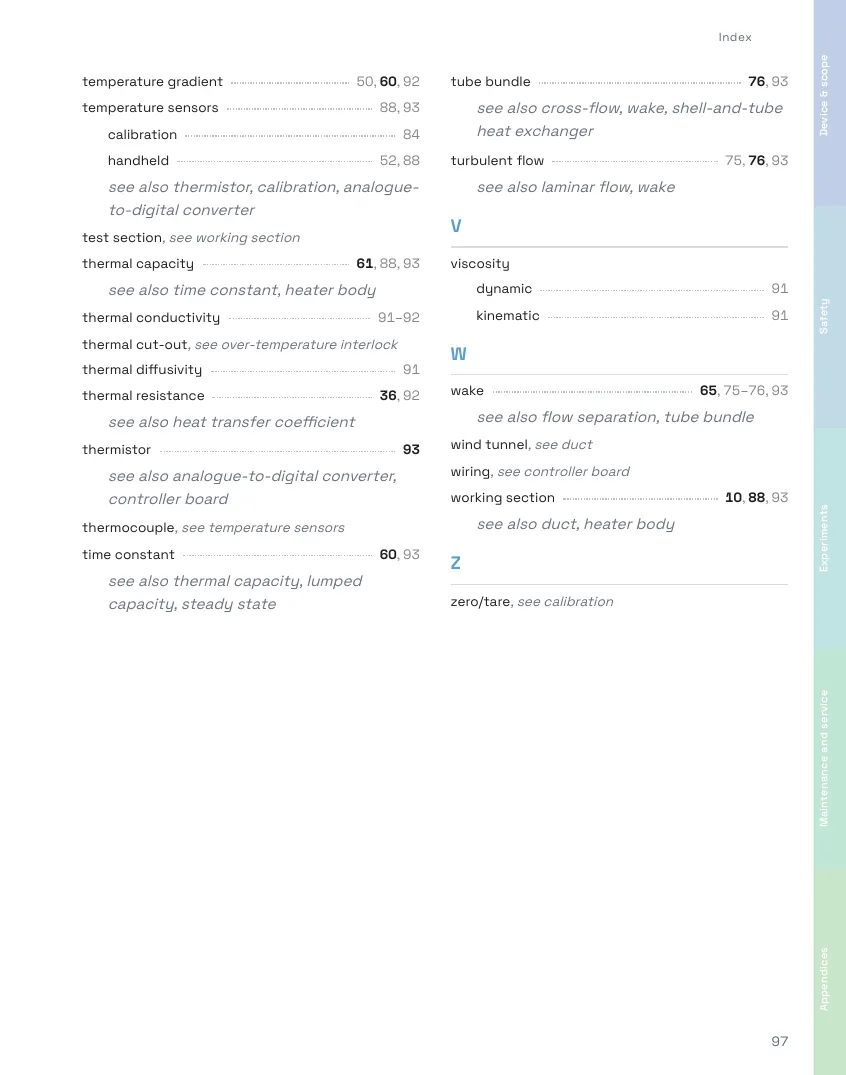

    TH321 Student's Handbook, page 97

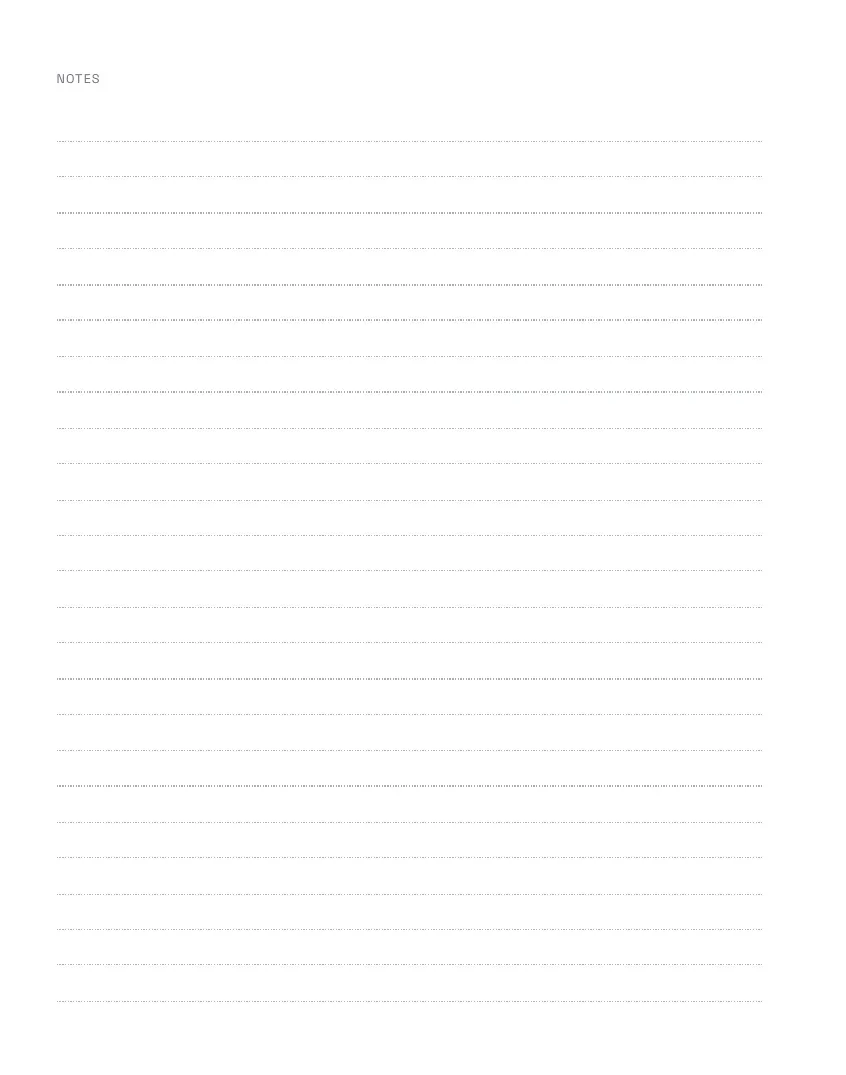

    TH321 Student's Handbook, page 98
