TH311 · Conduction in Metals

Experimental Apparatus for the Study of Heat Transfer by Conduction in Metals

Laboratory experiments

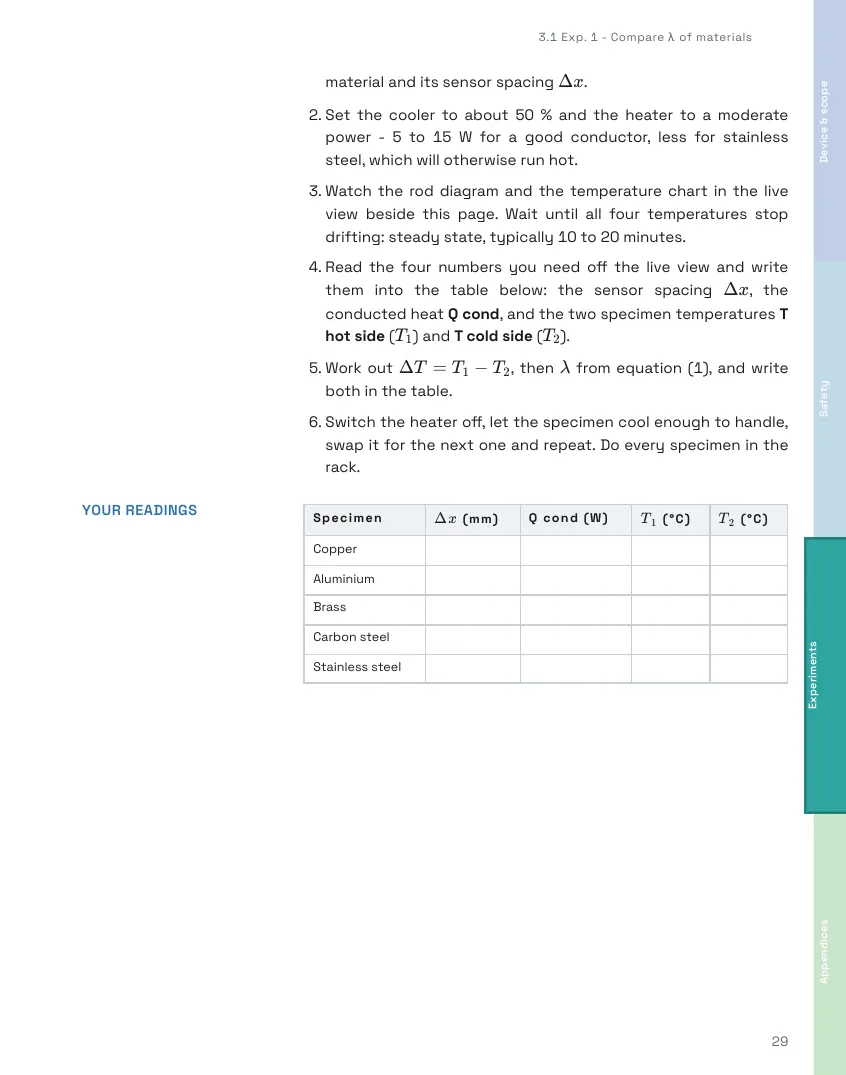

  • Steady-state heat conduction - Fourier's law

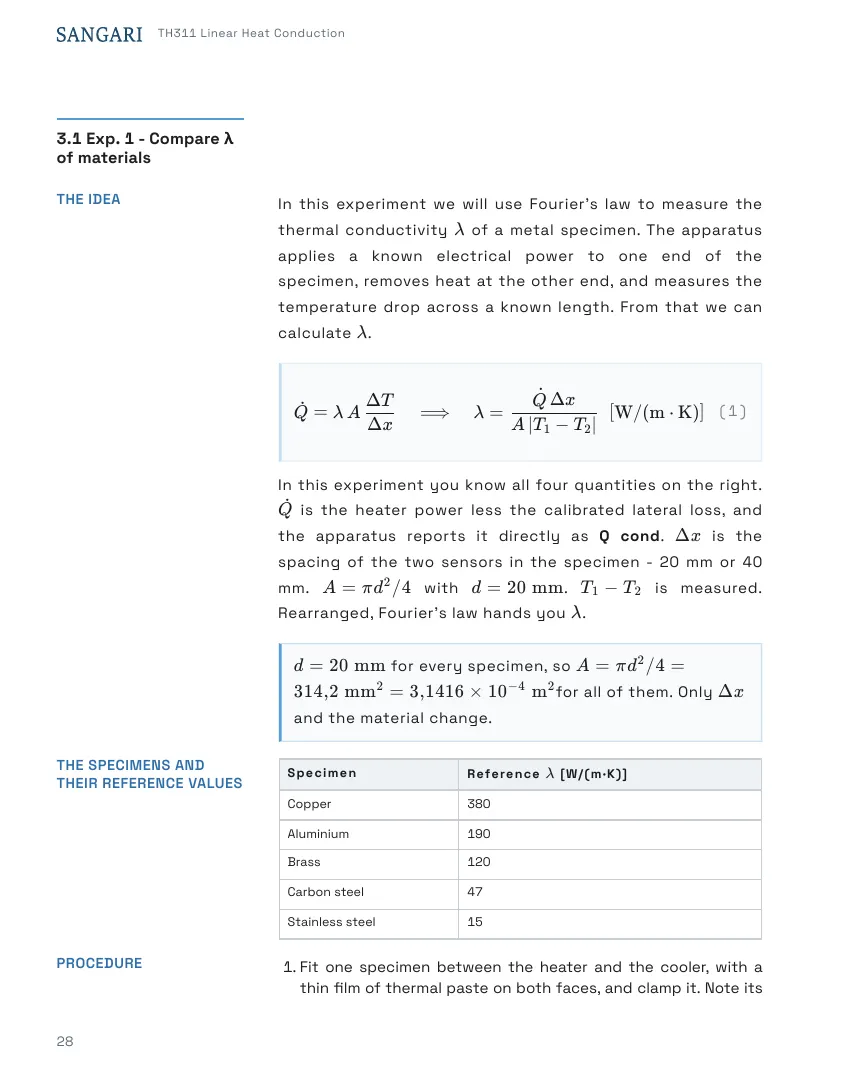

  • Determination of the thermal conductivity of different metals
    • copper, aluminium, brass
    • steel, stainless steel
  • Temperature distribution along the specimen

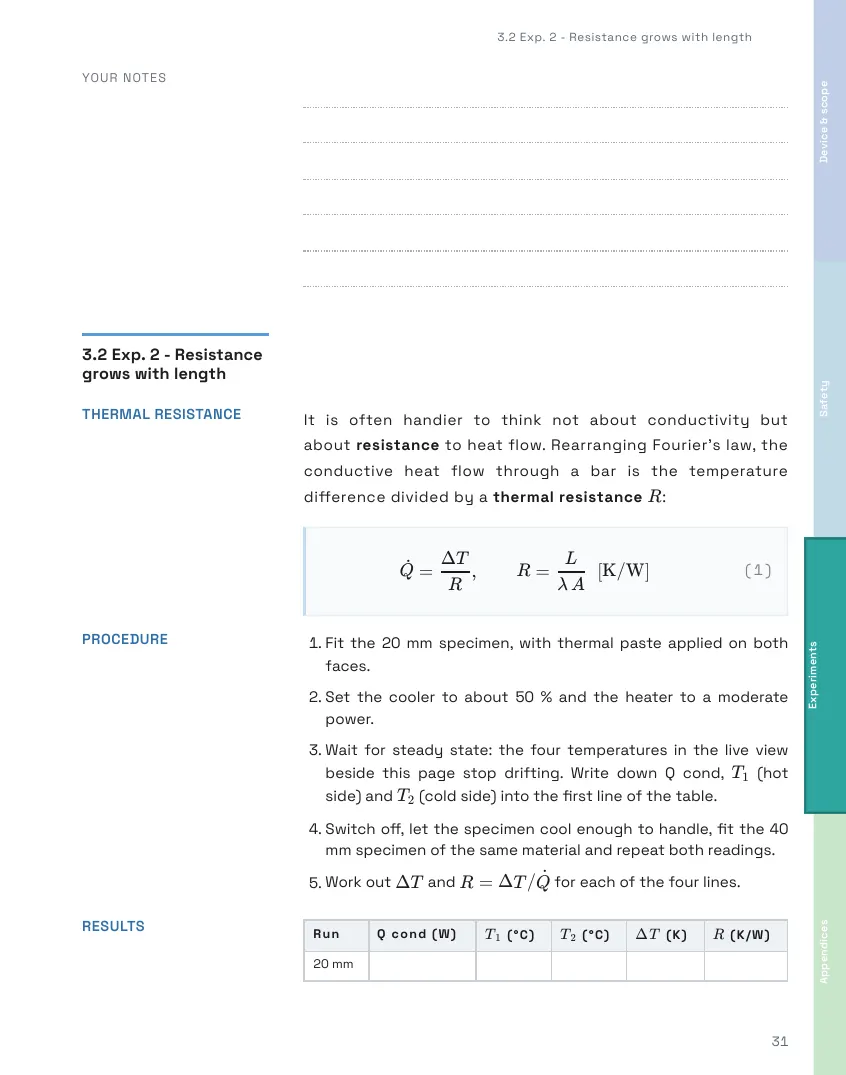

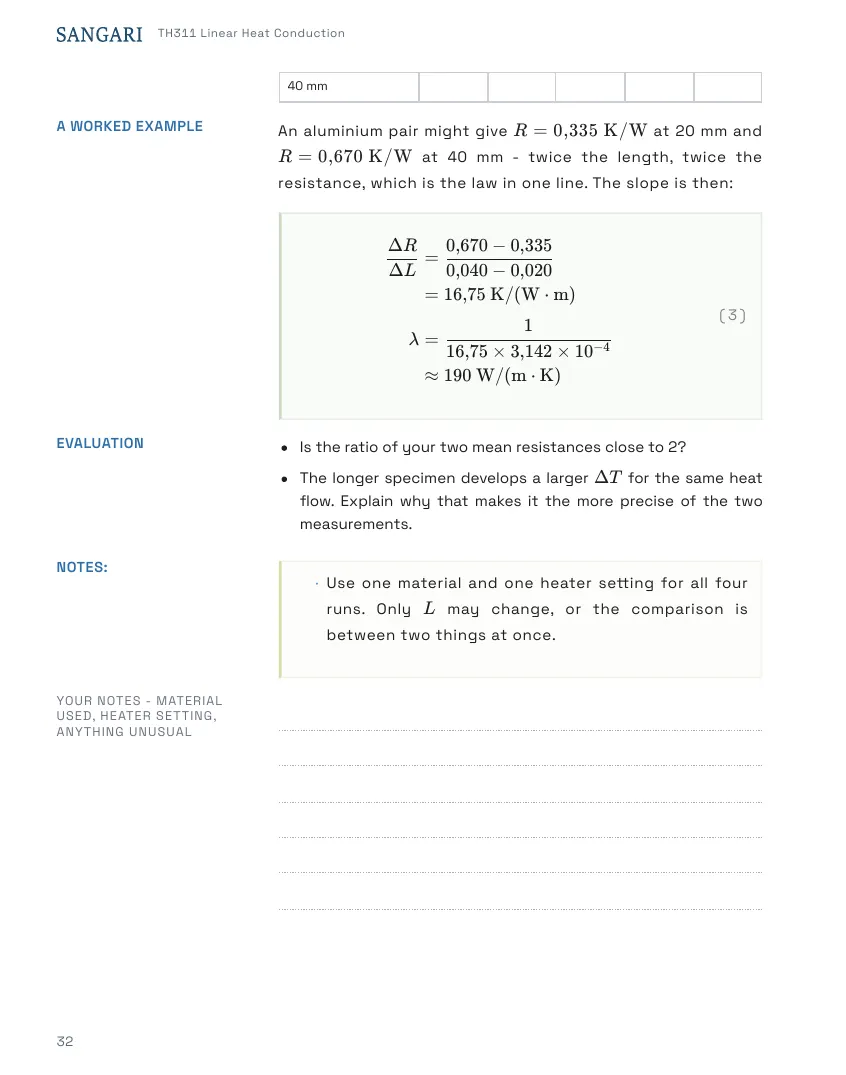

  • Thermal resistance as a function of specimen length

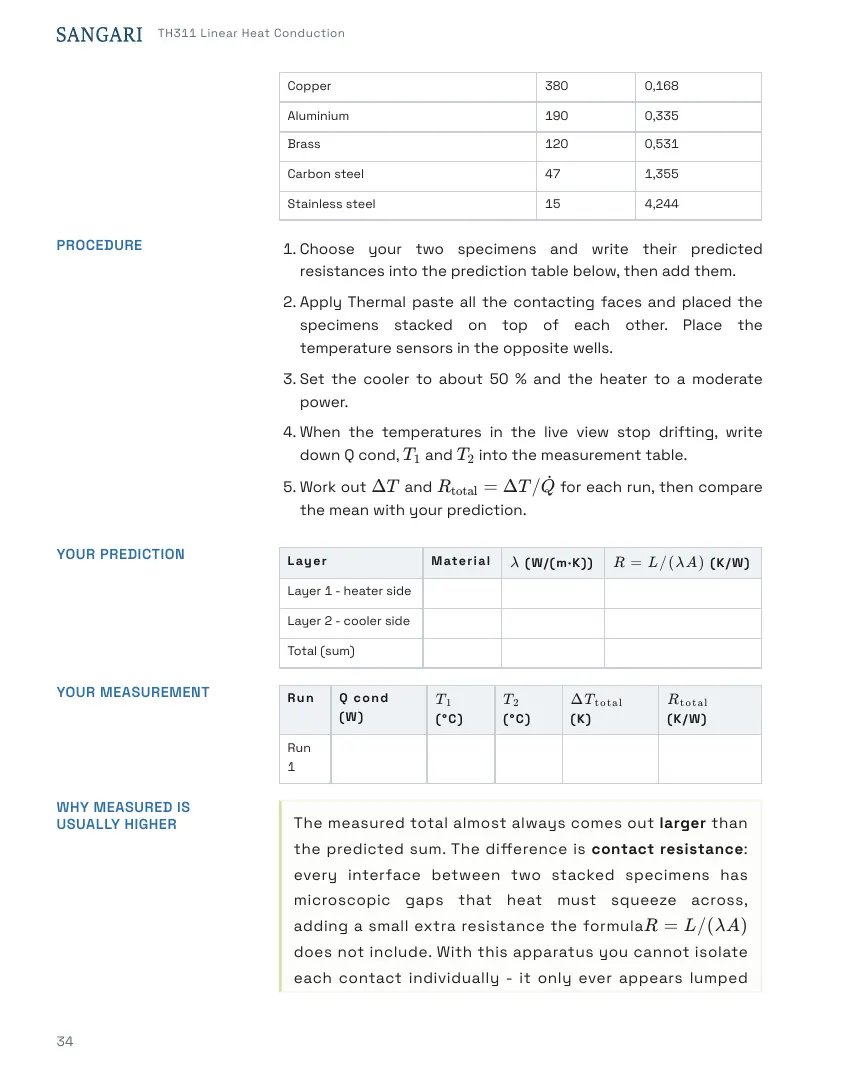

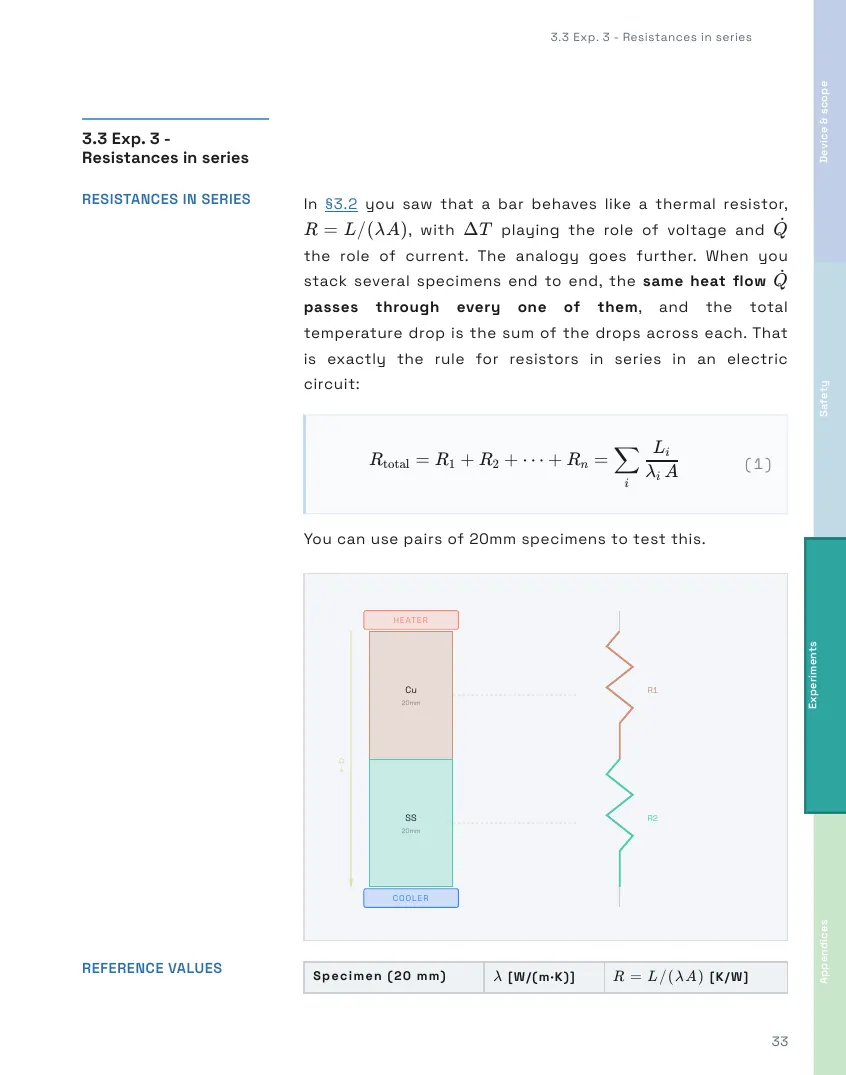

  • Thermal resistances in series, contact resistance

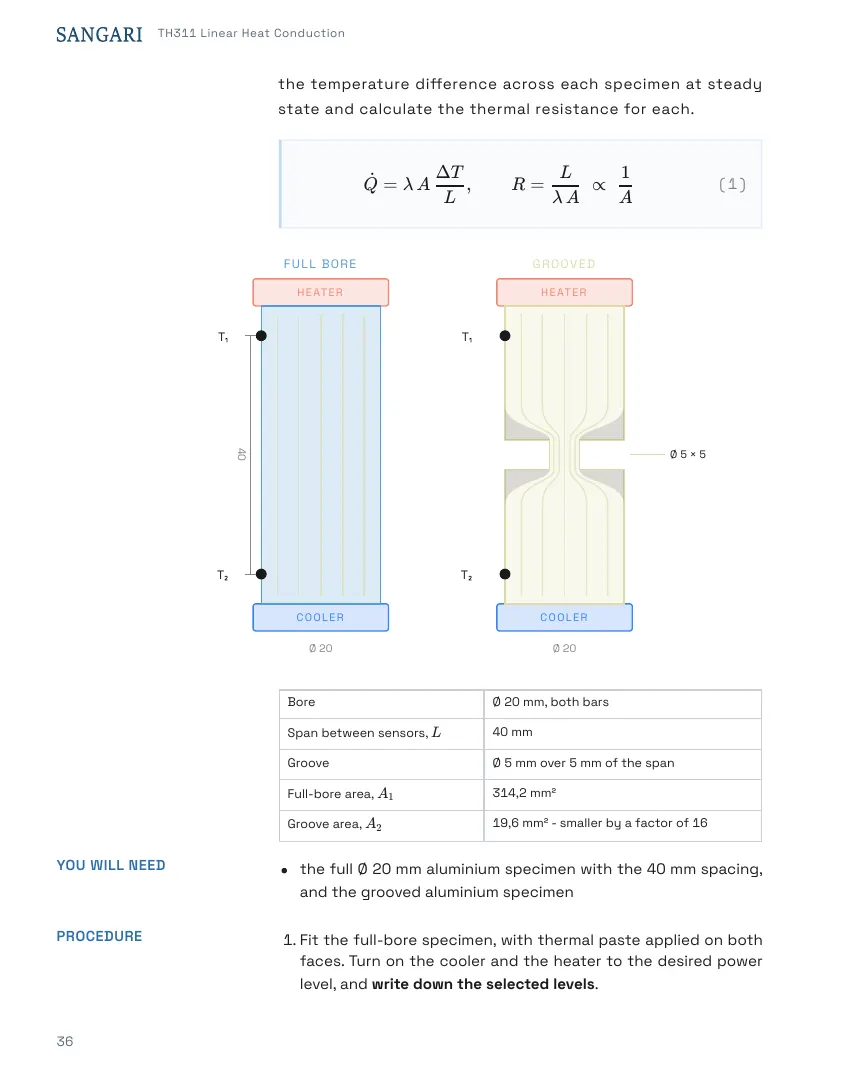

  • Influence of the cross-sectional area on heat transfer
TH311 - heat conduction in metals apparatus
Overview

    A metal specimen held between an electric heater and a Peltier cooler, with temperature sensors along its length, for the study of heat conduction in metals.

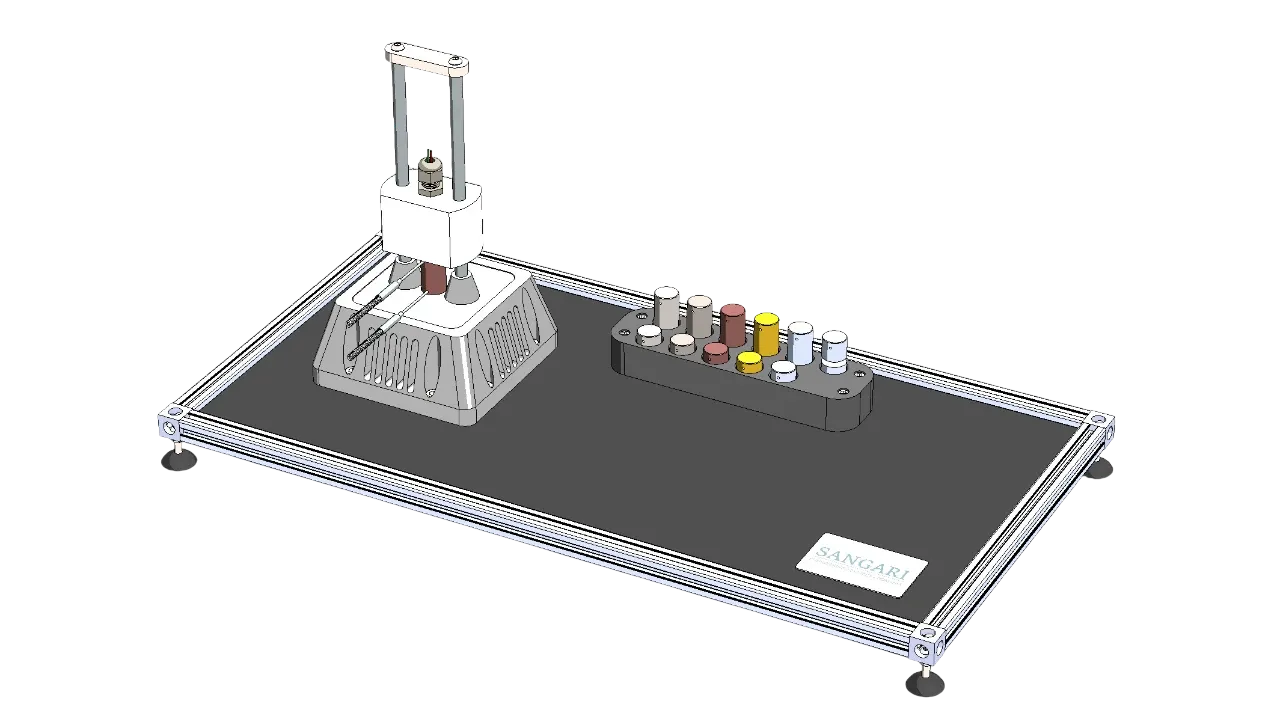

TH311 - the experiment plate and the specimen plate
Electric Heater Assembly
Placed on guide rods to allow positioning at different heights to accommodate different specimen lengths
Test specimen
Each specimen has 2 temperature measuring points
Peltier cooler and radiator assembly
Experiment plate
Aluminium mounting plate

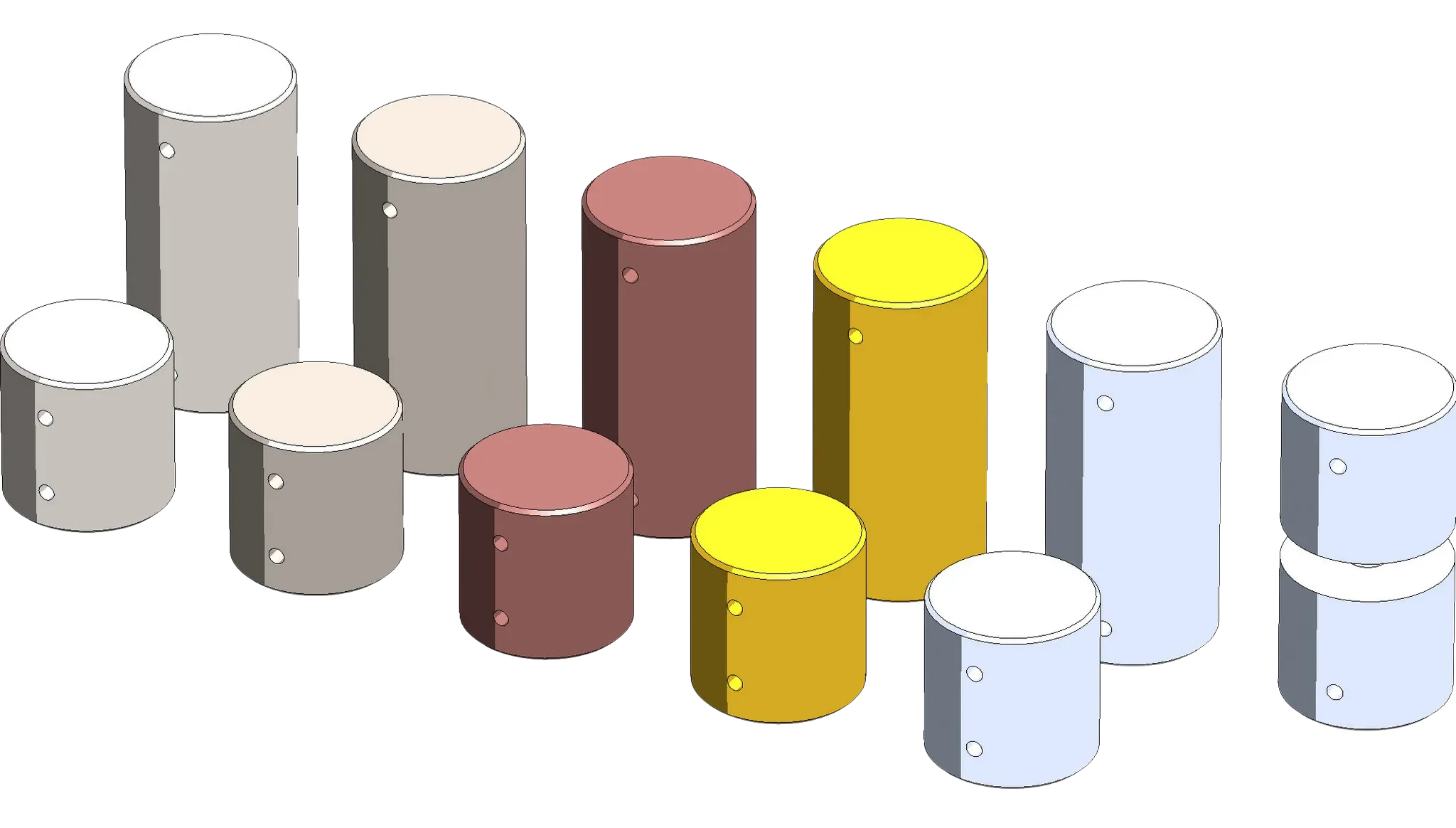

Specimens
11 specimens of different lengths, materials and cross-sections
Specimen plate
Aluminium, keeps the specimens that are not in the machine
TH311 - the experiment plate and the specimen plate
Electric Heater Assembly
Placed on guide rods to allow positioning at different heights to accommodate different specimen lengths
Test specimen
Each specimen has 2 temperature measuring points
Peltier cooler and radiator assembly
Experiment plate
Aluminium mounting plate
Specimens
11 specimens of different lengths, materials and cross-sections
Specimen plate
Aluminium, keeps the specimens that are not in the machine
TH311 working principle

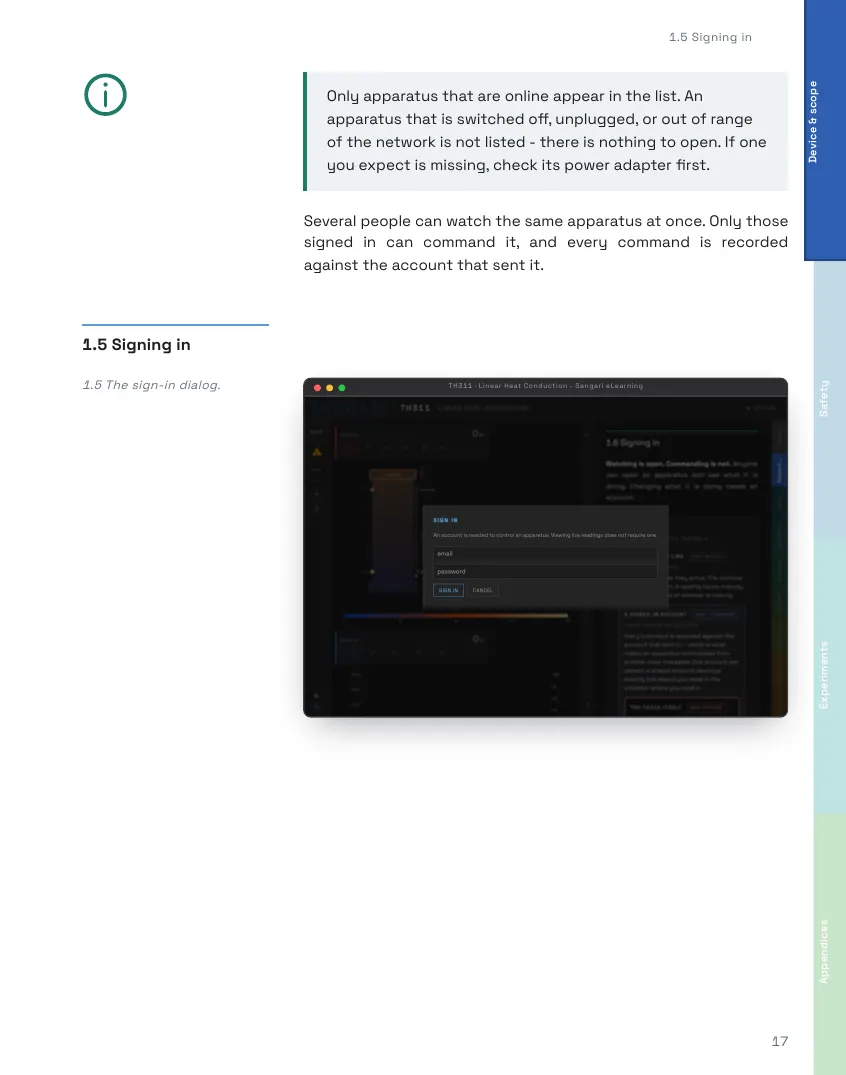

Real Time Data Acquisition and Control Software

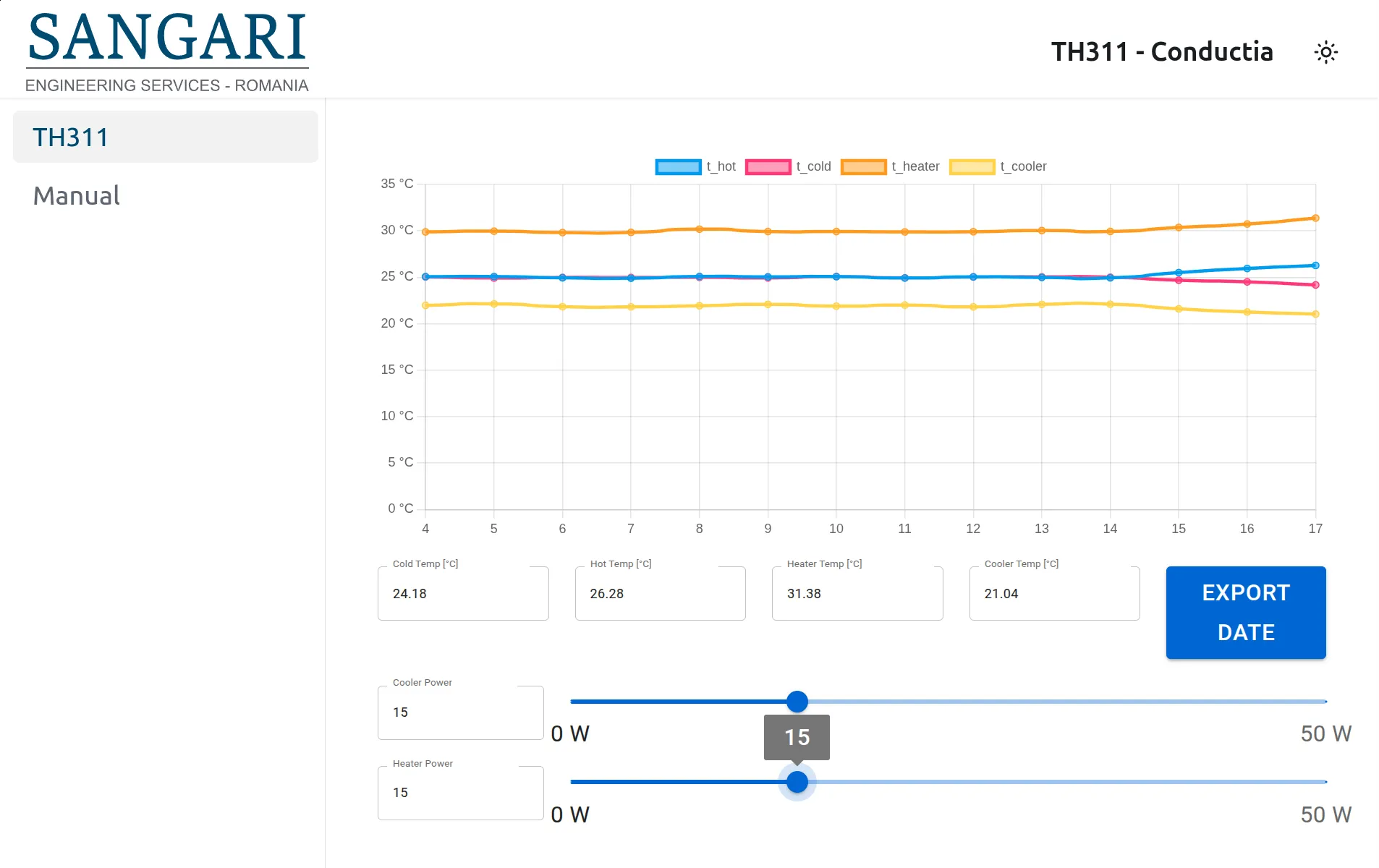

    TH311 software interface
    TH311 software interface

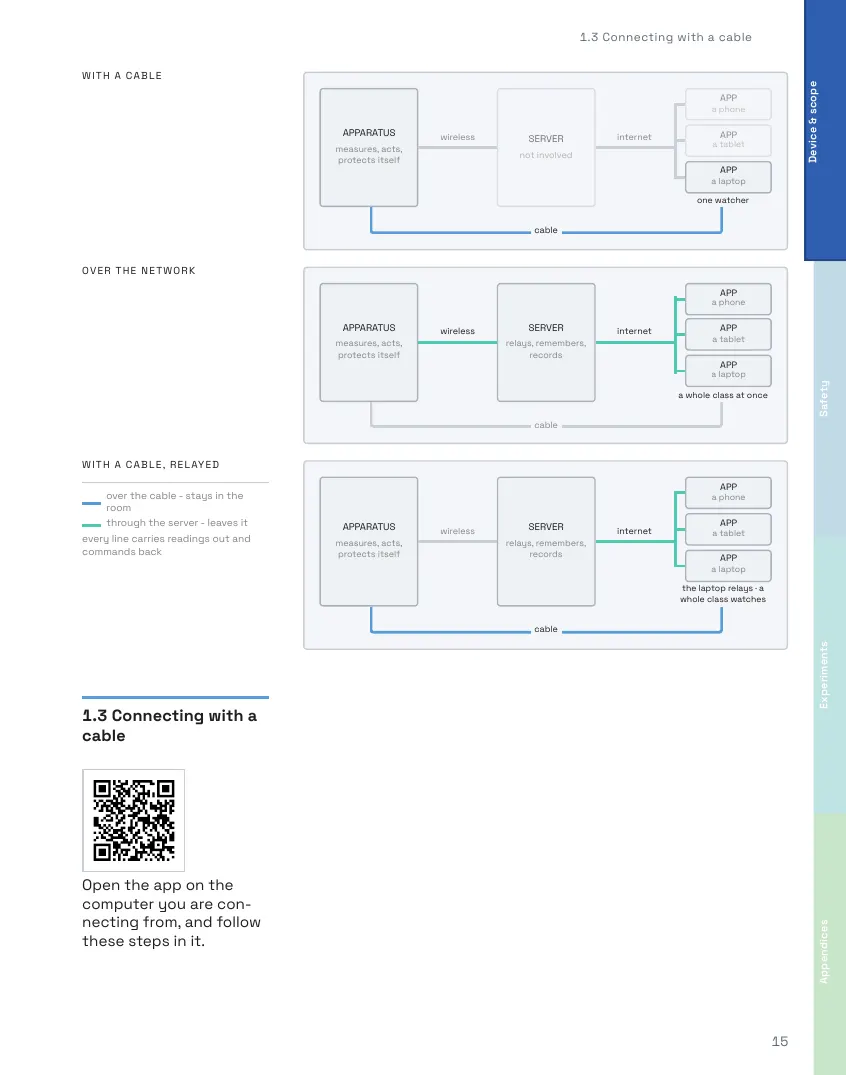

Connectivity
    Internet LAB TH311 Live Data On-site student Live Data Remote student WiFi

    The apparatus is equipped with Sangari Connect technology, which allows students to view live data and control the device both from computers in the lab and remotely.

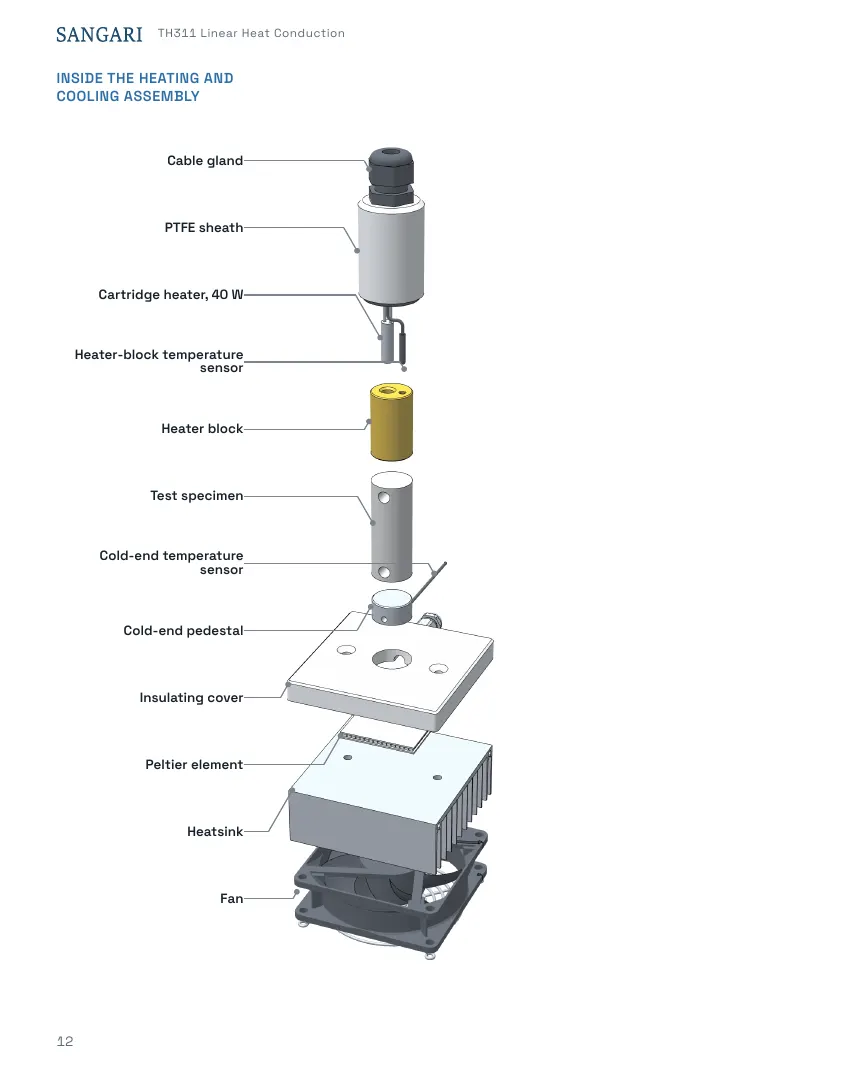

Inside the heating and cooling assembly

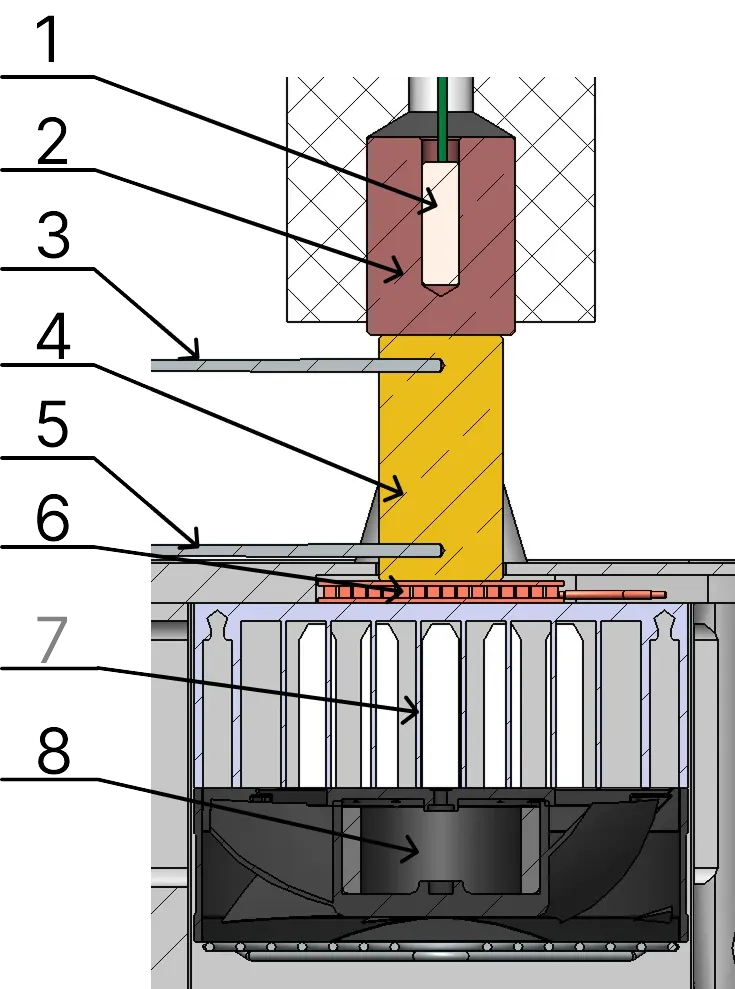

    TH311 - exploded view of the heating and cooling assembly
    Cable gland
    PTFE sheath
    Cartridge heater, 40 W
    Heater-block temperature sensor
    Heater block
    Test specimen
    Cold-end temperature sensor
    Cold-end pedestal
    Insulating cover
    Peltier element
    Heatsink
    Fan
    TH311 - exploded view of the heating and cooling assembly
    Cable gland
    PTFE sheath
    Cartridge heater, 40 W
    Heater-block temperature sensor
    Heater block
    Test specimen
    Cold-end temperature sensor
    Cold-end pedestal
    Insulating cover
    Peltier element
    Heatsink
    Fan
General Features
  • Study of heat transfer by conduction through a range of metals
  • Adjustable heating level
  • Peltier-element cooling
  • Temperatures and electricity consumption displayed in the software interface
Heating Element
    Thermal power 30 W
    Temperature limit 150 °C
Cooling Element (Peltier Type)
    Cooling load 60 W
Measuring Ranges
    Temperature -25…325 °C (5 sensors)
    Heating power 0…50 W
Metal Test Specimens

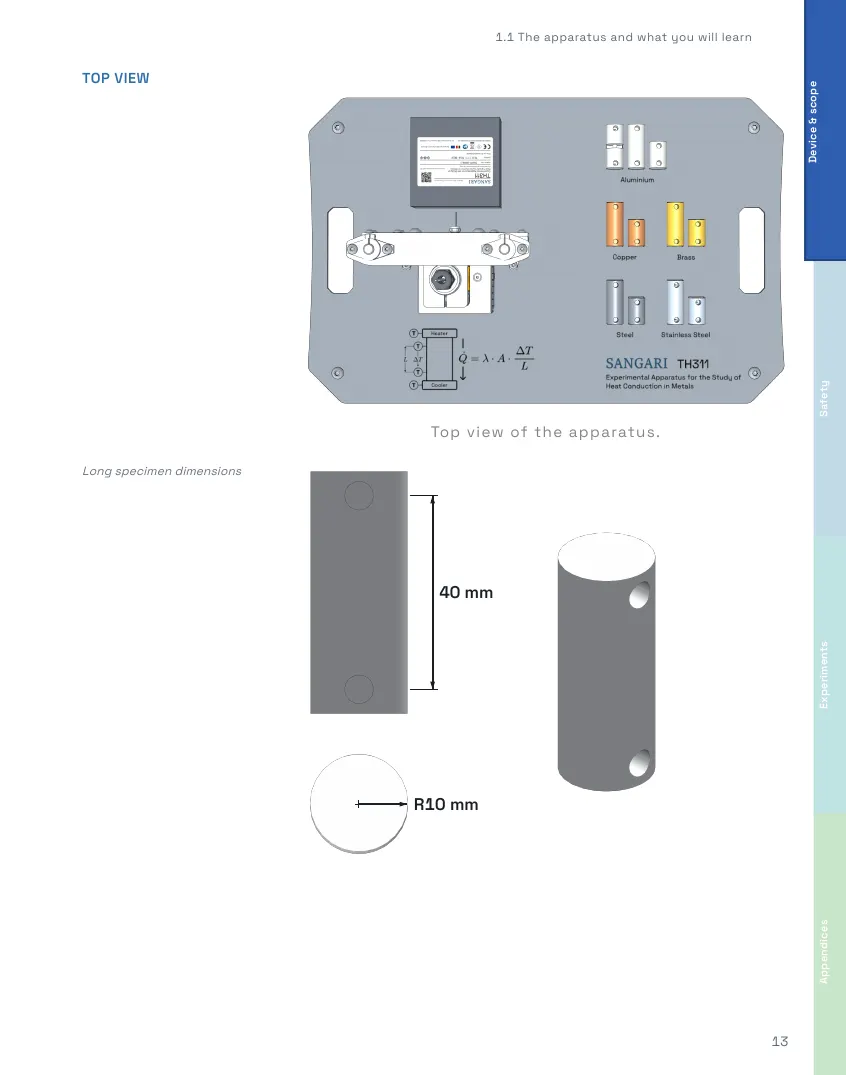

  • 11 specimens, Ø 20 mm, 2 measuring points each
  • Copper, aluminium, brass, carbon steel, stainless steel
  • 5 short, one per metal: points 20 mm apart
  • 5 long, one per metal: points 40 mm apart
  • 1 grooved, aluminium: points 40 mm apart, Ø 5 mm neck
230V
L 351 W 255 H 257 mm

In the box

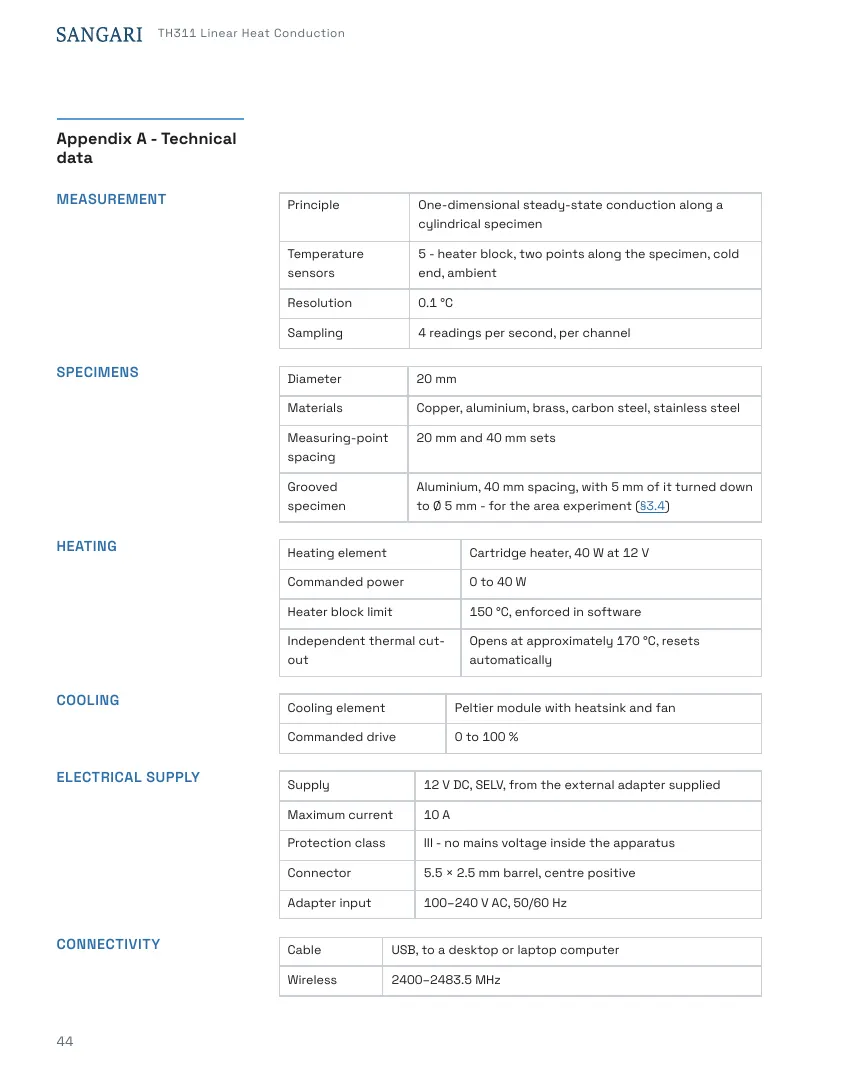

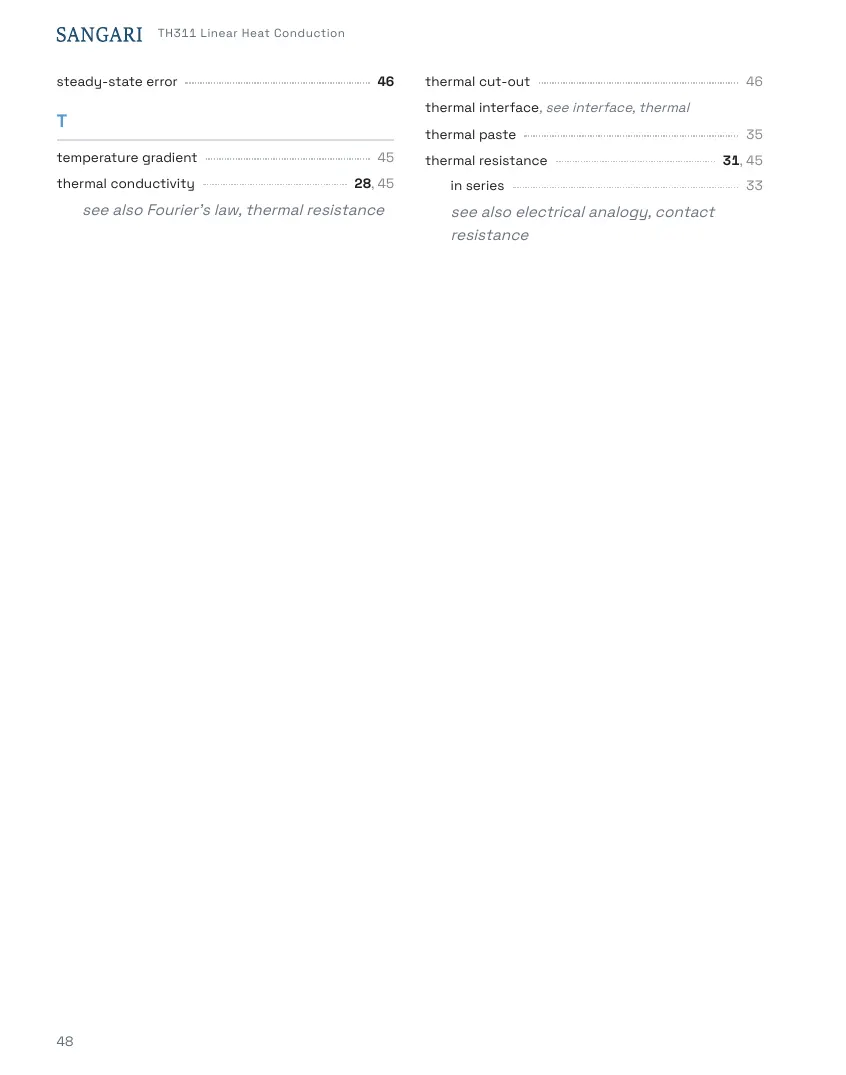

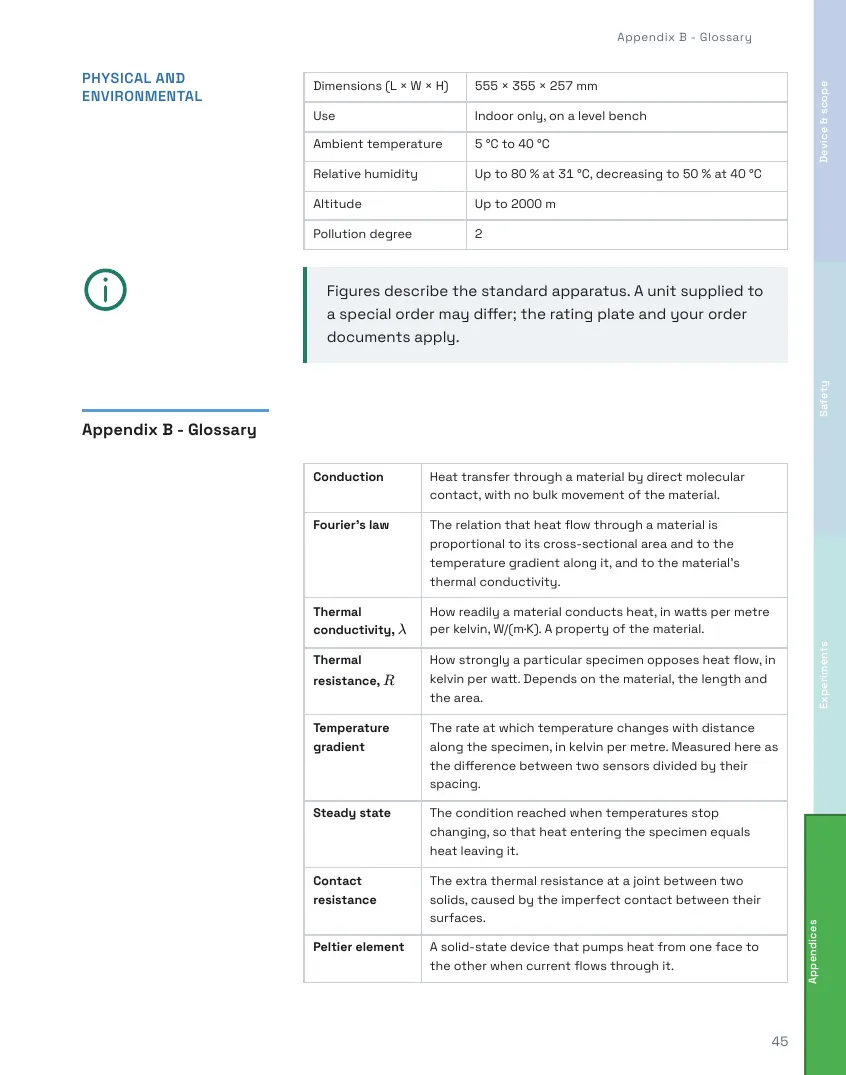

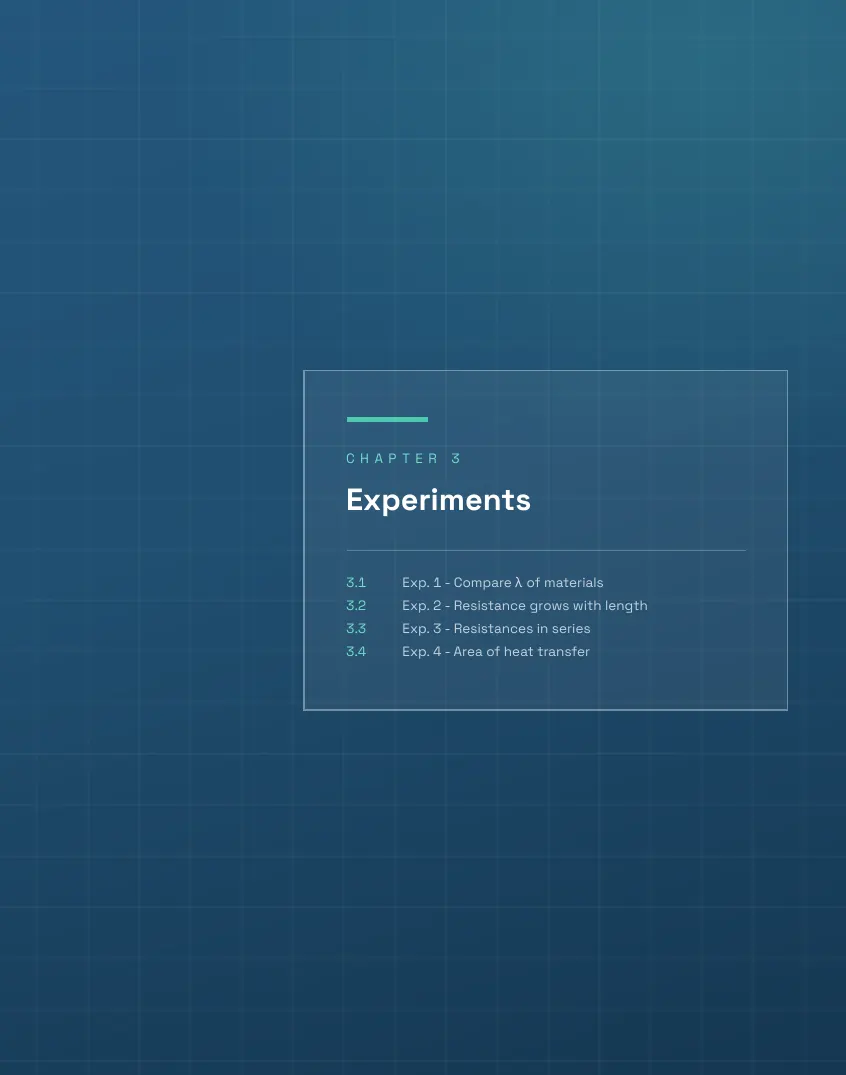

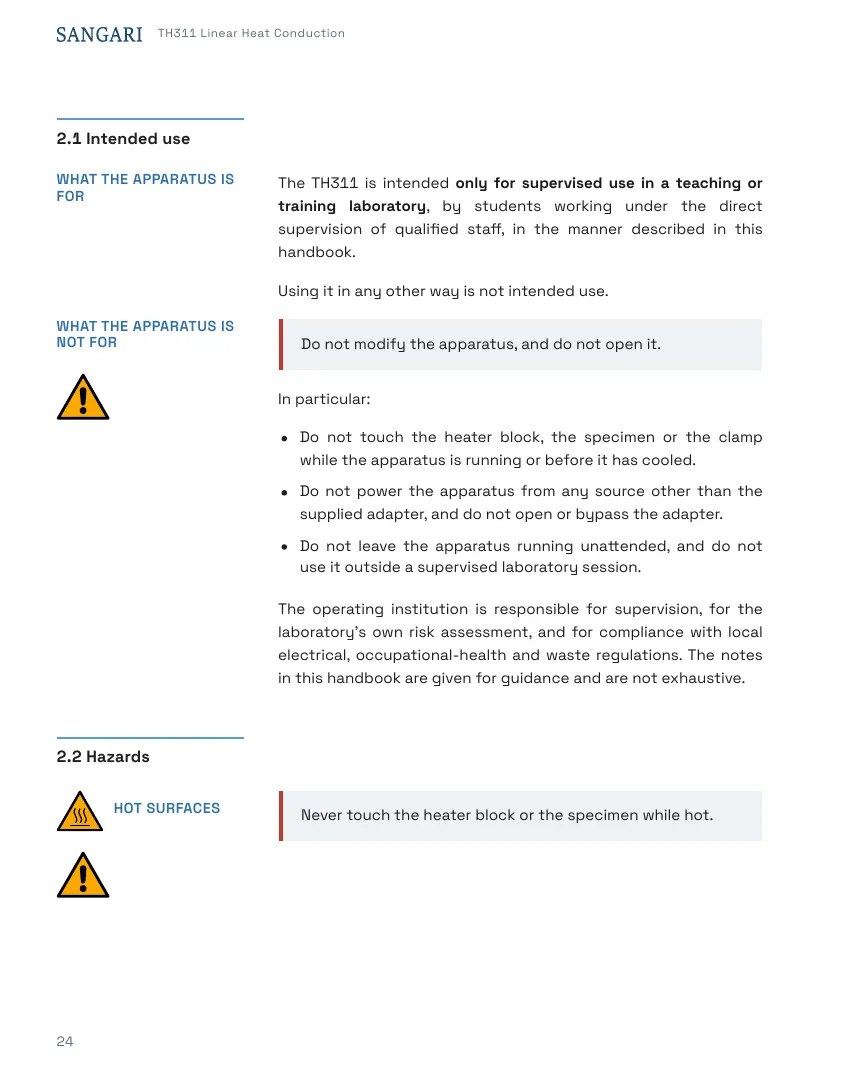

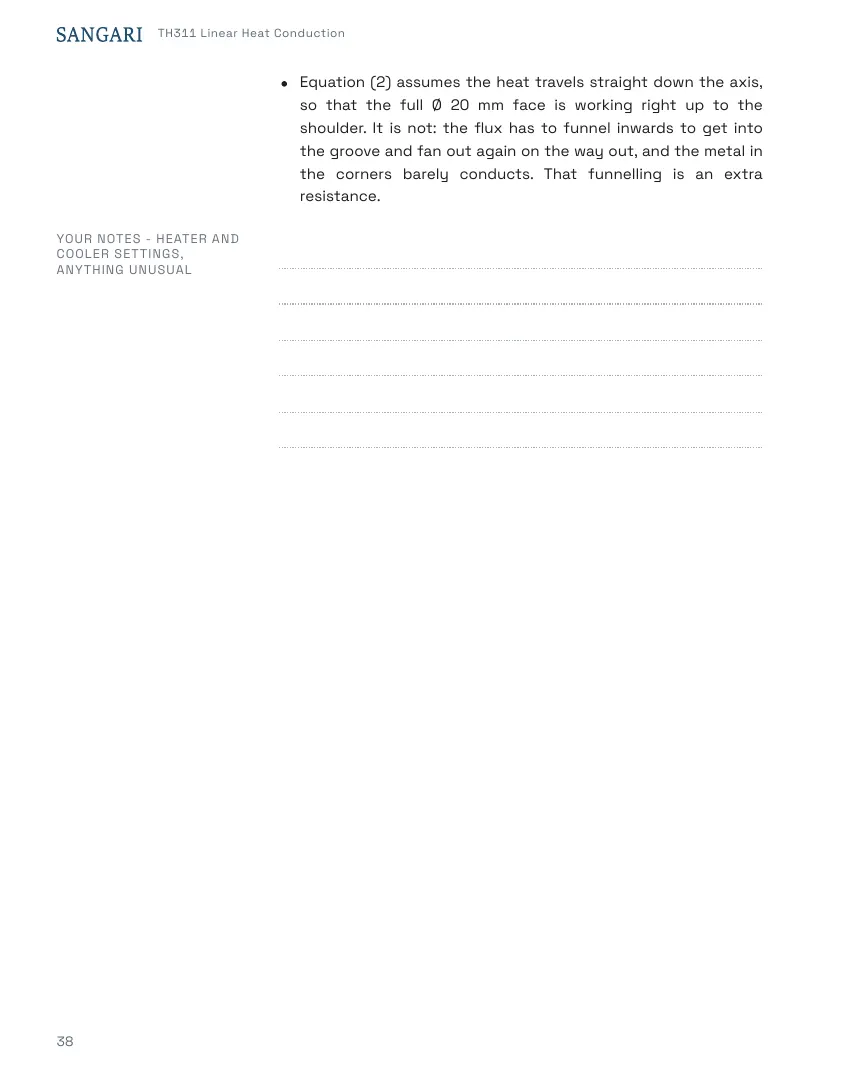

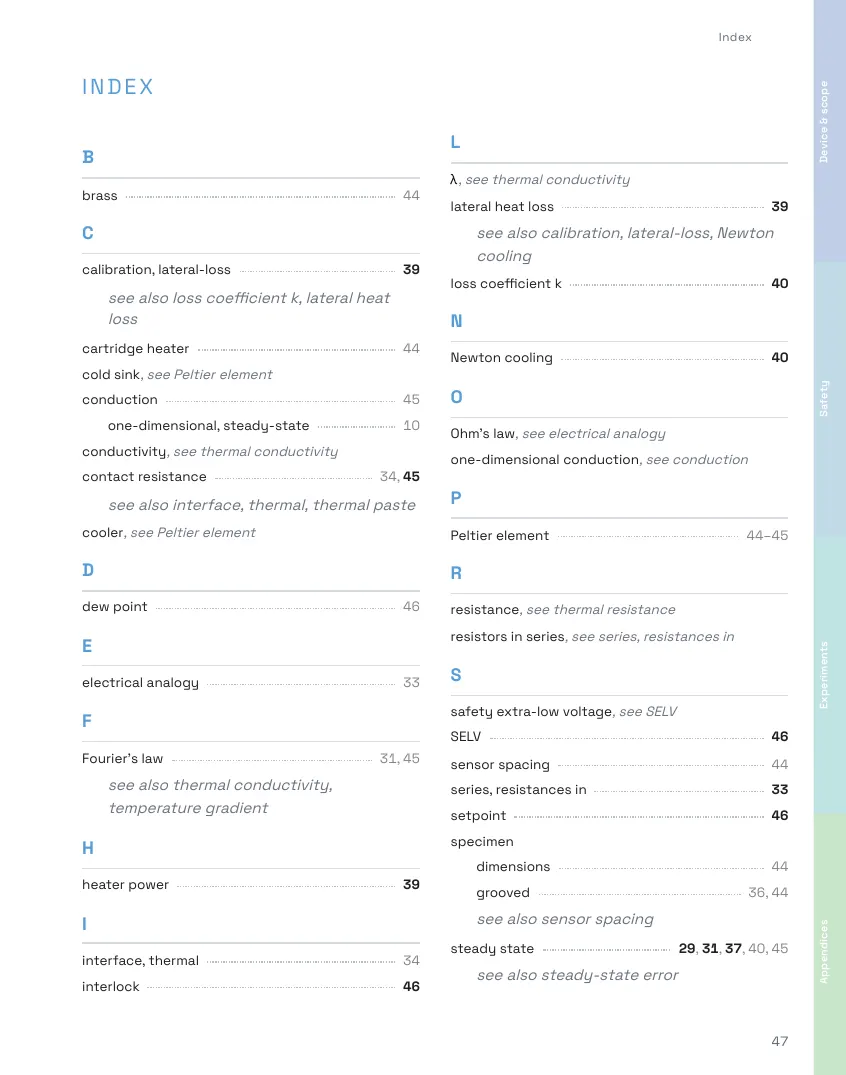

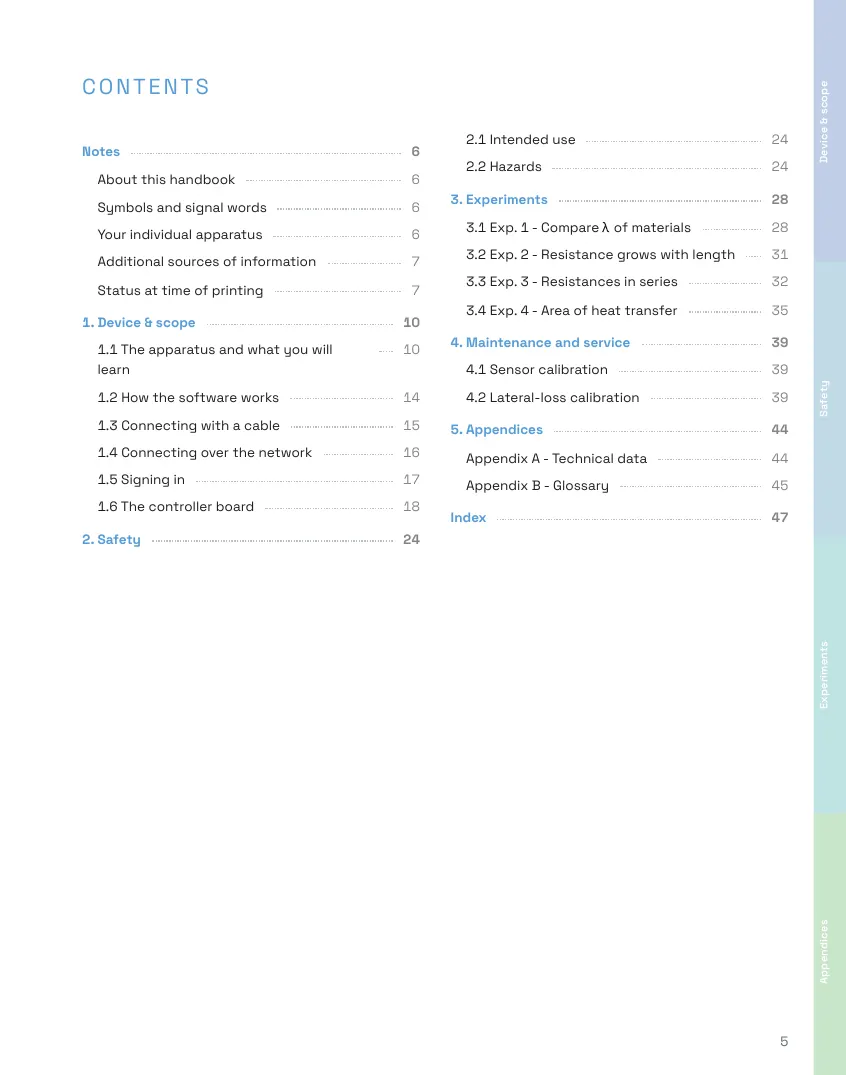

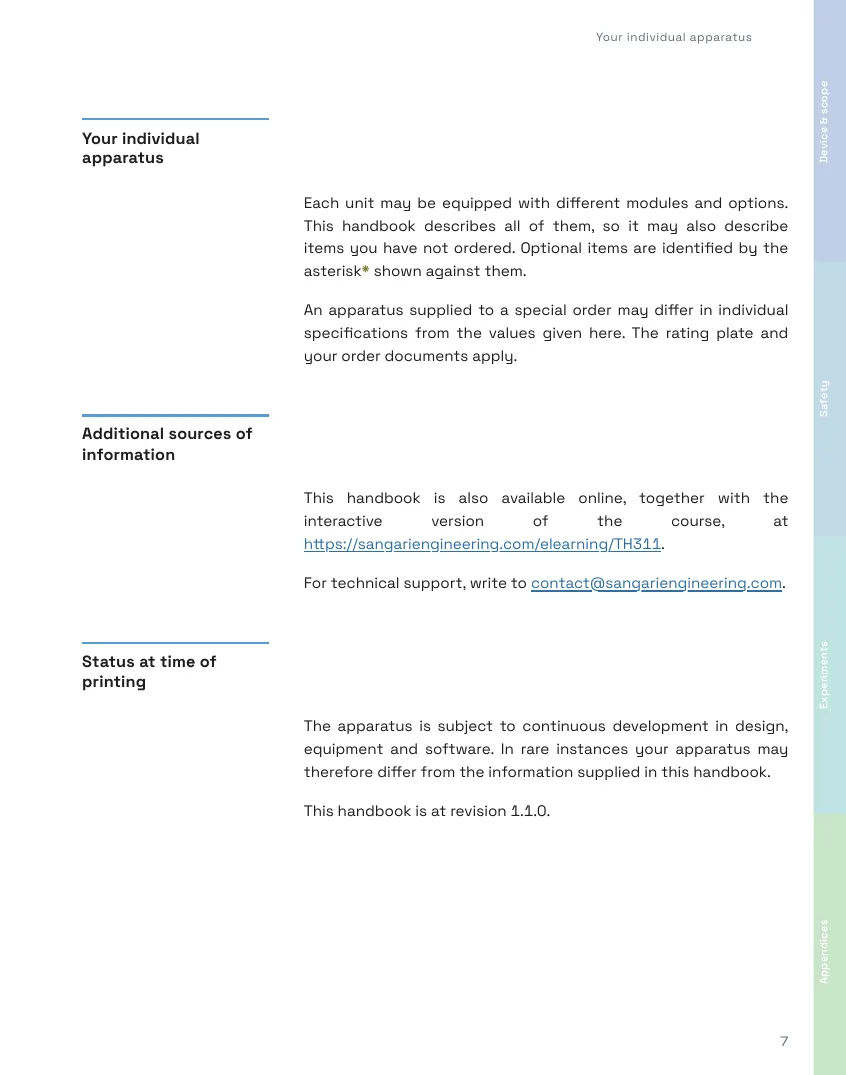

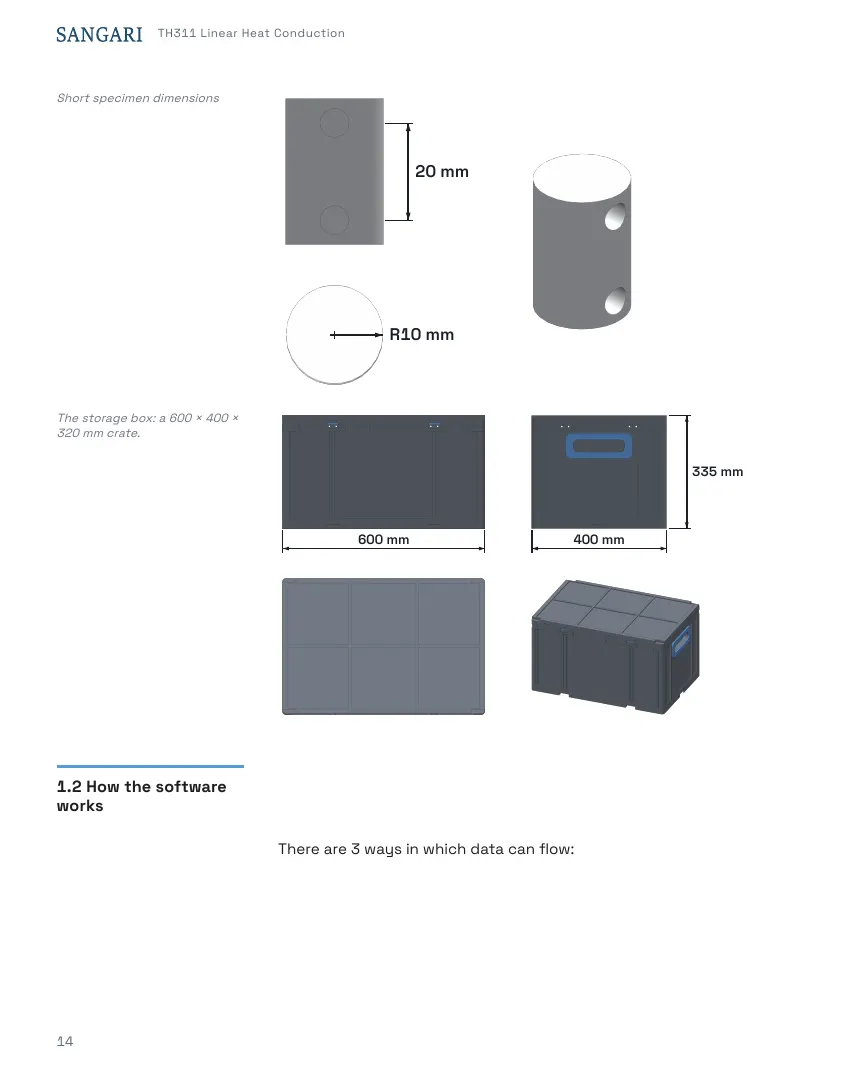

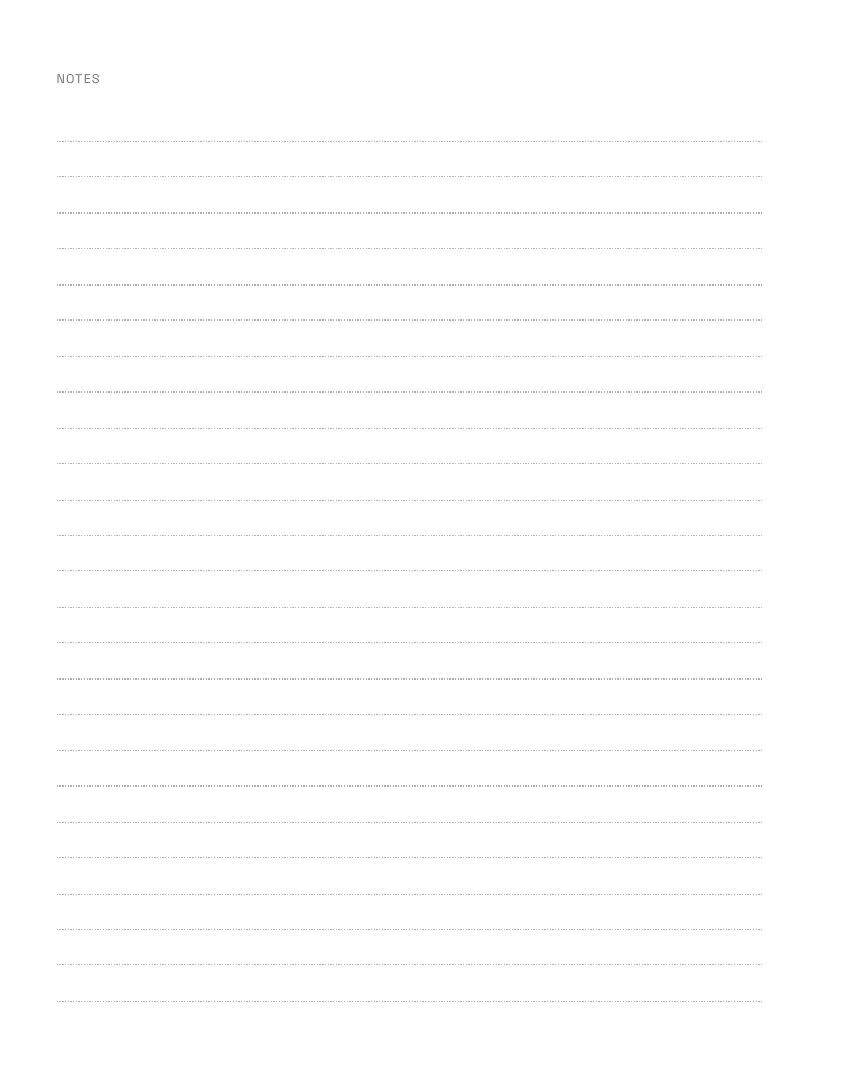

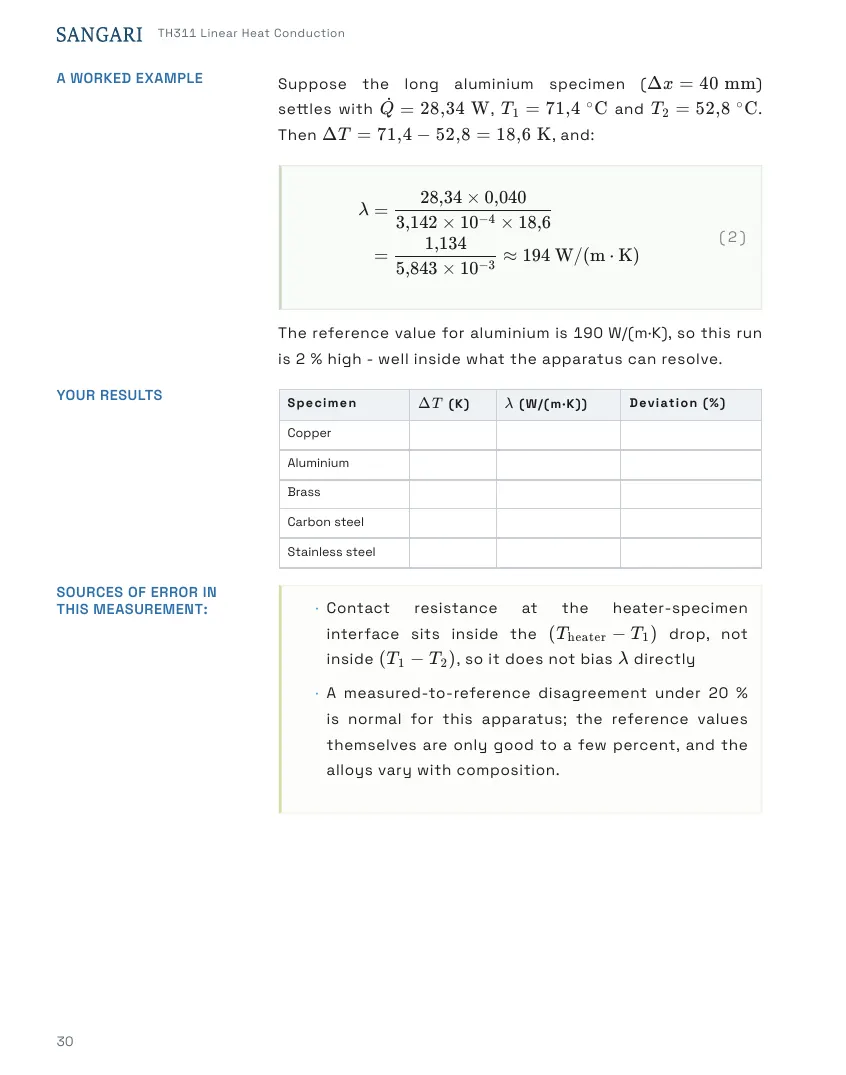

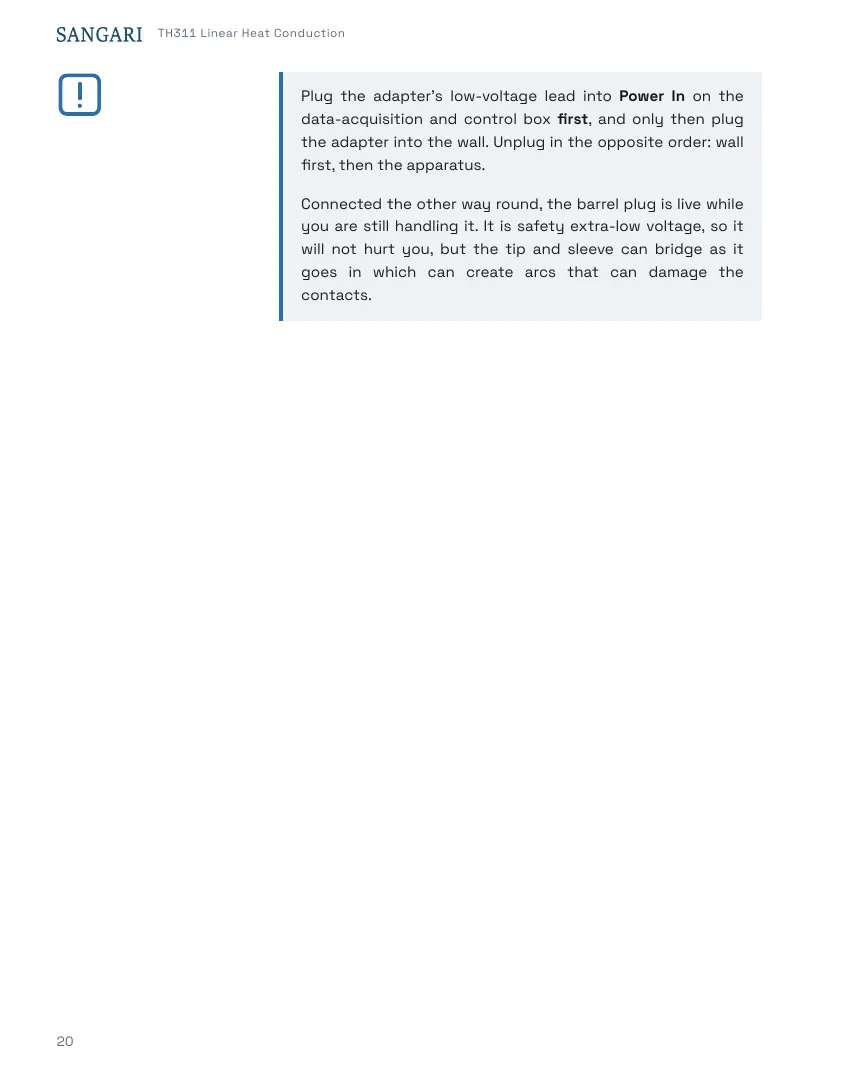

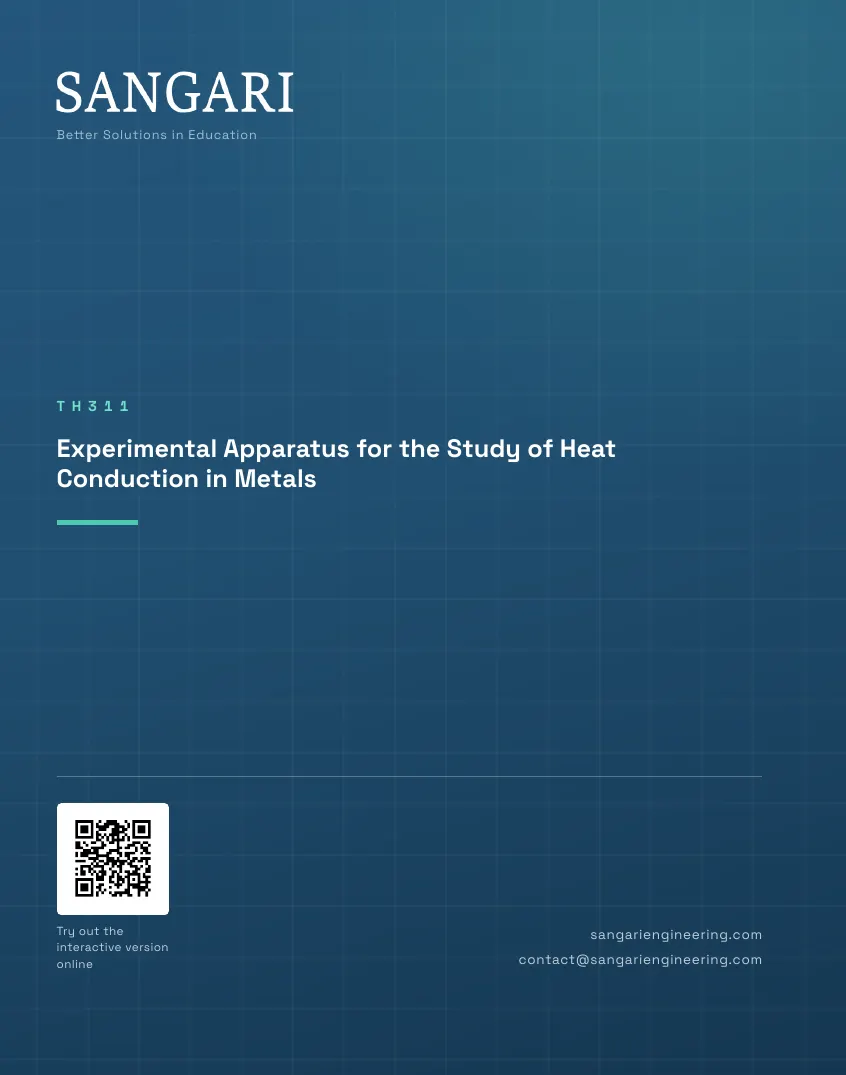

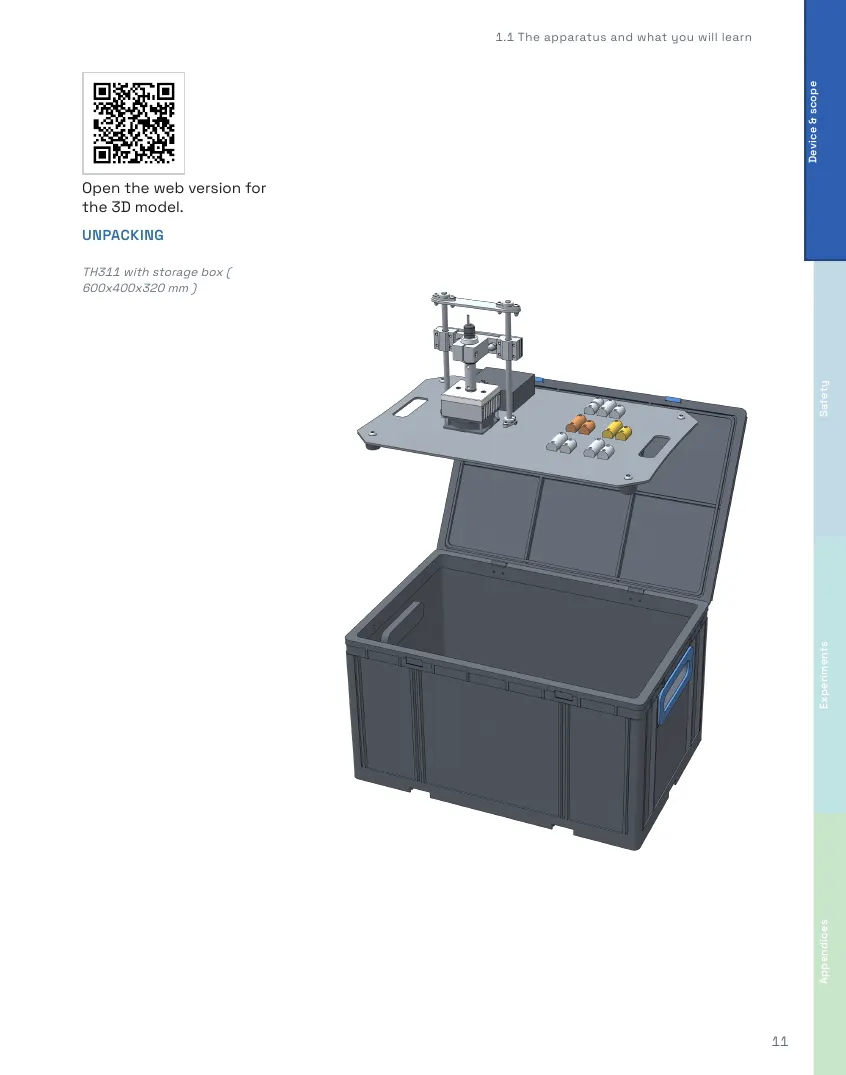

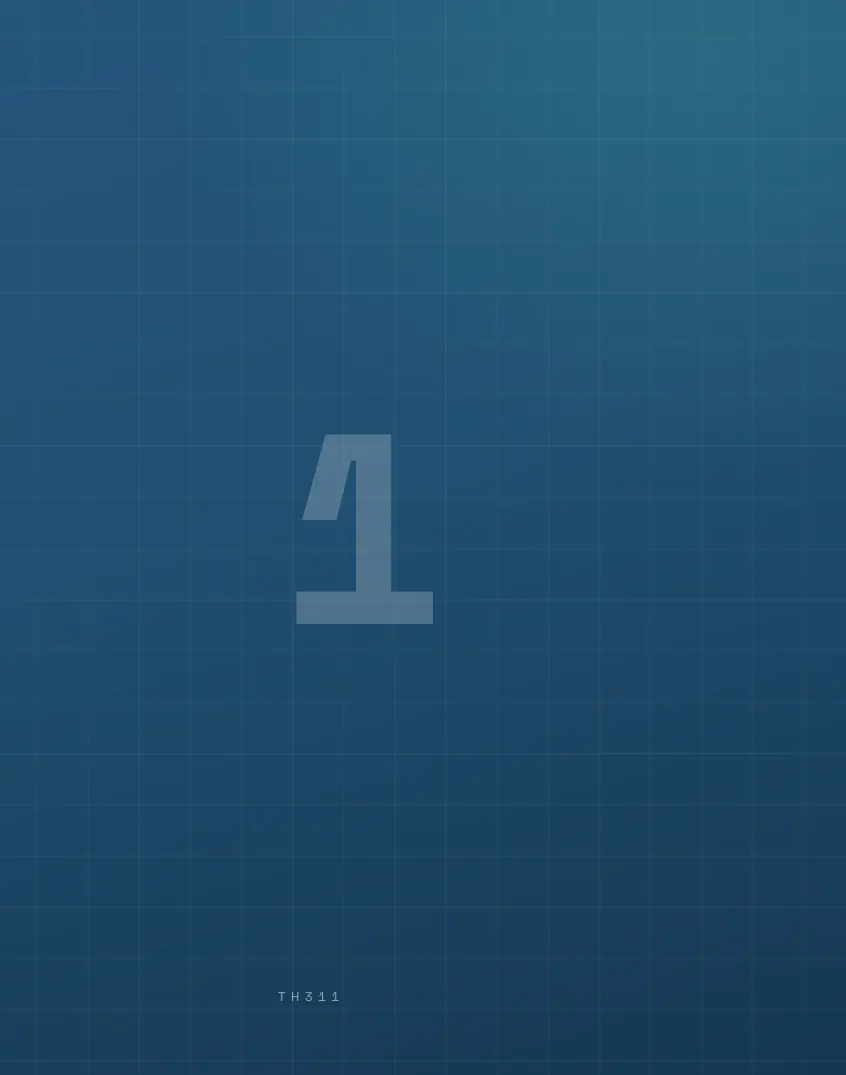

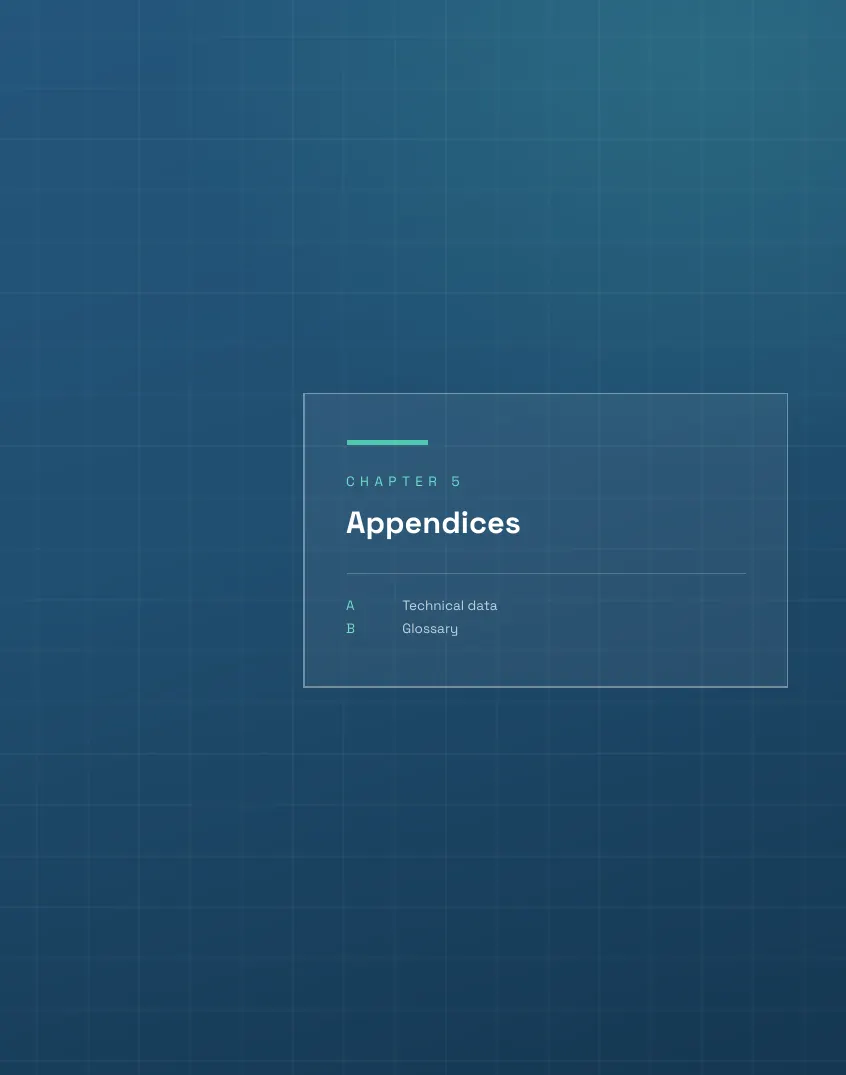

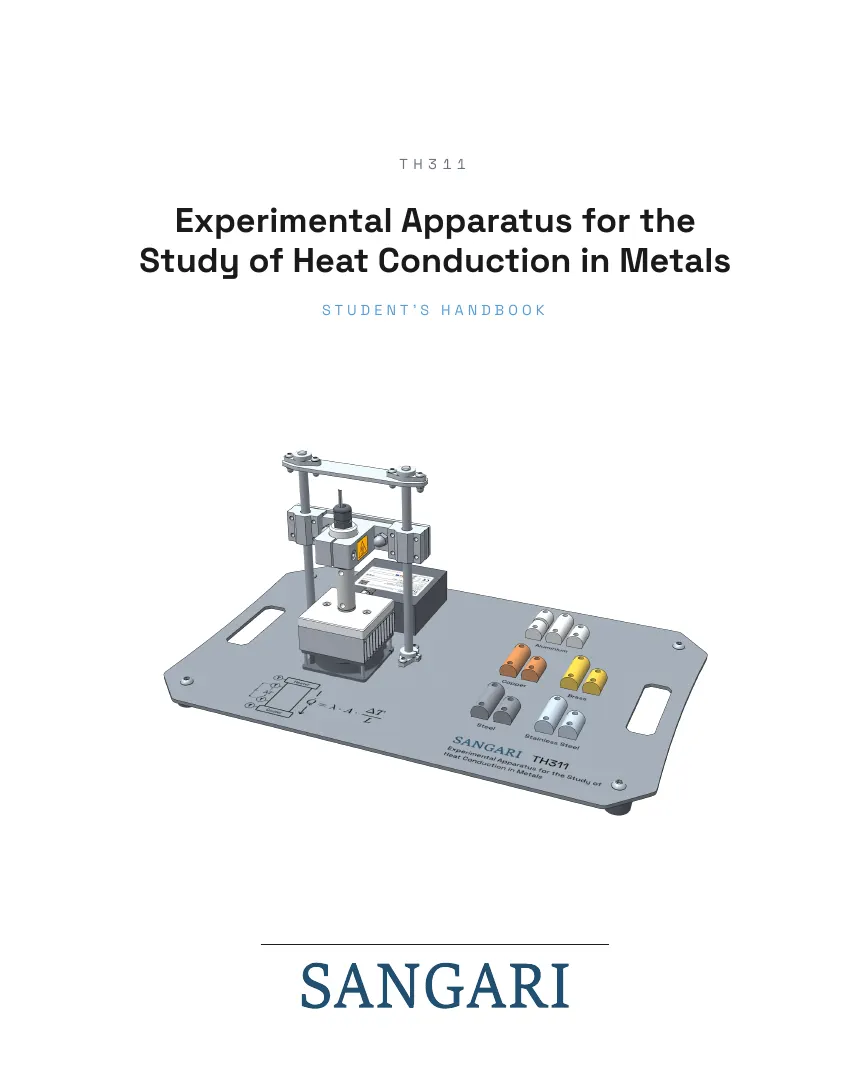

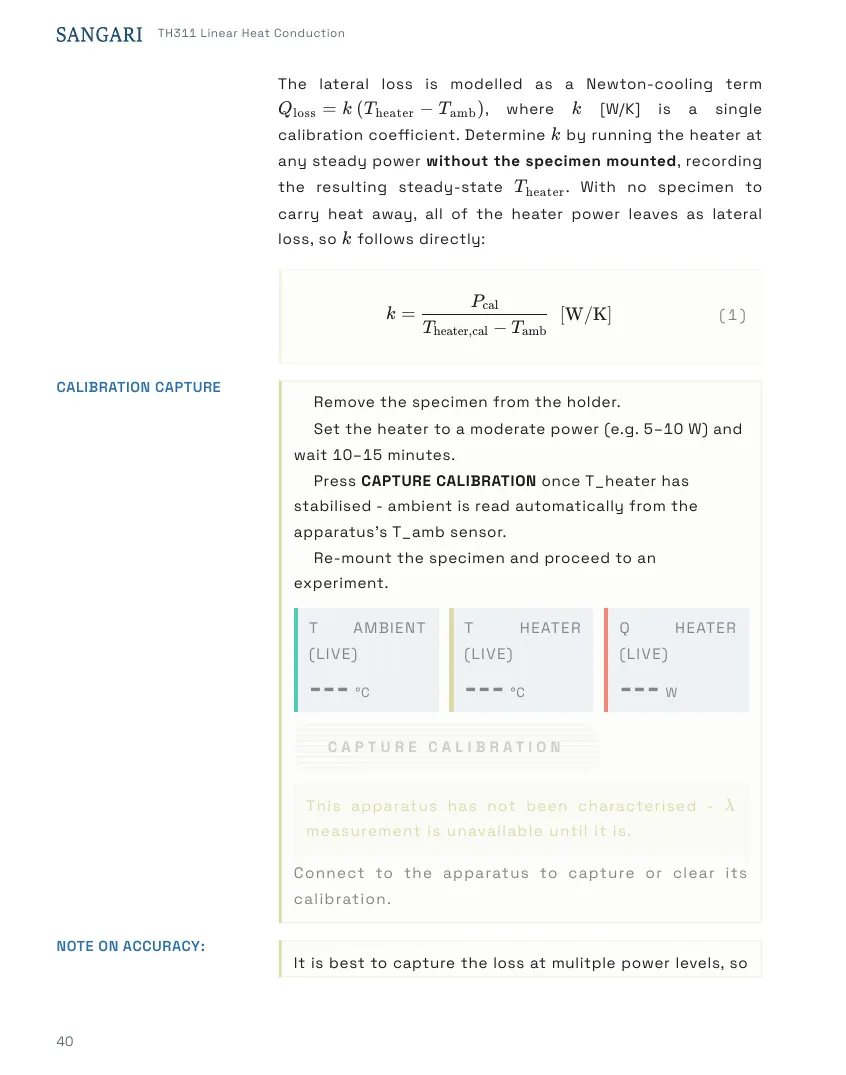

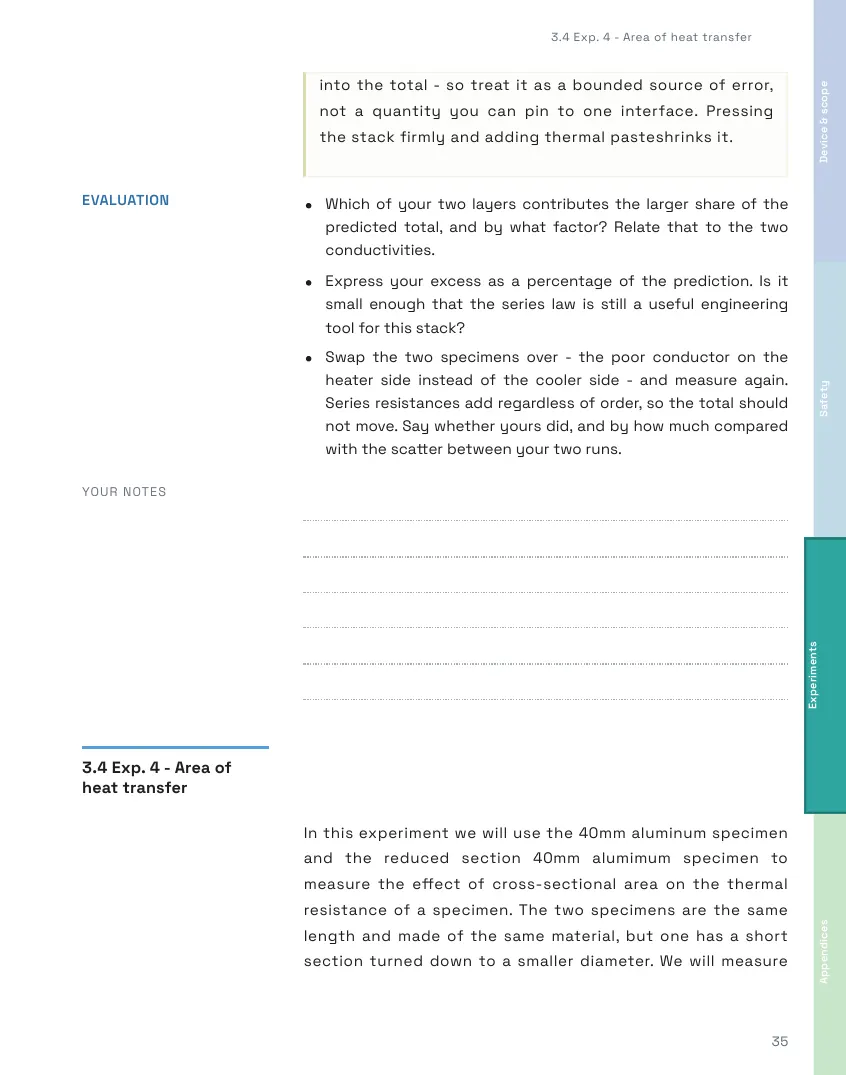

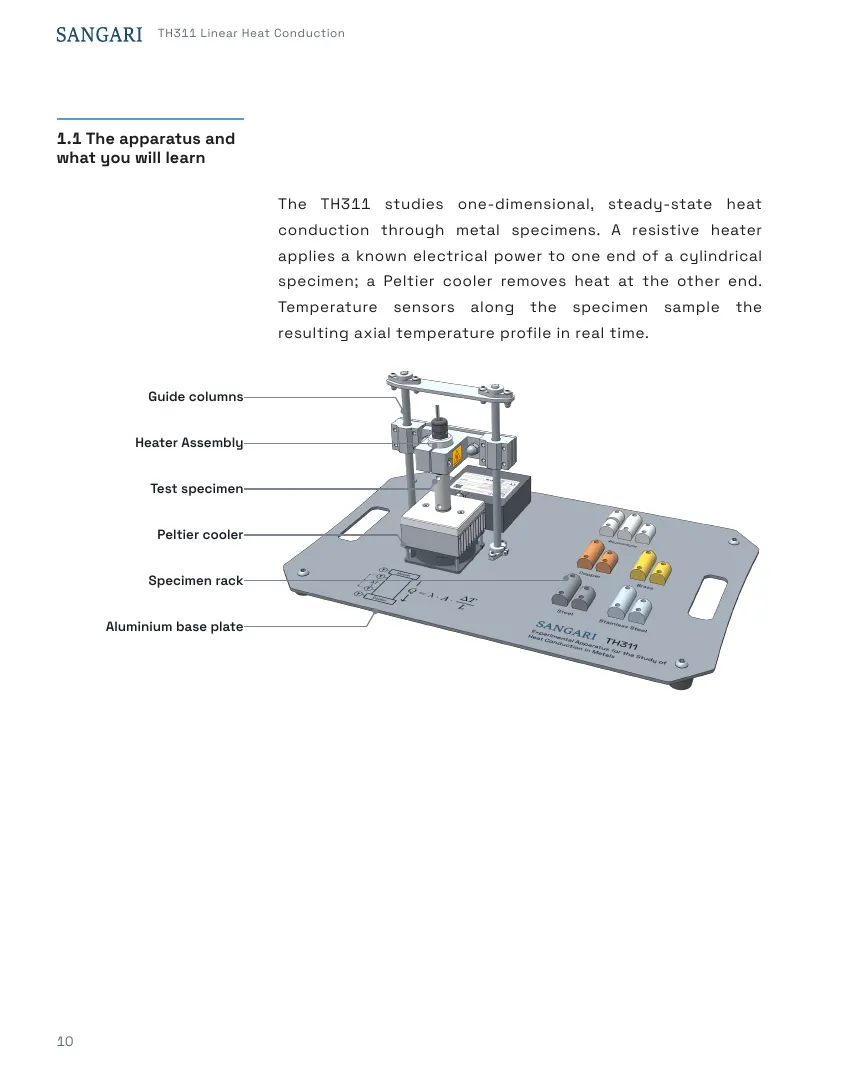

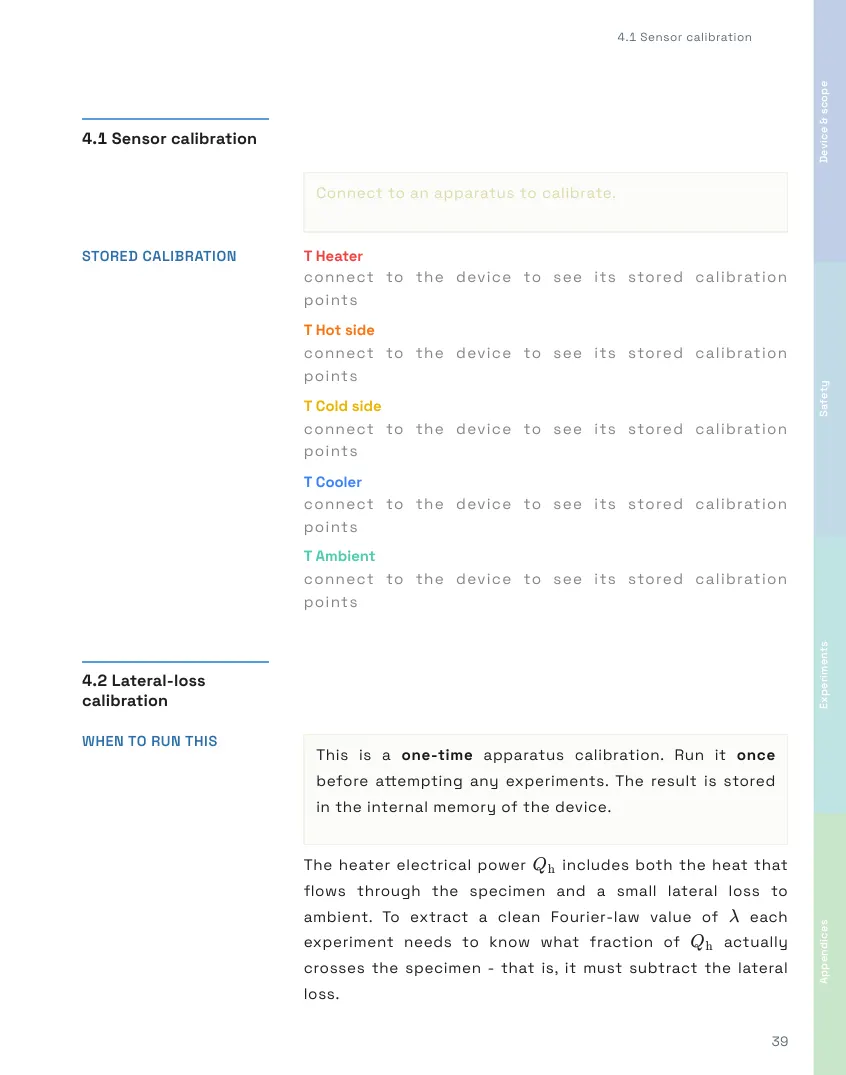

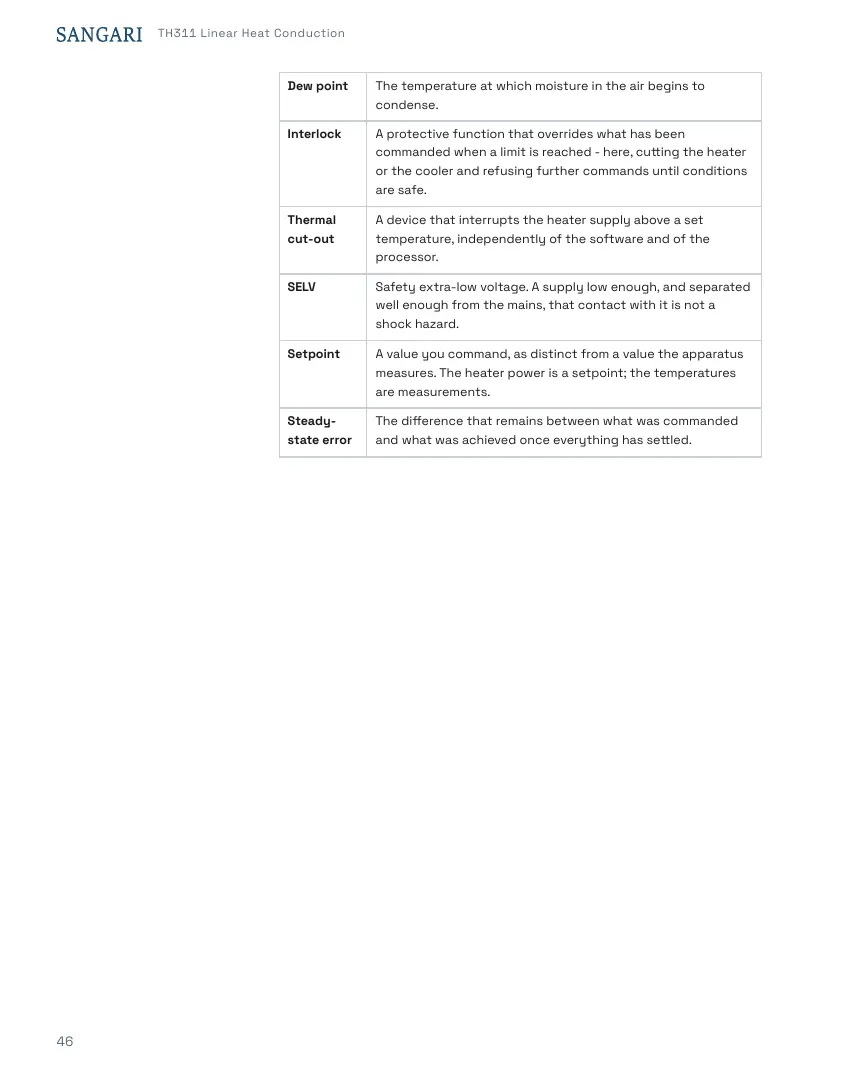

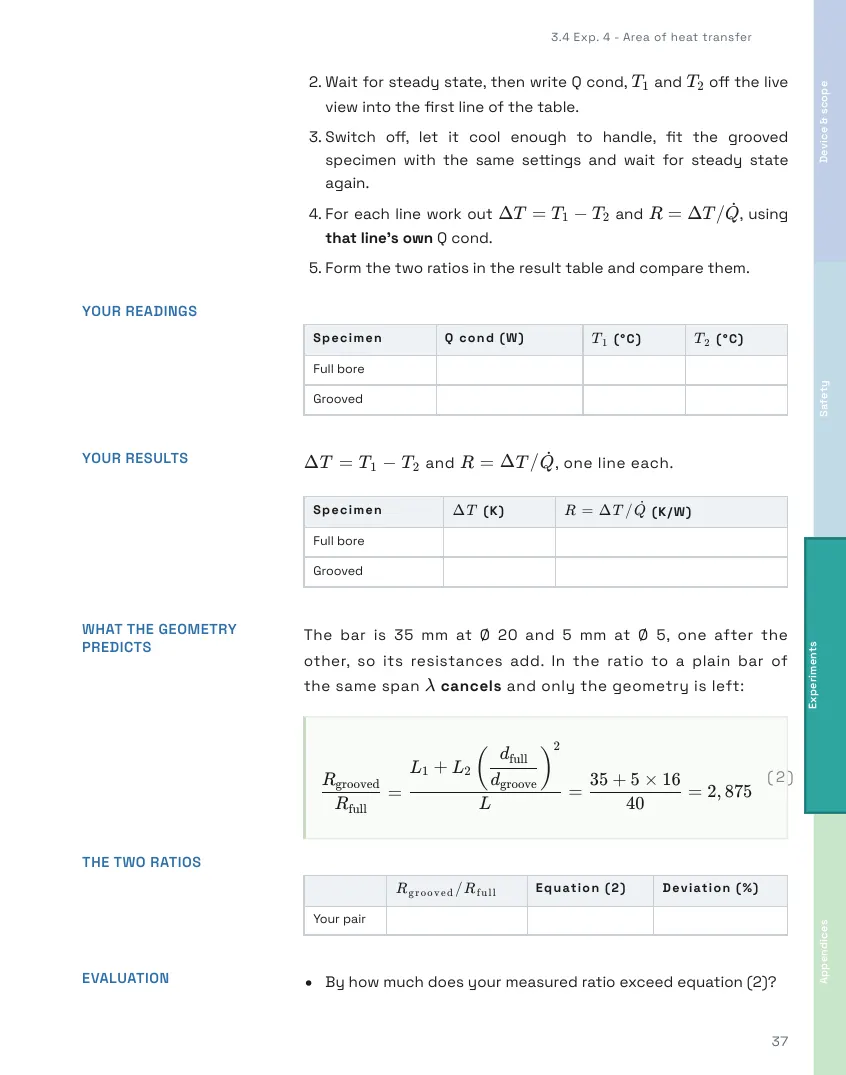

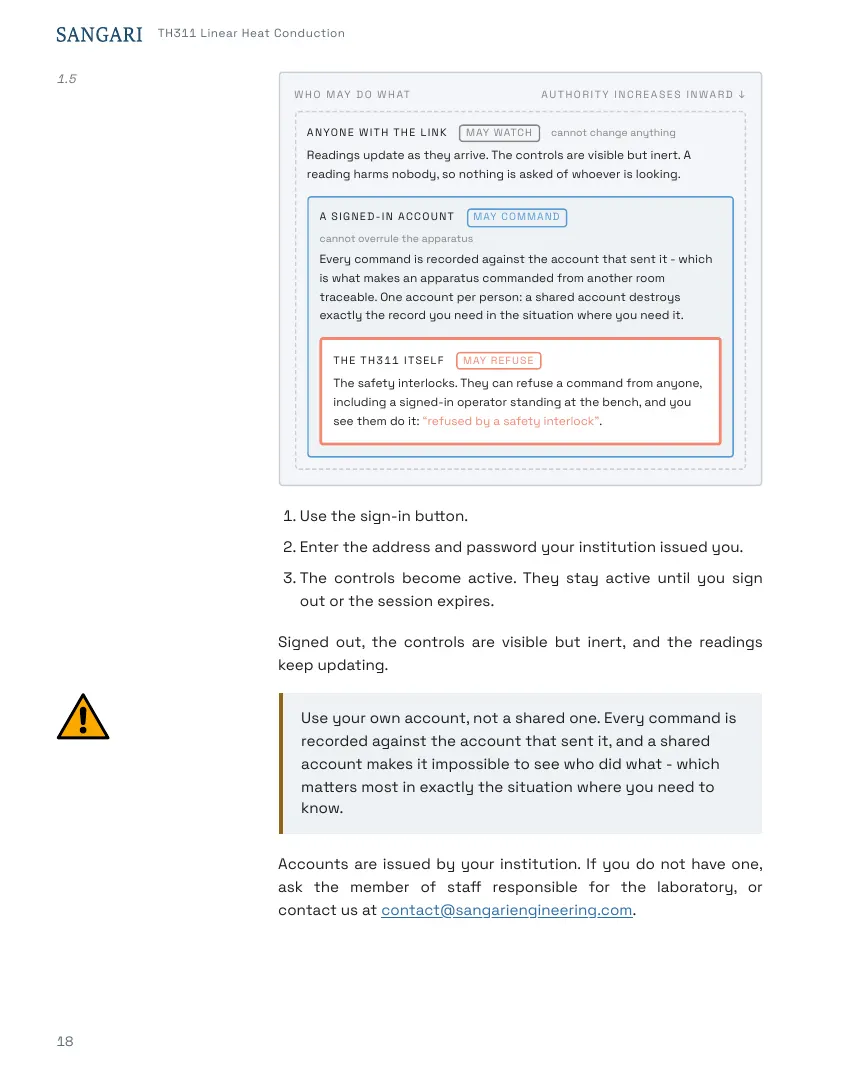

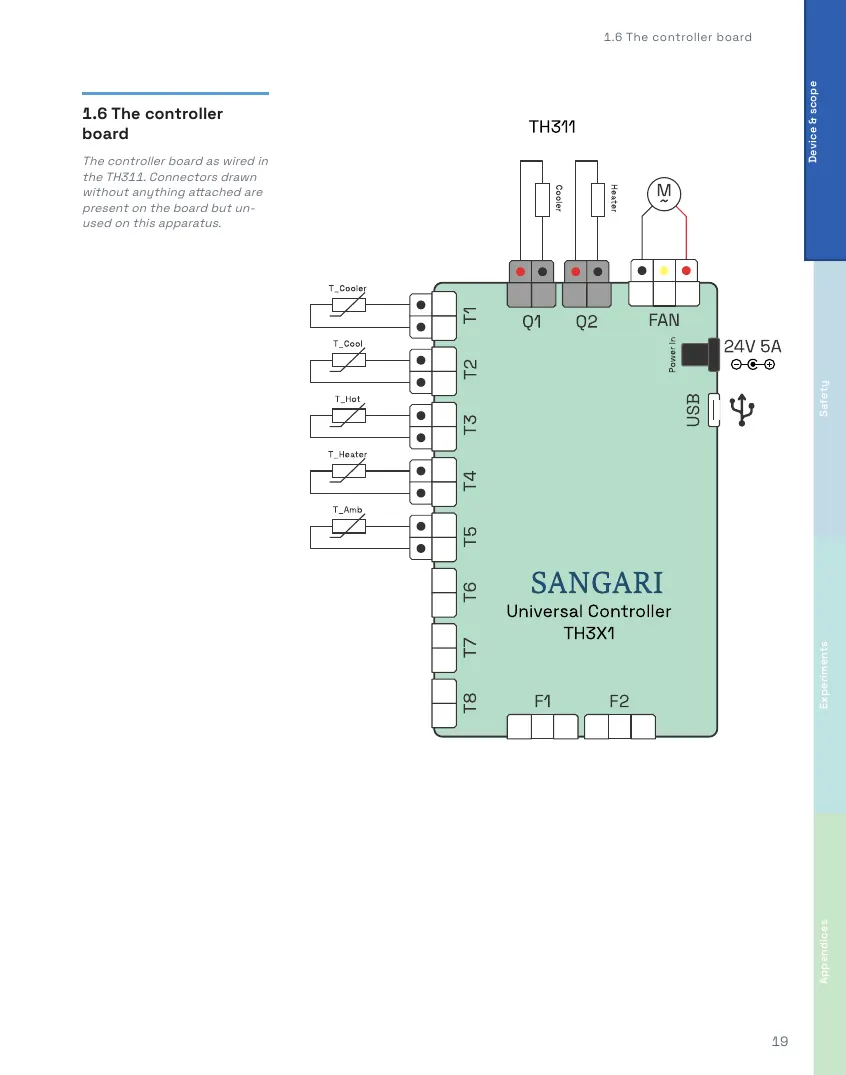

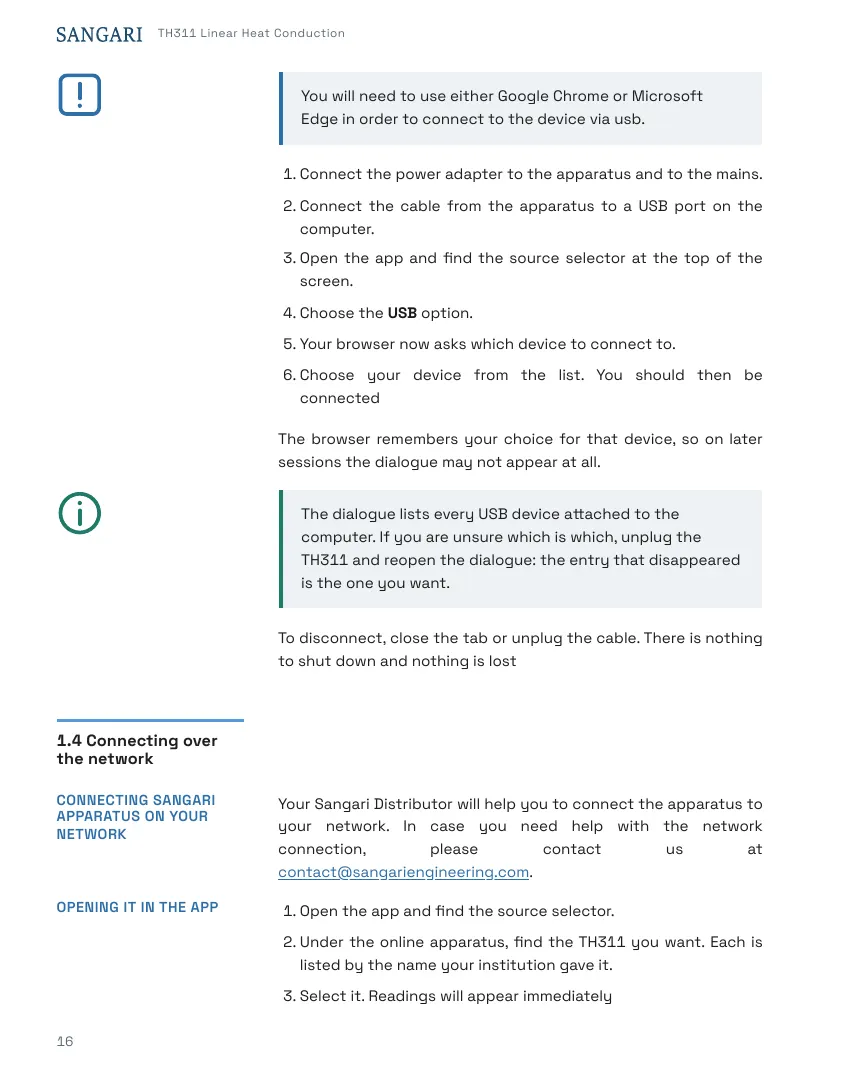

A printed Student's Handbook

Perfect-bound, 165 × 210 mm. It comes with the apparatus, and the whole course is also online in the eLearning app.
