TH550 · Heat Exchanger Supply Unit

Supply Unit for the Study of Heat Exchangers

Main Features

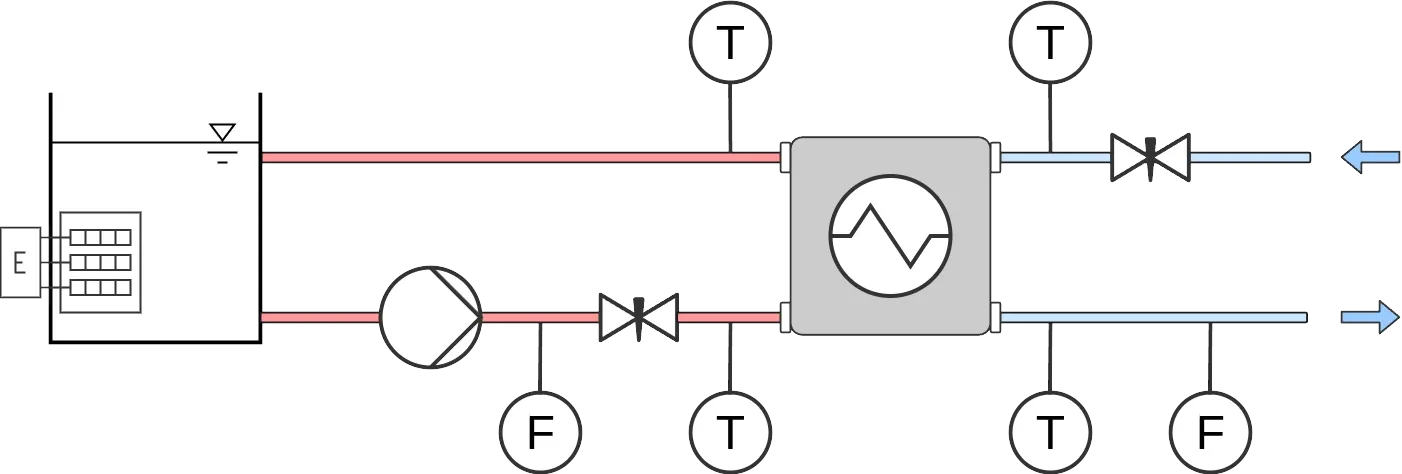

Provides: water heating, hot-water pumping, flow-direction switching in the hot and cold water circuits, measurements on both fluid sides
Hot water circuit: heating element, storage tank, circulation pump and protection device against accidental water leaks
Cold water circuit: connects either to the laboratory water mains or to a compatible water chiller (not supplied with the unit)
Quick couplings and flexible hoses for the connections to the water circuits and to the heat exchangers
Pump:
- Power consumption: 120 W
- Maximum flow rate: 600 l/h
- Maximum head: 30 m
Flow control for the hot and cold water circuits: 0.3…3 l/min
Hot water tank: 10 litres
Heating power: 3 kW
Thermostat: 10…70 °C
Temperature: 0…100 °C (5 sensors)
Flow rate: 0.3…3 l/min (2 sensors: 1 for the hot water circuit, 1 for the cold water circuit)
Complementary safety systems fitted (mechanical, electrical, electronic, software)
Electrical supply: 230 V, 50 Hz, single-phase

Compatibility

Compatible with the modules:

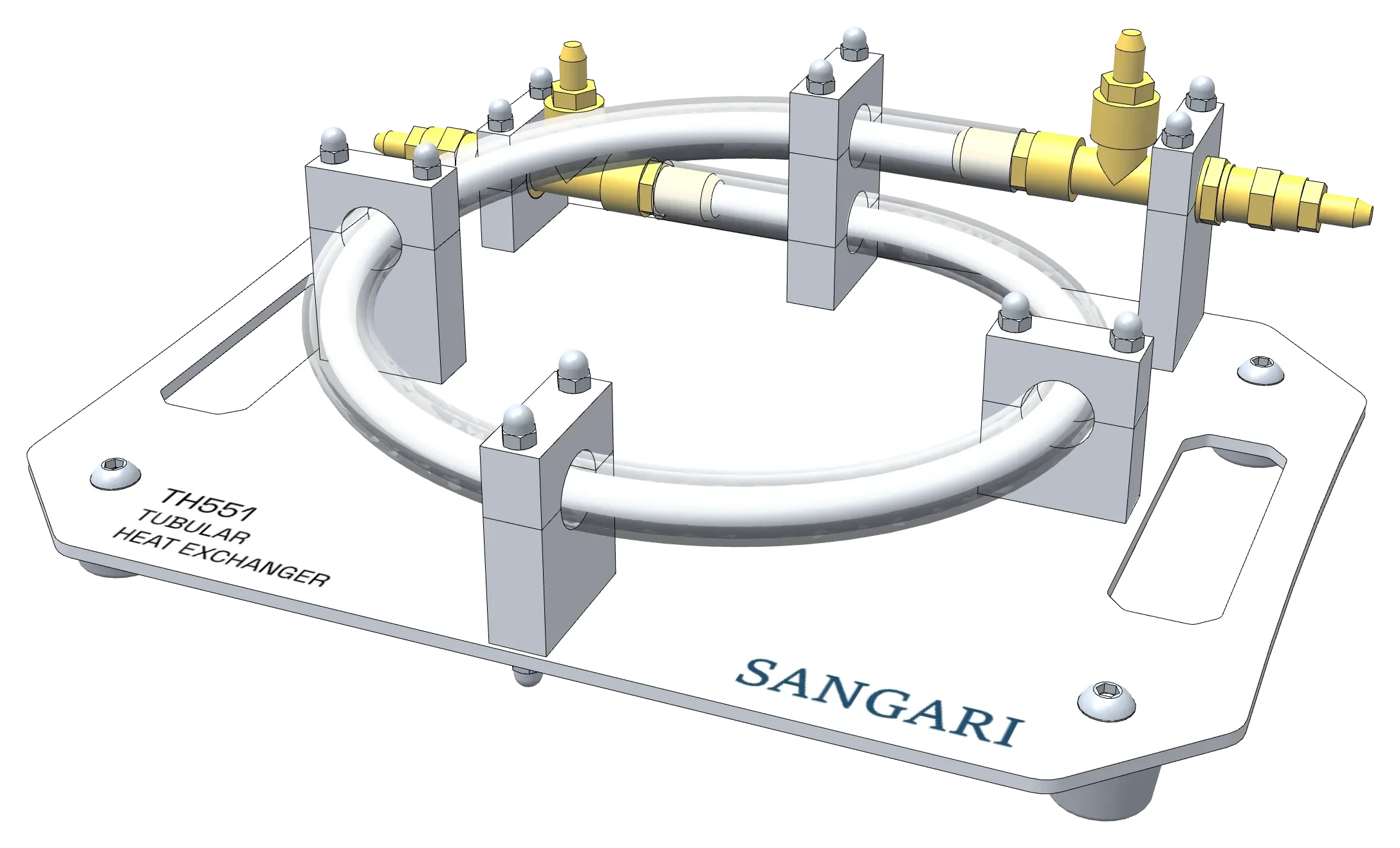

- Sangari TH551 - tube-in-tube heat exchanger

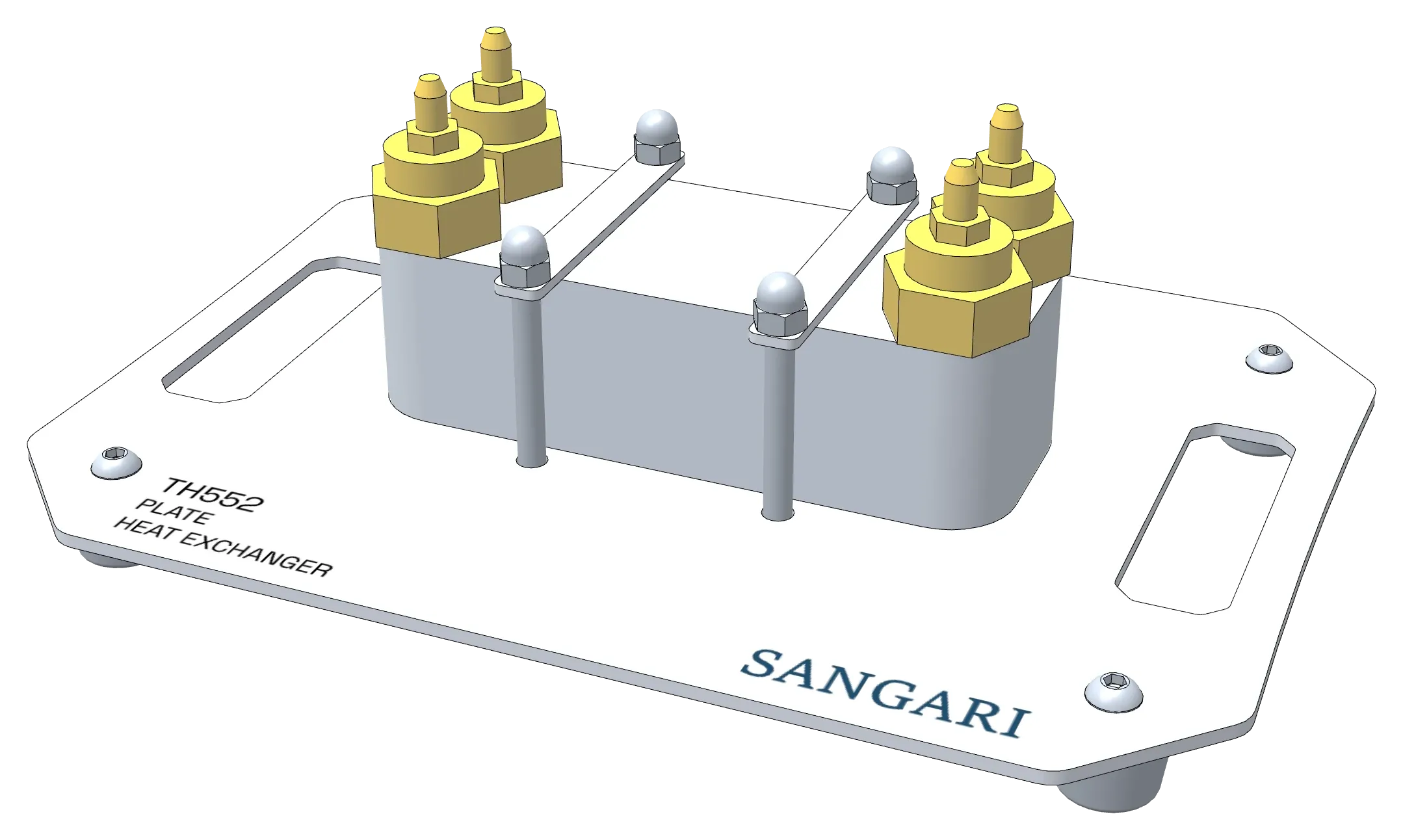

- Sangari TH552 - plate heat exchanger

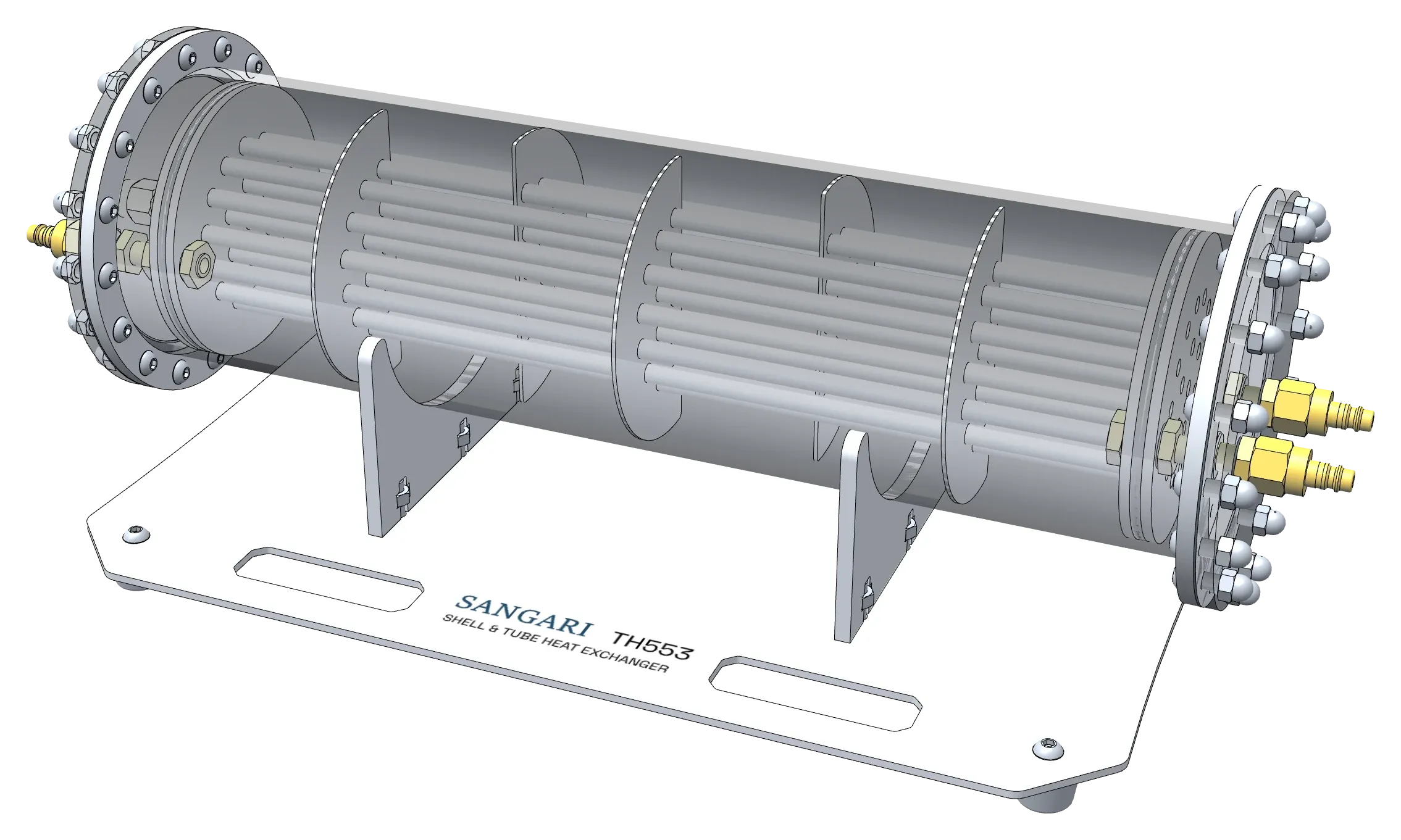

- Sangari TH553 - shell-and-tube heat exchanger

Acquisition and Control System

Unit controlled by PLC, operated through a touch-screen interface
User interface can be screen-mirrored to more than 8 external devices
Automatic identification and configuration of the connected modules, via an RFID interface
Data acquisition through the PLC, with local storage
Access to the measured data over WLAN/LAN, integrated router
Compatible with a video projector, monitor or other electronic display devices

E-learning Platform

Access to the Sangari Connected Learning e-learning platform, developed specifically to support modern education. Through this platform students can access courses, interactive materials and practical exercises directly from their own devices, enabling active, collaborative learning suited to a digital generation.
