ST505 · Concentrated Load

Smart single-load module for loading bridges and beams on the ST500 frame

A set of five instrumented point-loads that snap onto the roadway of a bridge or beam experiment. Each load carries an electronic module that reports its own position - encoded as a 4-bit binary (Gray) code along the roadway - and its applied force to the ST500 host software. Individual loads can be placed freely or combined, and in software they can be stepped along the roadway to emulate a moving load - a natural route into influence-line analysis of bridges and continuous beams.

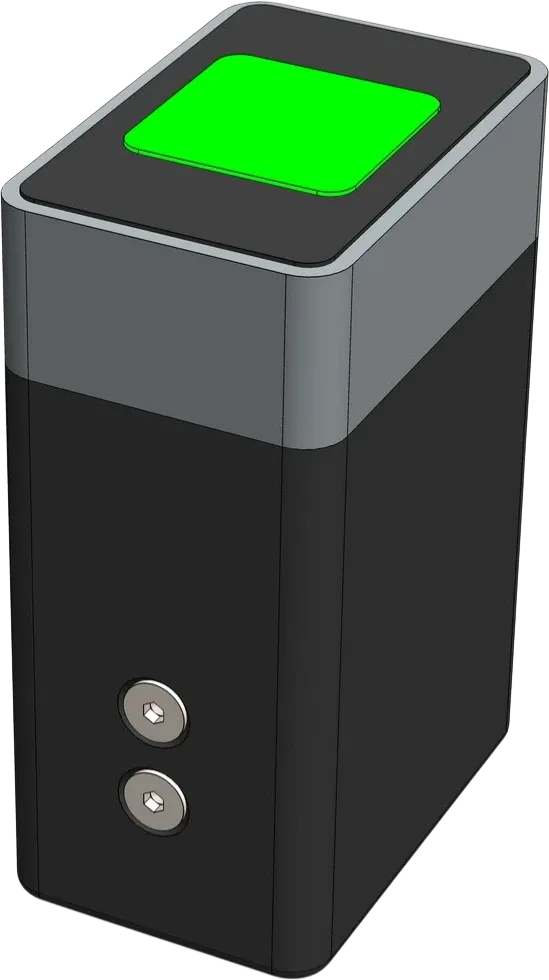

ST505 - Concentrated load module
Features
  • Five instrumented point-loads - used singly or in combination
  • Each load reports its own position along the roadway via a 4-bit Gray-code reader
  • Position shown directly on the load; force shown in the Sangari software
  • Snap-in mounting - no cabling, no configuration
  • Combine with ST506 line load for mixed single/distributed loading
  • Moving-load demonstrations in software: step the set along the roadway to trace influence lines
Compatible experiments
  • ST552 - suspension bridge
  • ST553 - parabolic arch bridge
  • ST554 - three-hinged arch
  • ST555 - Gerber (cantilever) beam
Host frame
    Requires the ST500 digital experiment frame
    Mounting snap-in click system on the roadway
Loads
    Quantity 5
    Mass per load 750 g (≈ 7.5 N)
    Position encoding Gray code, 4 bit - 16 detectable positions along the roadway
    Display local indicator on each load; force values in the Sangari software
L 600 W 400 H 200 mm
5 kg

Part of package

Advanced Structural Analysis Lab

ST500 - Digital smart experiment frame ST501 - Instrumented support ST502 - Load unit with force and angle measurement ST503 - Smart distance measurement module ST504 - Vertical load hanger ST505 - Concentrated load module ST506 - Distributed line load module
ST531 - Euler buckling module ST551 - Forces in a plane truss ST552 - Forces on a suspension bridge ST553 - Parabolic arch bridge ST554 - Three-hinged arch experiment ST555 - Gerber (cantilever) beam

A comprehensive series of experimental setups for advanced structural mechanics topics - including truss analysis, beam deflection, frame deformation, column buckling, and material testing.
