ST500 · Digital Experiment Frame

Digital smart frame for structural mechanics experiments with wireless data acquisition

A stainless-steel mounting frame that hosts a family of smart, communication-enabled experiment modules - bars, supports, load units, distance gauges - clipped in without tools or cabling. A single power-bus line feeds every module, and a master unit streams all readings to a PC over USB, where force, deflection and position are displayed both numerically and graphically. The frame turns the classical force-and-deformation bench into an instrumented, reconfigurable teaching platform.

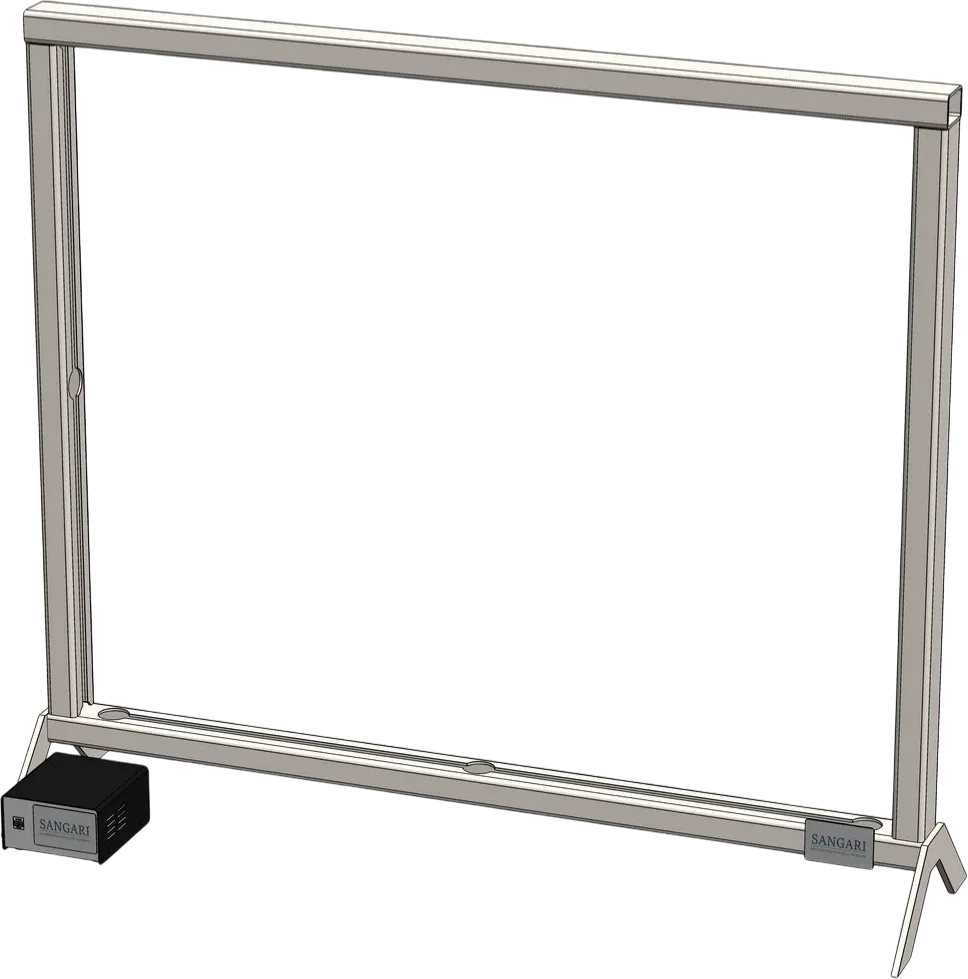

ST500 - Digital smart experiment frame
Compatible experiments
  • Bridges, beams & arches
    • ST551 - forces in a planar truss
    • ST552 - forces on a suspension bridge
    • ST553 - parabolic arch bridge
    • ST554 - three-hinged arch
    • ST555 - Gerber (cantilever) beam
  • Stability & buckling
    • ST531 - Euler buckling of slender bars
Smart accessory modules
  • ST501 - instrumented support (fixed / floating)
  • ST502 - load unit with force and angle measurement
  • ST503 - distance / deflection measurement
  • ST504 - vertical load application
  • ST505 - concentrated (point) load
  • ST506 - distributed (line) load
Workflow
  • Clip modules into the frame groove - no tools, no cabling
  • Modules are identified automatically with their position and alignment on the frame
  • Measurements stream over USB to the Sangari software and are displayed numerically and graphically
  • Free reconfiguration between experiments - same frame, different modules
Mounting frame
    Construction stainless steel, quick-release fasteners - no tools
    Experiment area 1080 × 880 mm (W × H)
    Profile groove width 12 mm
    Quick-release fasteners 4
Master module
    Connection to frame Plug&Play via single power-bus line
    Host link USB to Sangari software
    Function data acquisition from smart modules; numeric & graphical display
    Supply 230 V, 50 Hz, single-phase
230V
L 1150 W 350 H 1050 mm
24 kg

Part of package

Advanced Structural Analysis Lab

ST500 - Digital smart experiment frame ST501 - Instrumented support ST502 - Load unit with force and angle measurement ST503 - Smart distance measurement module ST504 - Vertical load hanger ST505 - Concentrated load module ST506 - Distributed line load module
ST531 - Euler buckling module ST551 - Forces in a plane truss ST552 - Forces on a suspension bridge ST553 - Parabolic arch bridge ST554 - Three-hinged arch experiment ST555 - Gerber (cantilever) beam

A comprehensive series of experimental setups for advanced structural mechanics topics - including truss analysis, beam deflection, frame deformation, column buckling, and material testing.
