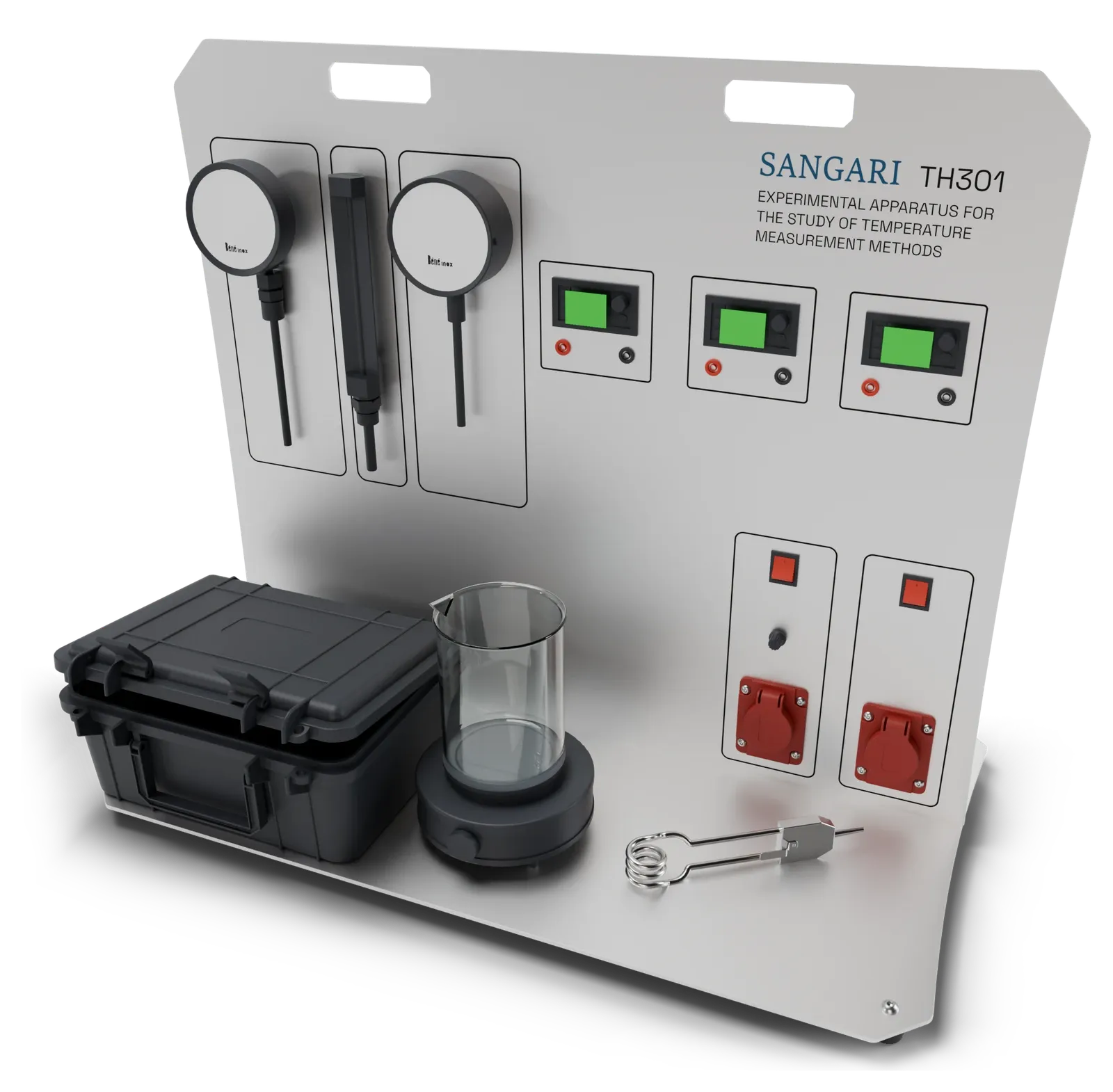

TH301 · Fundamentals of Temperature Measurement

Experimental Apparatus for the Study of Temperature Measurement Methods

Name: Experimental Apparatus for the Study of Temperature Measurement Methods
Brand: Sangari
SKU: TH301

A benchtop panel unit combining the seven classical temperature measurement methods - from liquid and bimetallic thermometers to thermocouples, Pt100 and NTC sensors - with dedicated heat sources, a psychrometer and a complete sensor calibration workflow.

Description

Recording temperature is one of the fundamental tasks of metrology. The apparatus gives a complete experimental introduction to the subject: seven typical measuring instruments - conventional and electrical - are combined on a clearly arranged benchtop panel, while the loose components (sensors, cables, measuring strips, immersion heater) are housed in a dedicated tool case. Electrically measured temperatures are shown directly on programmable digital displays, and a temperature-proportional 0…10 V analog output allows characteristic curves to be recorded.

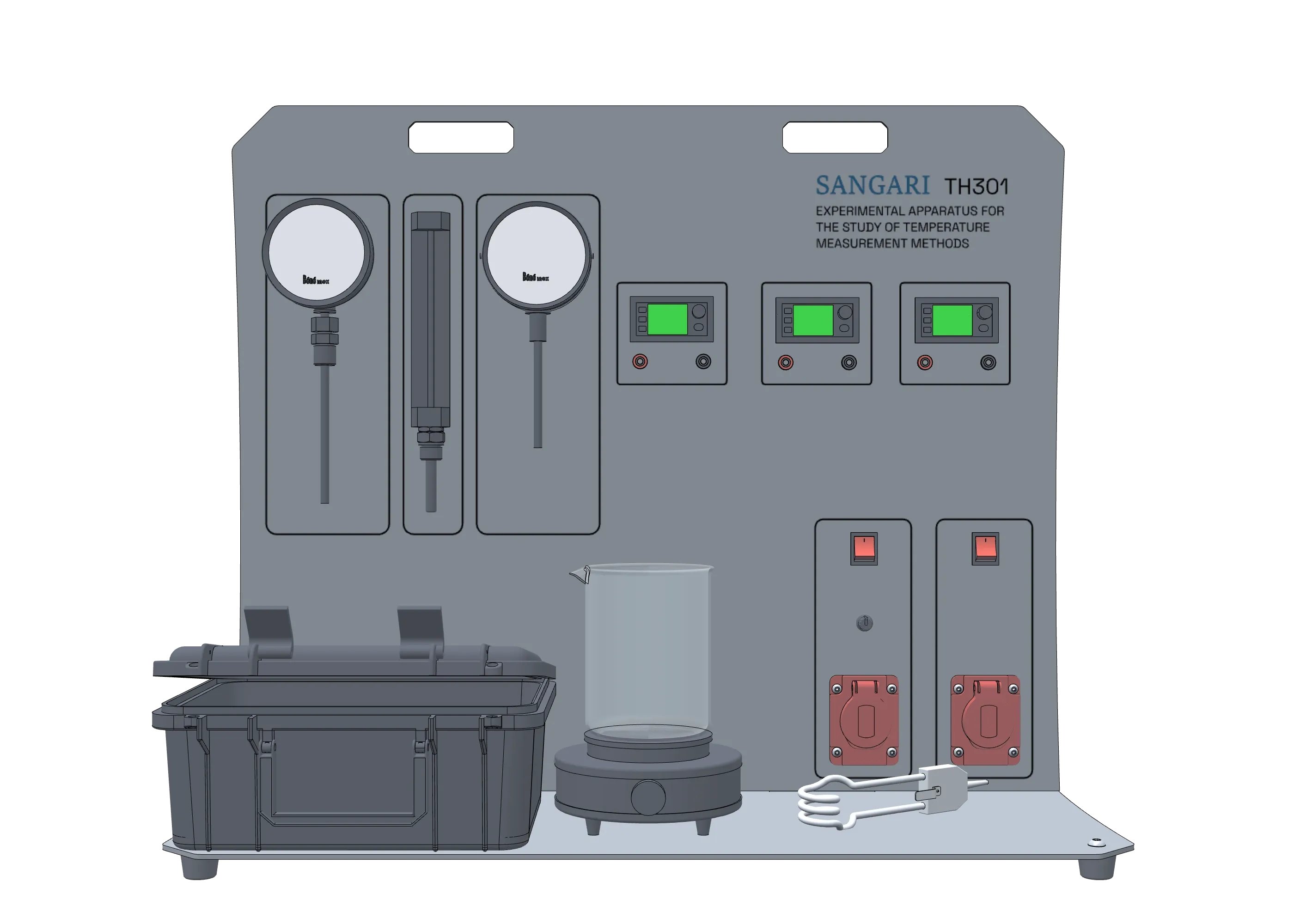

Front view of the TH301 instrument panel

Temeperature sensors

Storage case

Laboratory heater

Immersion heater

Digital display

Laboratory jacks

Power-regulated sockets

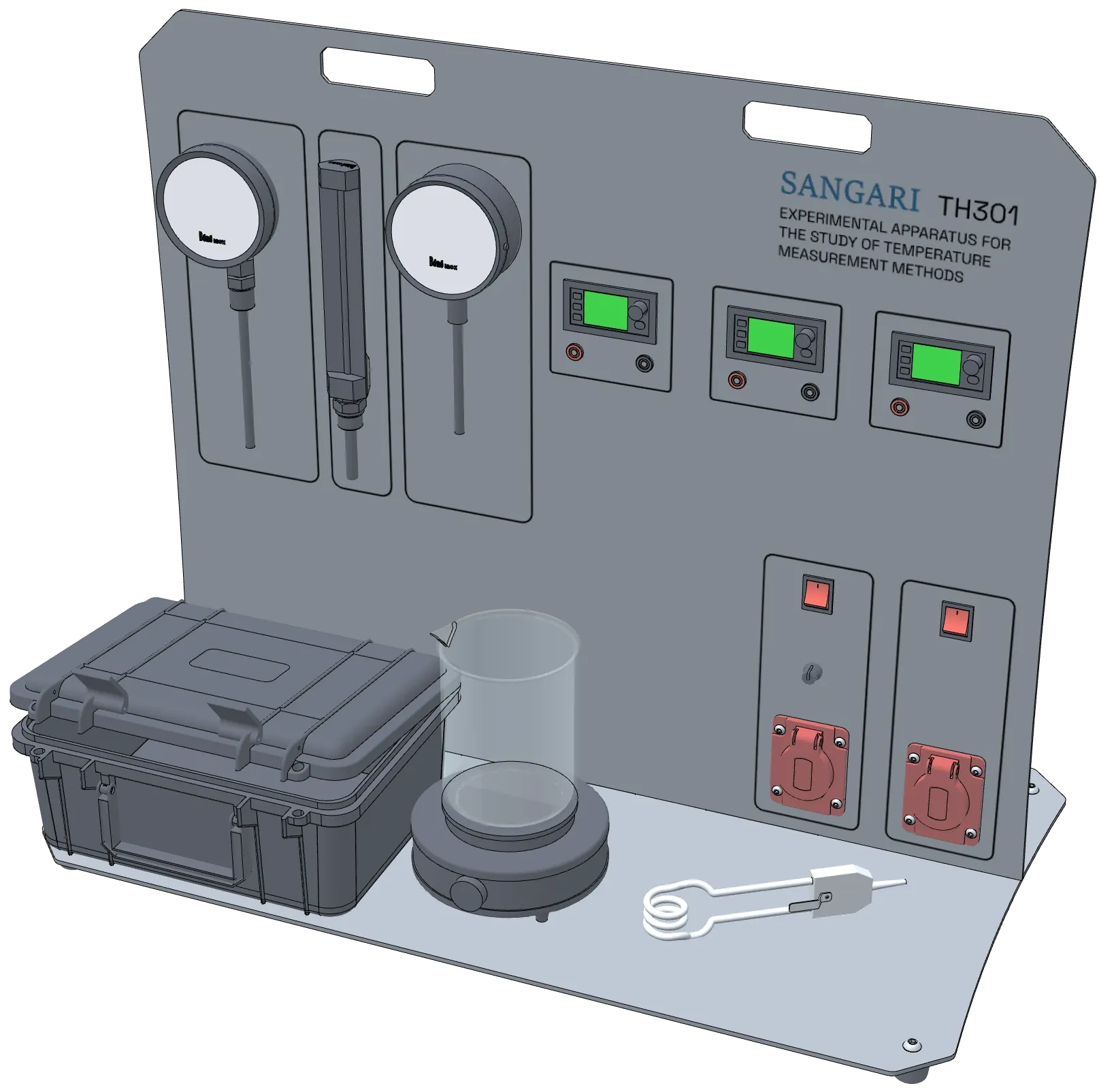

Front view of the TH301 instrument panel

Heat Sources and Calibration

Three heat sources cover the relevant temperature ranges: a power-regulated immersion heater, a laboratory heater with thermostat for water and sand baths up to 425 °C, and a vacuum flask that provides a stable reference temperature. The included digital multimeter and the set of precision resistors are used to calibrate the electrical measuring chains, so students carry out a complete calibration workflow - from raw sensor signal to verified reading. The psychrometer determines relative air humidity from the temperature difference between its dry and wet-bulb thermometers.

Experiments

Experimental introduction to the full range of temperature measurement methods
Non-electrical measurement: liquid, gas-pressure and bimetallic thermometers, temperature measuring strips
Electrical measurement: type K thermocouple, Pt100 resistance thermometer, NTC thermistor
Areas of application and special features of each measuring method
Determination of air humidity with a psychrometer
Calibration of electrical temperature sensors using precision resistors
Recording of temperature characteristic curves via the analog output

Software

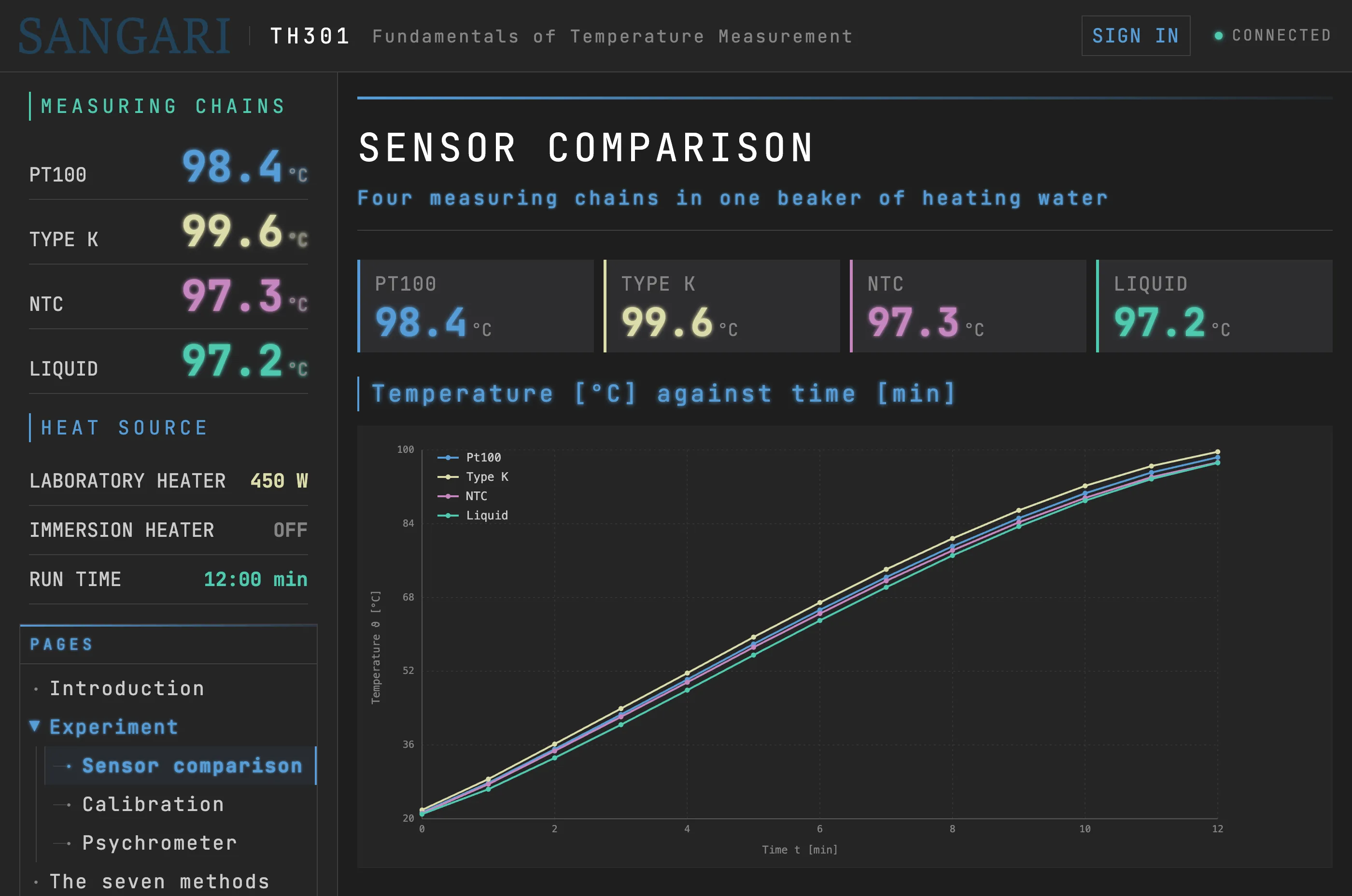

TH301 Software screen

Scope of Delivery

Experimental unit
Tool case for accessories
Set of cables
Laboratory heater
Immersion heater
Dewar / vacuum flask
Digital multimeter
Set of precision resistors (10 / 100 / 1000 Ω)
Temperature sensors: 2× Pt100, type K thermocouple, NTC thermistor
Liquid, bimetallic and gas pressure thermometers
Set of temperature measuring strips
Psychrometer
Set of instructional materials

All components and accessories listed under Scope of Delivery are supplied, whether or not they are visible in the photographs.

Specifications

Resistance thermometer Pt100, 0…100 °C ( the set includes 2 Pt100 sensors )

Thermocouple type K, 0…1000 °C

Thermistor NTC, -20…70 °C

Liquid thermometer -10…250 °C

Bimetallic thermometer 0…200 °C

Gas pressure thermometer 0…200 °C

Measuring strips 29…290 °C

Psychrometer 2× 0…60 °C, humidity 3…96 % RH

Immersion heater 300 W, power-regulated socket

Laboratory heater 450 W, thermostat up to 425 °C, water and sand baths

Vacuum flask 1 L

Precision resistors 10 / 100 / 1000 Ω

Analog output 0…10 V, temperature-proportional, on lab jacks

230V

47 kg
