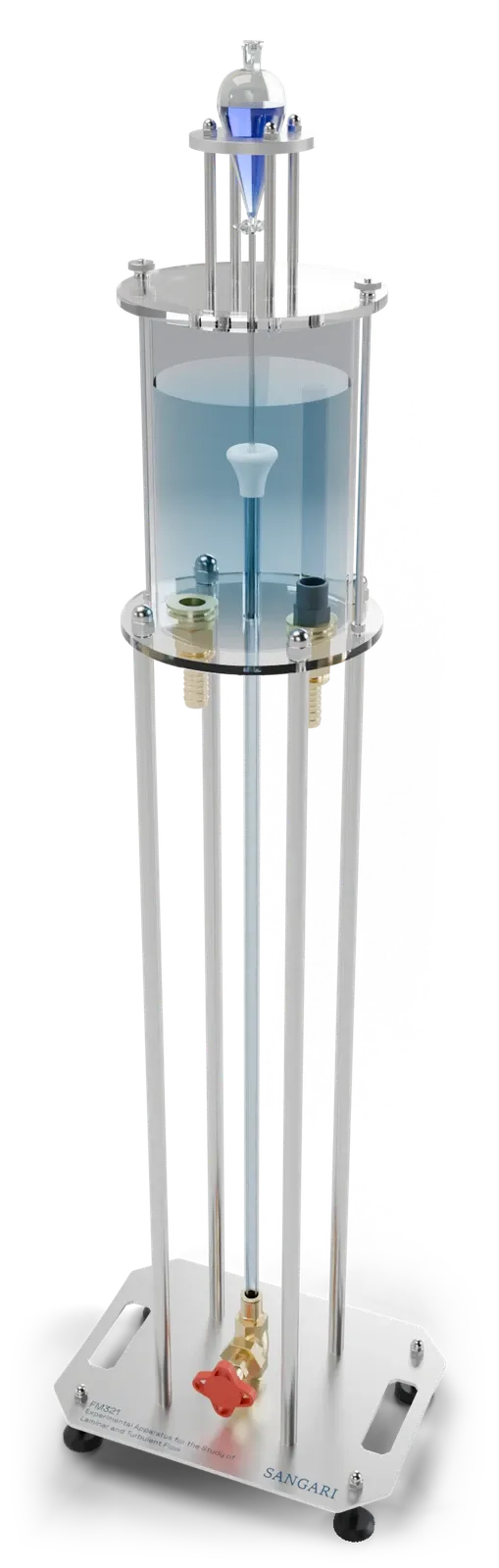

Apparatus dimensions W 700 × H 1500 × D 400 mm
Apparatus weight approx. 21 kg
Heating module separate unit with its own electrical supply, W 360 × H 450 × D 330 mm, 10 kg
Heating module controls electrical heat input and flow rate, with earth leakage protection and over-temperature cut-out
Power supply 230 V, 50 Hz, single phase, for the heating module
Bench connection hose connector, to the FM500 or any laboratory bench
Tube entry diffuser, stilling section and shaped bell-mouth, for a steady and uniform flow into the tube
Overflow fixed overflow pipe from the tank, piped out to a laboratory drain
Operating environment laboratory conditions
Operating temperature +5…+40 °C
Operating relative humidity 80 % at temperatures below 31 °C, falling linearly to 50 % at 40 °C
